How to use the extension cable

Use the Extension Cable

3
STEPS
TOOLS

Gather components, 1 extension cable and 1 Stylet

Gather components, 1 extension cable and 1 Stylet

Line up the red dot on the extension cable and the line on the connector.

Line up the red dot on the extension cable and the line on the connector.

Connect the Stylet to the extension cable

Connect the Stylet to the extension cable

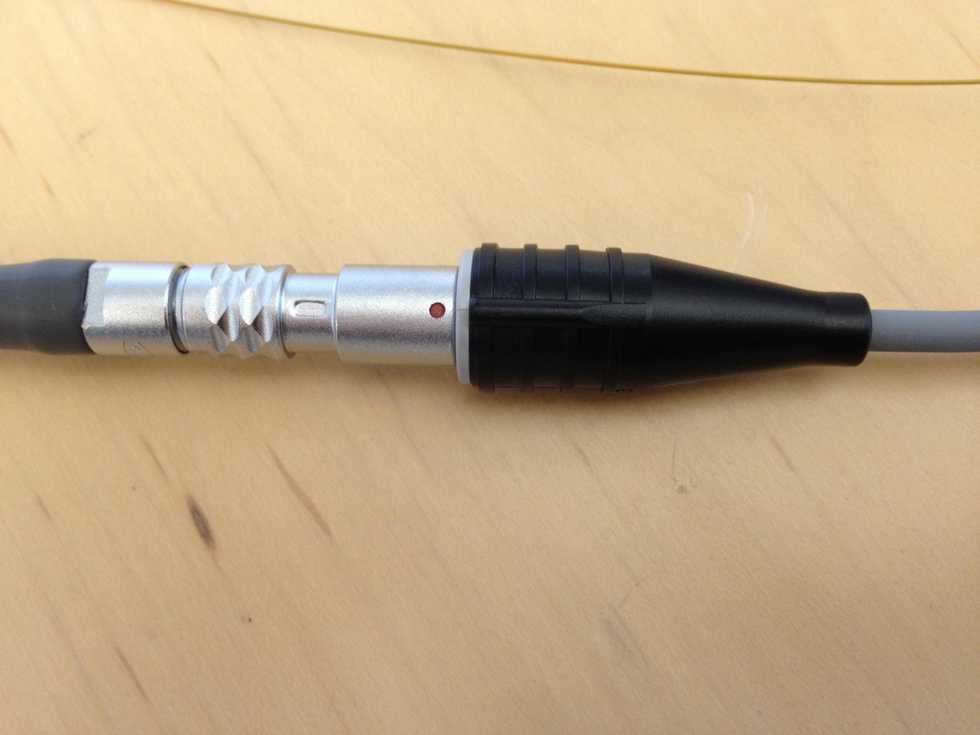

Picture of a correct connection between the extension cable and Stylet.

  • 1.0 Extension cable
  • 1.0 Stylet
