How to upgrade your proclip phone holder for the iphone 5

Upgrade Your Proclip Phone Holder for the iPhone 5

8
STEPS
TOOLS
Take holder off car mount - easiest achieved using the center screw

Take holder off car mount - easiest achieved using the center screw

Easiest to work with holder off the mount

Easiest to work with holder off the mount

Top view of the 30 pin connector

Top view of the 30 pin connector

Notice the 30 pin connector is mounted in the bottom of the holder with two screws. Be careful, it's also glued (see next photo)

Notice the 30 pin connector is mounted in the bottom of the holder with two screws. Be careful, it's also glued (see next photo)

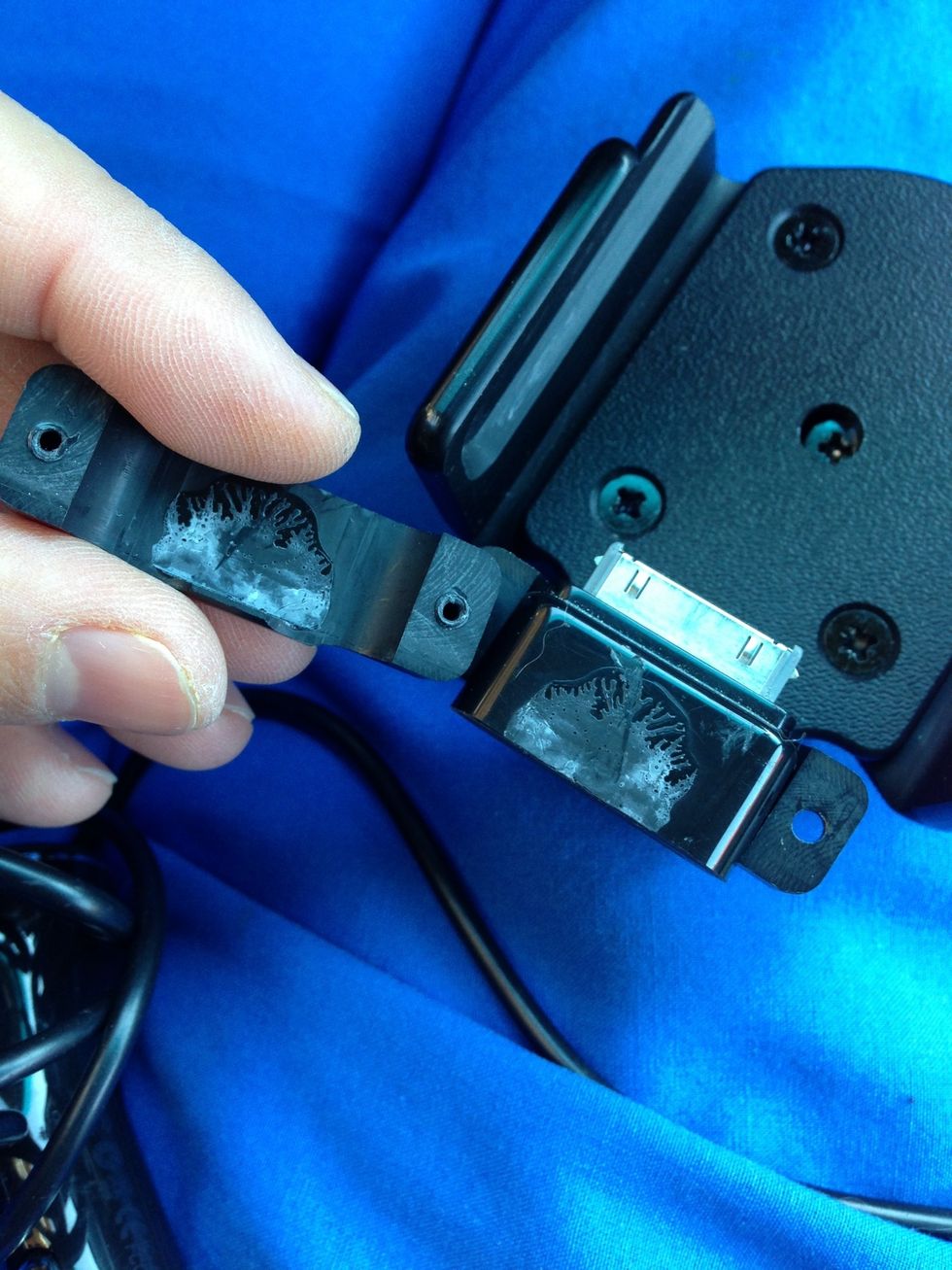

Use something to pry the plate off carefully, I used a thin blade and some heat from a blow drier. The glue was only on the front surface of mine

Use something to pry the plate off carefully, I used a thin blade and some heat from a blow drier. The glue was only on the front surface of mine

Here is the passthru connector out of the holder

Here is the passthru connector out of the holder

Note how the new adapter sits in the cradle. There will be extra room around it.

Note how the new adapter sits in the cradle. There will be extra room around it.

Add padding to make up for the extra space around the connector. I used double stick foam tape.

Add padding to make up for the extra space around the connector. I used double stick foam tape.

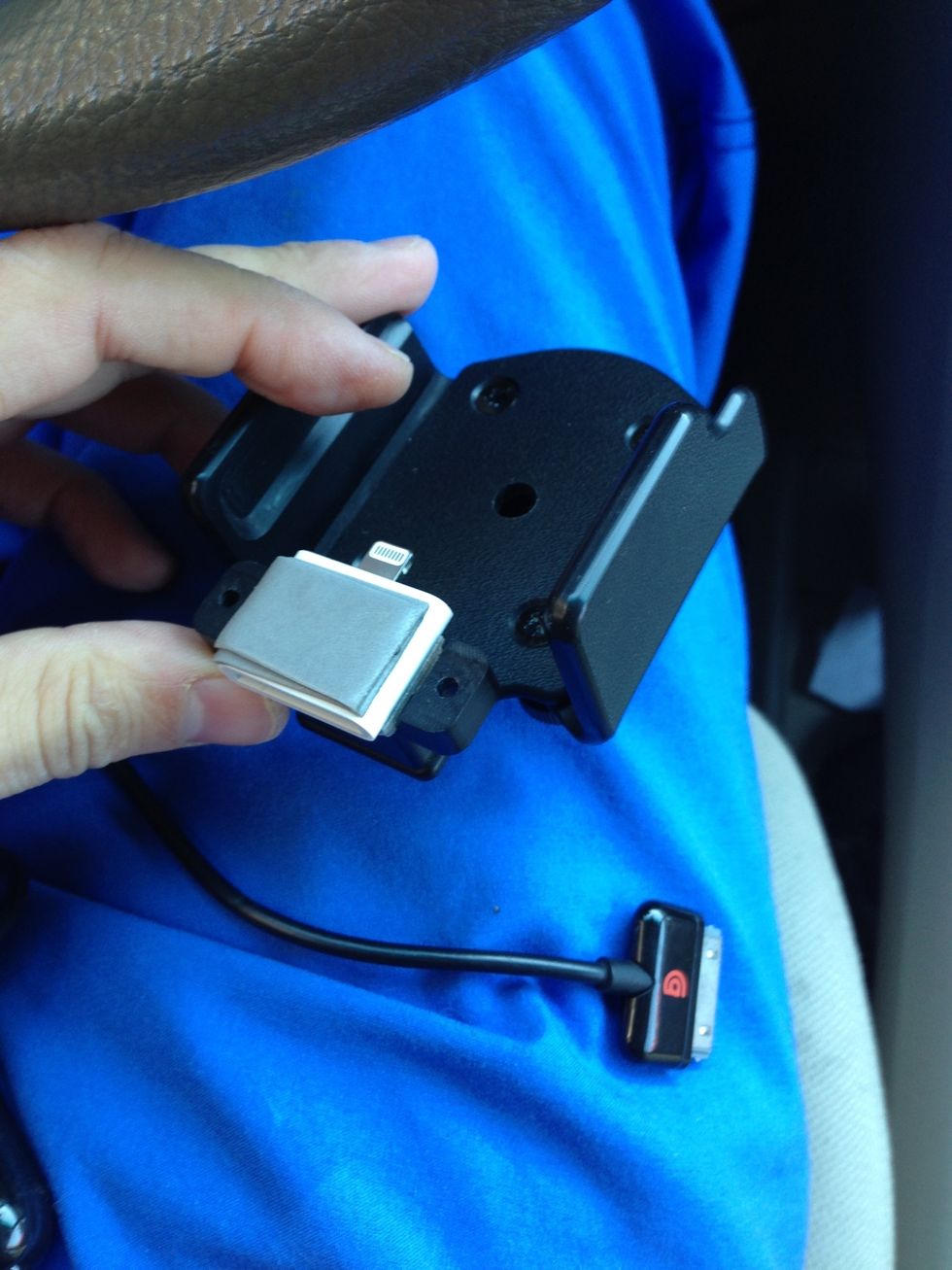

Take your new lightning to 30-pin connector and look at where it sits. I suggest plugging it into your phone and putting your phone in the cradle to see where it rests.

Take your new lightning to 30-pin connector and look at where it sits. I suggest plugging it into your phone and putting your phone in the cradle to see where it rests.

Screw the front part back together

Screw the front part back together

Put the cradle back onto the mount

Put the cradle back onto the mount

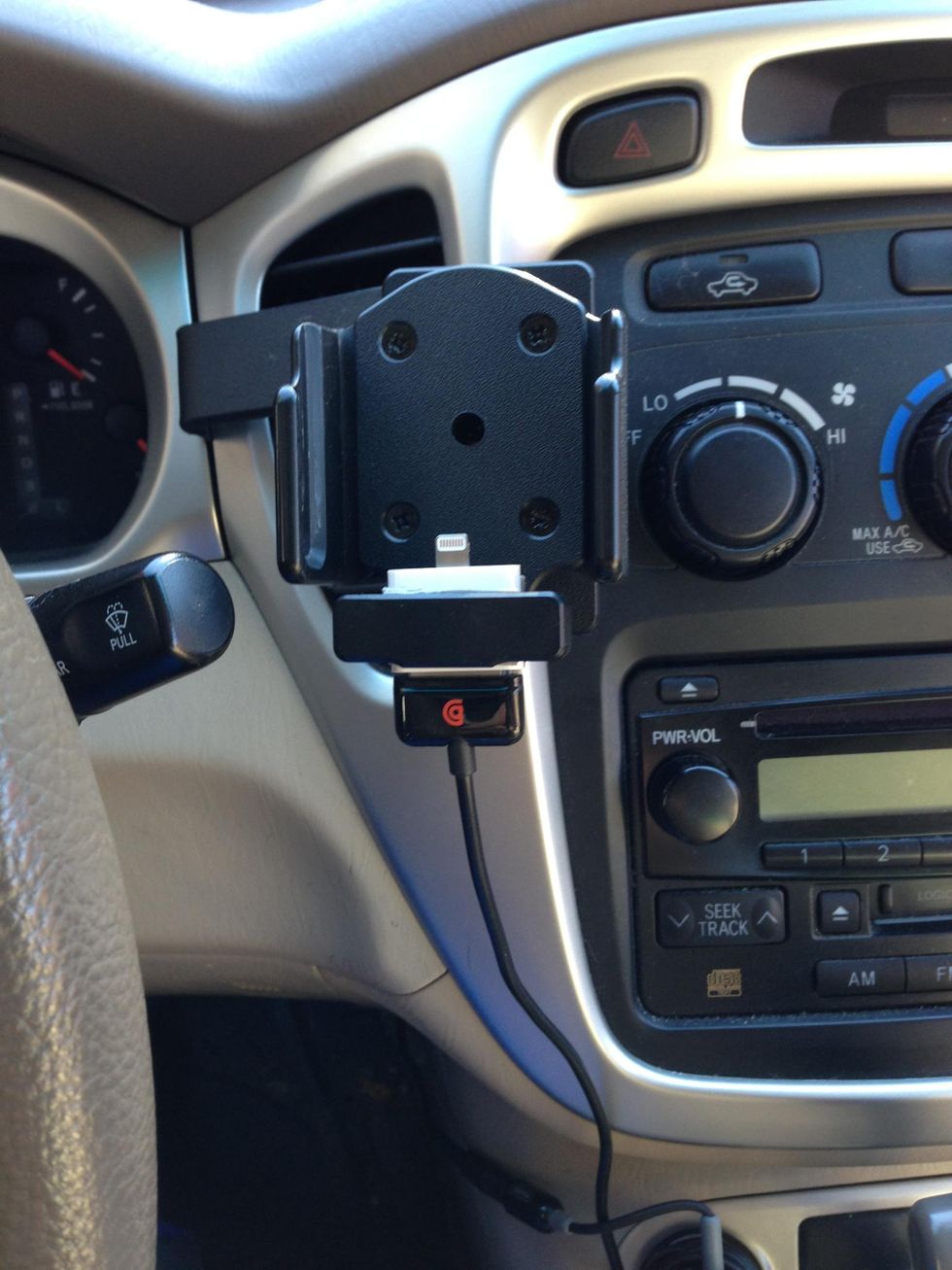

And back in business!! Enjoy your new iPhone the way you use to!

  • 1.0 Phillips screwdriver
  • 1.0 Apple lightning to 30 pin adapter
  • 1.0 Proclip iPhone holder
  • 1.0 Thin blade or flat screwdriver
  • 1.0 Heat source (optional but helpful)
  • 1.0 Double stick foam tape
