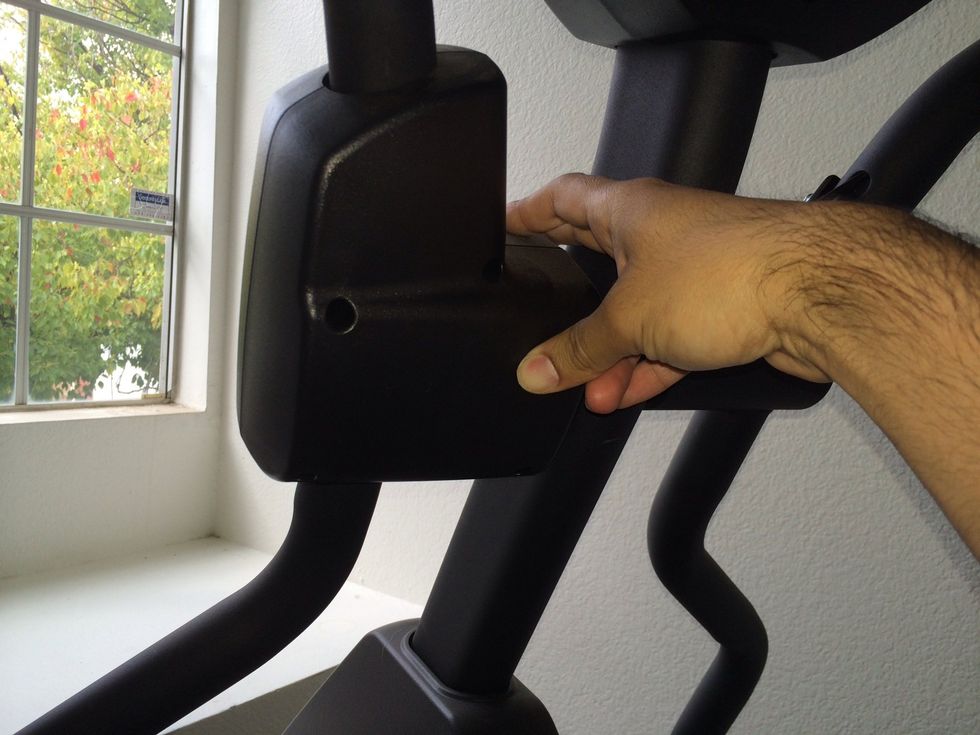

Remove 4 screws from enclosure. One enclosure on each side.

Remove 4 screws from enclosure. One enclosure on each side.

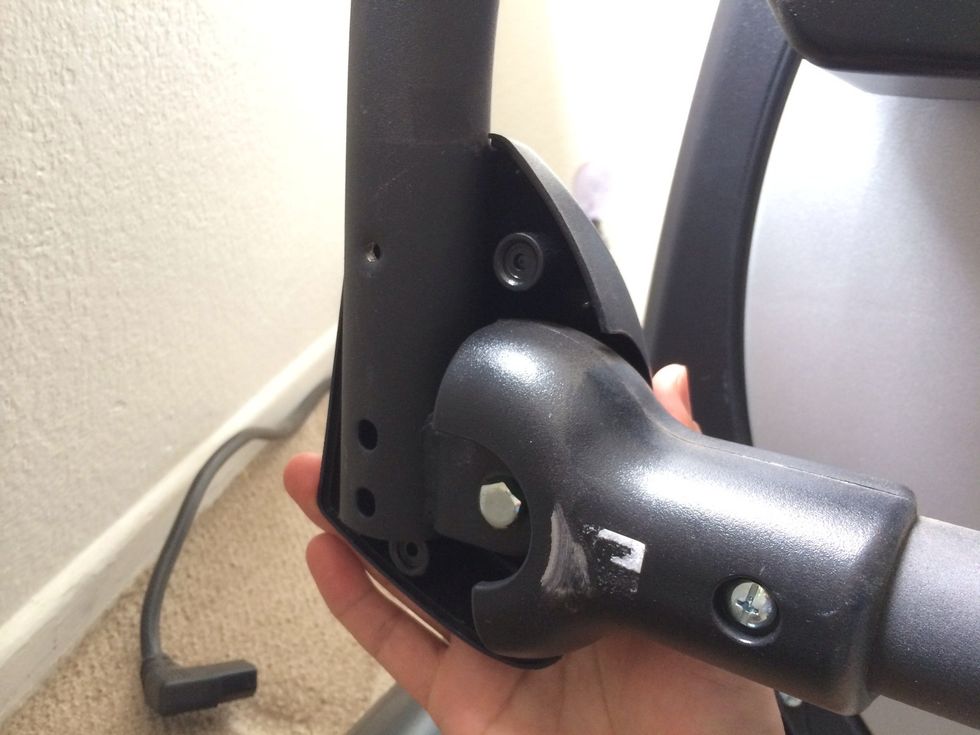

Remove lower enclosure. One bolt on the outside; one large and two small screws on the inside. One enclosure on each side.

Remove lower enclosure. One bolt on the outside; one large and two small screws on the inside. One enclosure on each side.

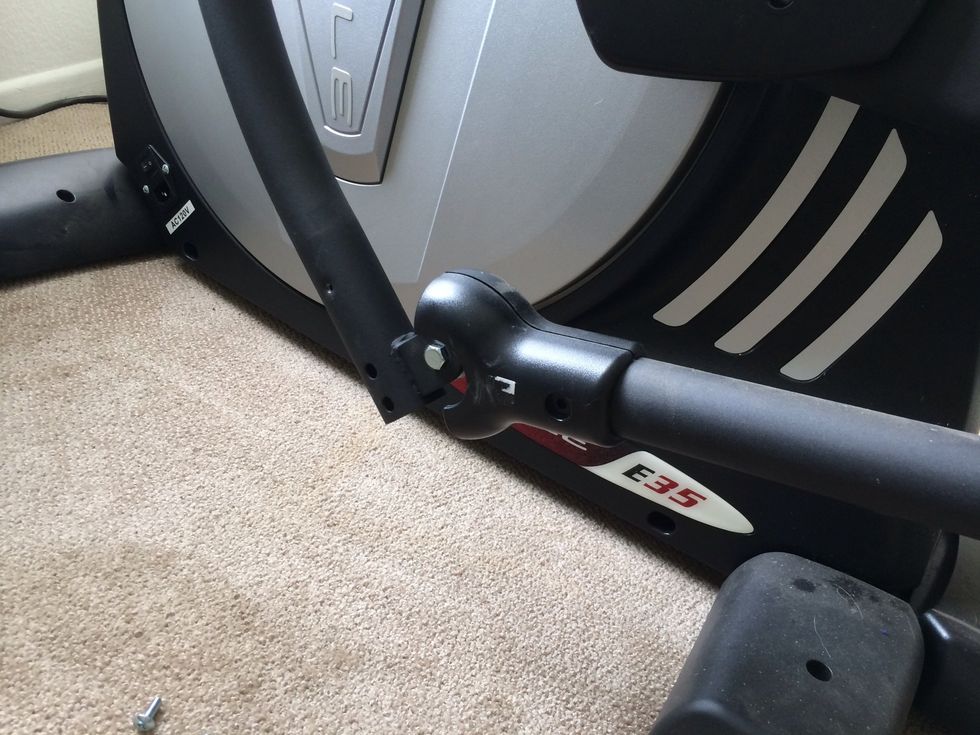

Remove enclosure. 2 bolts; 2 small screws; remove enclosure on each side.

Remove enclosure. 2 bolts; 2 small screws; remove enclosure on each side.

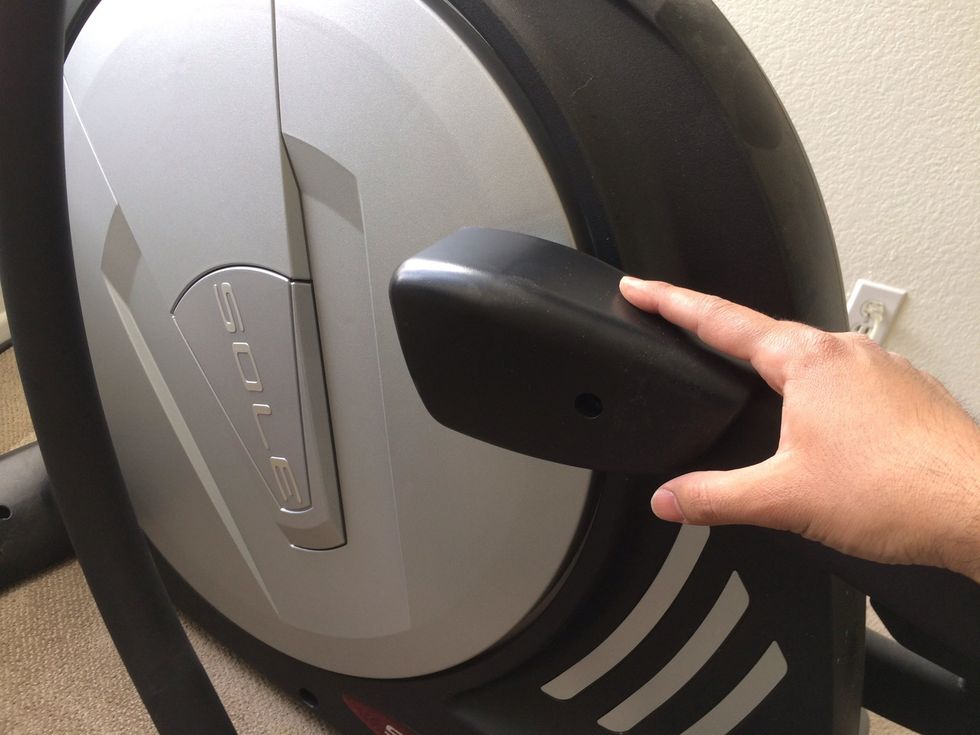

Remove cover. 1 short bolt. Remove cover on both sides.

Remove cover. 1 short bolt. Remove cover on both sides.

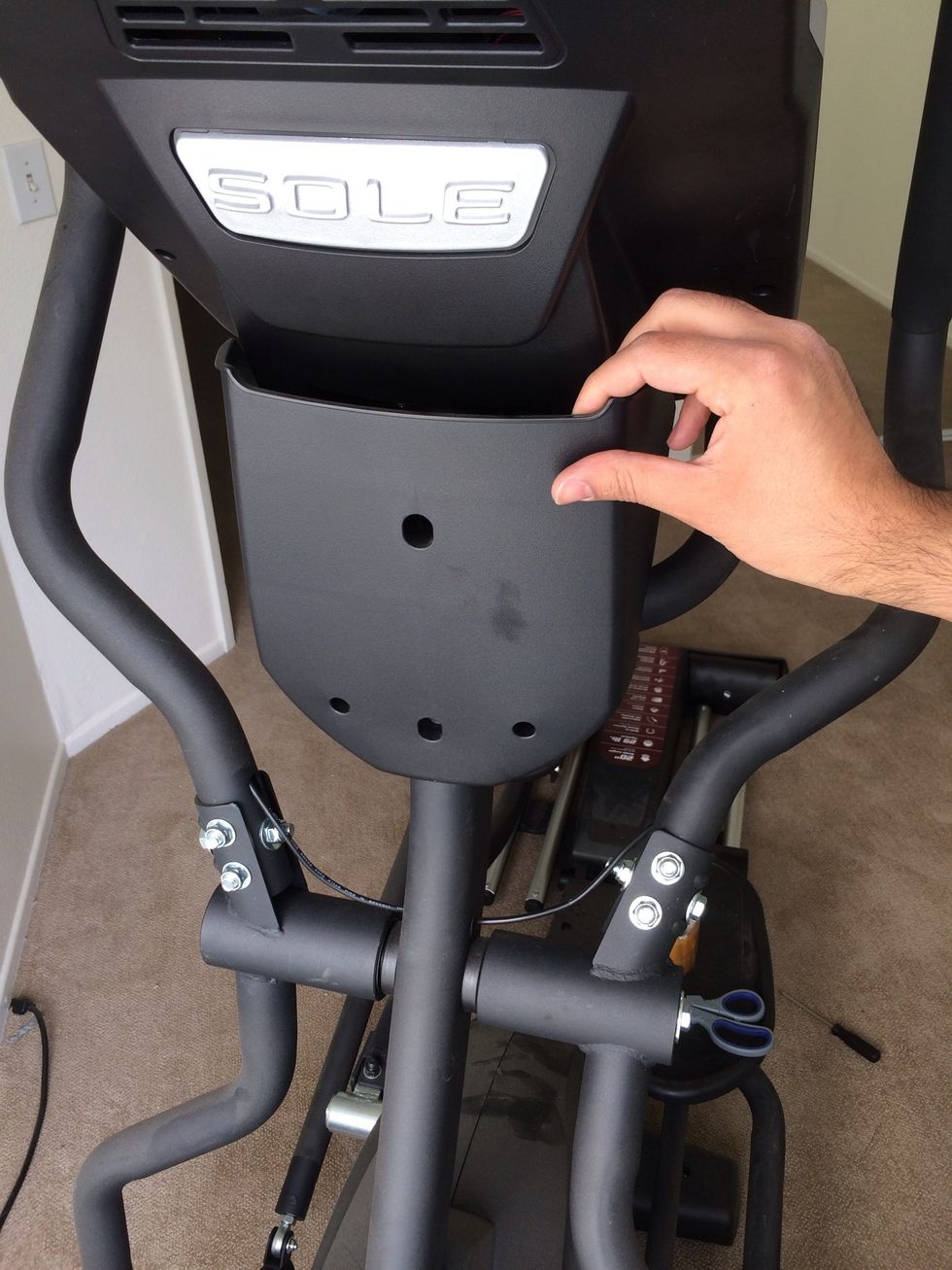

Remove center cover. 2 small screws; 2 bolts on outside; 1 bolt on inside.

Remove center cover. 2 small screws; 2 bolts on outside; 1 bolt on inside.

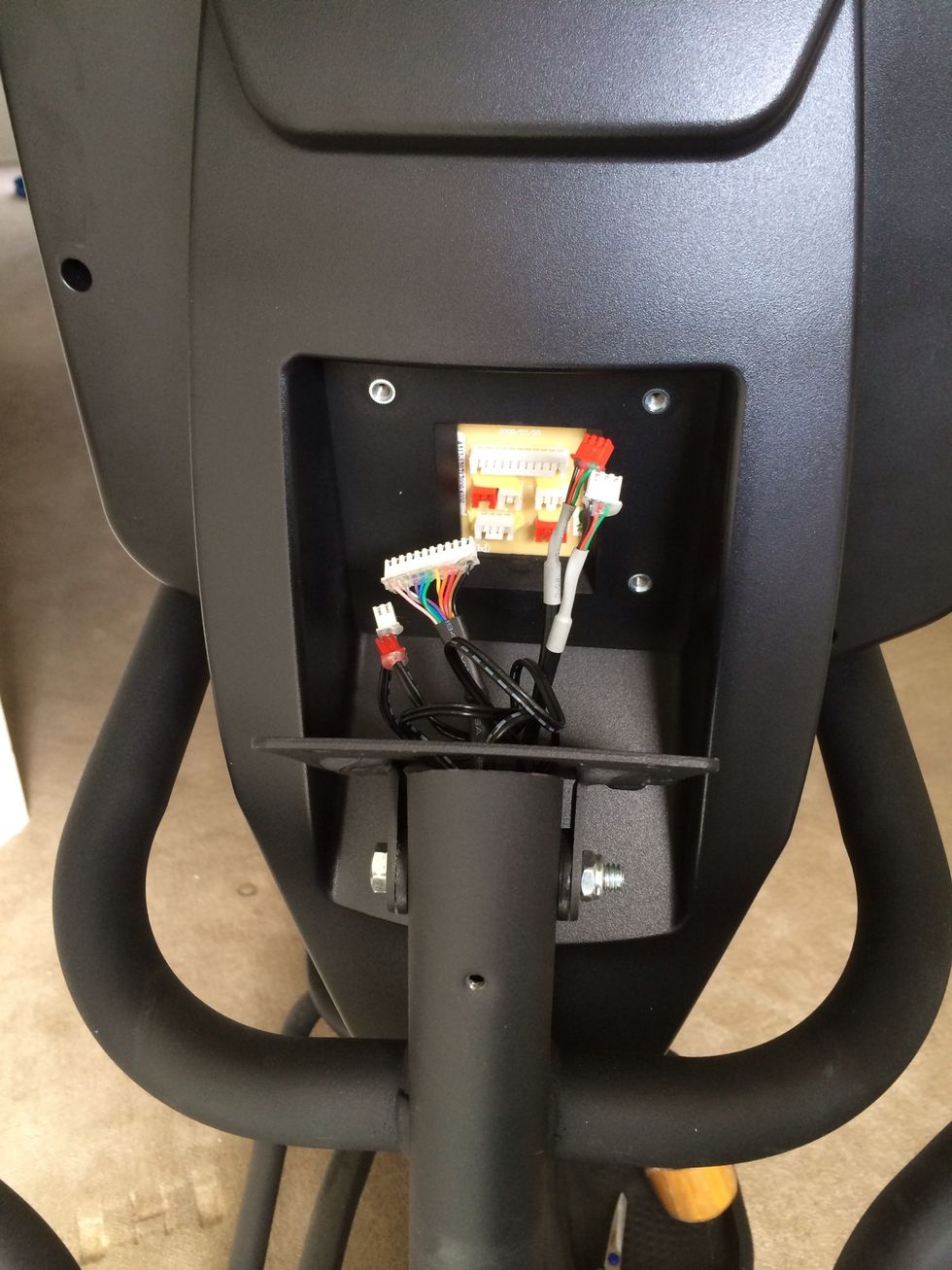

Carefully remove 4 bolts on back of head unit. Then carefully remove electrical components from board.

Carefully remove 4 bolts on back of head unit. Then carefully remove electrical components from board.

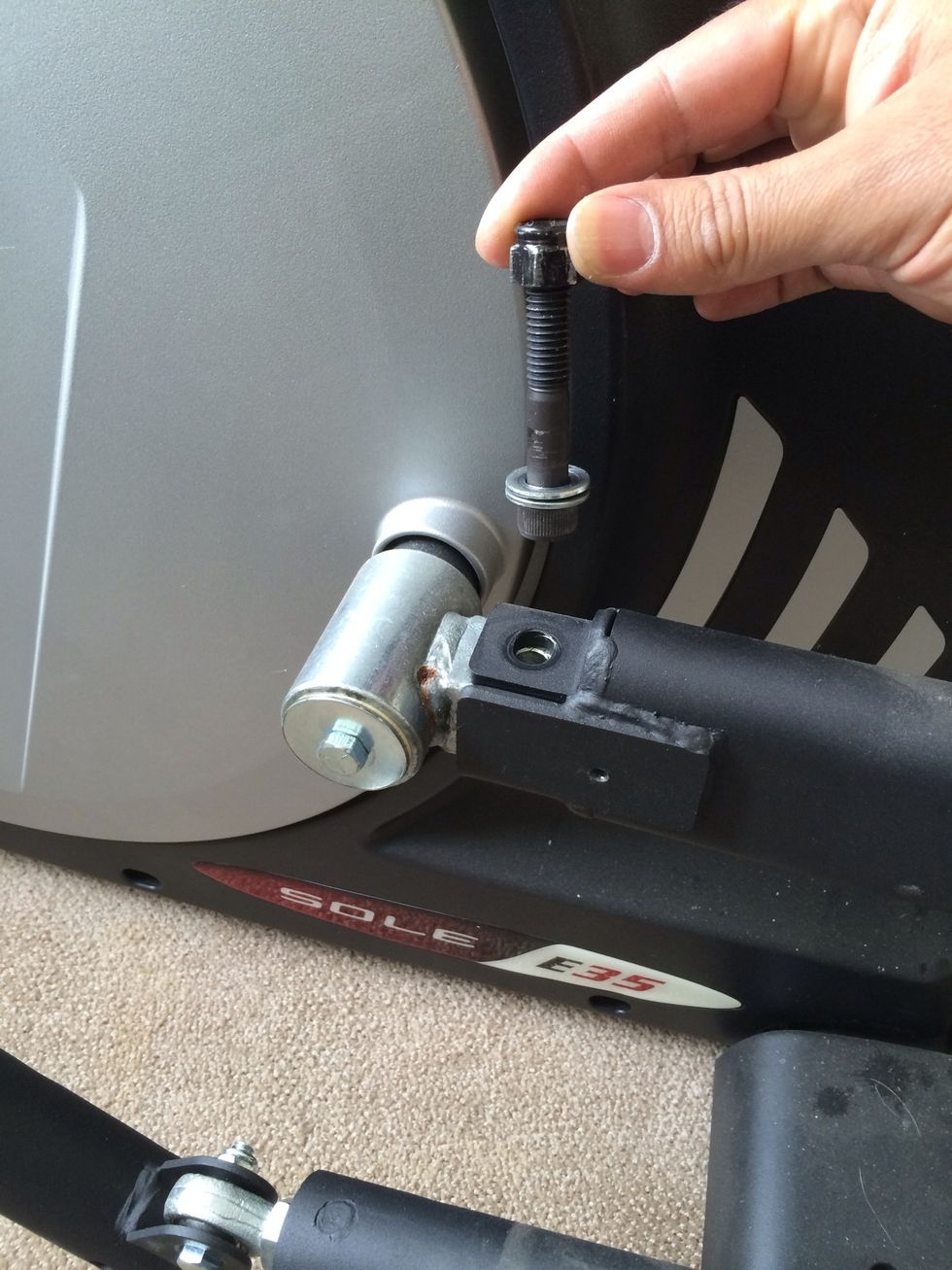

Remove bolt and nut using a wrench and pressure pliers. Remove from each arm.

Remove bolt and nut using a wrench and pressure pliers. Remove from each arm.

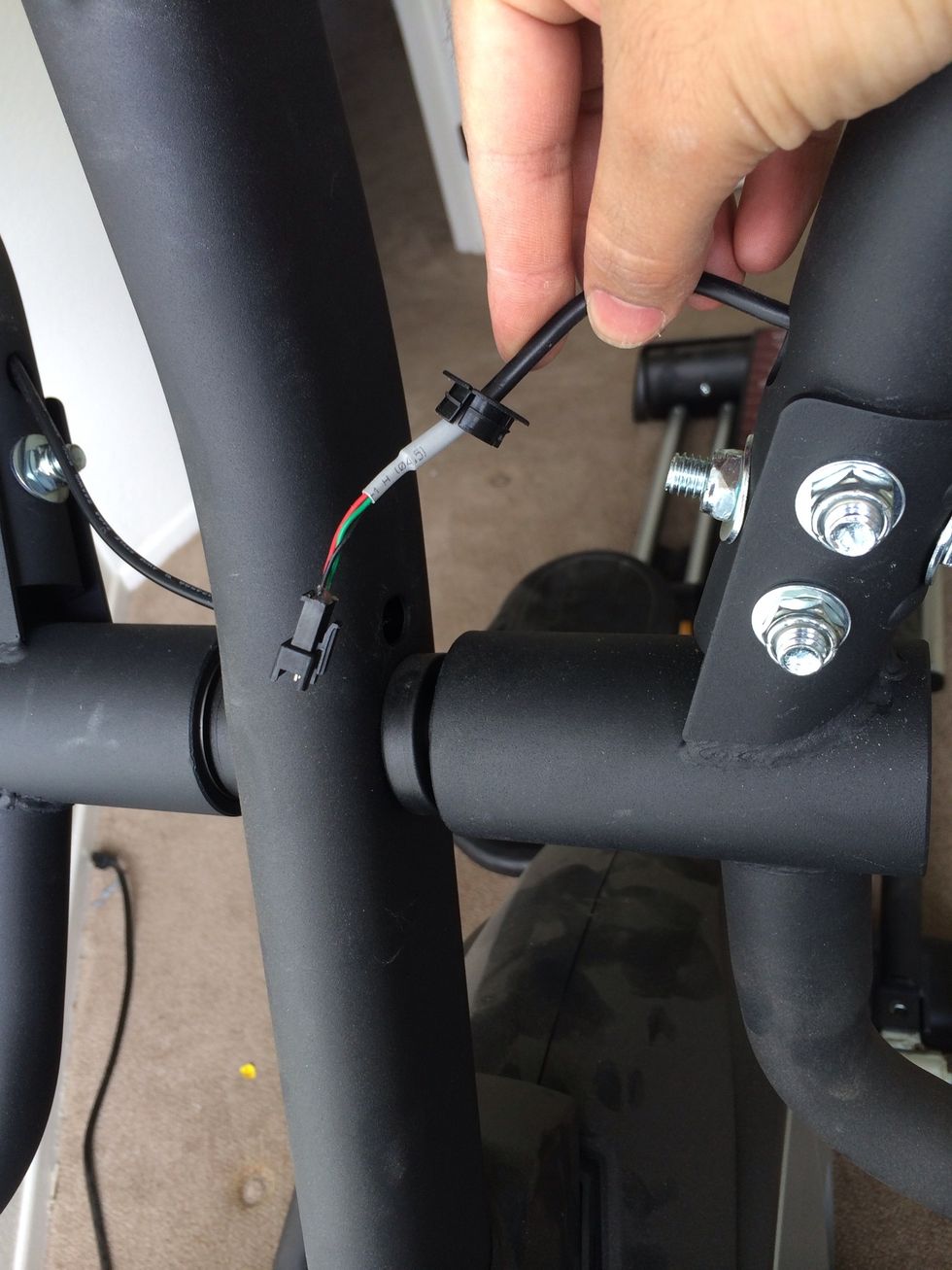

Pull out rubber stopper to carefully detach electrical component.

Pull out rubber stopper to carefully detach electrical component.

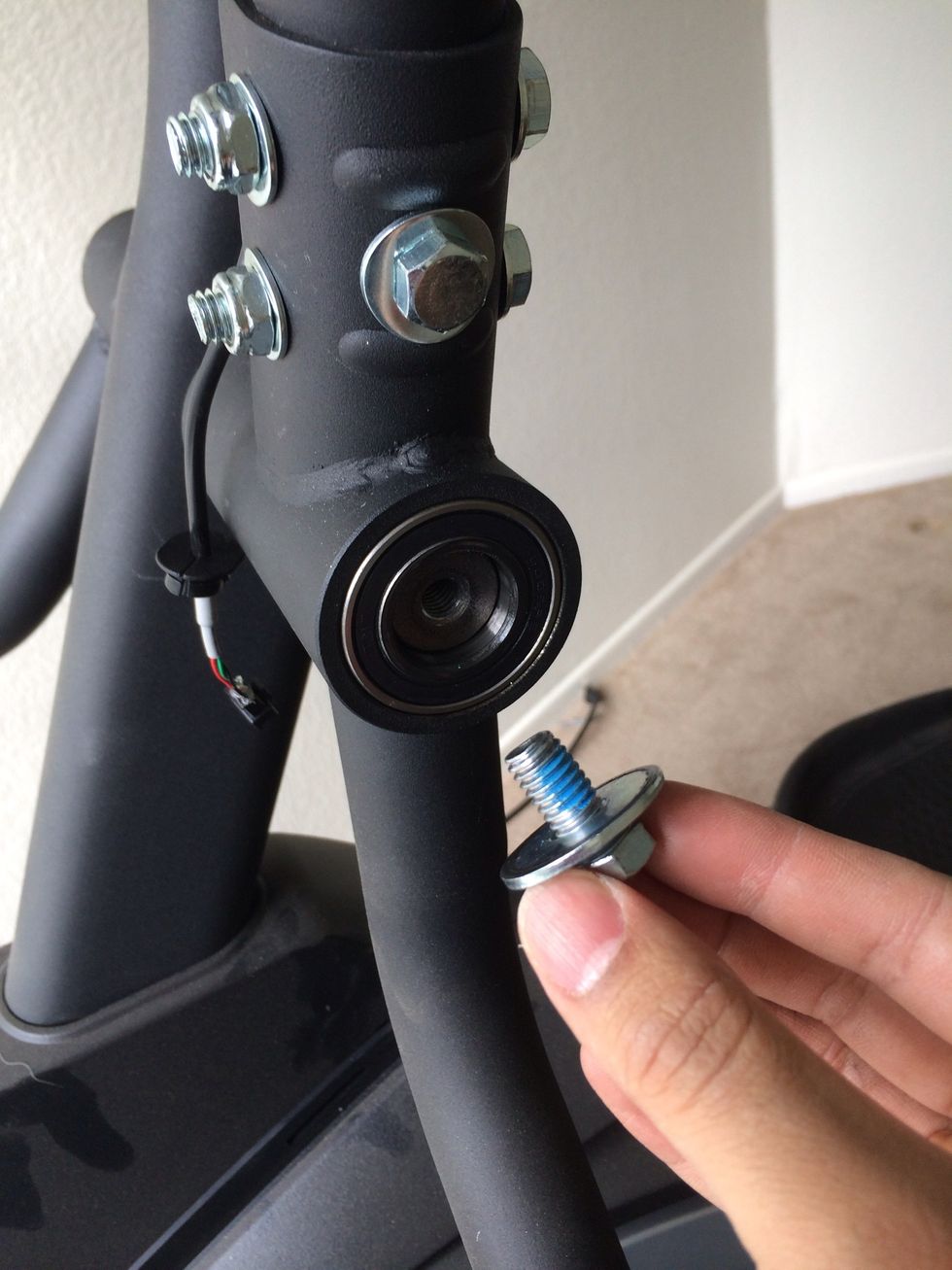

Remove bolt and washer from center backbone. Each arm.

Remove bolt and washer from center backbone. Each arm.

Jiggle the arm/leg out of this socket. Each side.

Jiggle the arm/leg out of this socket. Each side.

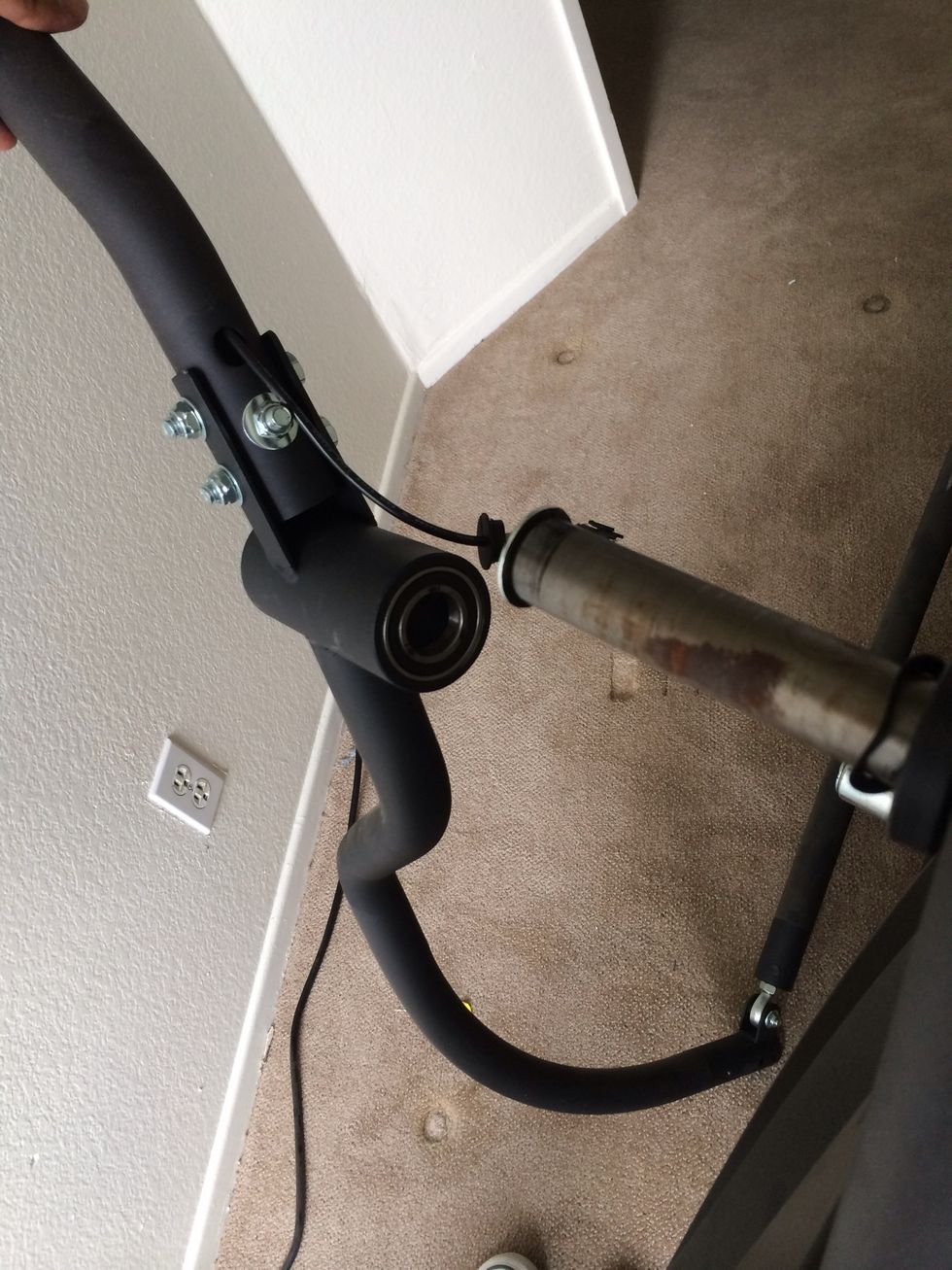

Jiggle out the beam from the arm. Both sides.

Jiggle out the beam from the arm. Both sides.

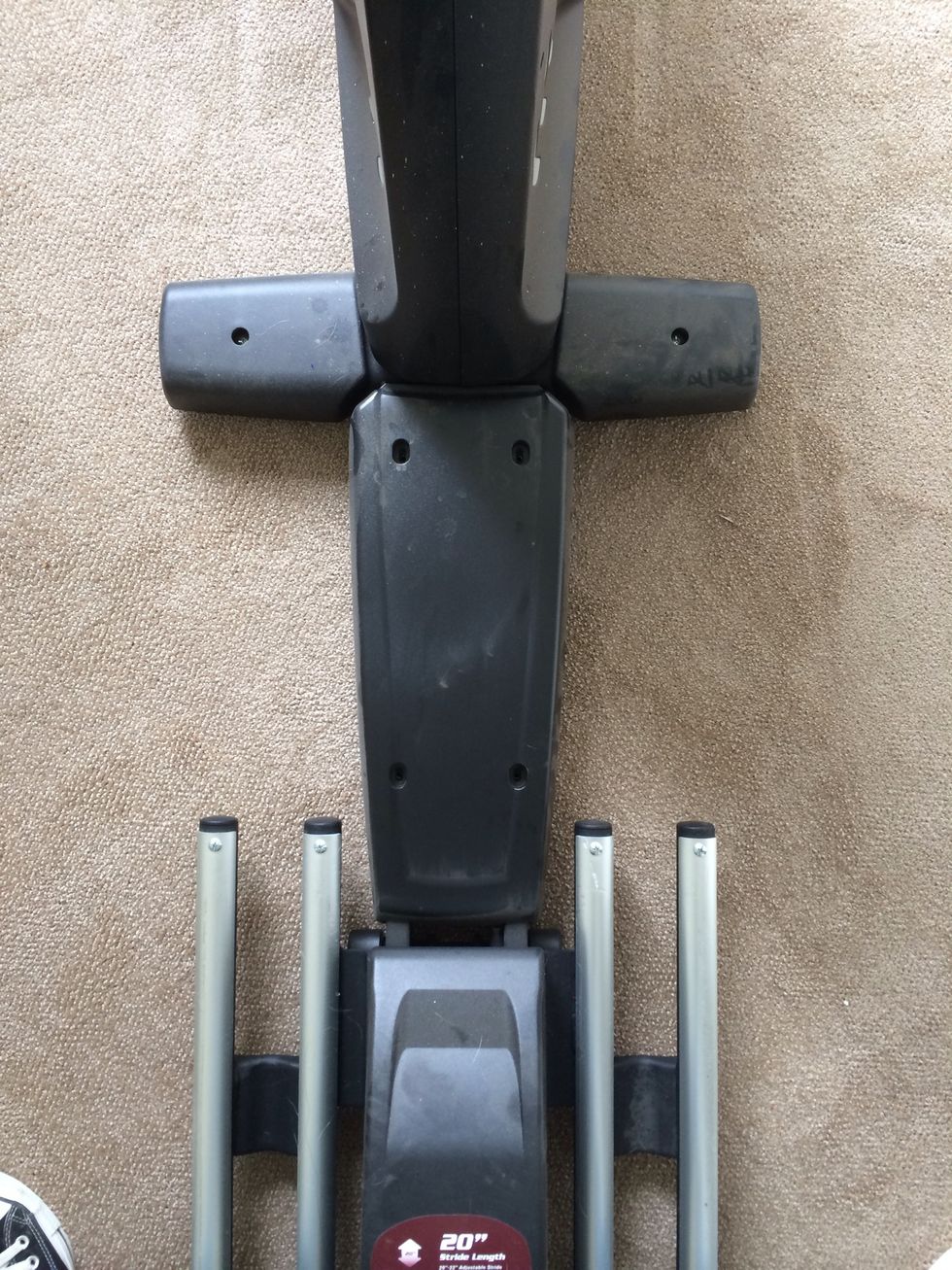

Remove base cover. 4 bolts.

Remove base cover. 4 bolts.

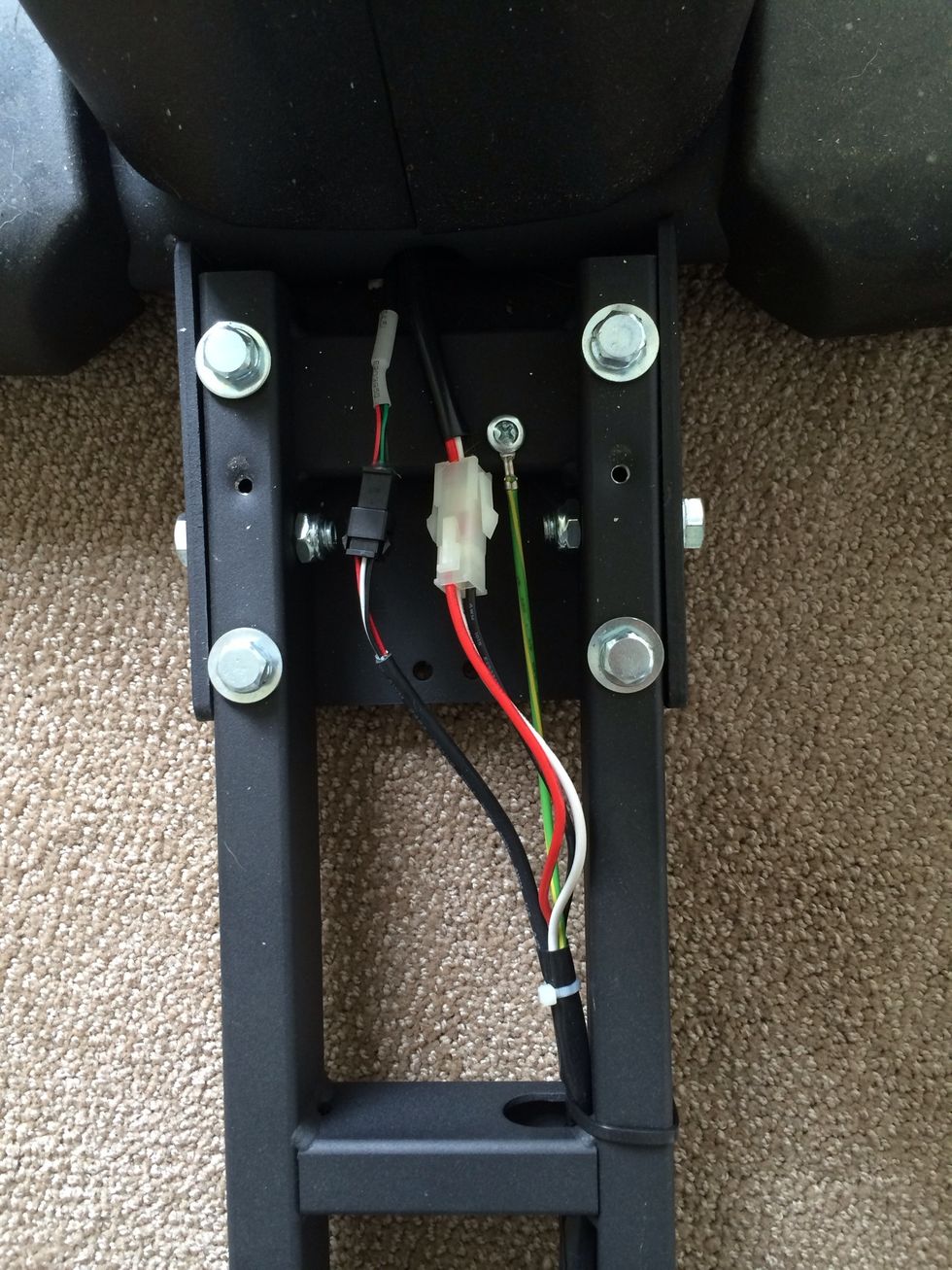

Carefully detach wires and ground. Remove 4 bolts on top; 2 bolts on sides.

You can pretty much move the elliptical parts around now. The barrel is a beast to carry!

  • Philips screwdriver
