How to take apart helior's bowflex

Take Apart Helior's Bowflex

27
STEPS
TOOLS

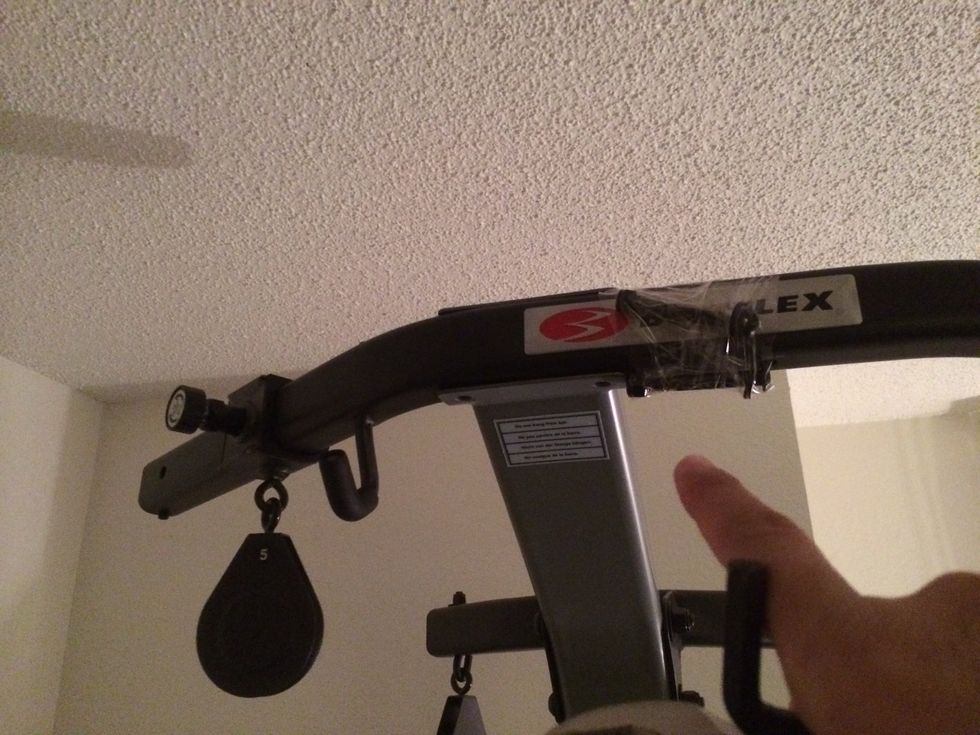

Remove the top mast. 2 bolts.

Remove the top mast. 2 bolts.

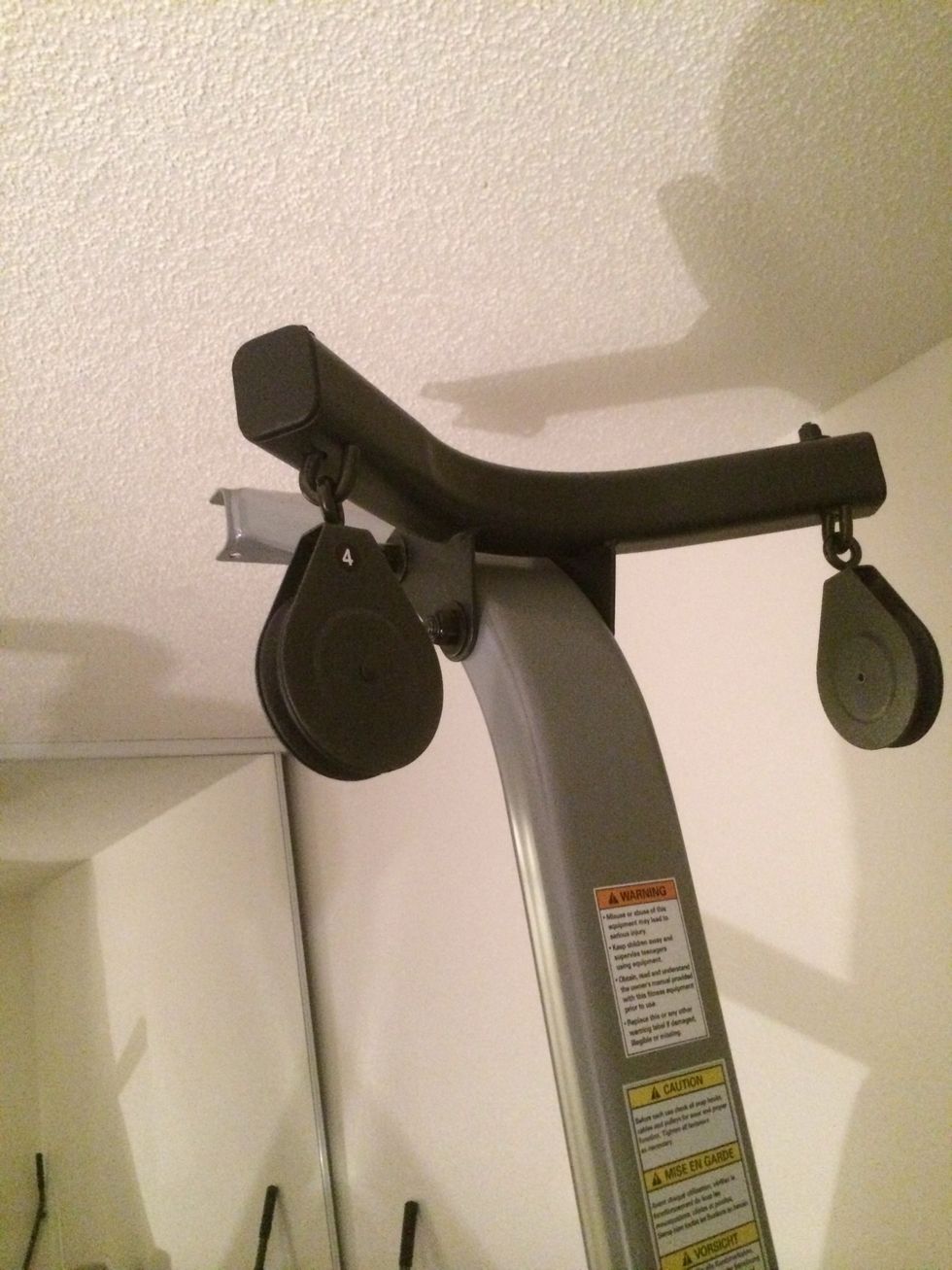

Remove 2 large bolts.

Remove 2 large bolts.

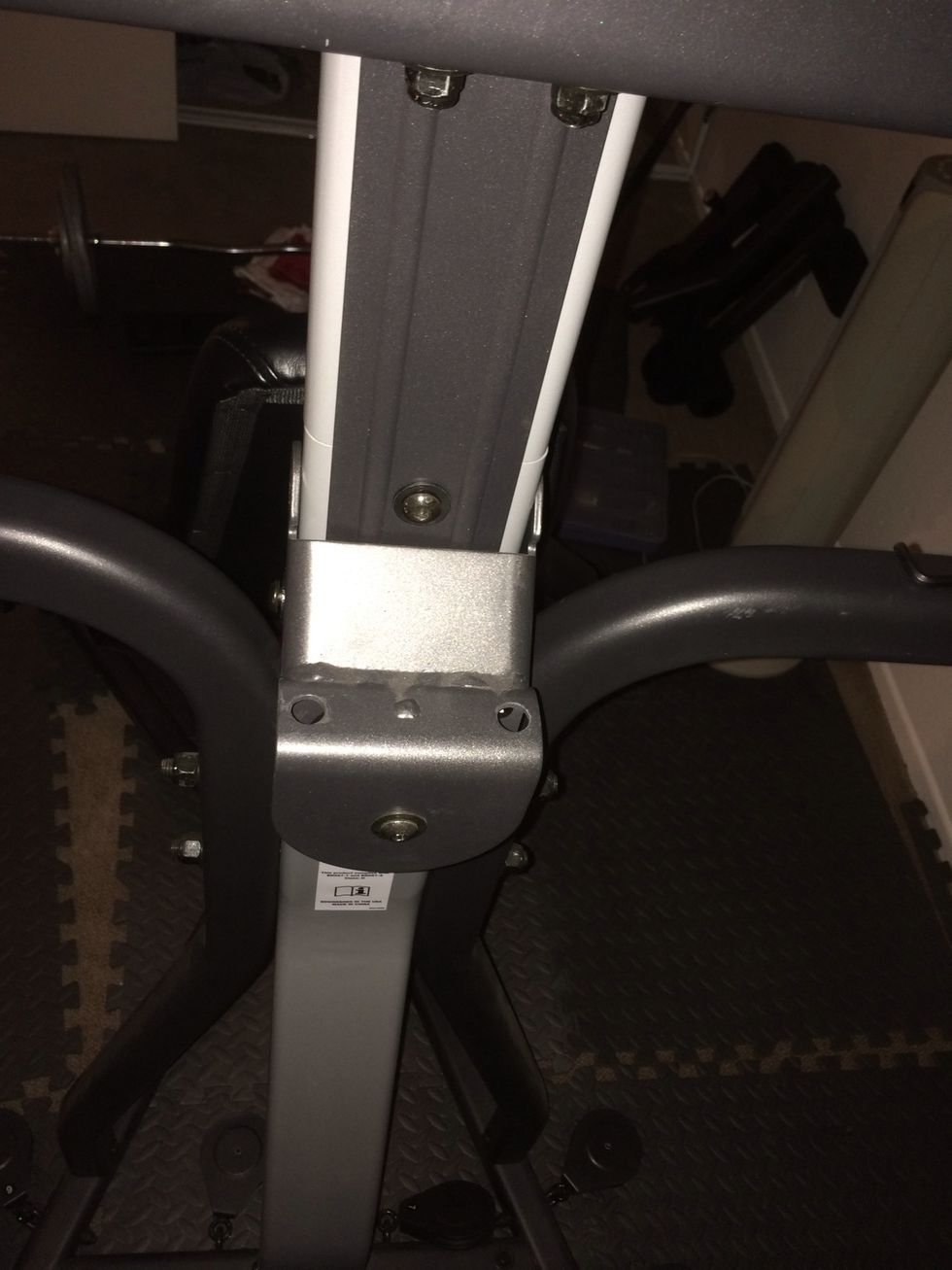

The wheel is the backbone, remove that first large bolt. Then 5 other smaller bolts.

The wheel is the backbone, remove that first large bolt. Then 5 other smaller bolts.

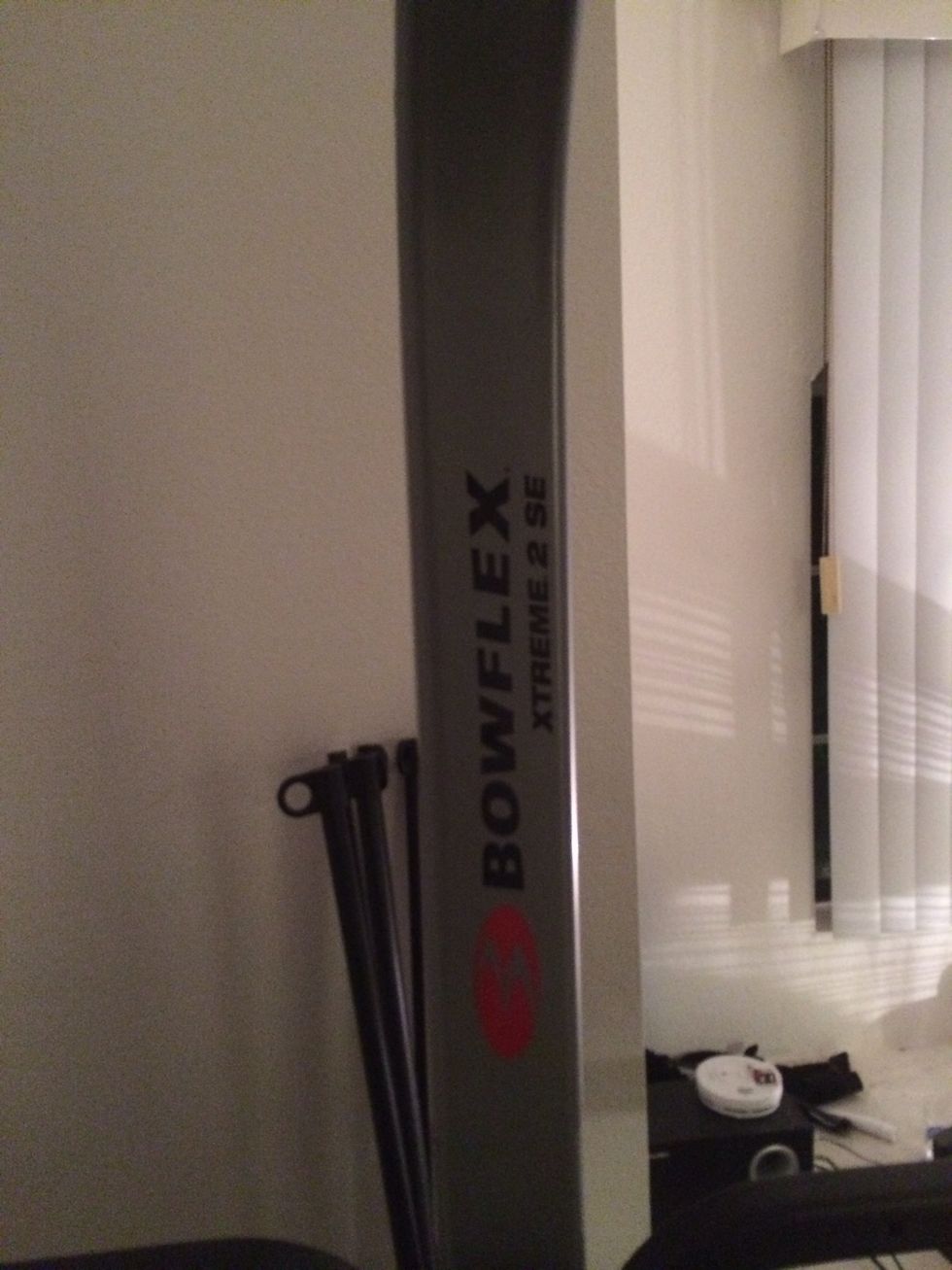

Pull out the top beam.

Pull out the top beam.

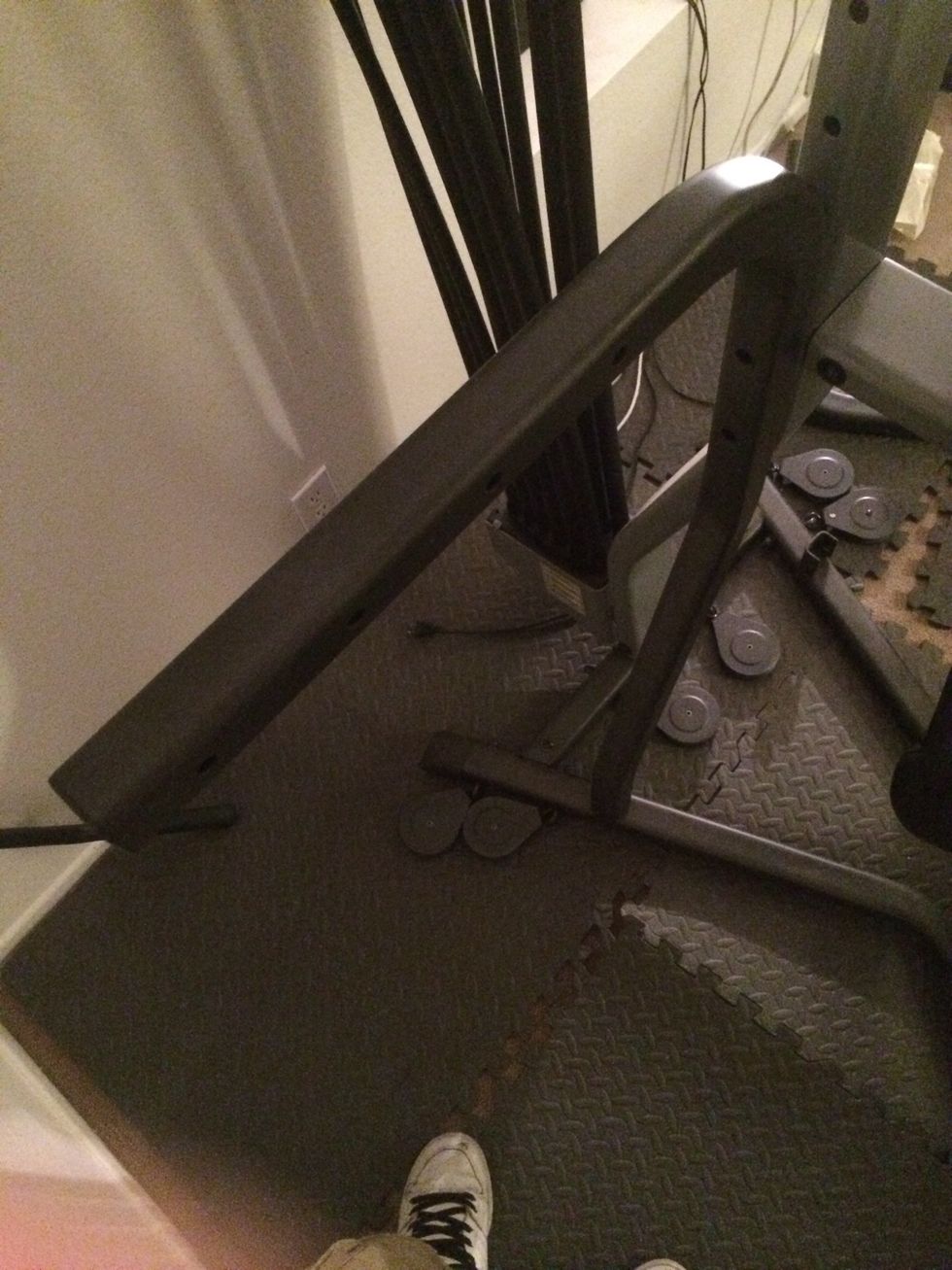

Remove both lateral arms. Two large bolts towards the top, and 2 smaller bolts on each leg.

Remove both lateral arms. Two large bolts towards the top, and 2 smaller bolts on each leg.

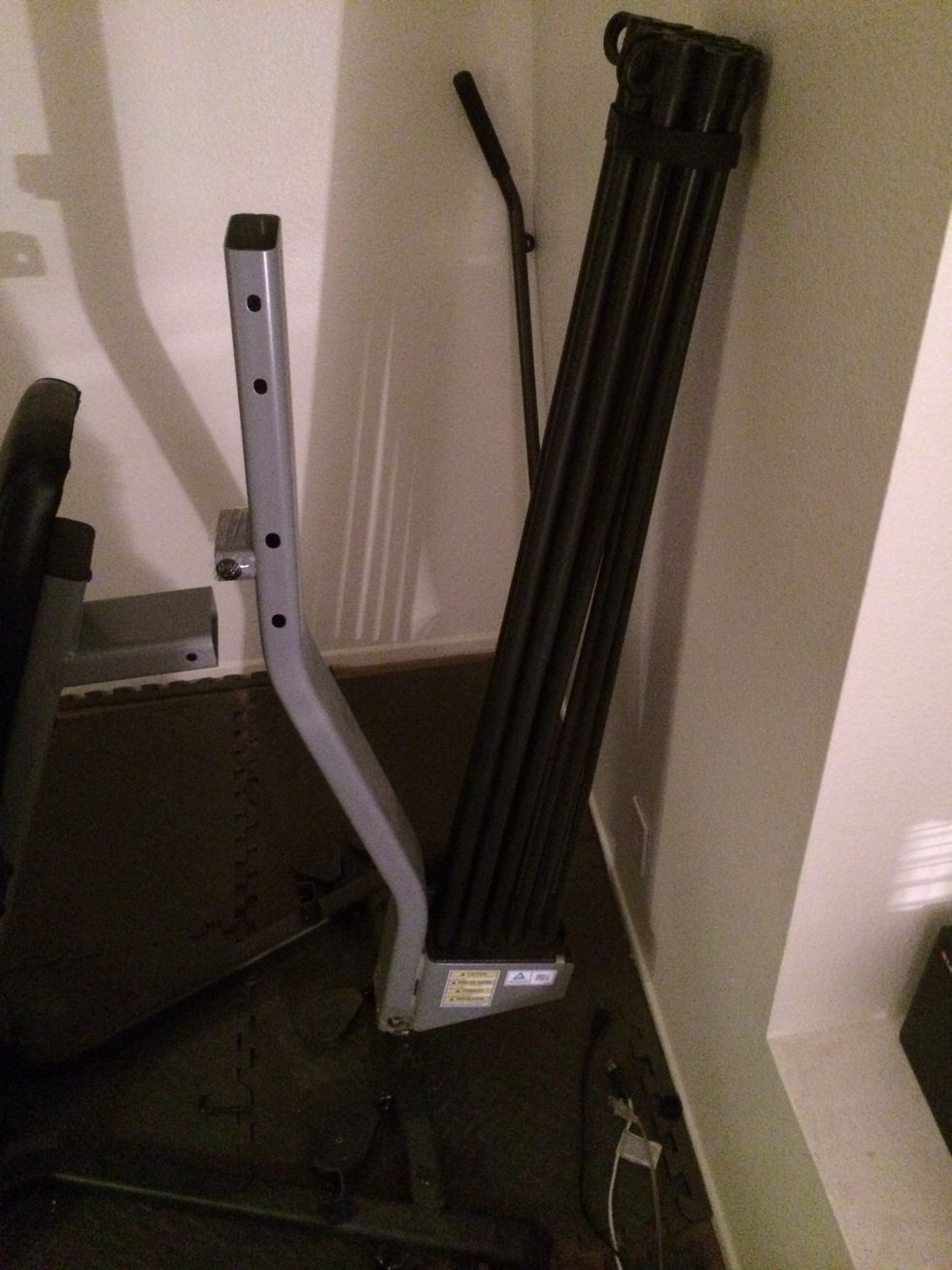

Remove the back spine with resistance beams intact.

Remove the back spine with resistance beams intact.

Remove 2 small bolts and 1 long bolt from the base of the back rest.

  • Wrench
  • Allen wrench
