How to take a transmission apart and put it back together

I'm going to show you how to take a four speed transmission apart and put it back together

4
STEPS
TOOLS

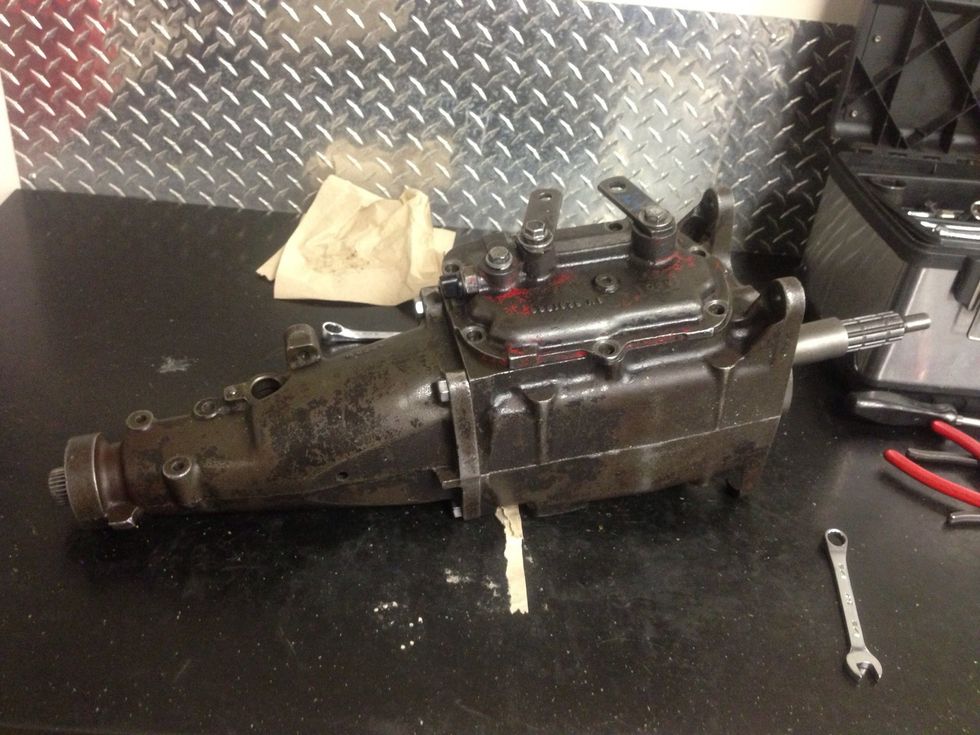

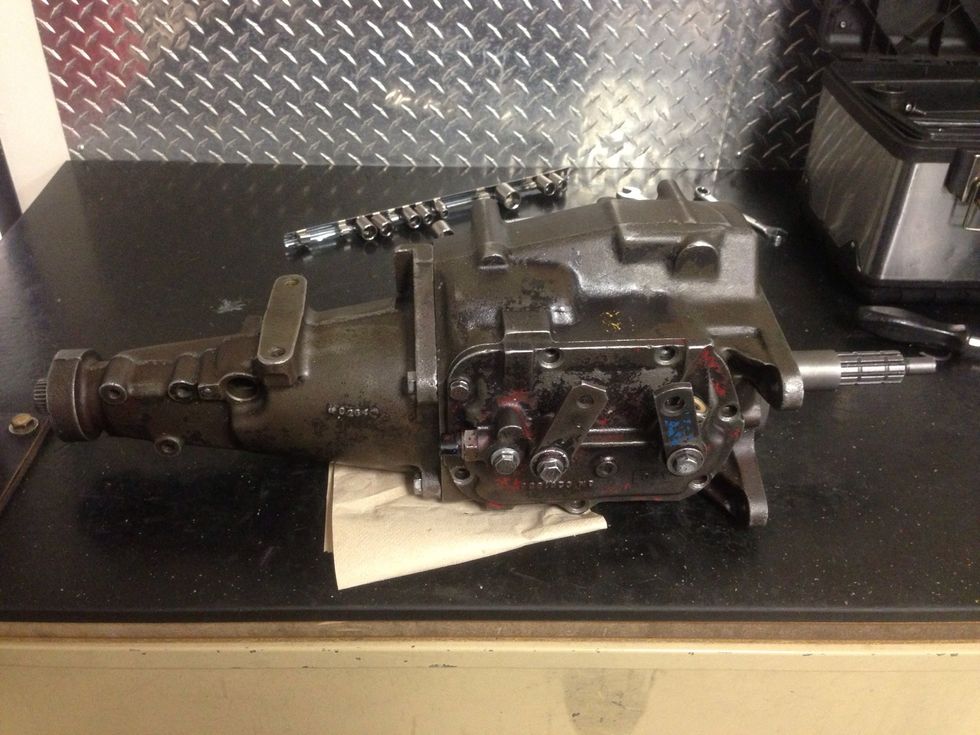

Step 1  Place the tran on a Bench

Step 1 Place the tran on a Bench

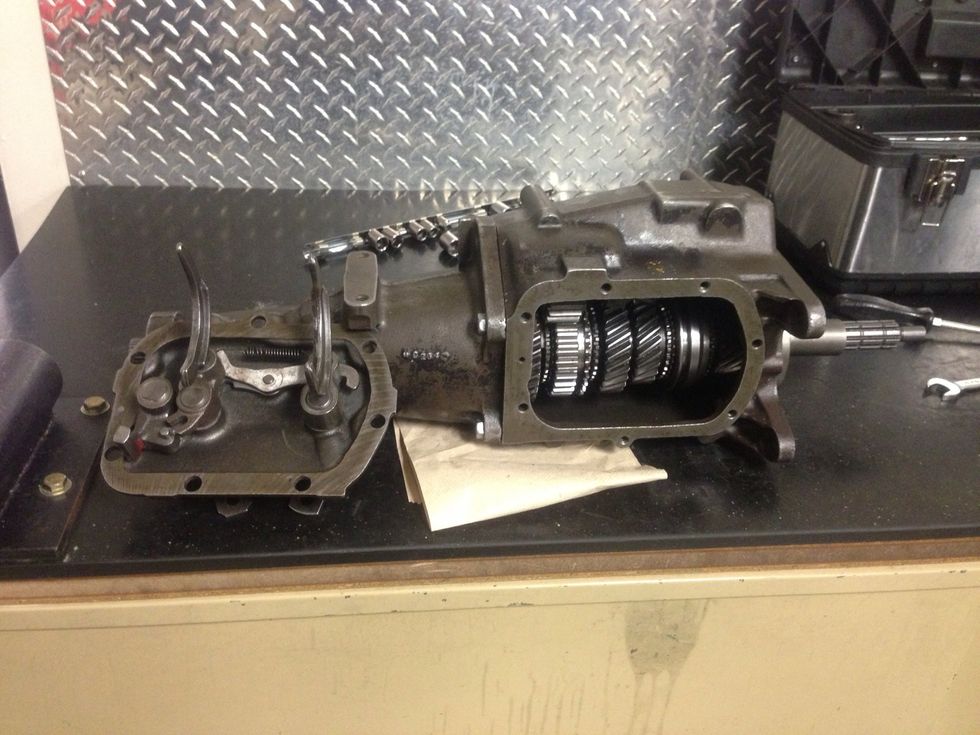

Step 2  take the shifter cover off

Step 2 take the shifter cover off

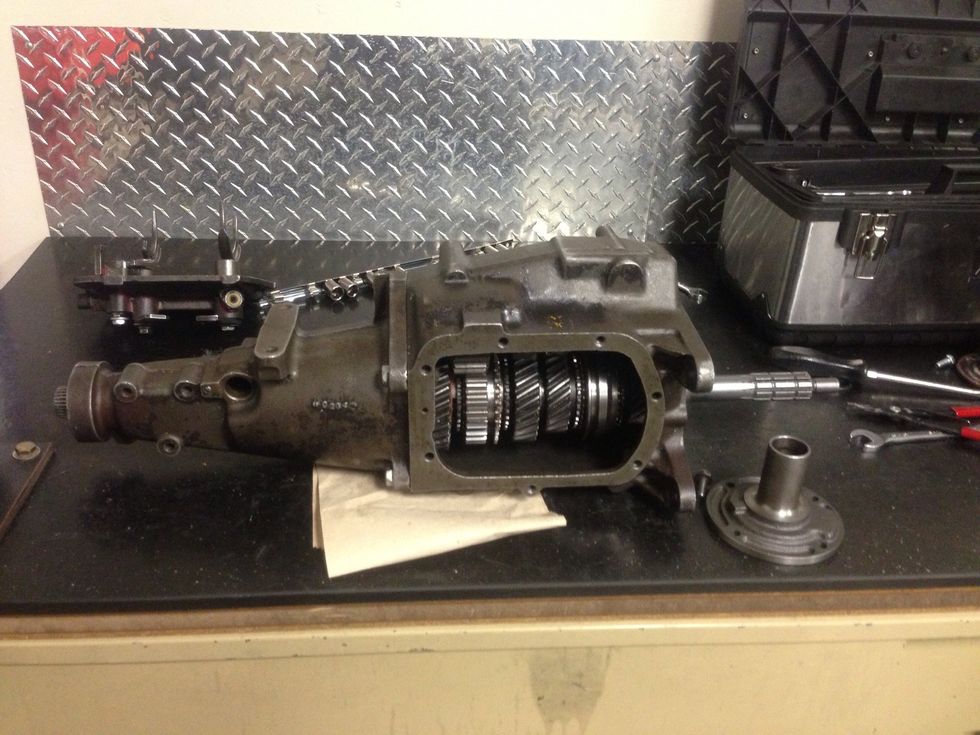

Step 3  Take the Pilot bearing hub off

Step 3 Take the Pilot bearing hub off

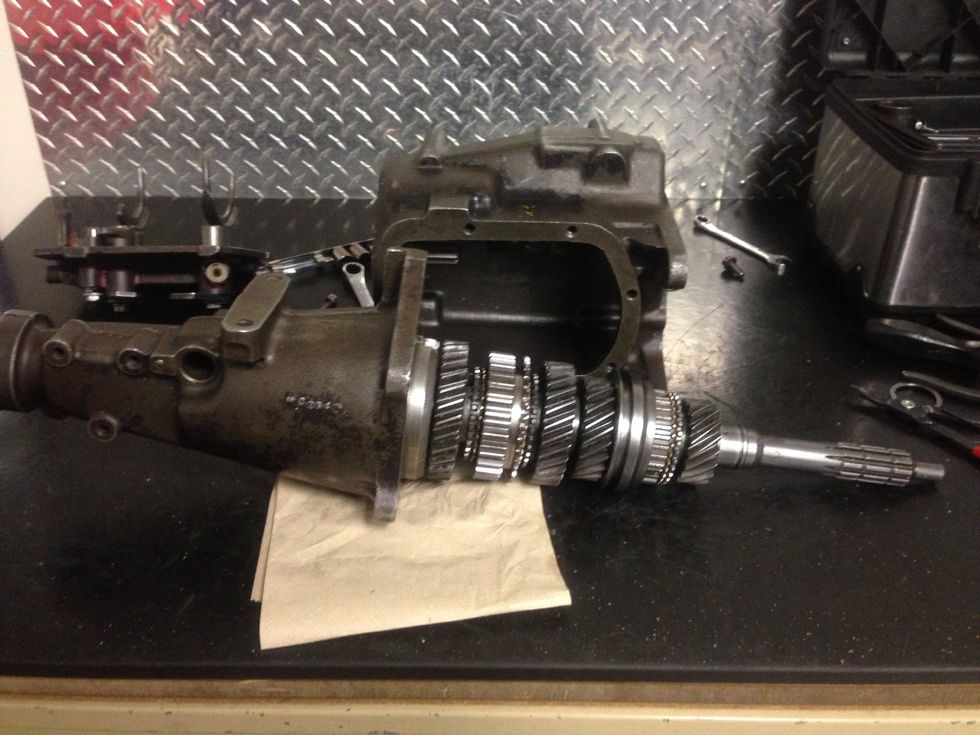

Step 4  Take the tran cover off (there is a C clip )

Step 4 Take the tran cover off (there is a C clip )

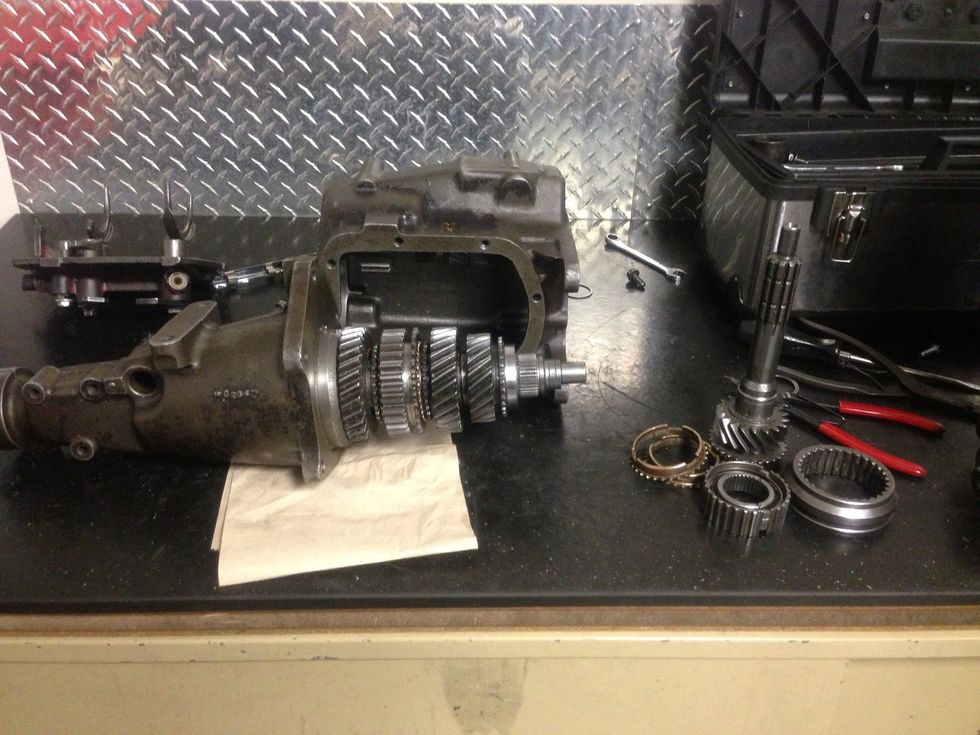

Step 5  Take the input shaft/4th gear , blocker rings , Synchronizer hub, Synchronizer Sleeve off (c clips are holding them together )

Step 5 Take the input shaft/4th gear , blocker rings , Synchronizer hub, Synchronizer Sleeve off (c clips are holding them together )

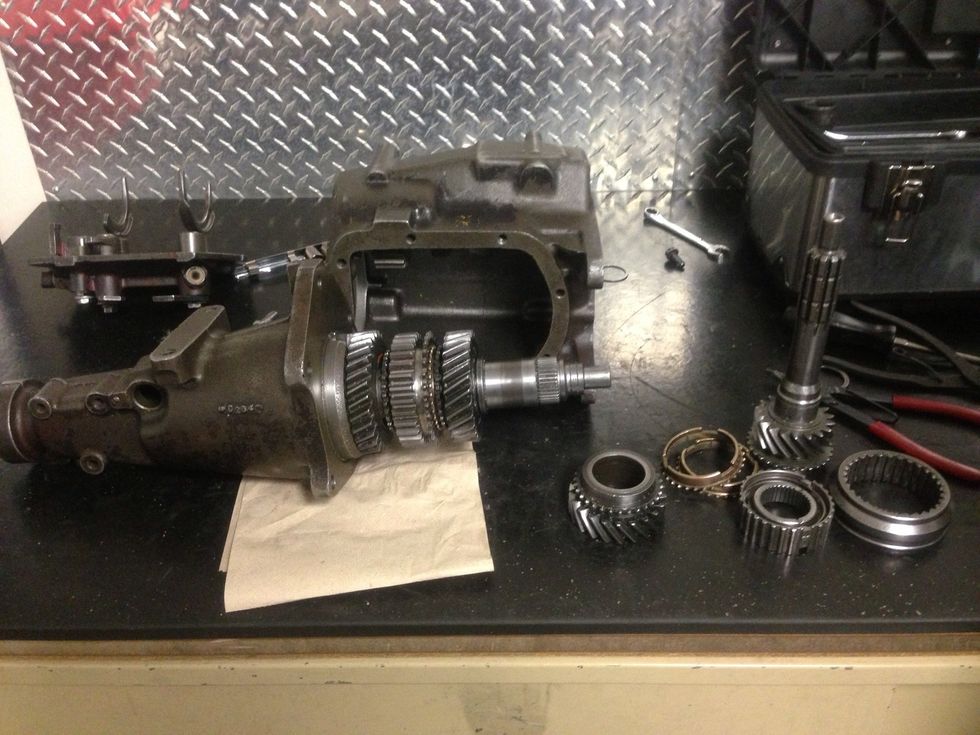

Step 6  Take 3rd gear off

Step 6 Take 3rd gear off

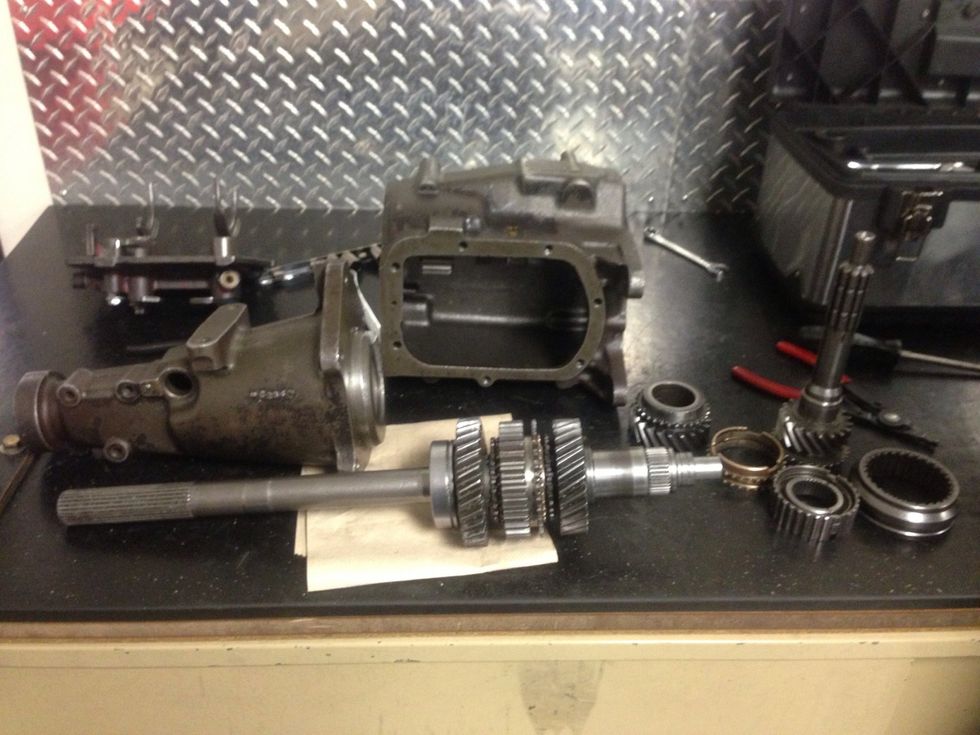

Take the tran housing off (don't forget to take off the c-clips)

Take the tran housing off (don't forget to take off the c-clips)

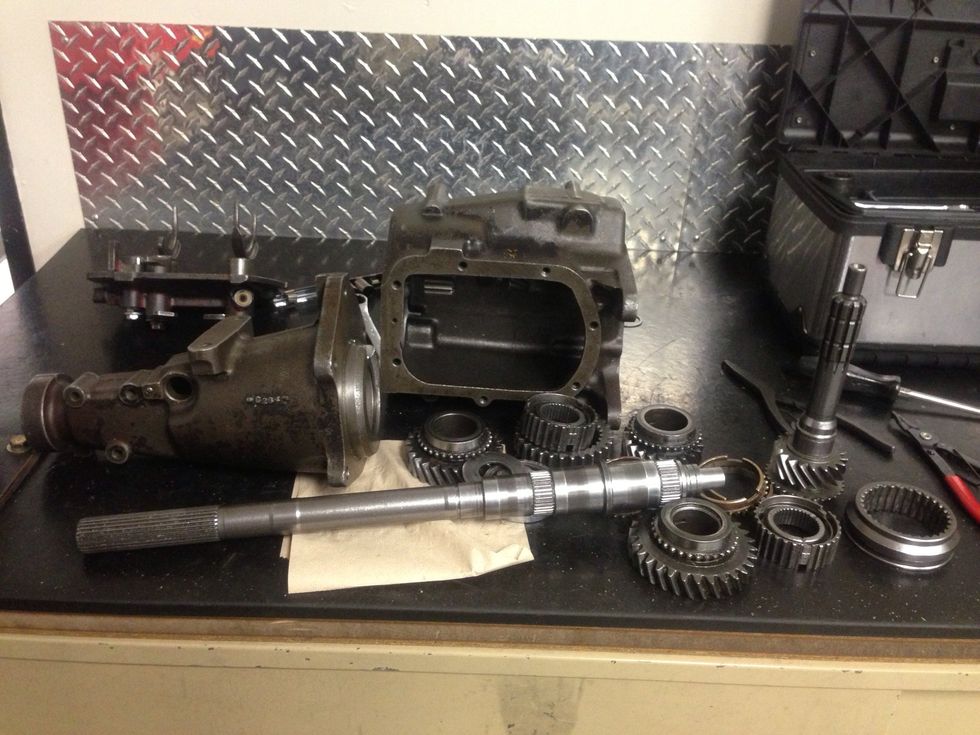

Now take everything off by lightly hitting the shaft on the bench

Now take everything off by lightly hitting the shaft on the bench

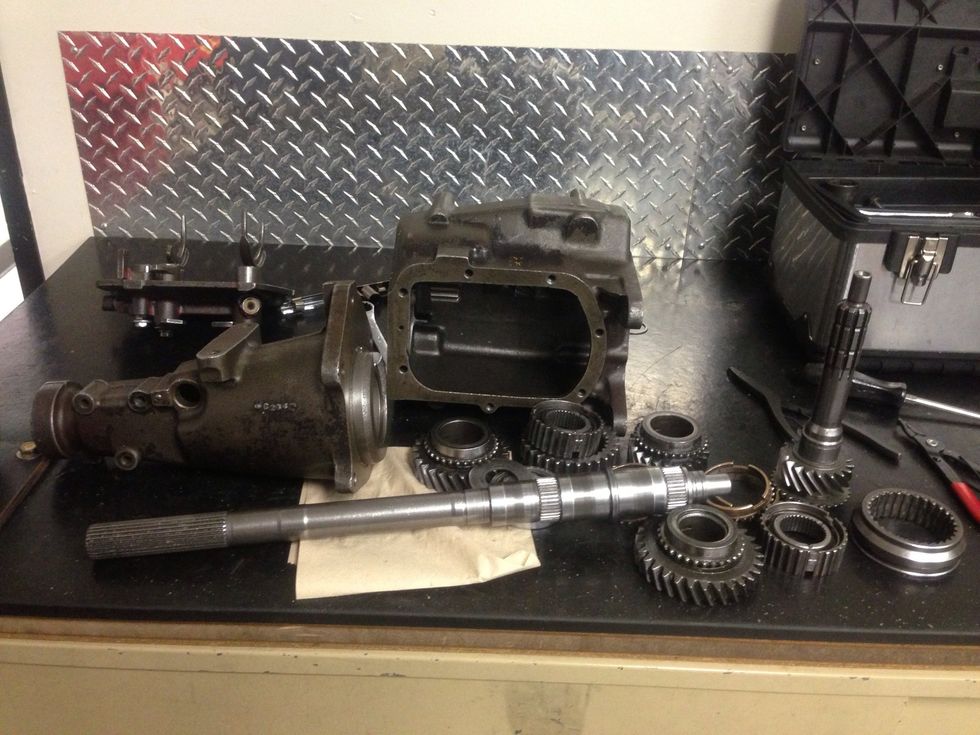

I have the tran all a part  Next putting it back together

I have the tran all a part Next putting it back together

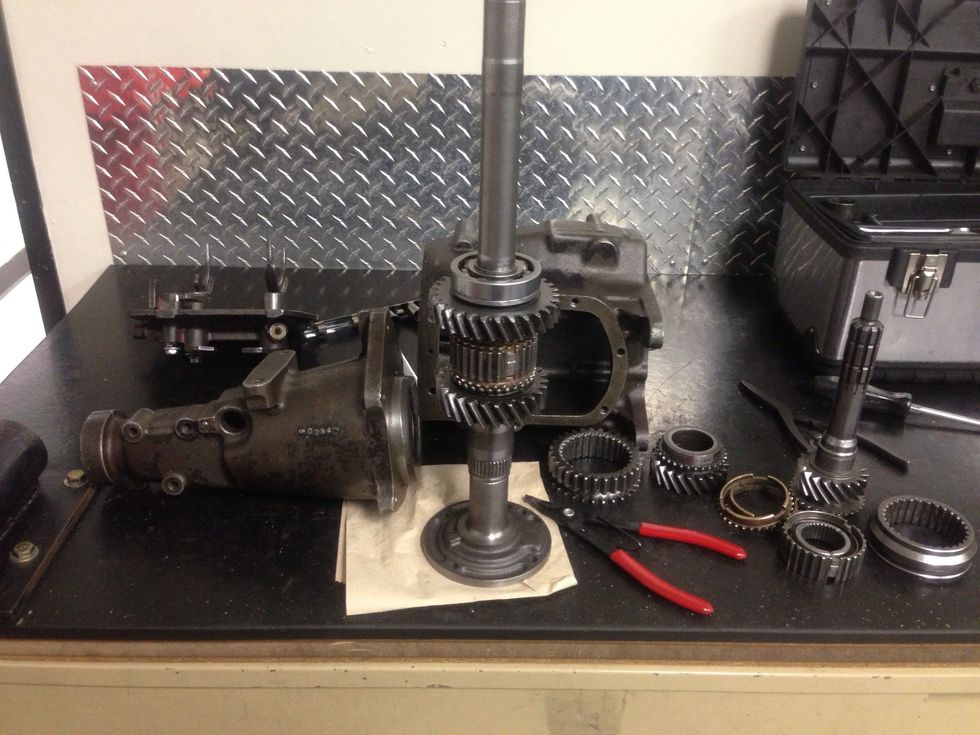

Use the input shaft housing to line up the shaft the gears. Remember the 3th gear then Synchronizer ring then synchronizer hub then synchronizer ring 4th gear then roller bearing

Use the input shaft housing to line up the shaft the gears. Remember the 3th gear then Synchronizer ring then synchronizer hub then synchronizer ring 4th gear then roller bearing

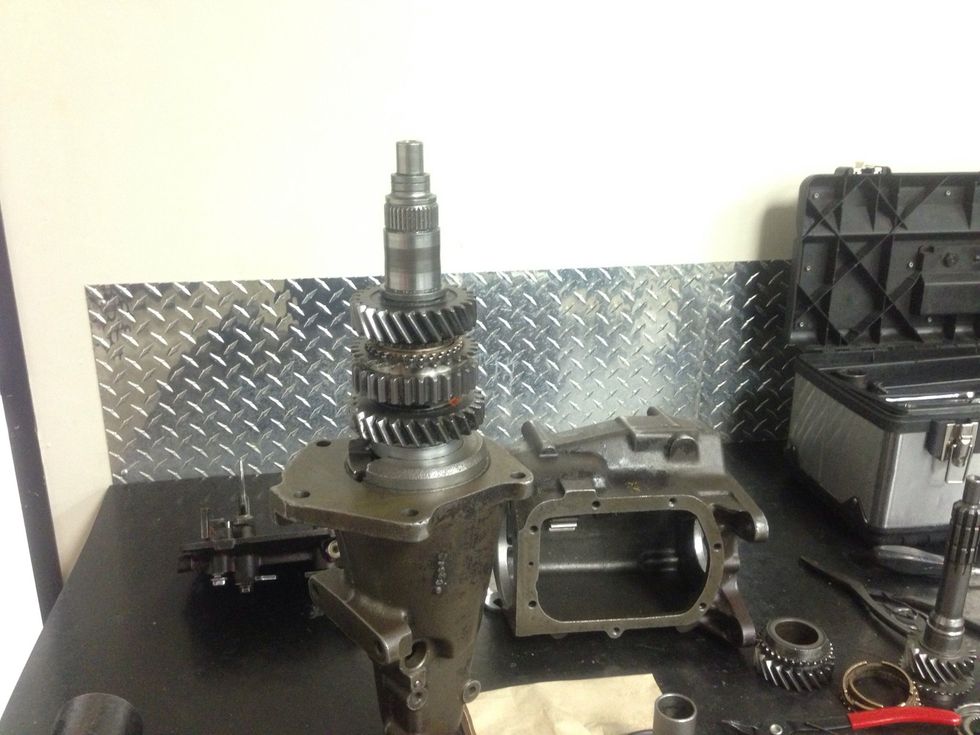

Don't forget to put the c clips back on .,.

Don't forget to put the c clips back on .,.

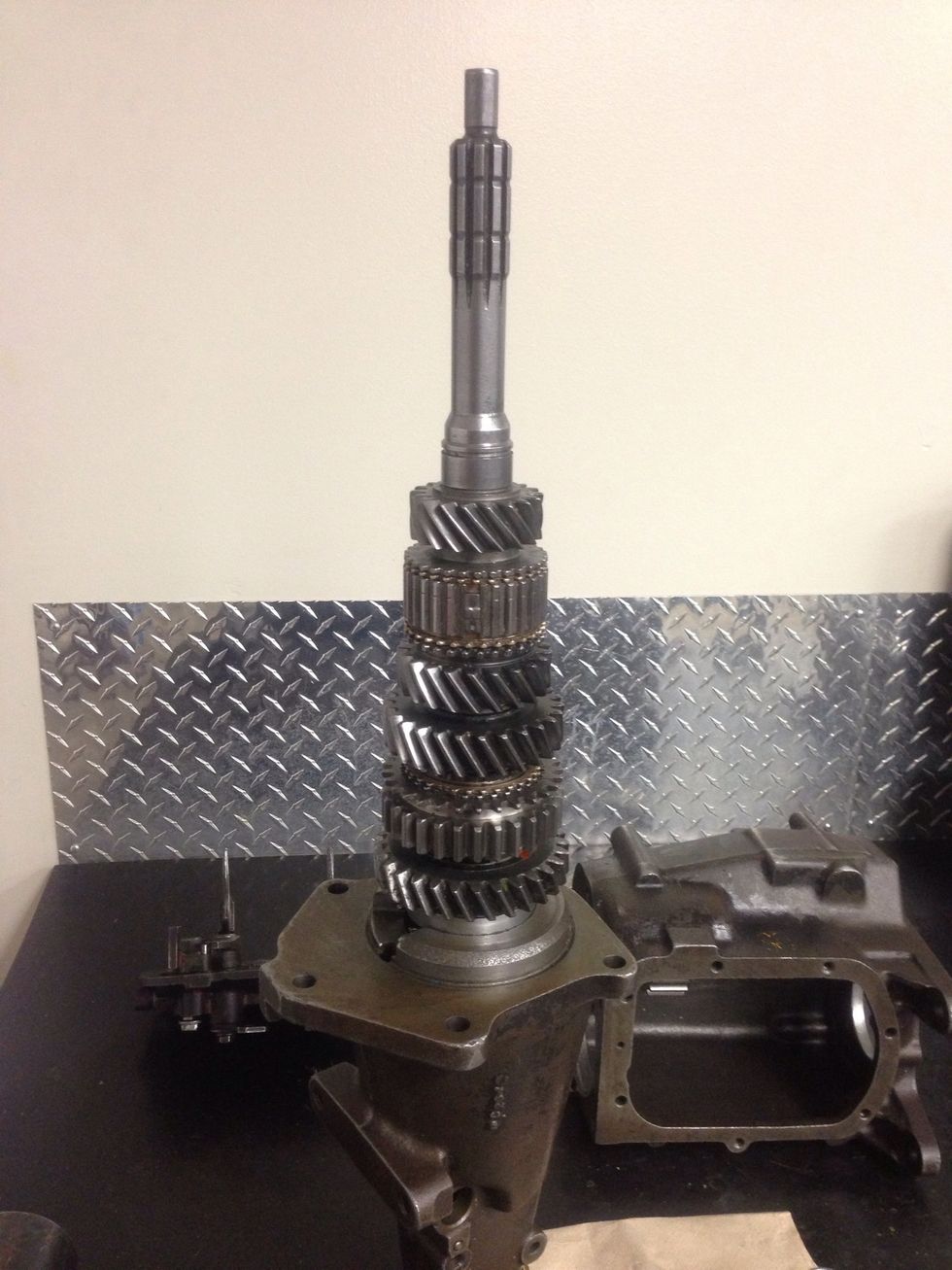

Stack all the gears and the synchronizer rings and hubs

Stack all the gears and the synchronizer rings and hubs

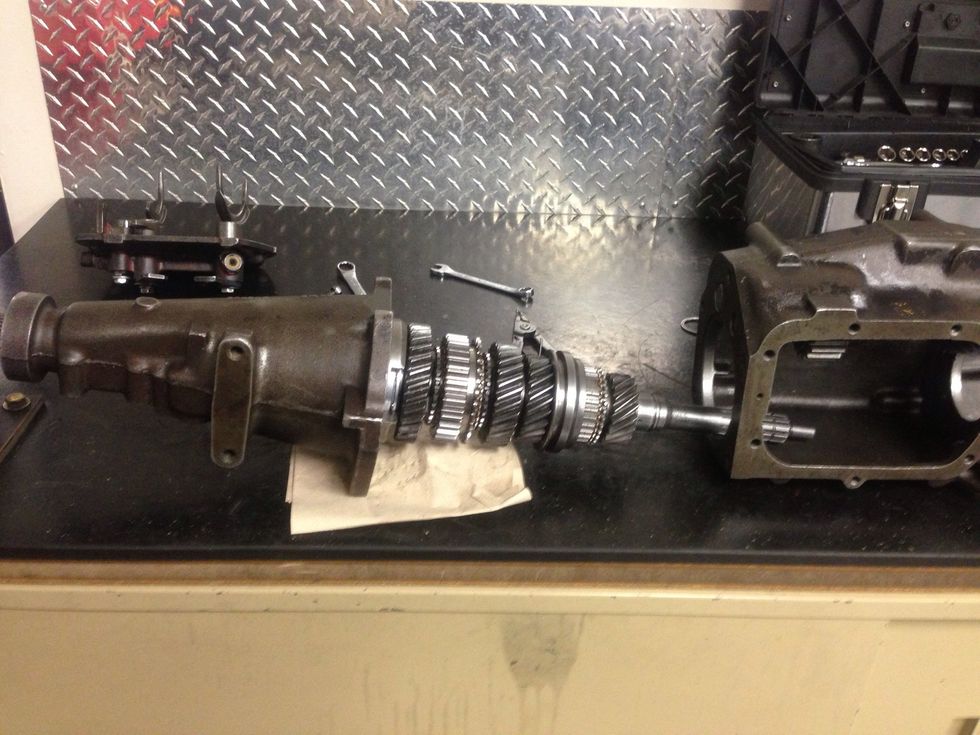

Now put everything u have Assembled on top of a paper towel like this .,. U can use longer paper towel if you want to .,.

Now put everything u have Assembled on top of a paper towel like this .,. U can use longer paper towel if you want to .,.

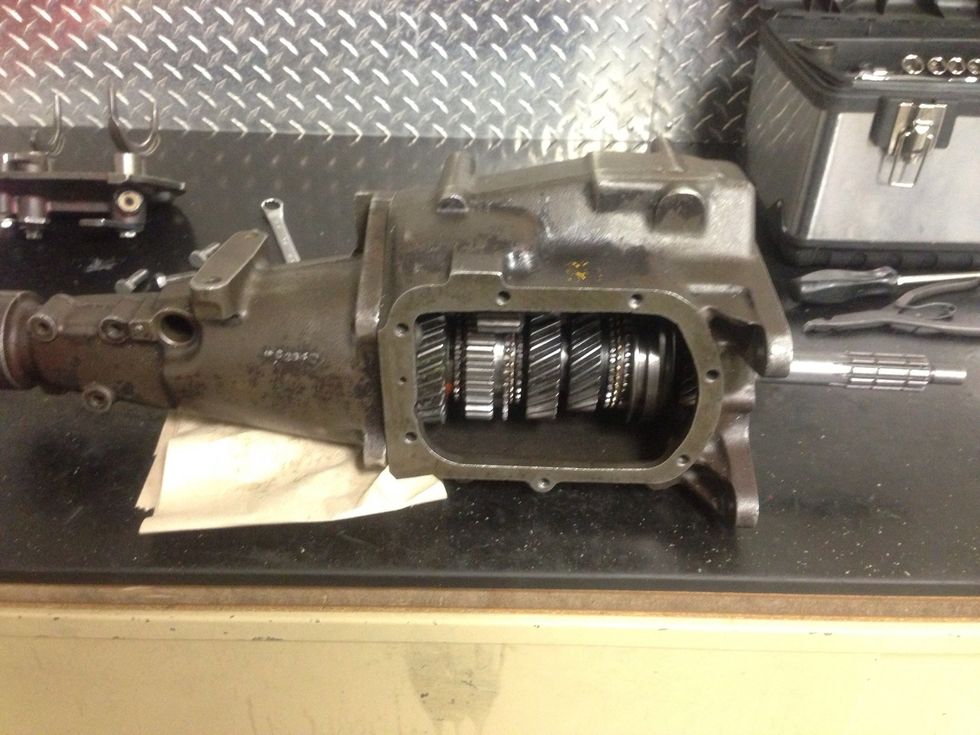

Then put the tran case on the paper towel and gently slide the tran case in .,. It should look like this after .,.

Then put the tran case on the paper towel and gently slide the tran case in .,. It should look like this after .,.

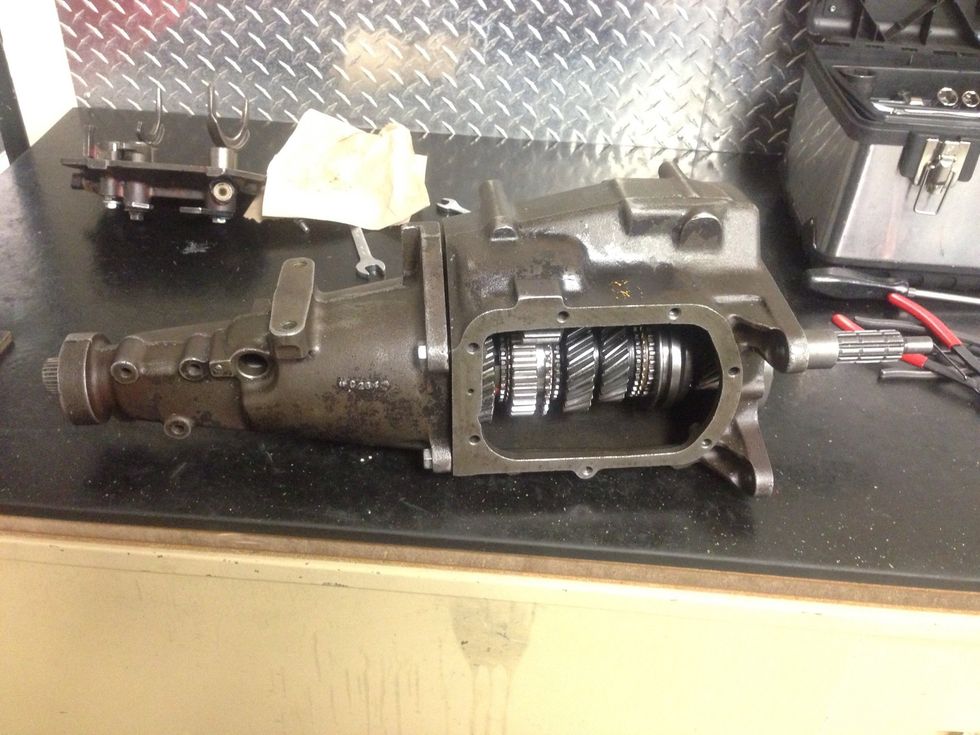

Put the bolts on the tran case

Put the bolts on the tran case

Turn the tran around then gently place the shifter cover on then test ur tran by spinning the input shaft and shifting gears .,. If it works all fine then bolt it together .,.

If your tran doesn't shift check if u missed anything .,. If this your first time take pic as you go so u can look back and see if u placed everything right .,.
