How to replace memory/ram on a motherboard

Replace Memory/RAM on a Motherboard

22
STEPS
TOOLS

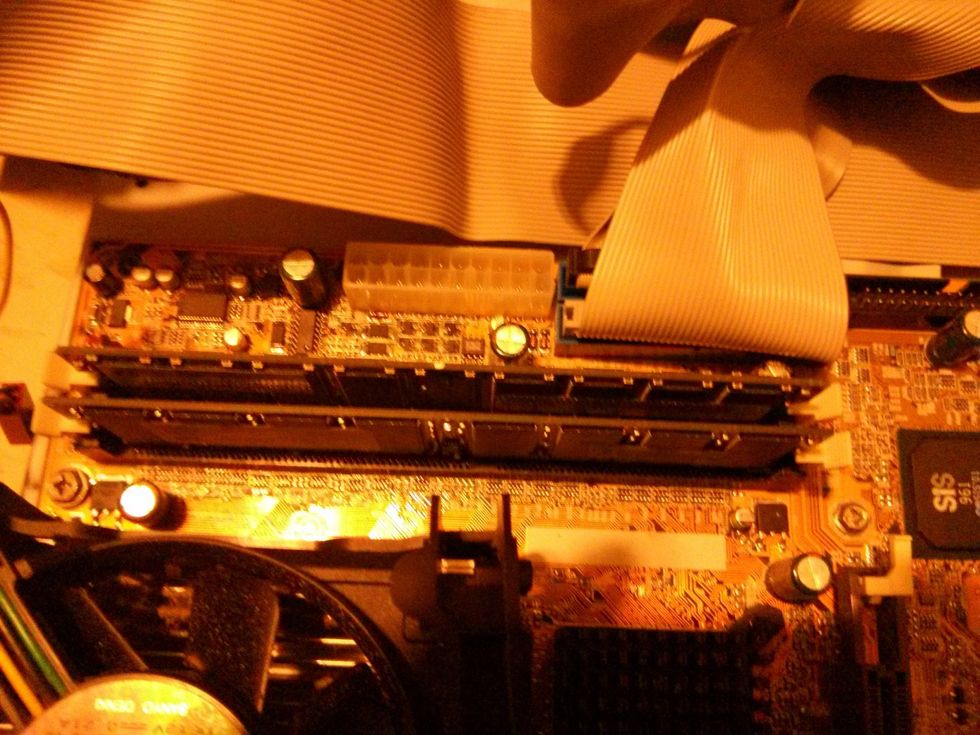

This is where the Ram is Located on this computer

This is where the Ram is Located on this computer

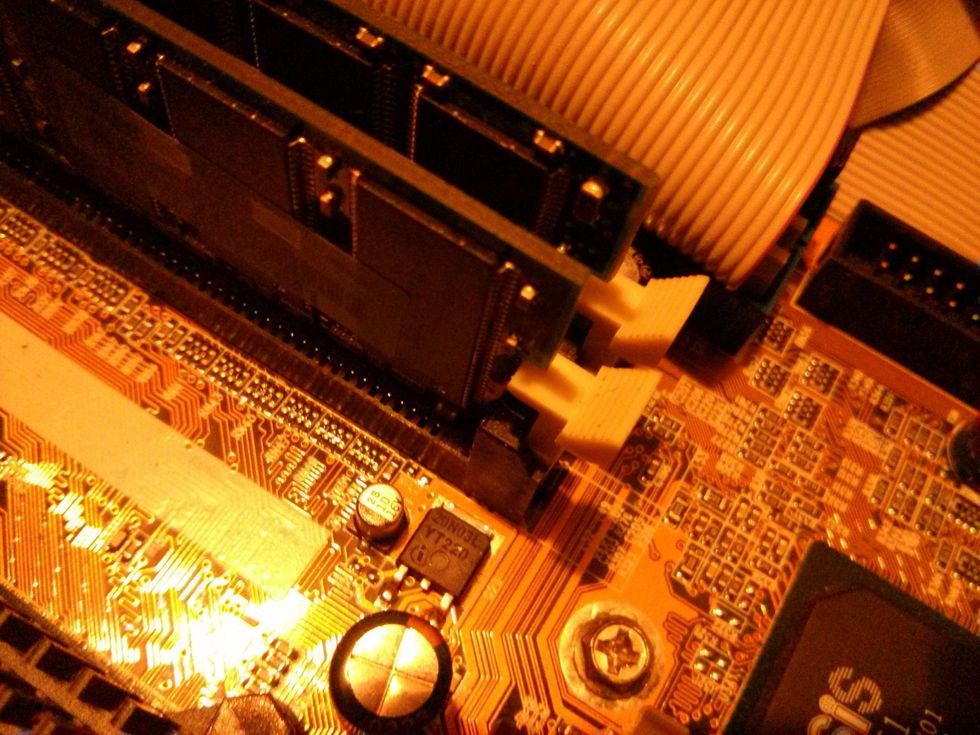

You will see two levers per Ram chip, lightly pressed down on them

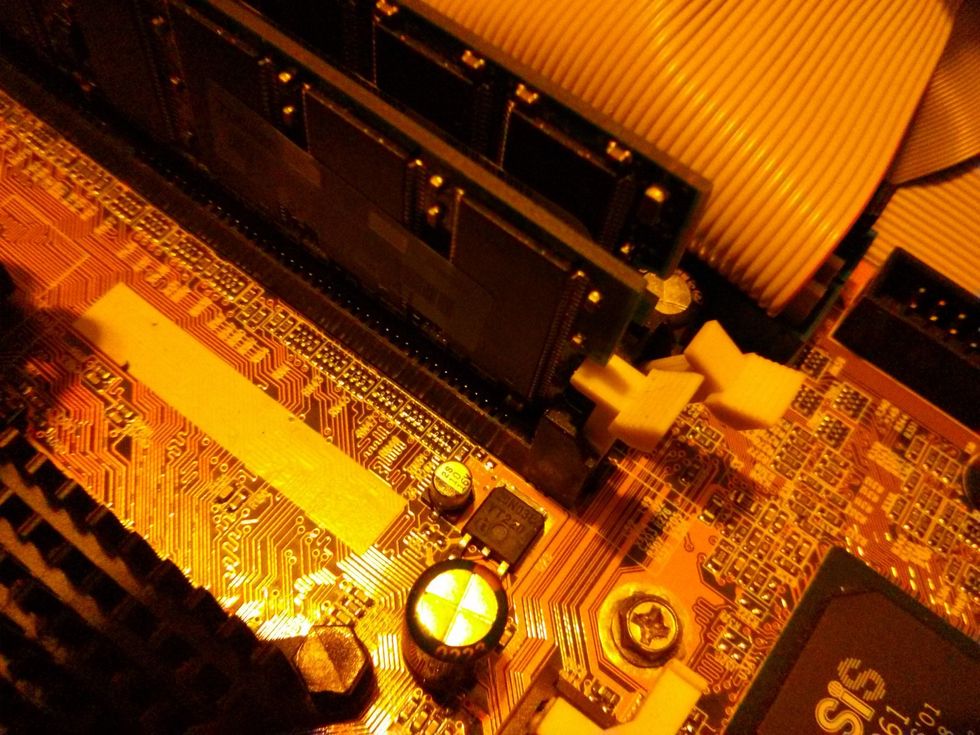

After one is down...

After one is down...

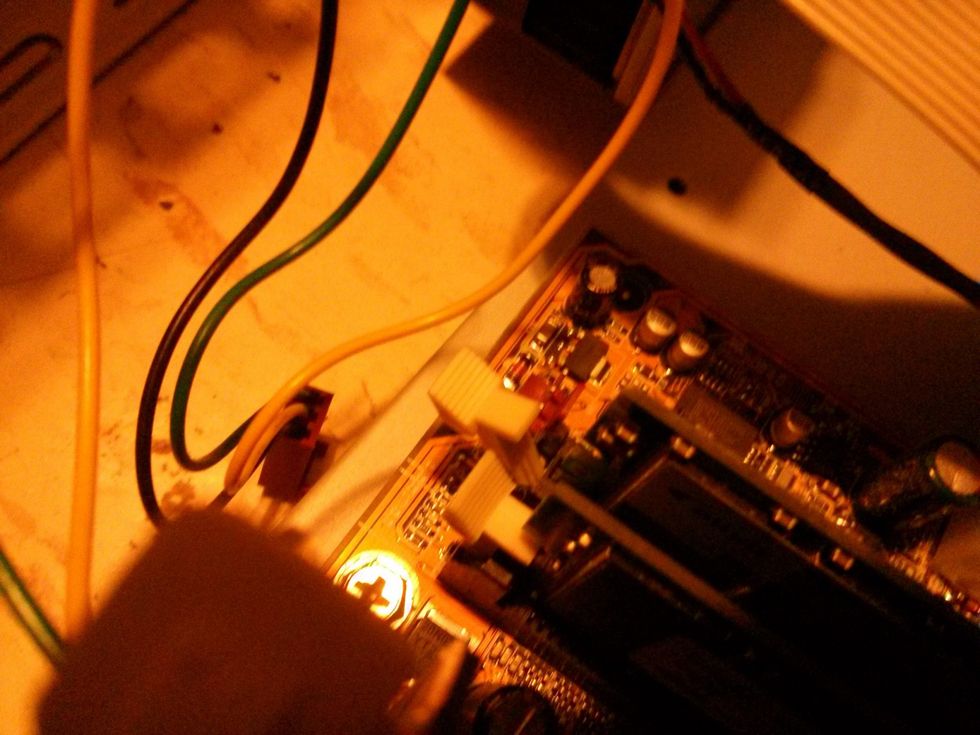

Go to the opposite side and do the same

Go to the opposite side and do the same

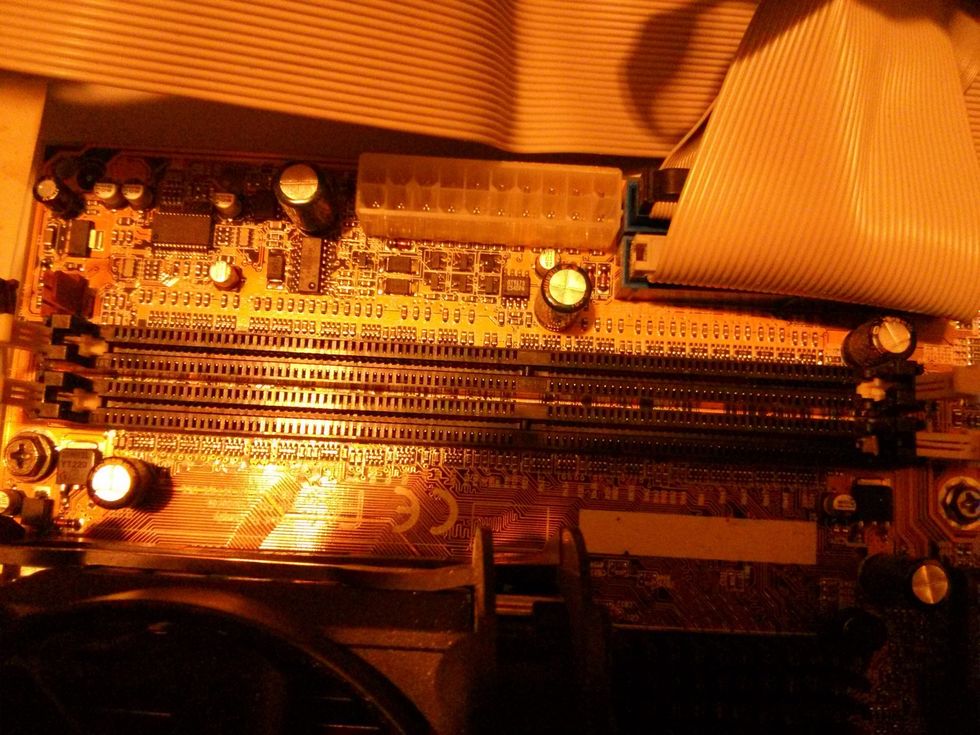

After it can be lifted out, theses are the Ram slots this motherboard has two

After it can be lifted out, theses are the Ram slots this motherboard has two

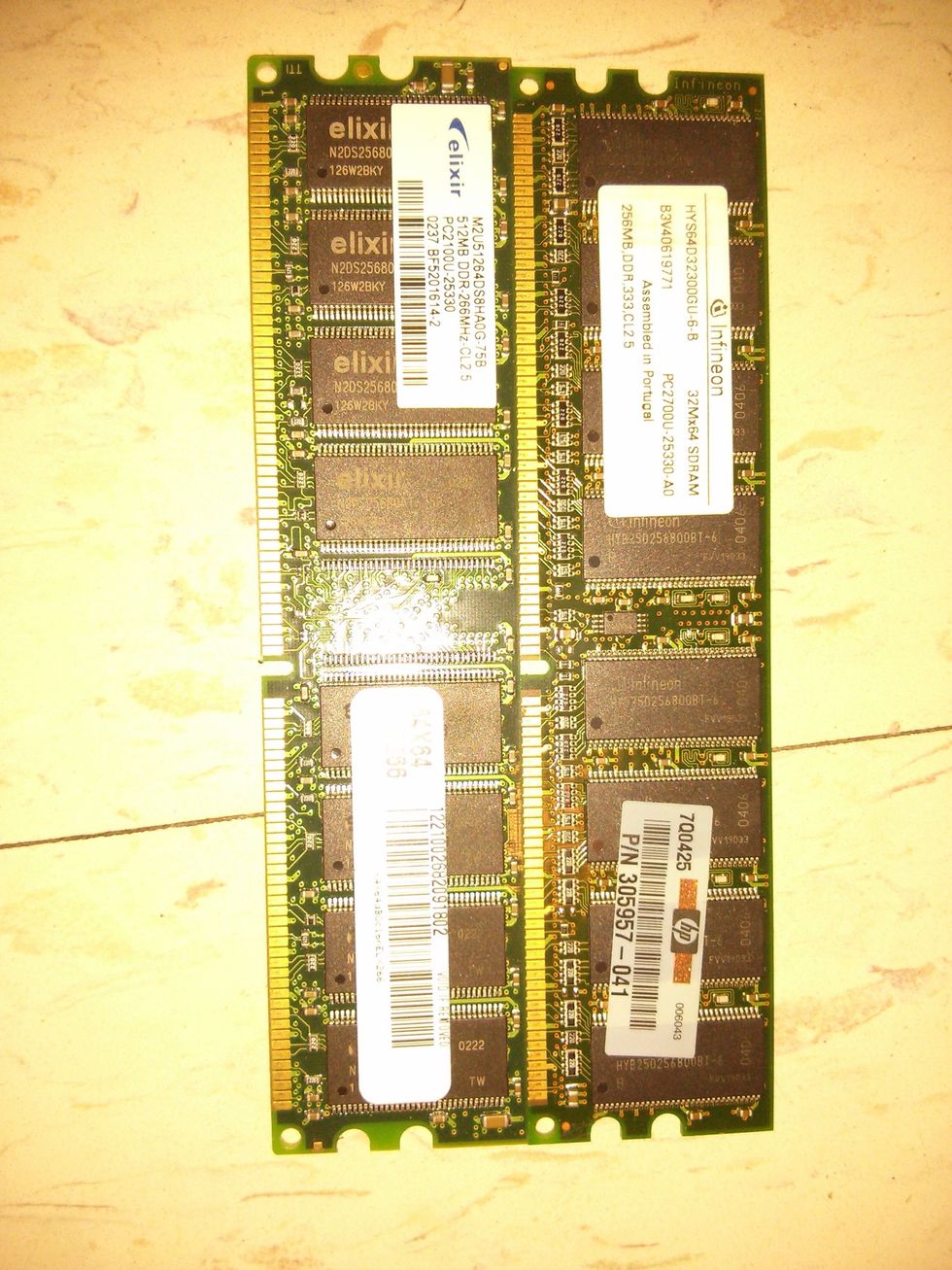

These are the Ram sticks I'm using, notice the notch around the middle of the stick where the gold contacts are, this means that it only goes one way

These are the Ram sticks I'm using, notice the notch around the middle of the stick where the gold contacts are, this means that it only goes one way

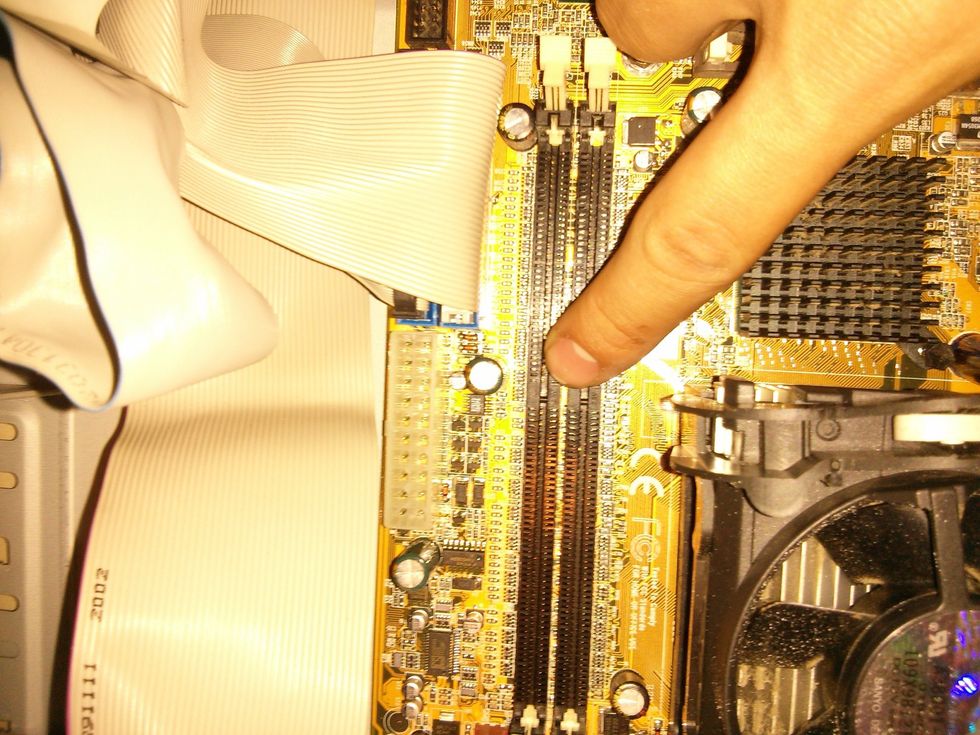

Also where the slot is

Also where the slot is

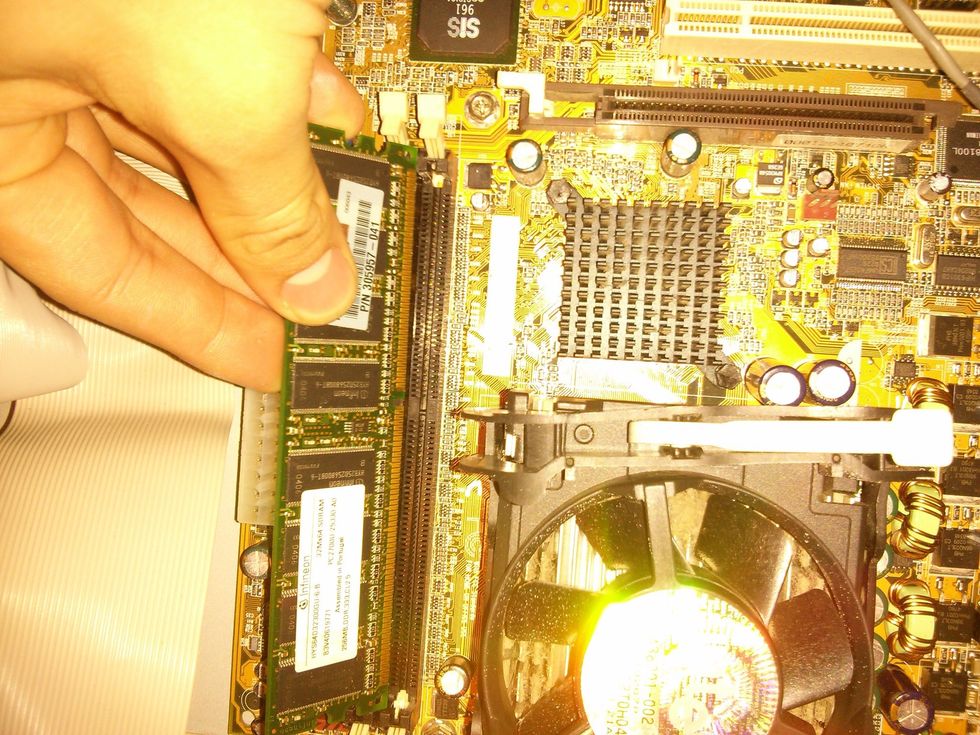

Align the memory stick with the notch and make sure the slot is open

Align the memory stick with the notch and make sure the slot is open

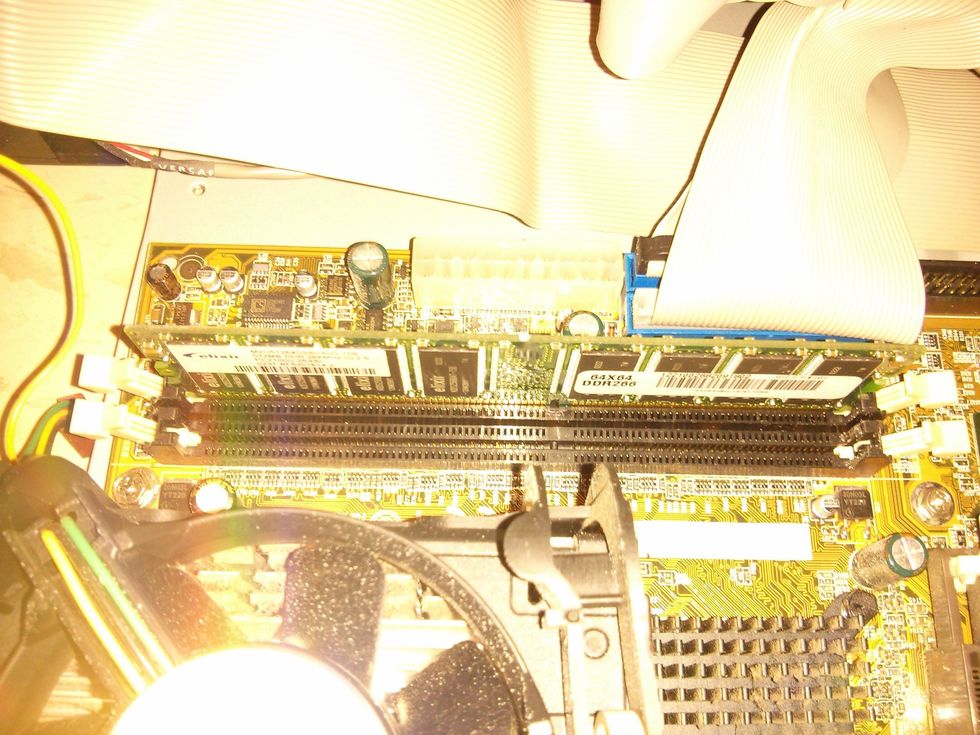

Make sure their fit right do not force it in, compare it side by side with the old stick to make sure the pins are even

Make sure their fit right do not force it in, compare it side by side with the old stick to make sure the pins are even

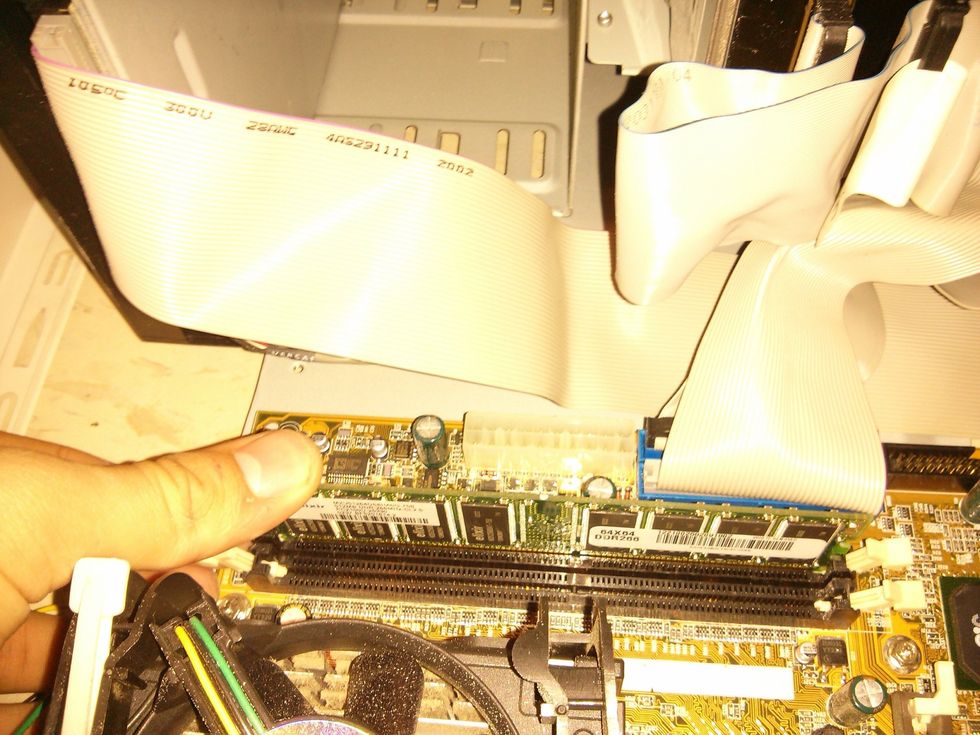

Press it down until it clips the lever should be up automatically.  Do both sides at the se te with even pressure. ( I couldn't  do both sides I was holding a camara

Press it down until it clips the lever should be up automatically. Do both sides at the se te with even pressure. ( I couldn't do both sides I was holding a camara

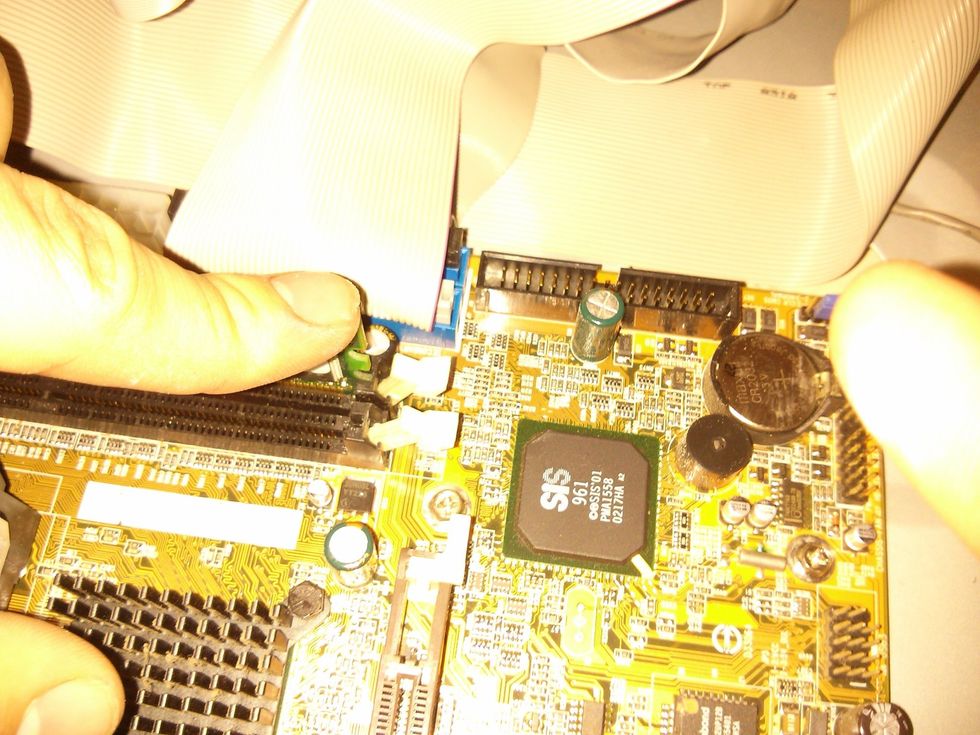

There we go.

There we go.
