How to replace bluetooth for a smartboard 600 series.

Replace Bluetooth for a SMARTBoard 600 Series.

7
STEPS
TOOLS

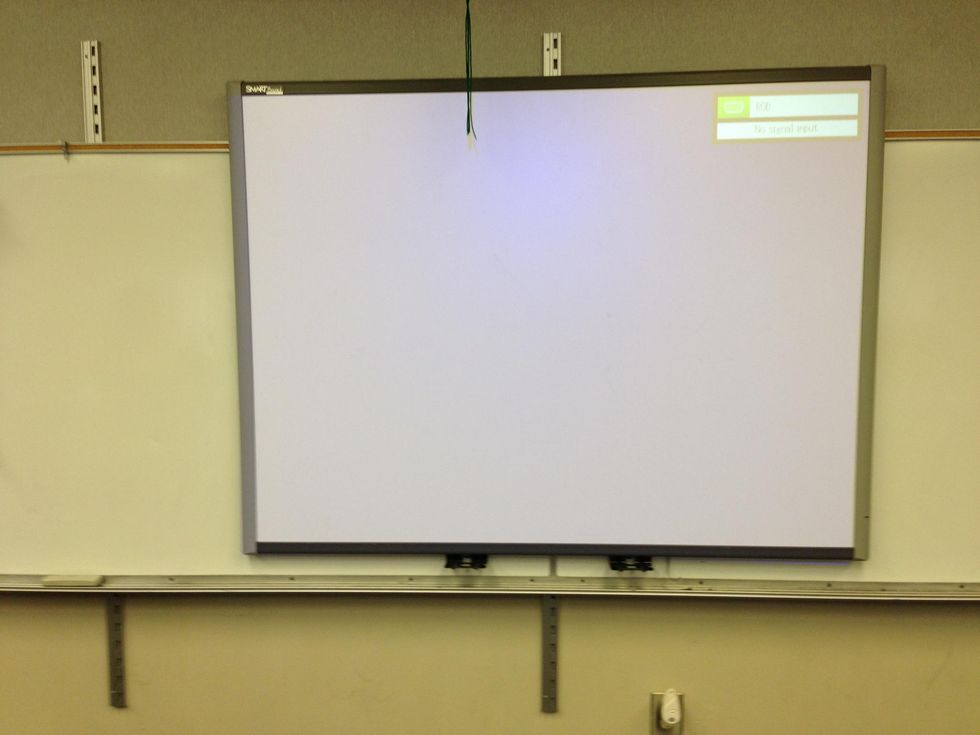

Unplug Smartboard Remove any fasteners attaching cord to the wall.

Unplug Smartboard Remove any fasteners attaching cord to the wall.

Remove pens and eraser.

Remove pens and eraser.

Unplug pen tray

Unplug pen tray

Holding pen tray near the blue and black pen wells, pull pen tray out from board.

Holding pen tray near the blue and black pen wells, pull pen tray out from board.

Locate and remove two Philips screws holding  bottom of board.

Locate and remove two Philips screws holding bottom of board.

Turn board around and locate Bluetooth module. Unplug AC adaptor cord.

Turn board around and locate Bluetooth module. Unplug AC adaptor cord.

Remove Philips screw and lift module up to remove.

Remove Philips screw and lift module up to remove.

Insert replacement  Bluetooth module.

Insert replacement Bluetooth module.

Replace board screws Slide pen tray back on Plug in pen tray Plug in Bluetooth module After cord is secured to wall, plug board in. Attach dongle to computer. Run Connection wizard. Realign Board.

  • Philips Screwdriver
