How to replace a drain assembly on a claw foot tub

Replace a Drain Assembly on a Claw Foot Tub

1229
STEPS
TOOLS

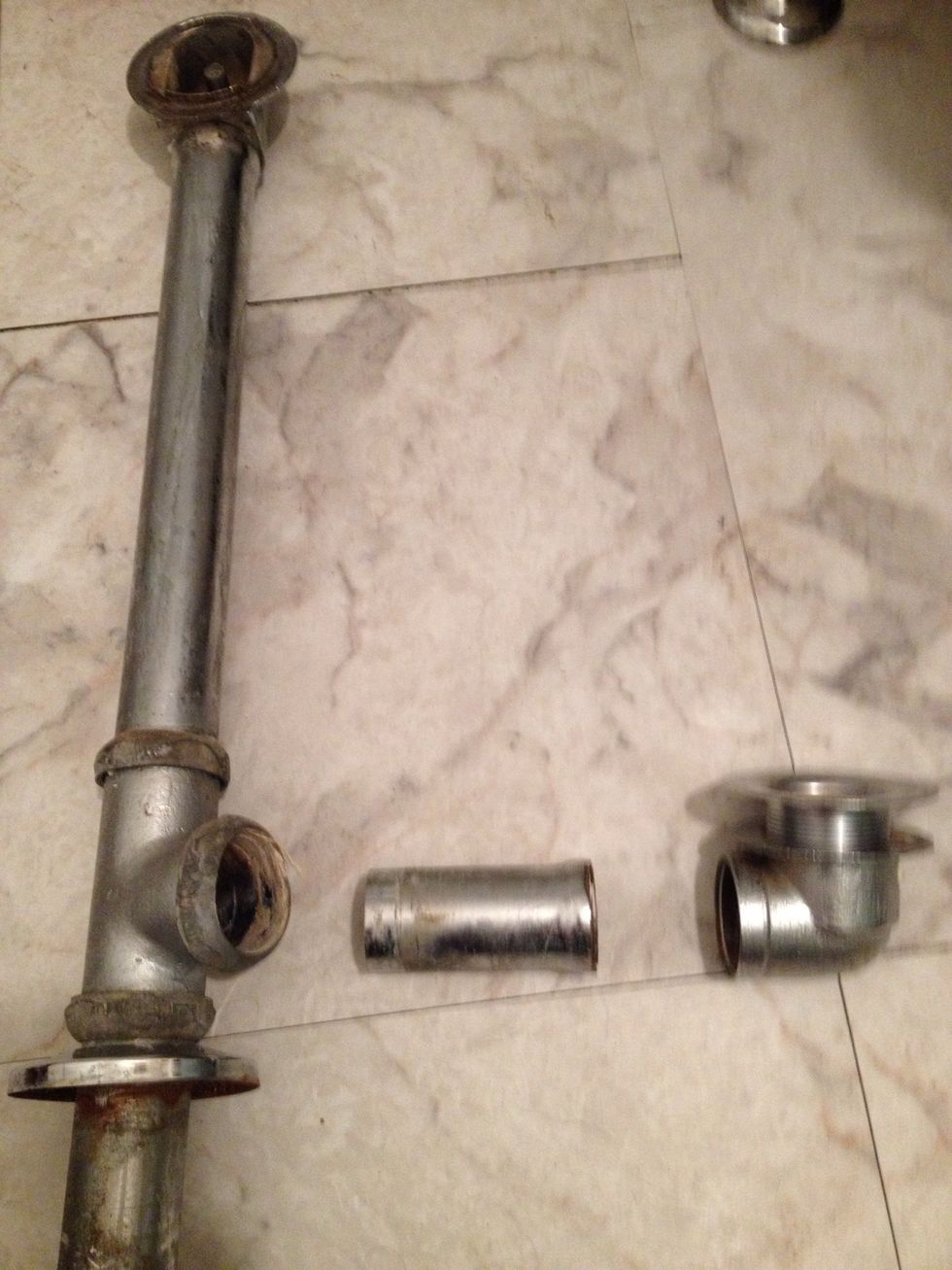

The problem - the small horizontal tube broke where it connected to the drain (right). When I tried to remove it I crimped the connector to the down pipe, meaning a full replacement was needed.

The problem - the small horizontal tube broke where it connected to the drain (right). When I tried to remove it I crimped the connector to the down pipe, meaning a full replacement was needed.

Most of the supplies needed: a drain assembly, drain wrench, plumbers putty, Teflon tape, pipe wrench, screwdriver.

Most of the supplies needed: a drain assembly, drain wrench, plumbers putty, Teflon tape, pipe wrench, screwdriver.

Testing the fit of the overflow drain - down pipe already cut to length.

Testing the fit of the overflow drain - down pipe already cut to length.

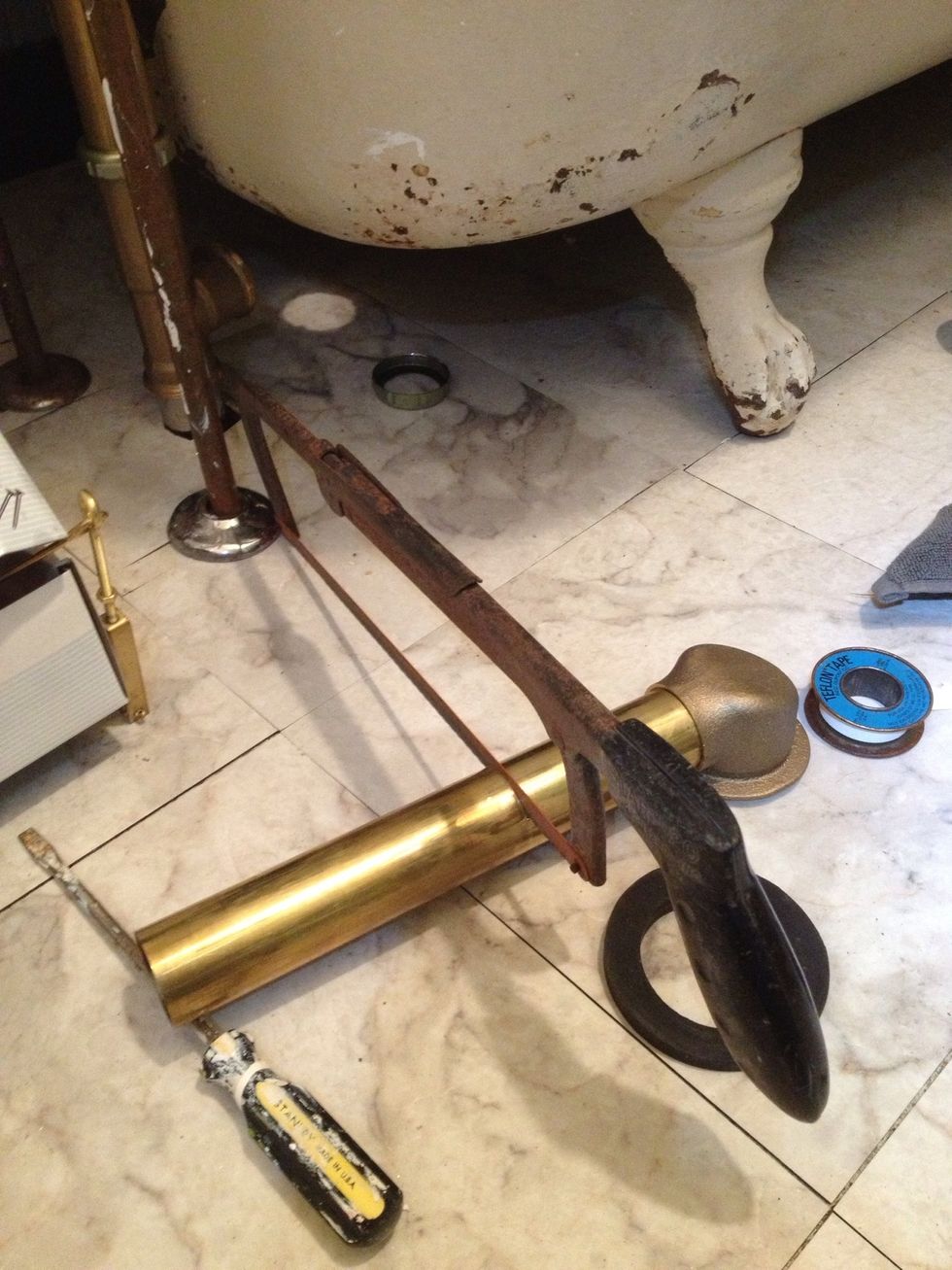

Cutting the main drain line to fit. NOT the best way to do it. I have a pipe cutter, but it wasn't big enough for this line.

Cutting the main drain line to fit. NOT the best way to do it. I have a pipe cutter, but it wasn't big enough for this line.

Install a bead of plumbers putty around the top of the drain in the tub.

Install a bead of plumbers putty around the top of the drain in the tub.

Seat the drain basket and finger tighten into the drain line. Drain wrench ready for next step.

Seat the drain basket and finger tighten into the drain line. Drain wrench ready for next step.

Drain wrench ready to go. Use a screwdriver to turn. Don't try to substitute with pliers if you have an old basket that may be sized.

Drain wrench ready to go. Use a screwdriver to turn. Don't try to substitute with pliers if you have an old basket that may be sized.

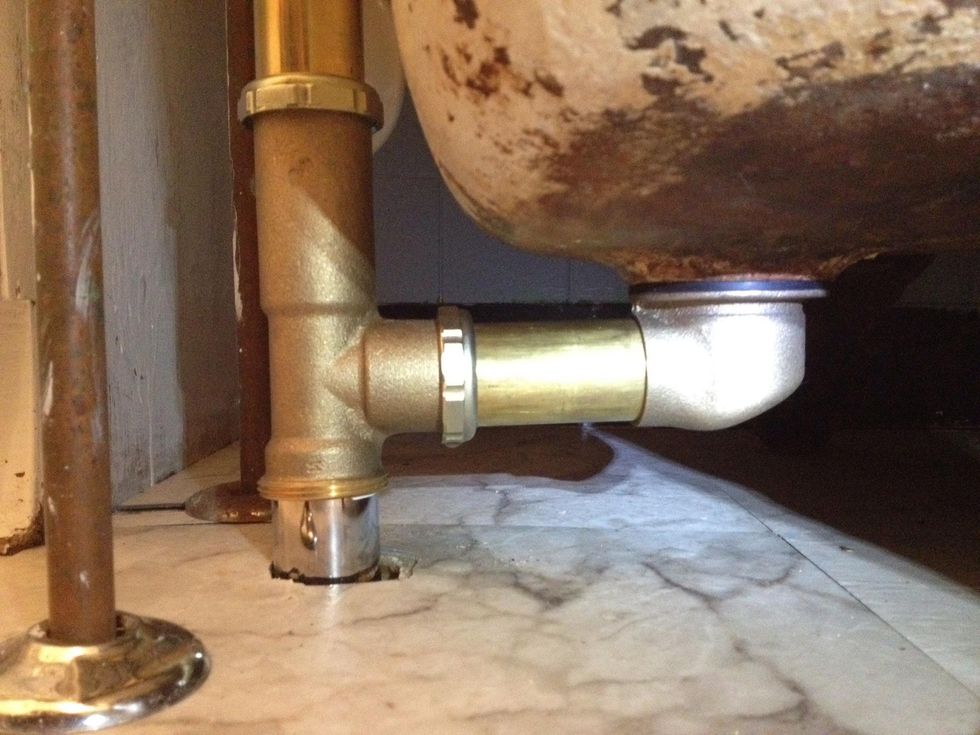

Drain installed upstairs. Need to connect to the lines in the basement.

Drain installed upstairs. Need to connect to the lines in the basement.

Final connection!

Final connection!

Testing for leaks.

Testing for leaks.

A dry floor!

  • Better quality drain assembly - metal
  • Plumbers putty
  • Screw drivers
  • Tub drain remover (see picture)
  • Pipe cutter or hack saw
  • Teflon tape
  • Patience
