Reinstall Hmd Tracker at CNH Curitiba

11
STEPS
TOOLS
Take the tracker and belt pack.

Take the tracker and belt pack.

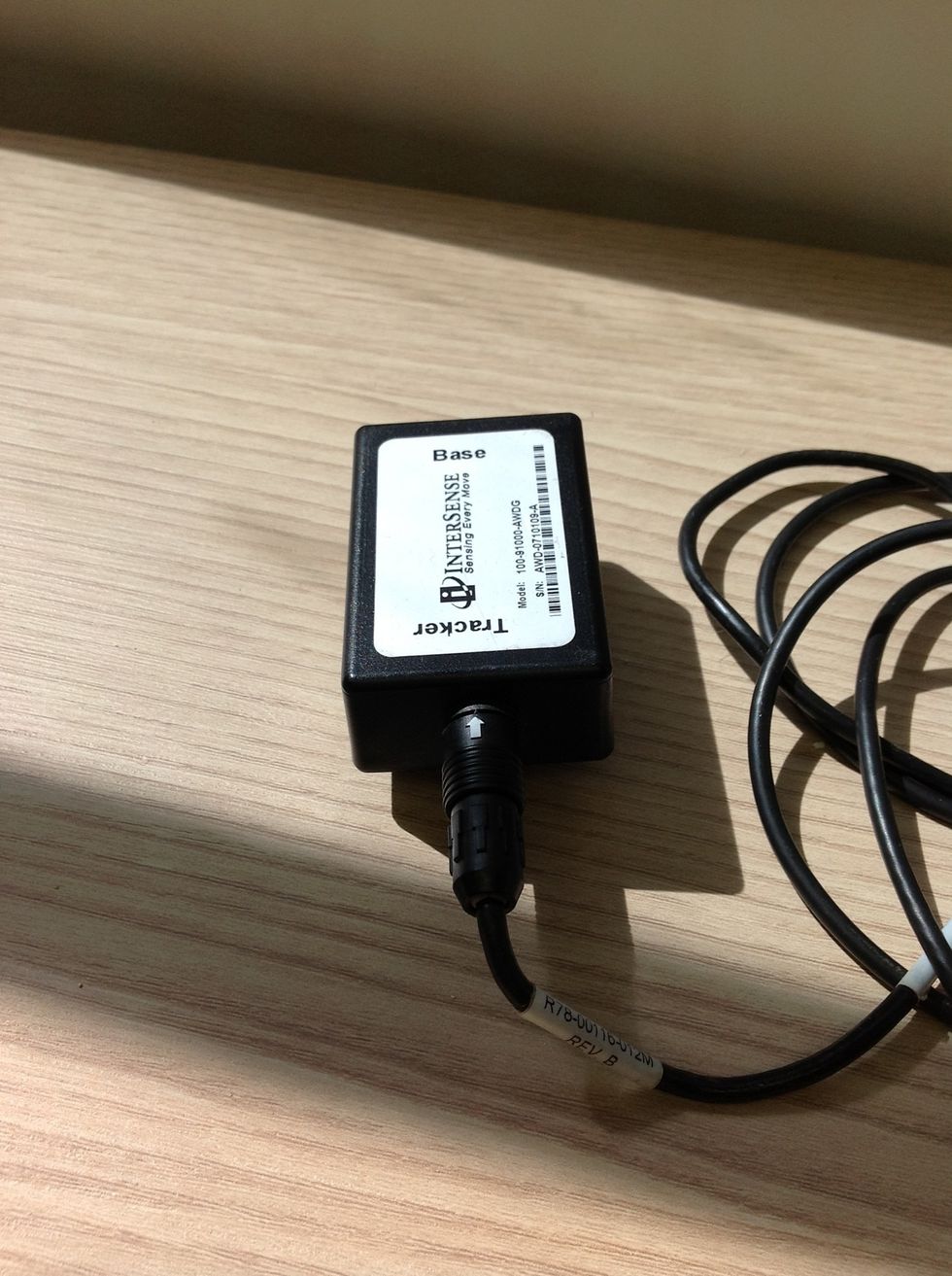

Carefully push the barrel connector into the belt pack, matching up the white arrows as shown

Carefully push the barrel connector into the belt pack, matching up the white arrows as shown

Place the tracker centrally on the back of the hmd as shown and press down to click it into place

Place the tracker centrally on the back of the hmd as shown and press down to click it into place

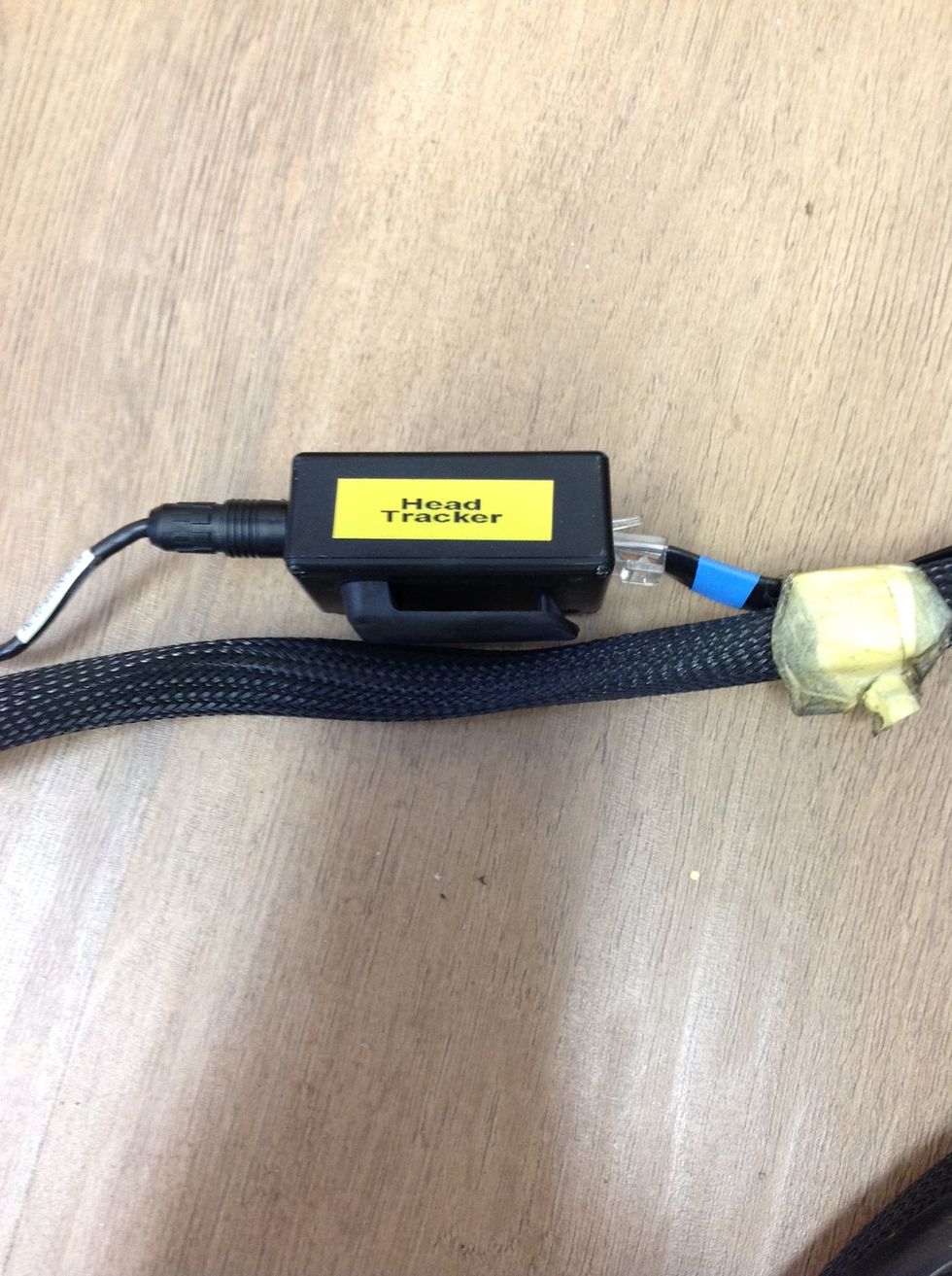

Plug the belt pack into the cable mounted in the HMD umbilical.

Plug the belt pack into the cable mounted in the HMD umbilical.

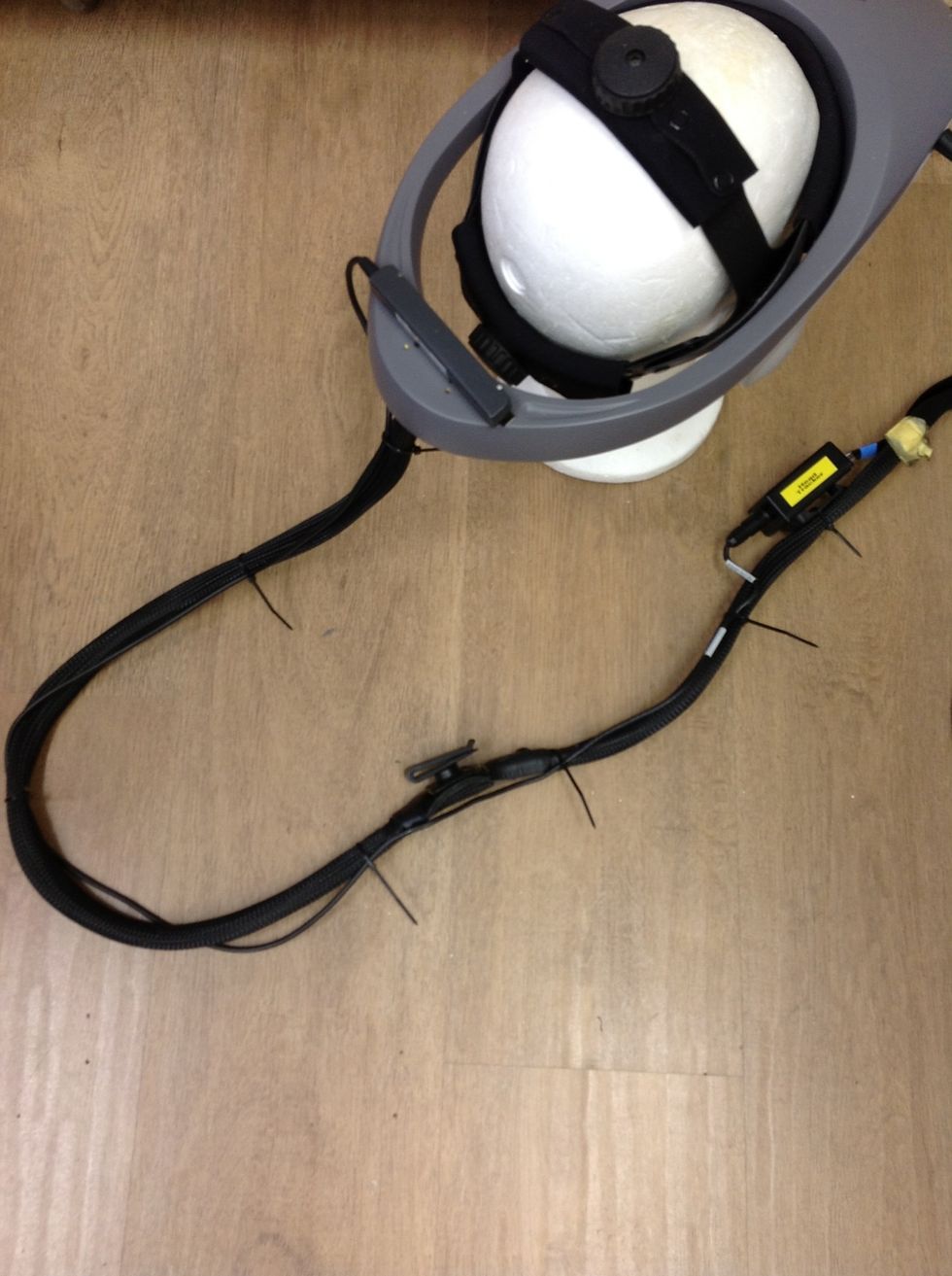

Use cable ties to tidy the cables together and cut the ends off the cable ties

Use cable ties to tidy the cables together and cut the ends off the cable ties

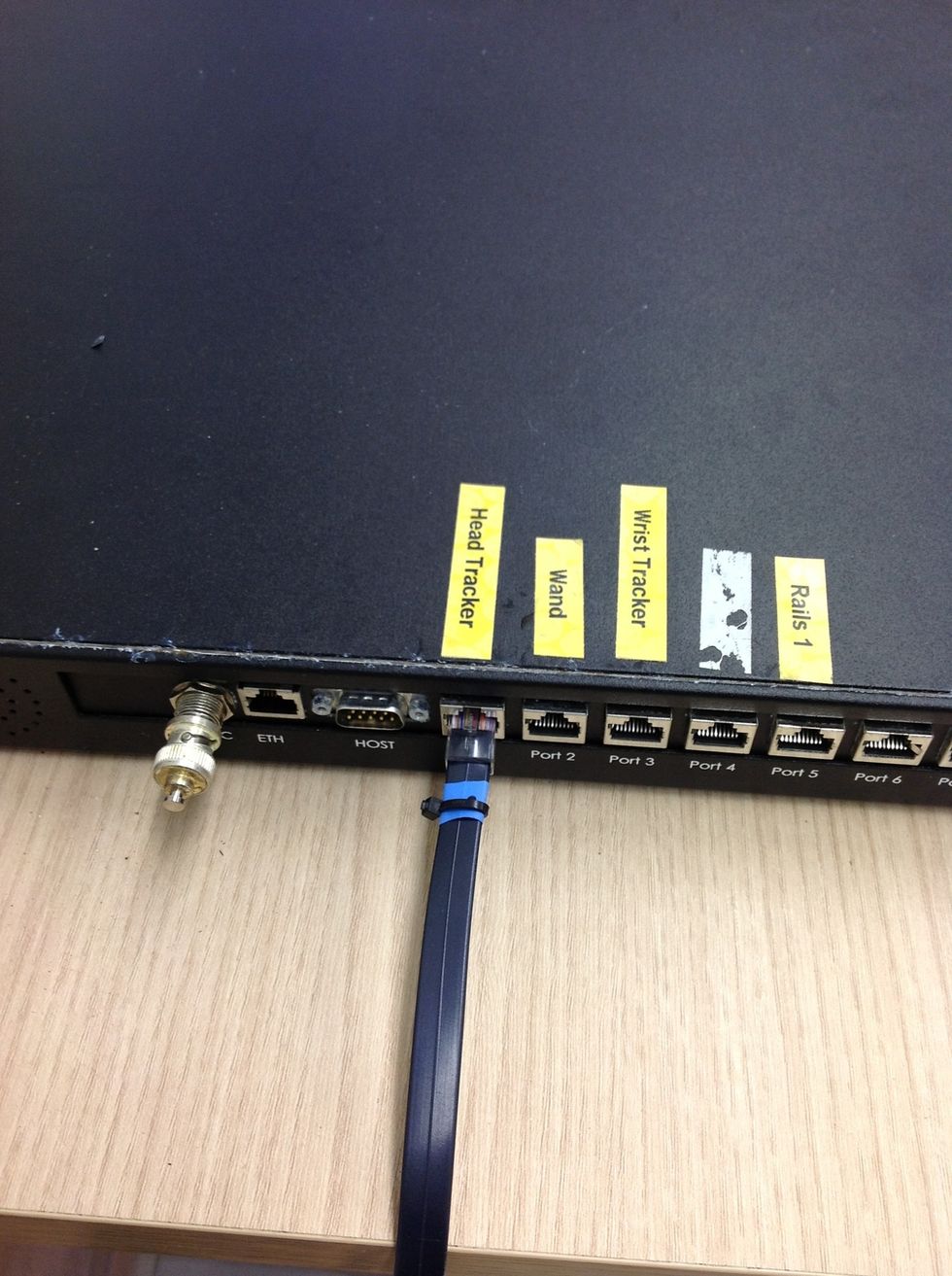

Plug the tracker cable into port 1 on the is900 base unit (black cable tie)
