How to project from a minidv camera in cfa 318

Project From a MiniDV Camera in CFA 318

6
STEPS
TOOLS

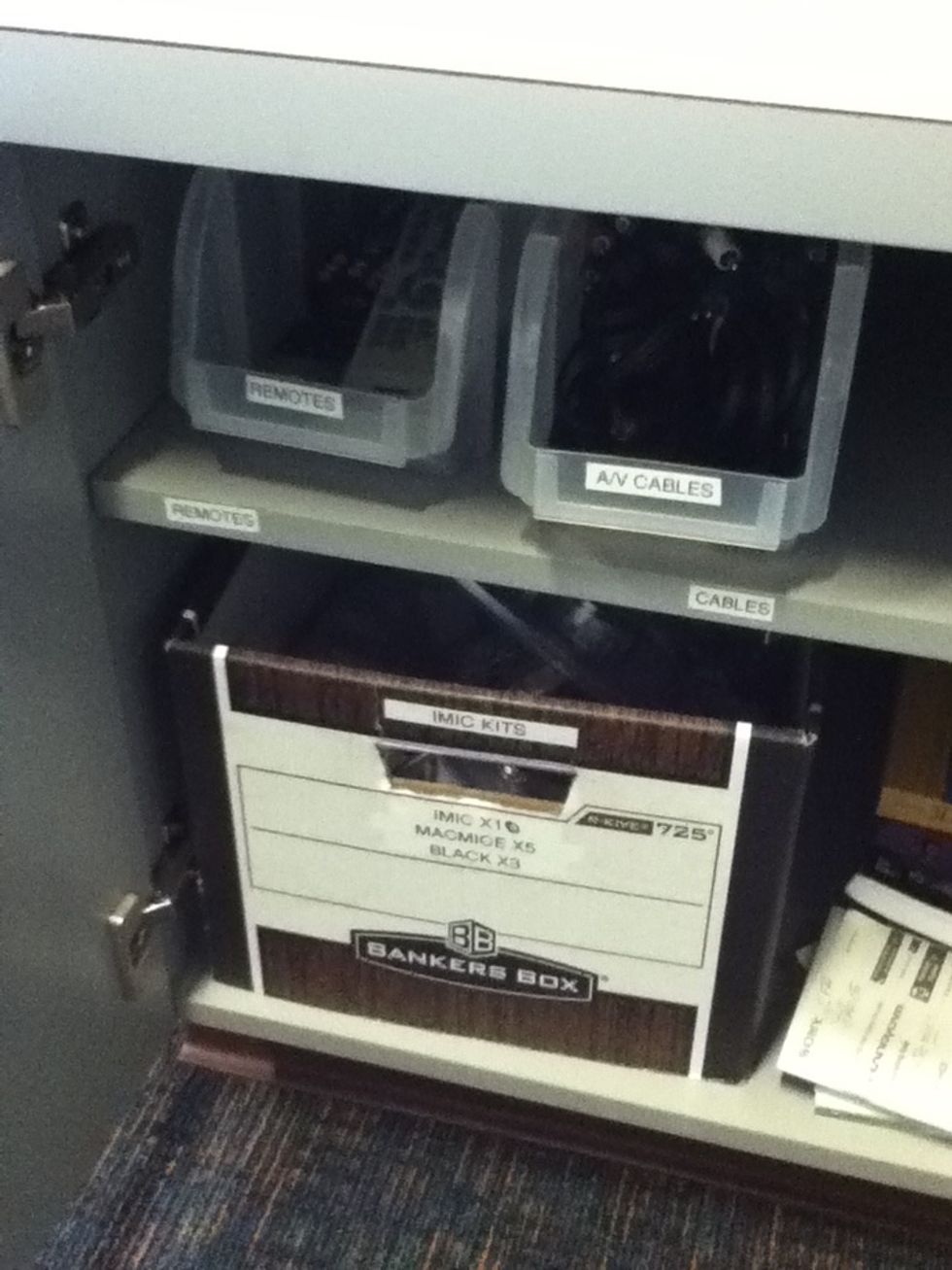

Ask the CCon on duty for two AV cables. They are stored in the box (appropriately labeled) in the bottom right cabinet of the CCon office.

Ask the CCon on duty for two AV cables. They are stored in the box (appropriately labeled) in the bottom right cabinet of the CCon office.

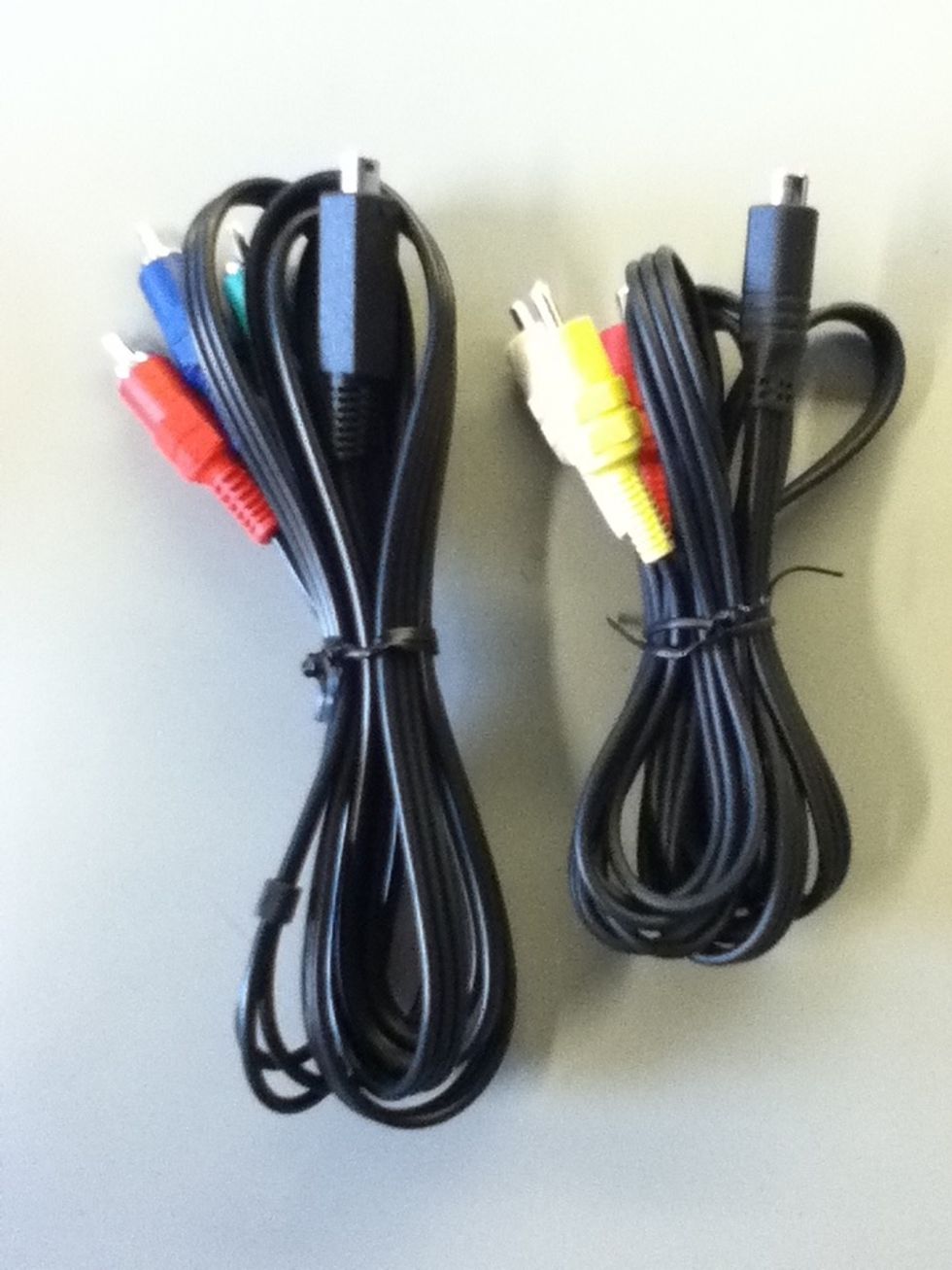

One cable has red, green, and blue ends. The other cable is red, yellow, and white on one side with a half moon shape on the other.

One cable has red, green, and blue ends. The other cable is red, yellow, and white on one side with a half moon shape on the other.

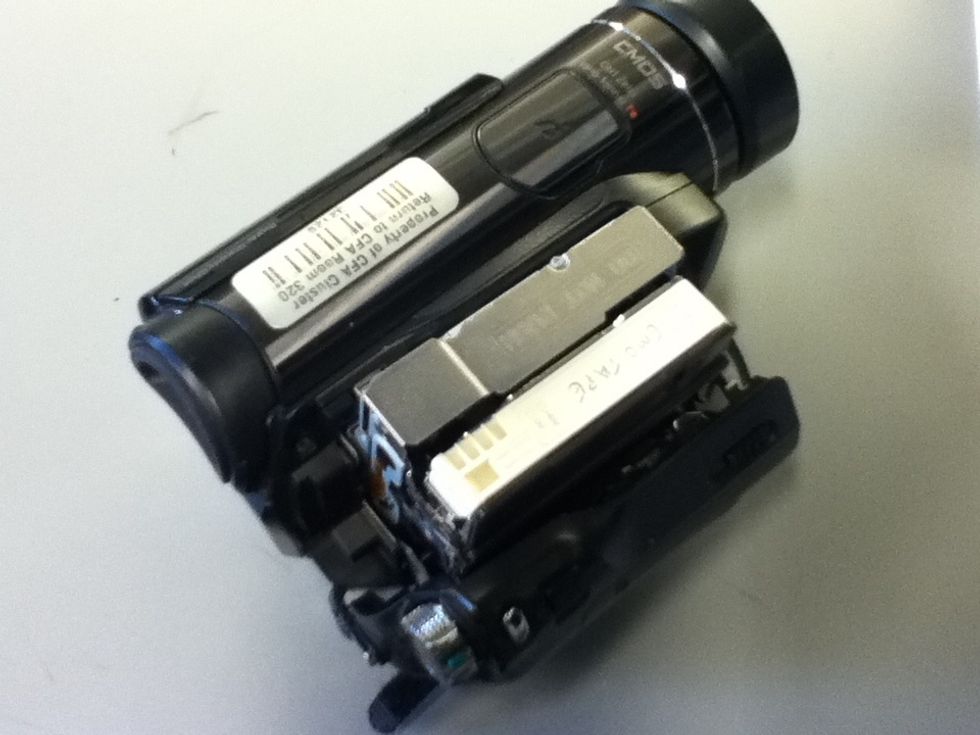

Insert your tape in the camera.

Insert your tape in the camera.

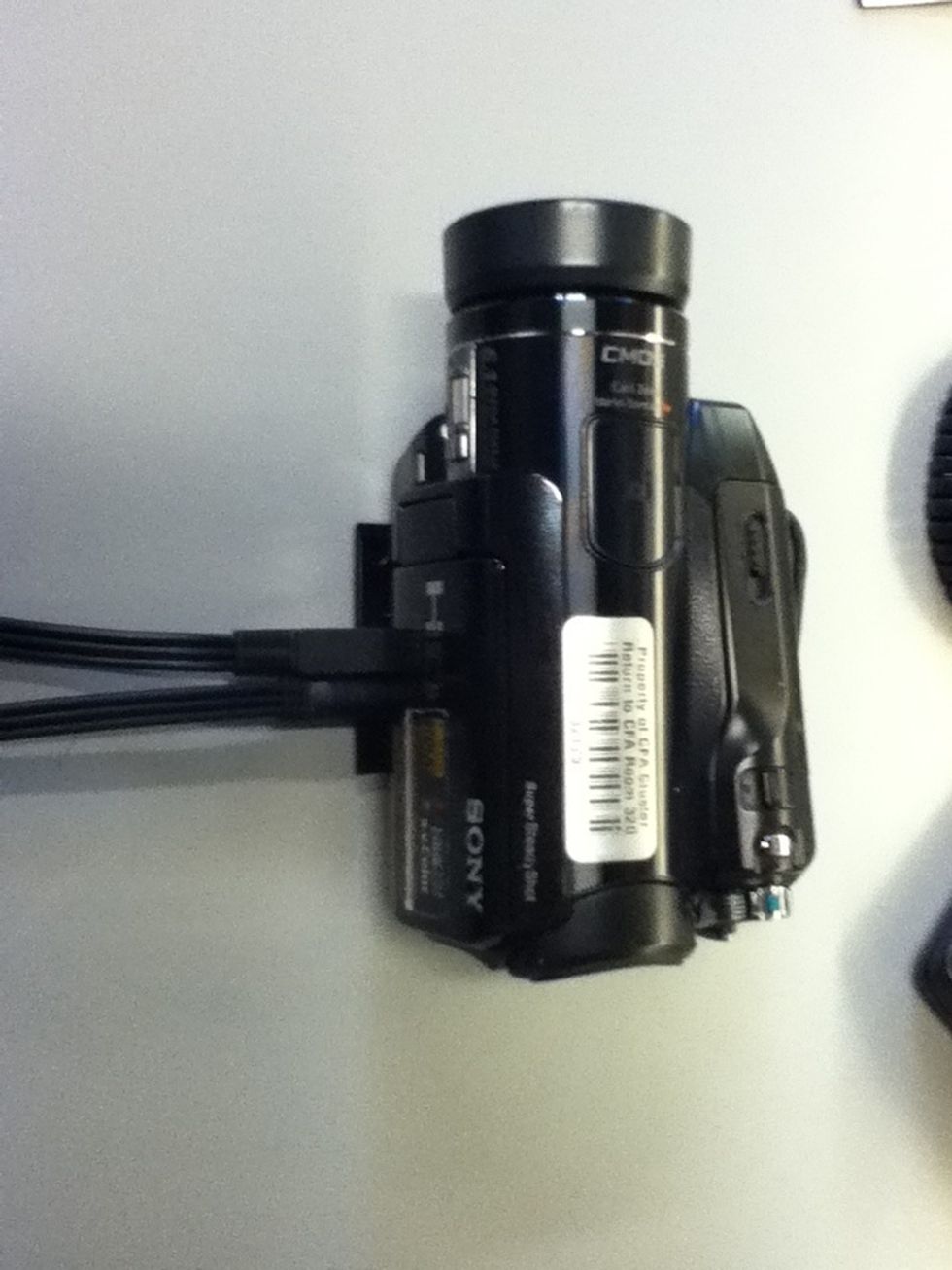

Plug the two cables in the lower left panel of the camera.

Plug the two cables in the lower left panel of the camera.

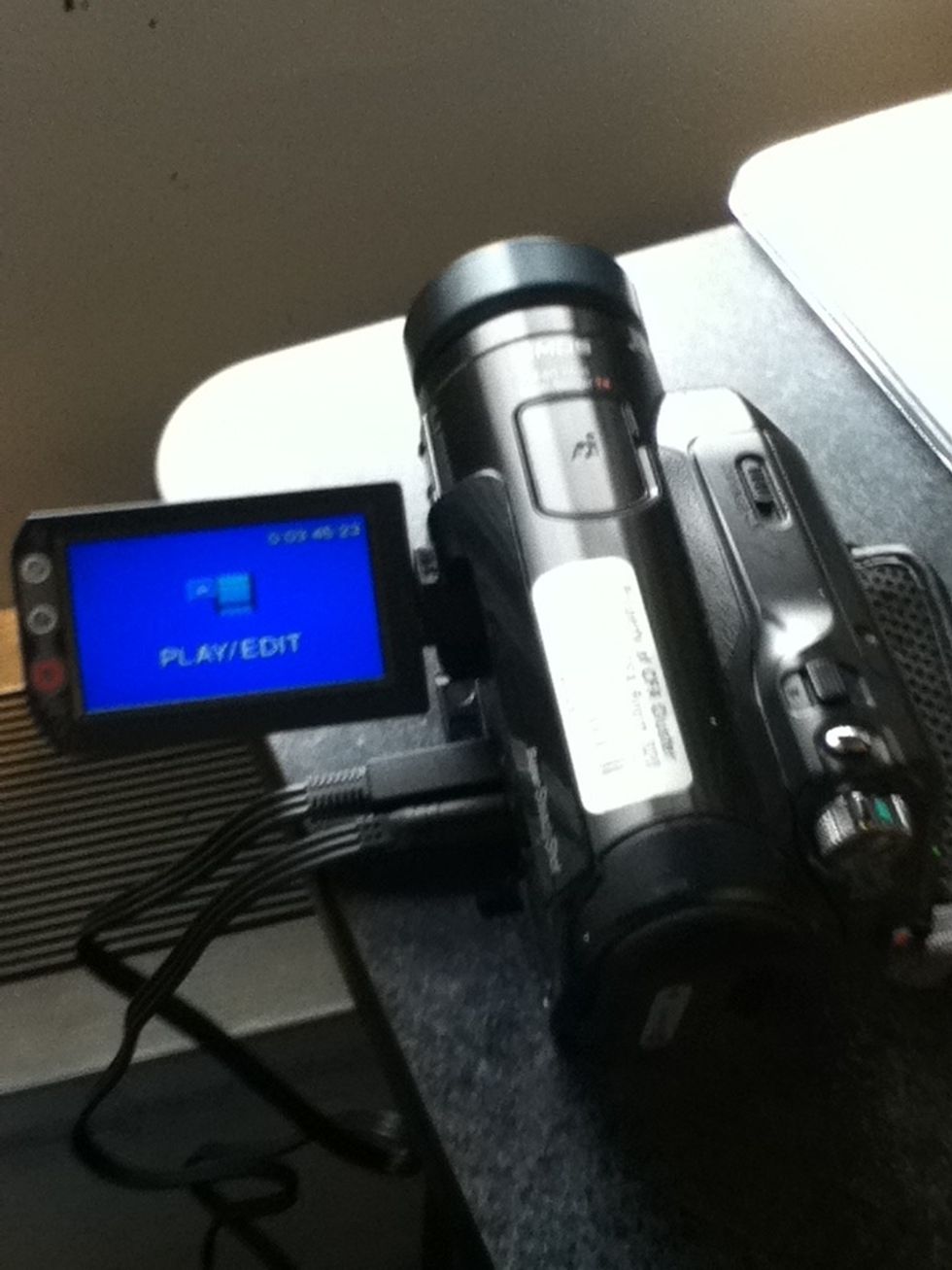

Turn the camera on. Use the mode knob to change into PLAY/EDIT mode.

Turn the camera on. Use the mode knob to change into PLAY/EDIT mode.

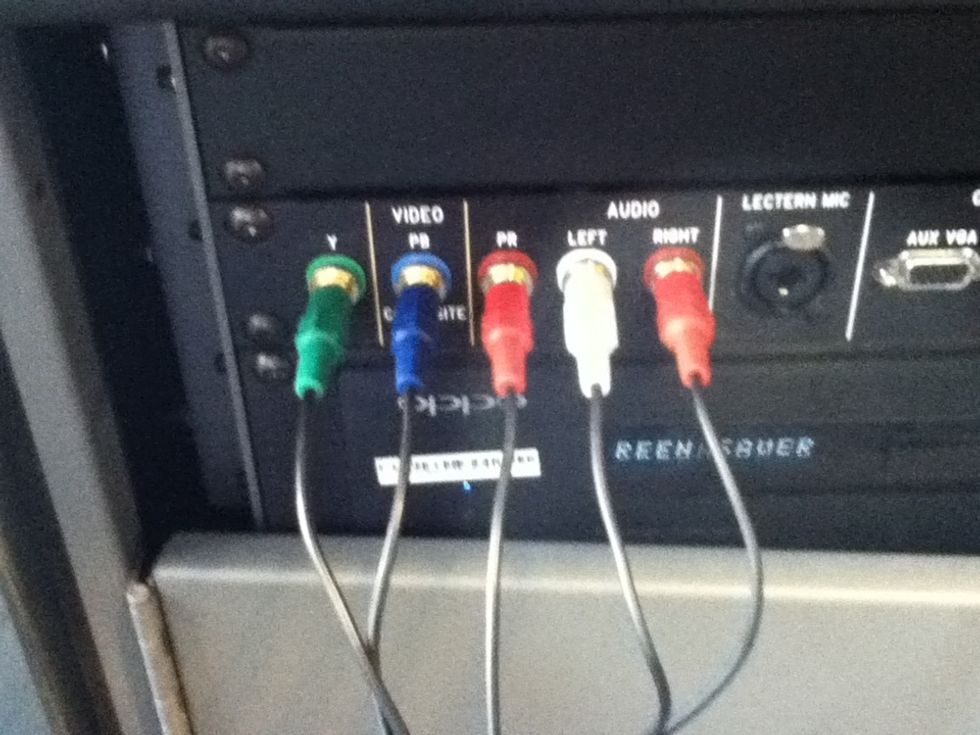

Plug the cables into the lectern, matching the colors. The yellow end is not used.

Plug the cables into the lectern, matching the colors. The yellow end is not used.

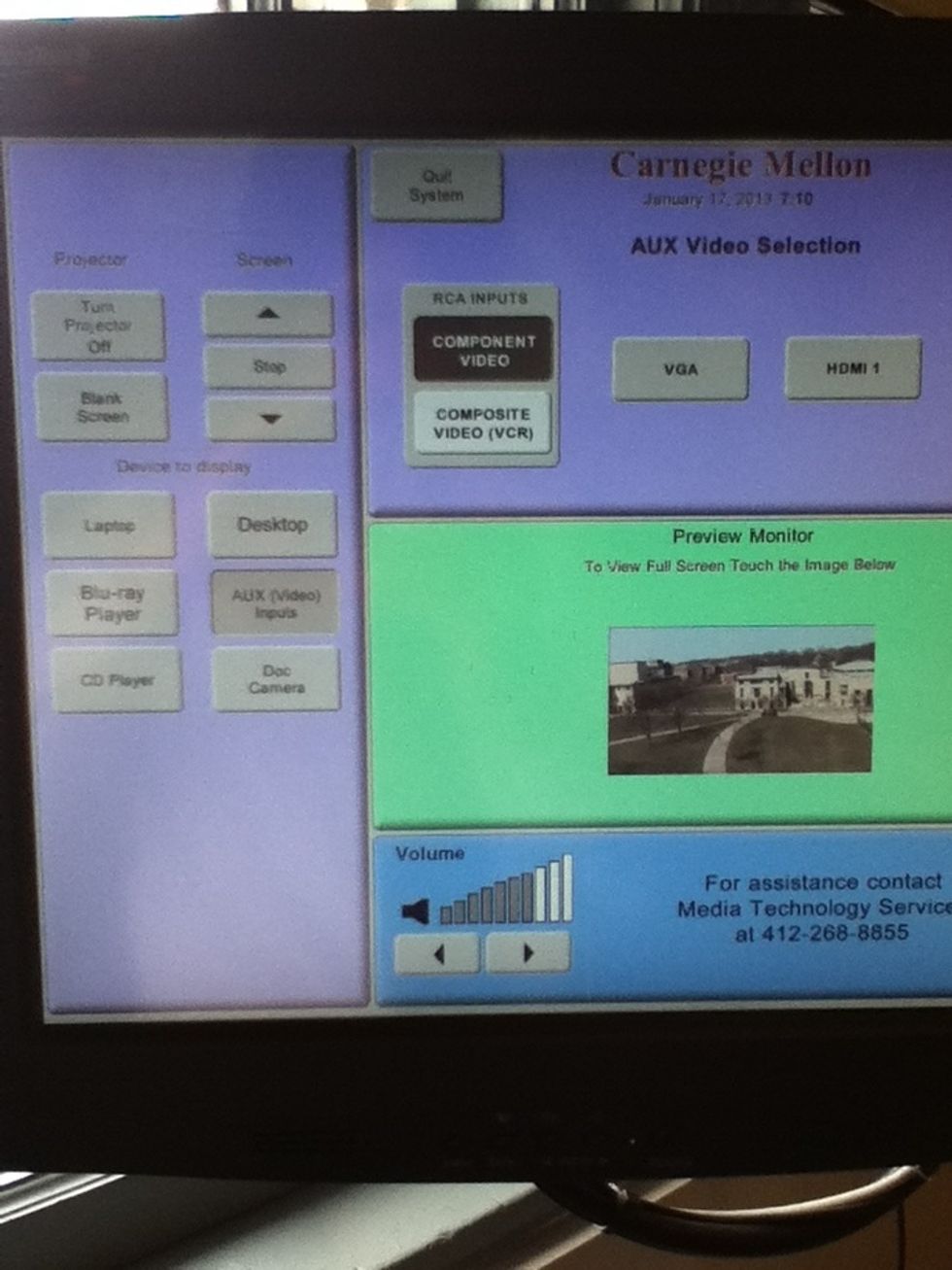

On the lectern, select AUX Video Inputs on the left side. Then select Component Video on the right. You can adjust the volume on the bottom.

On the lectern, select AUX Video Inputs on the left side. Then select Component Video on the right. You can adjust the volume on the bottom.

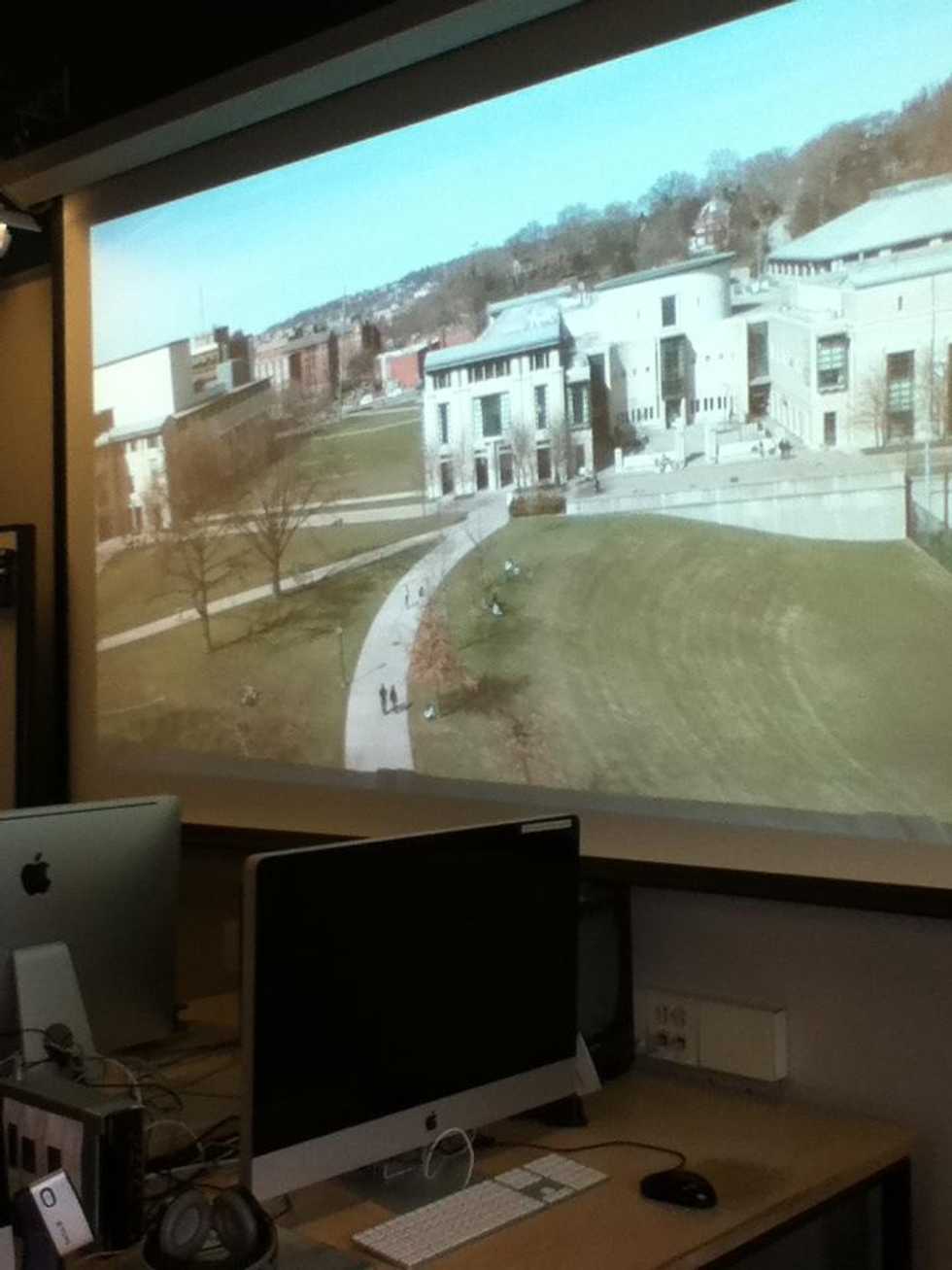

Play and project your tape.

  • 1.0 MiniDv camera
  • 2.0 A/V cables
  • 1.0 MiniDV tape
