How to make spiral slide on autodesk inventor prof. 2014

Make Spiral Slide on Autodesk Inventor Prof. 2014

2
STEPS
TOOLS

Note: To complete this it is recommended that you have a basic understanding of Autodesk Inventor Professional 2014

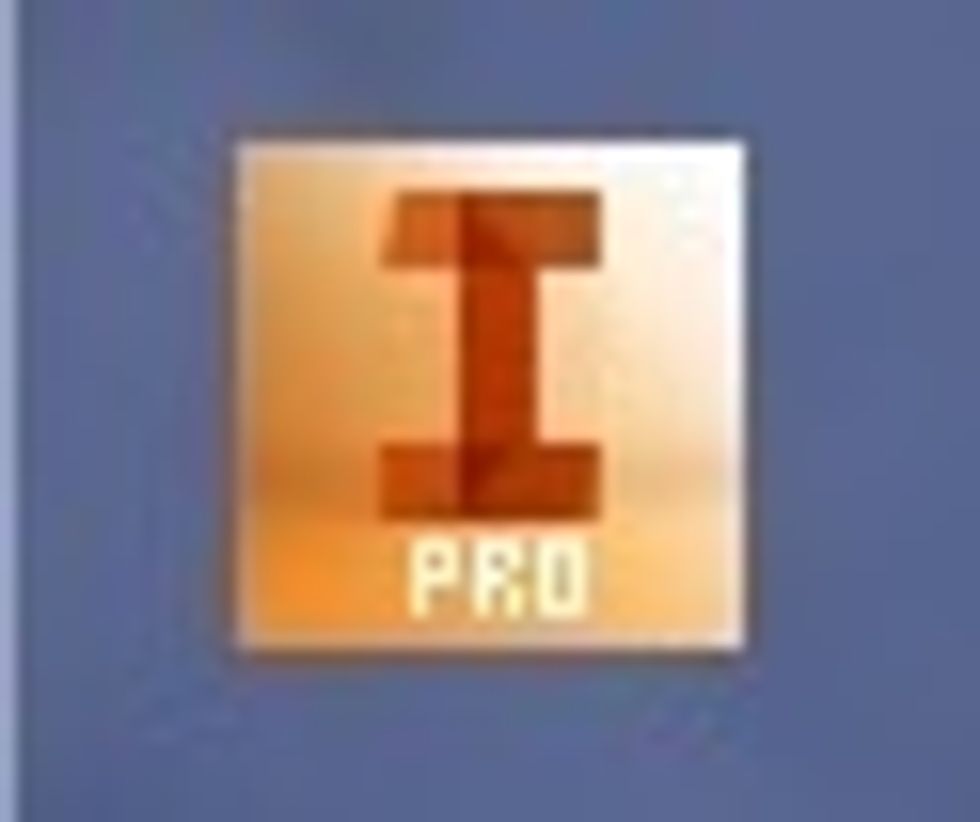

Open Autodesk Inventor Professional 2014

Open Autodesk Inventor Professional 2014

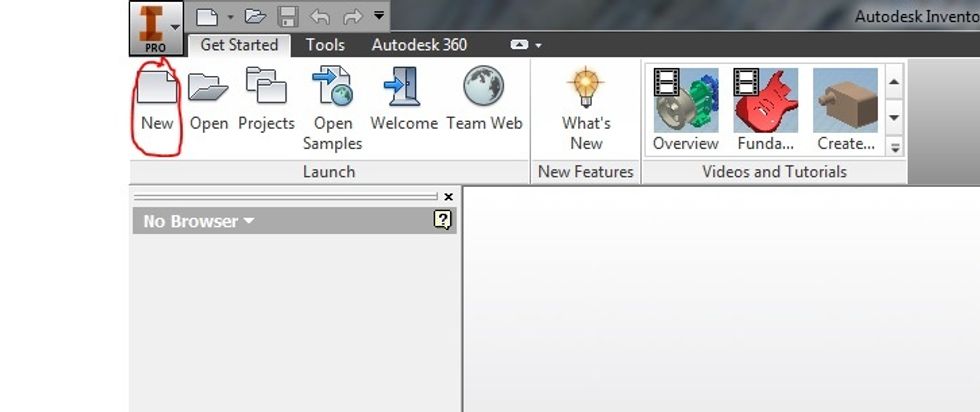

Click \u201cNew\u201d

Click “New”

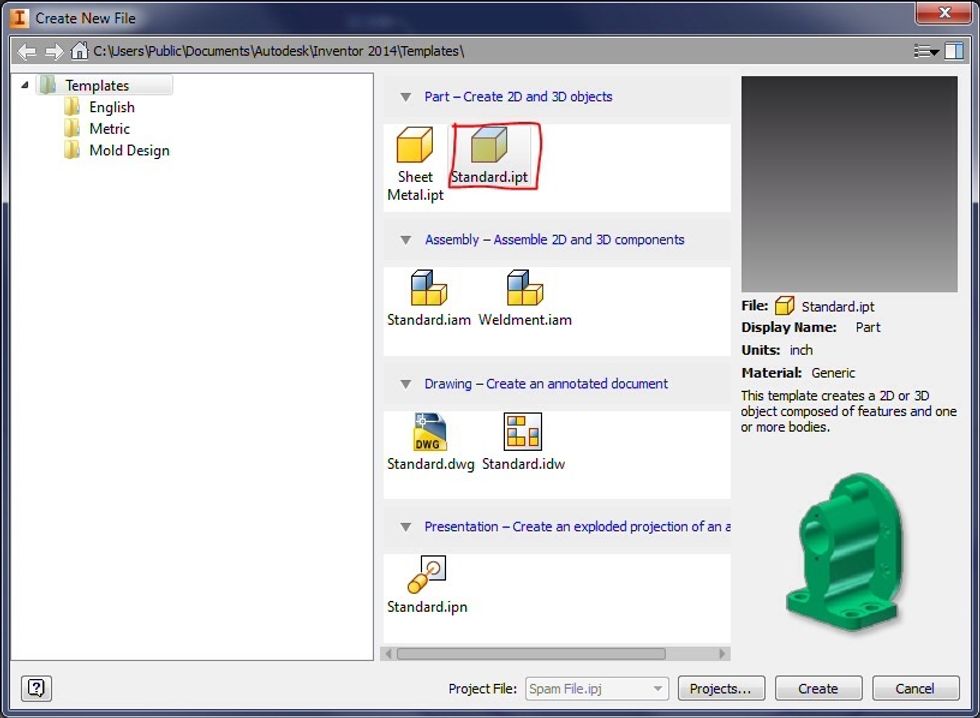

Click \u201cStandard.ipt\u201d

Click “Standard.ipt”

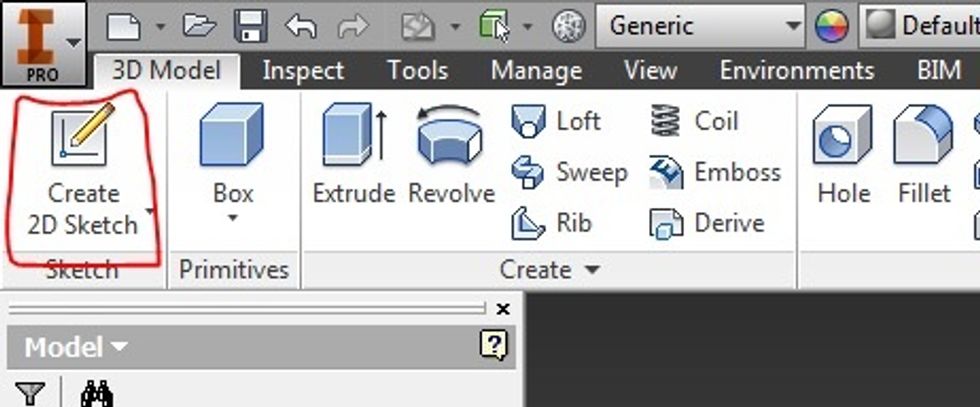

Click "Create 2D Sketch"

Click "Create 2D Sketch"

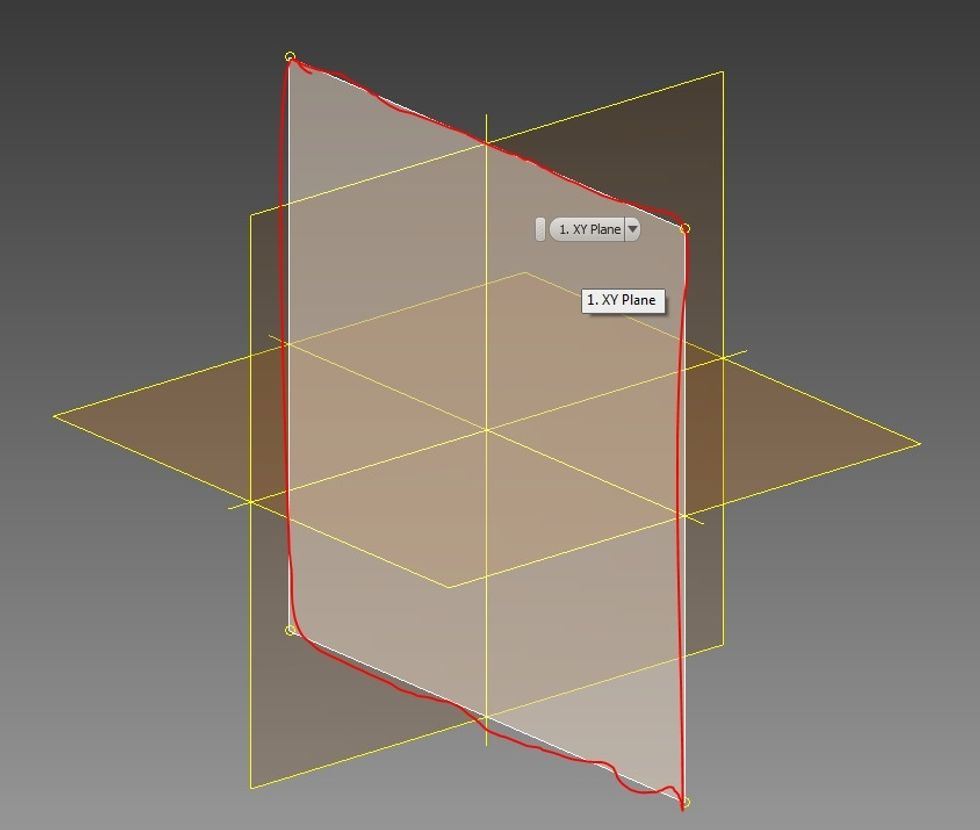

Select the XY plane

Select the XY plane

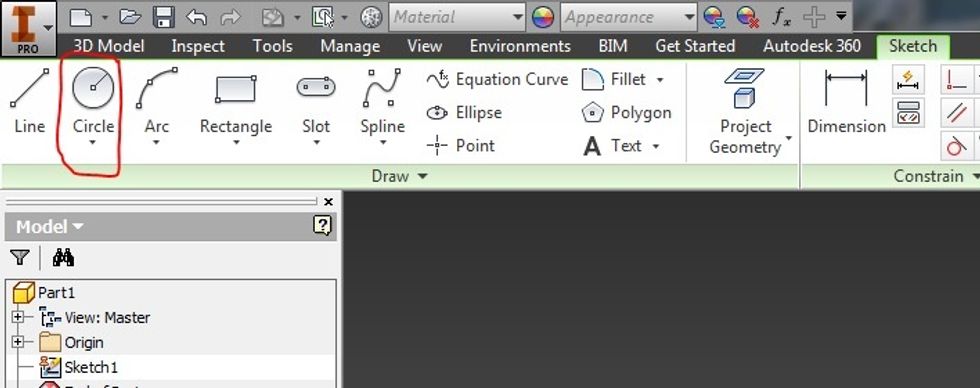

Click the circle tool

Click the circle tool

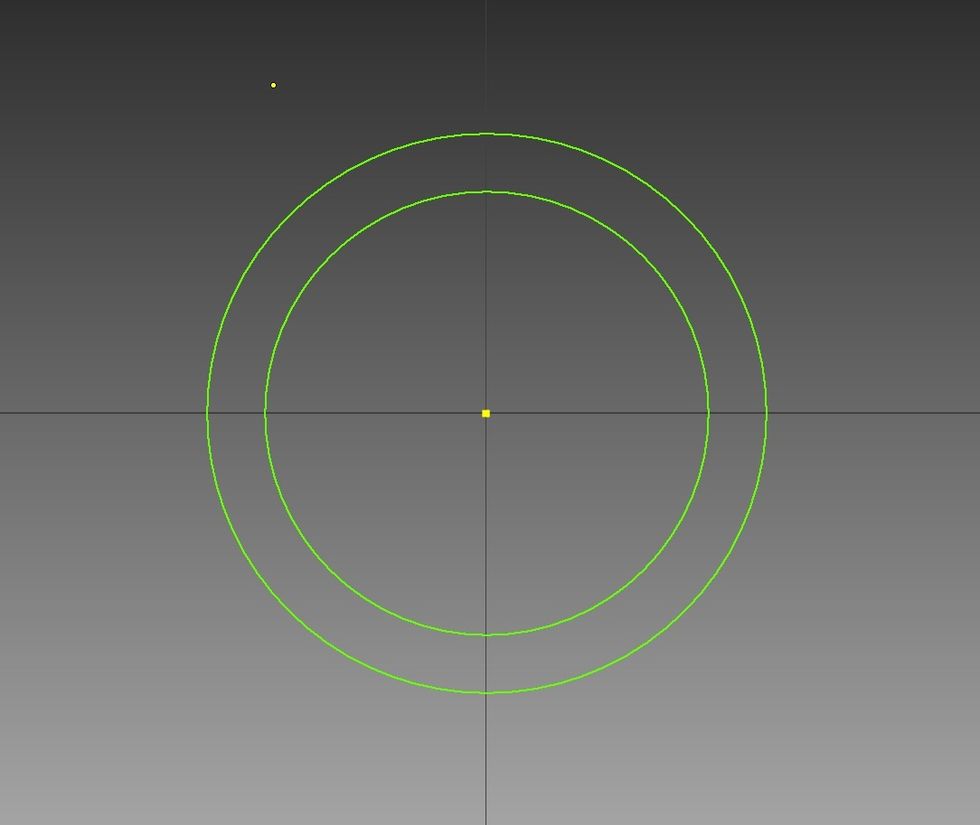

Click the center and create two circles by clicking, dragging, and clicking again when the circle is the right size. One circle should be larger than the other

Click the center and create two circles by clicking, dragging, and clicking again when the circle is the right size. One circle should be larger than the other

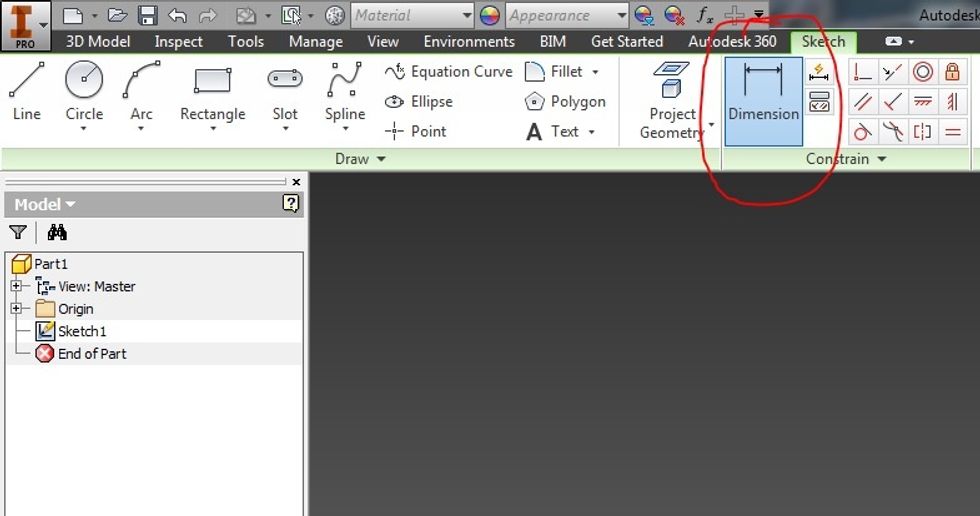

Click the dimension tool at the center of the top of the screen

Click the dimension tool at the center of the top of the screen

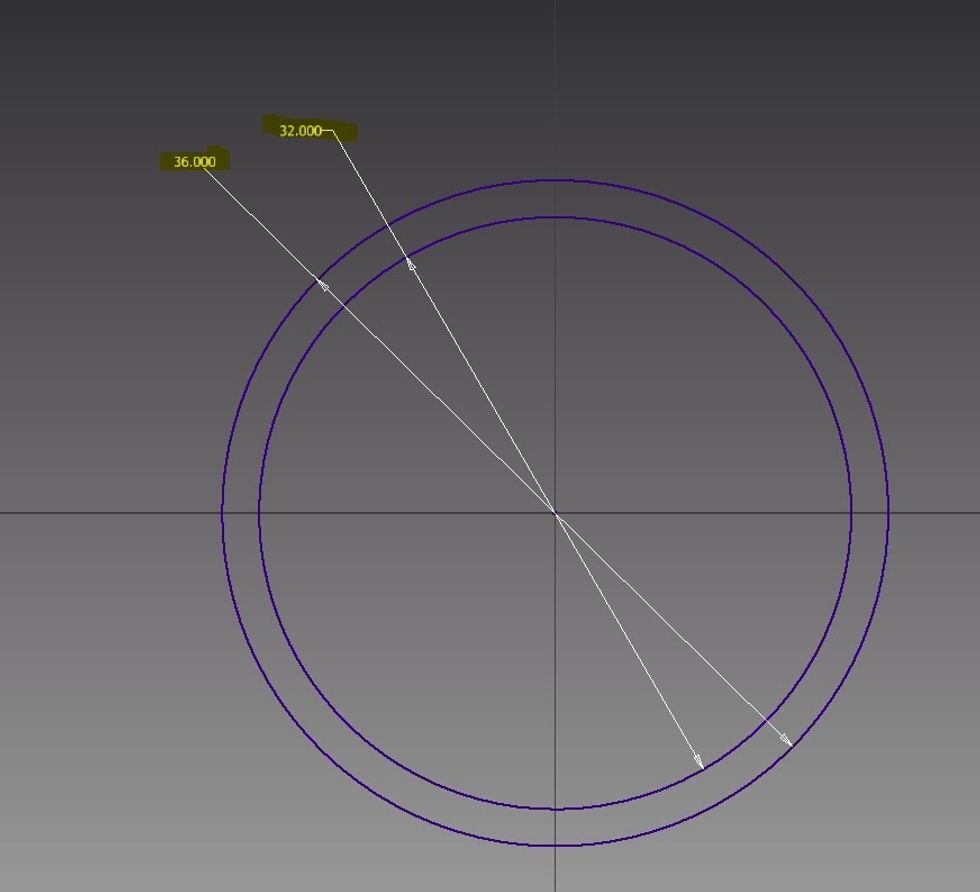

Click the outer circle and change the dimension to 36, then click the inside circle and change the dimension to 32

Click the outer circle and change the dimension to 36, then click the inside circle and change the dimension to 32

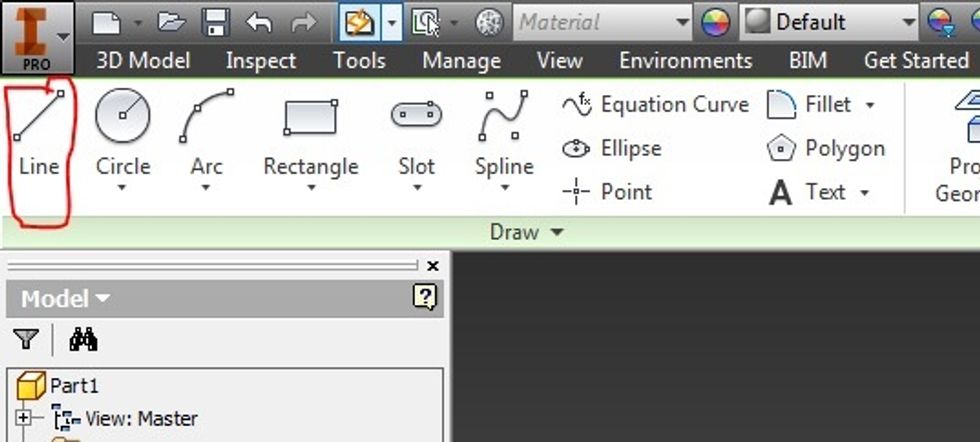

Click the line tool

Click the line tool

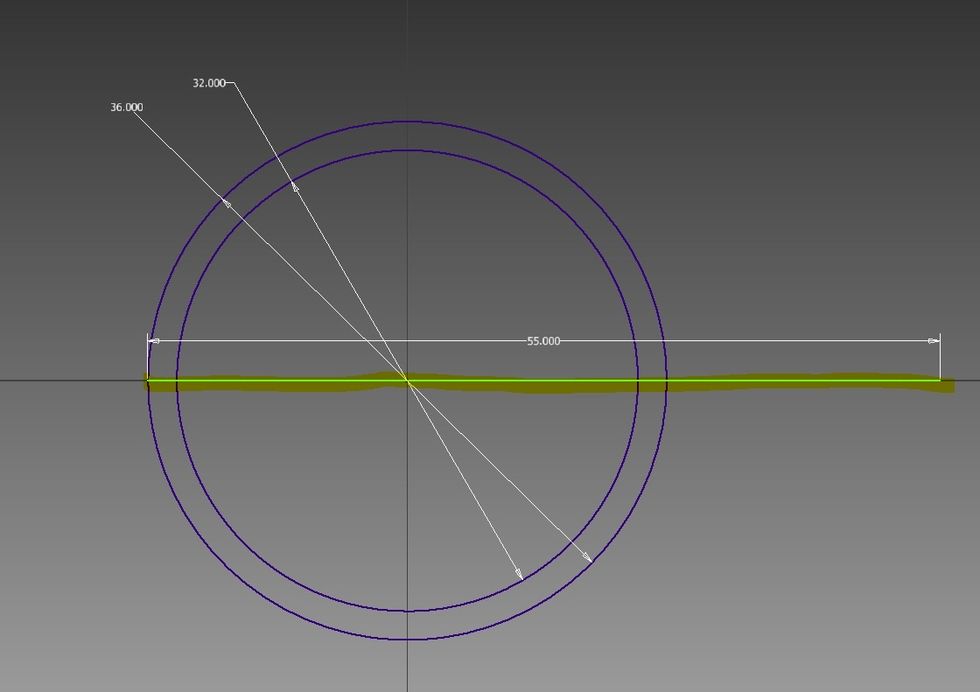

Click on the x-axis where the outer circle crosses it and use the dimension tool to make a line that is 55 inches long

Click on the x-axis where the outer circle crosses it and use the dimension tool to make a line that is 55 inches long

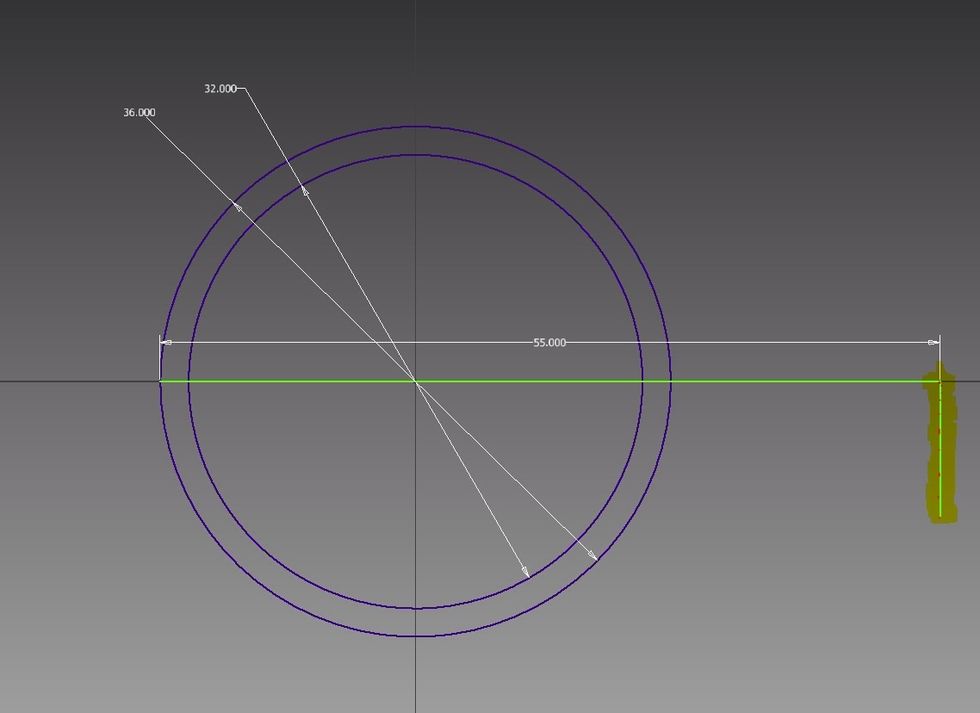

Make another line going vertically that is exactly 90 degrees of the last line. The length does not matter

Make another line going vertically that is exactly 90 degrees of the last line. The length does not matter

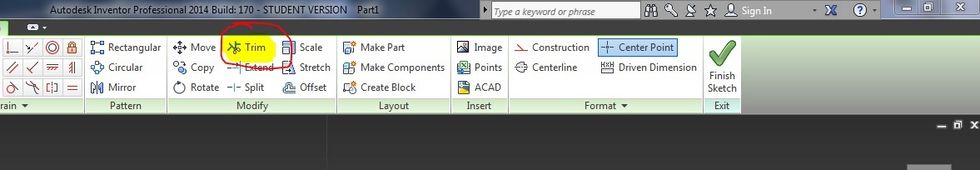

Click the trim tool

Click the trim tool

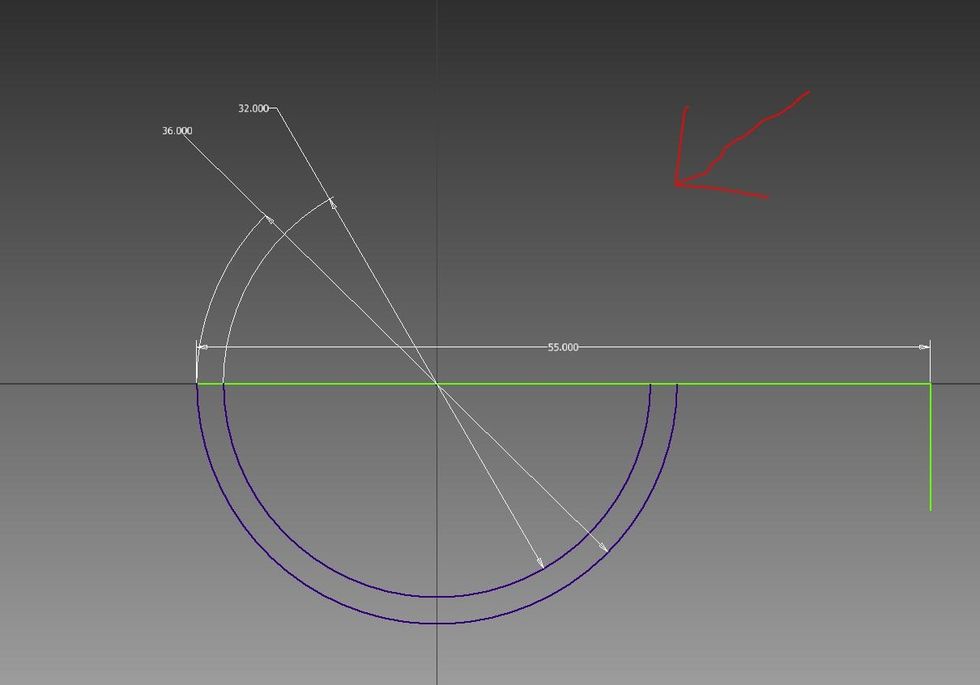

Click the halves of the circles above the x-axis. They should disappear

Click the halves of the circles above the x-axis. They should disappear

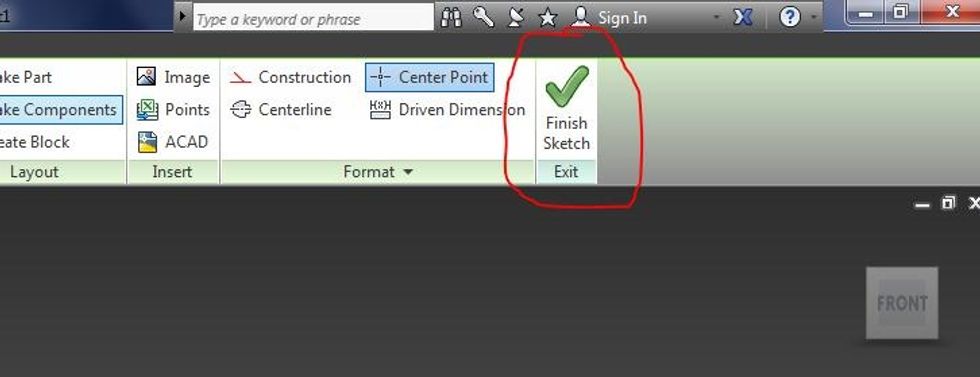

Press "Esc" on your keyboard and then click the finish sketch "check mark" button on the screen

Press "Esc" on your keyboard and then click the finish sketch "check mark" button on the screen

Zoom Out to see the whole thing by scrolling on your mouse

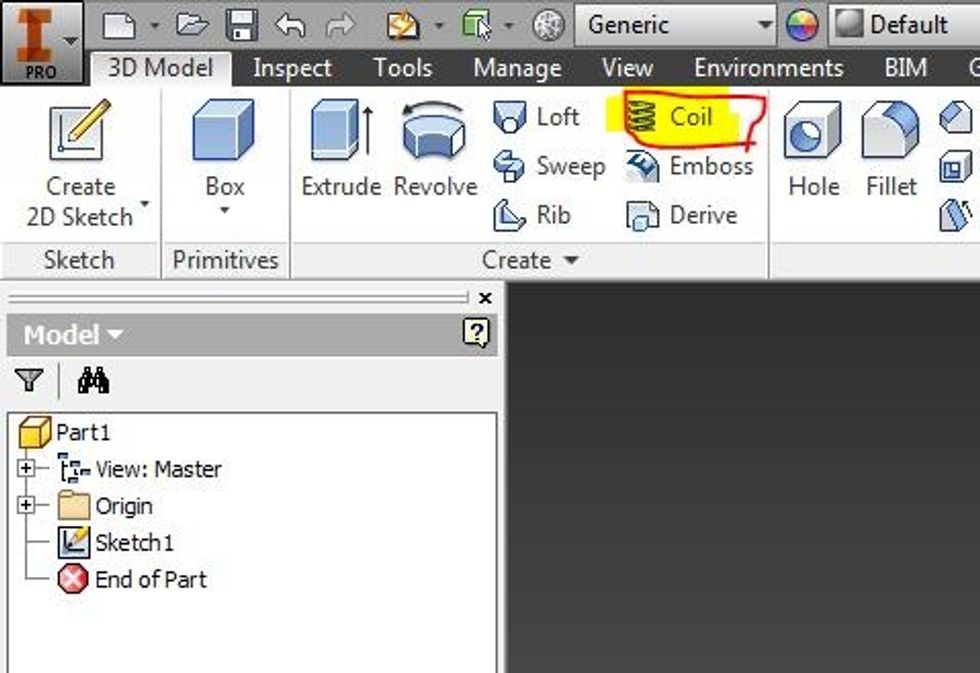

Click on the coil tool

Click on the coil tool

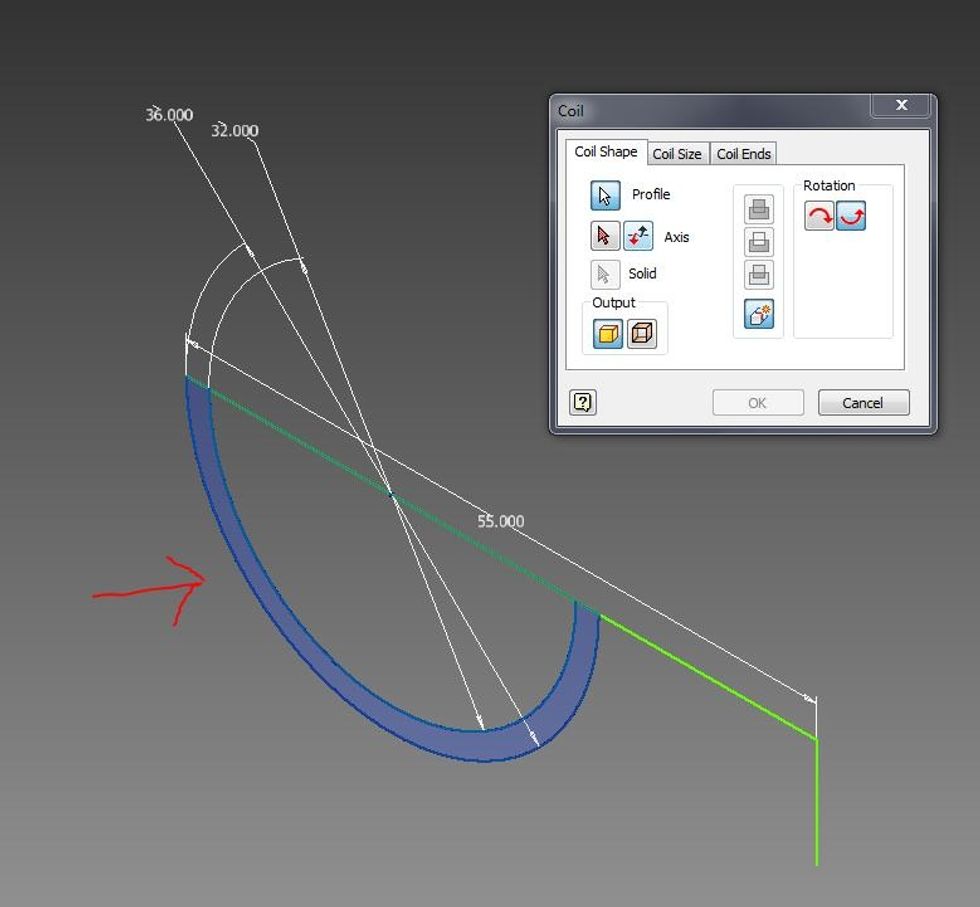

Select the profile that is shaped like a crescent moon

Select the profile that is shaped like a crescent moon

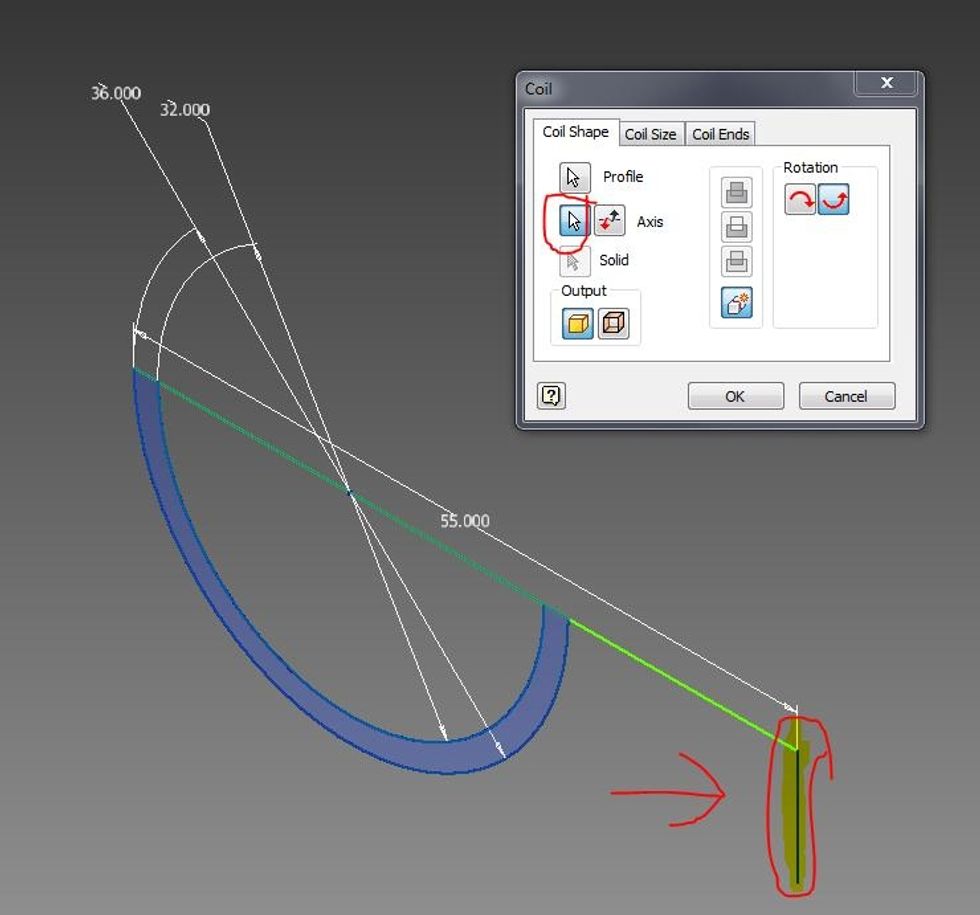

Click the first axis button with a mouse picture on it and then click the vertical axis that you made

Click the first axis button with a mouse picture on it and then click the vertical axis that you made

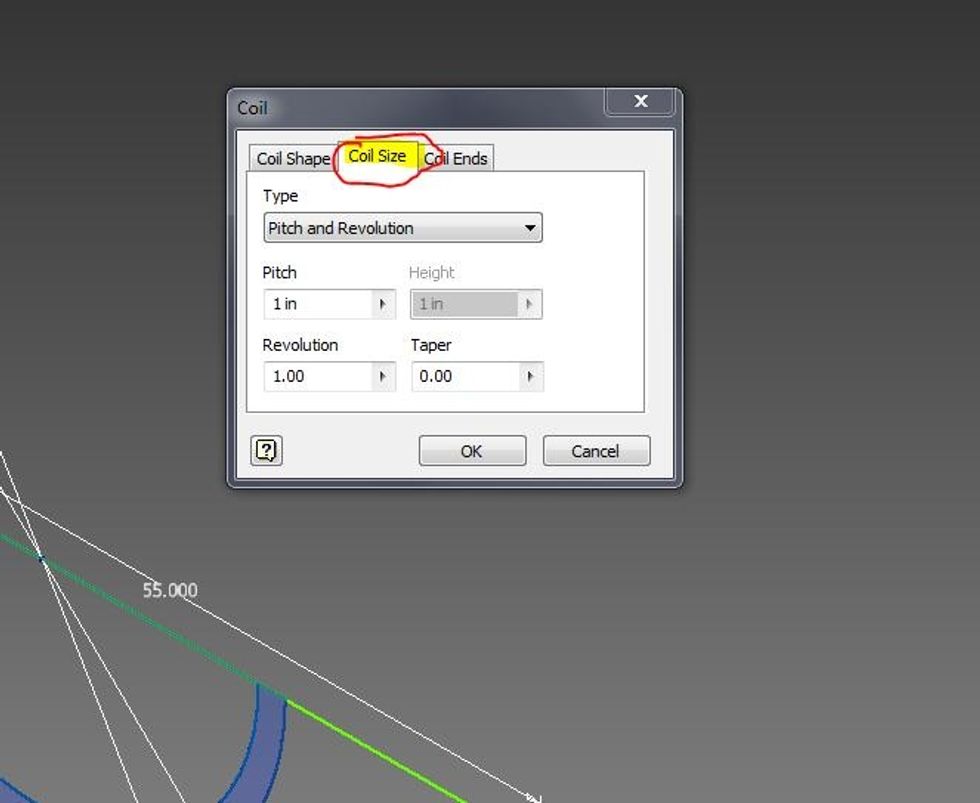

Click the coil size tab

Click the coil size tab

Click the drop down arrow and change it from "pitch and revolution" to "revolution and height" (missing pic)

Change the height to 144 and the revolutions to 3

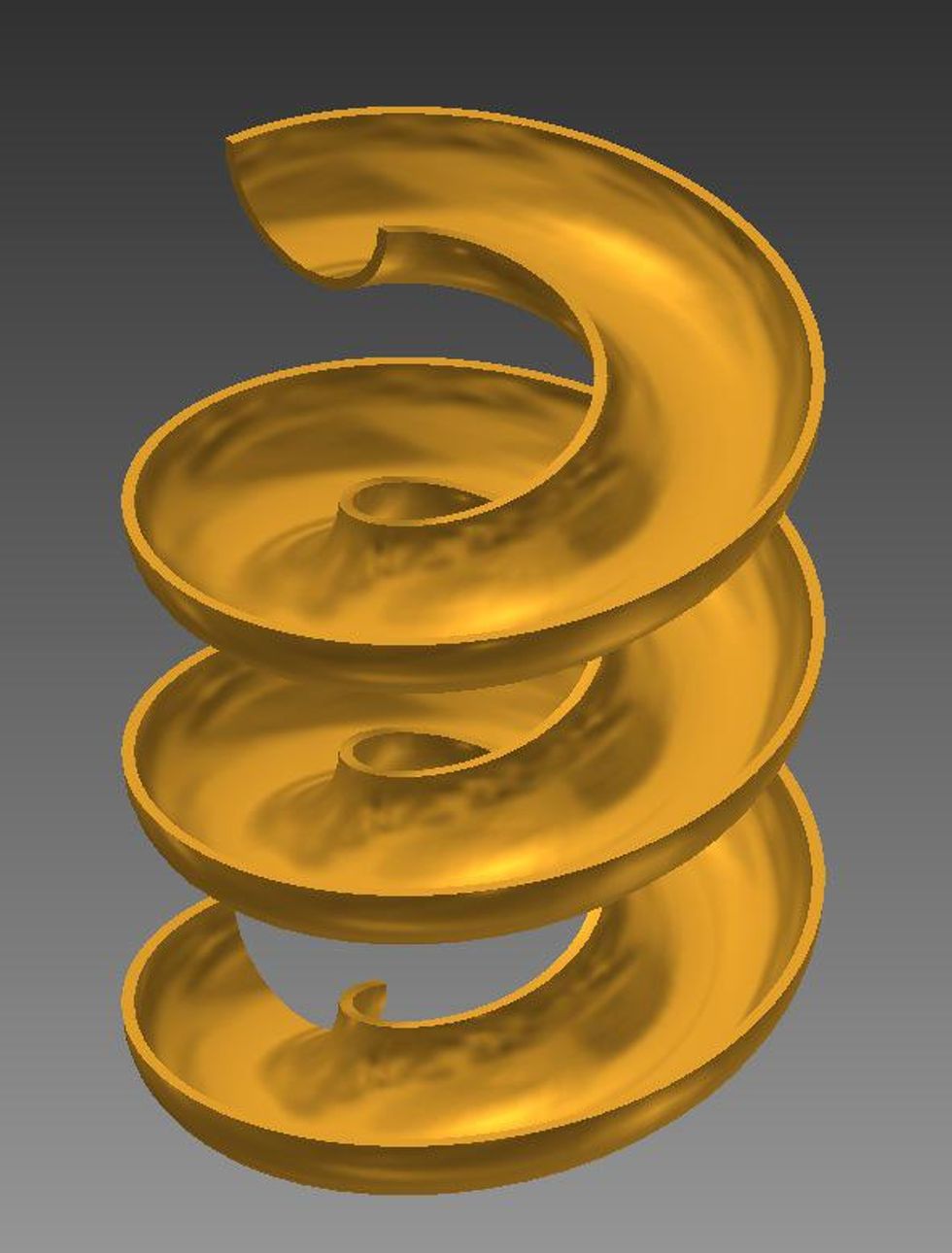

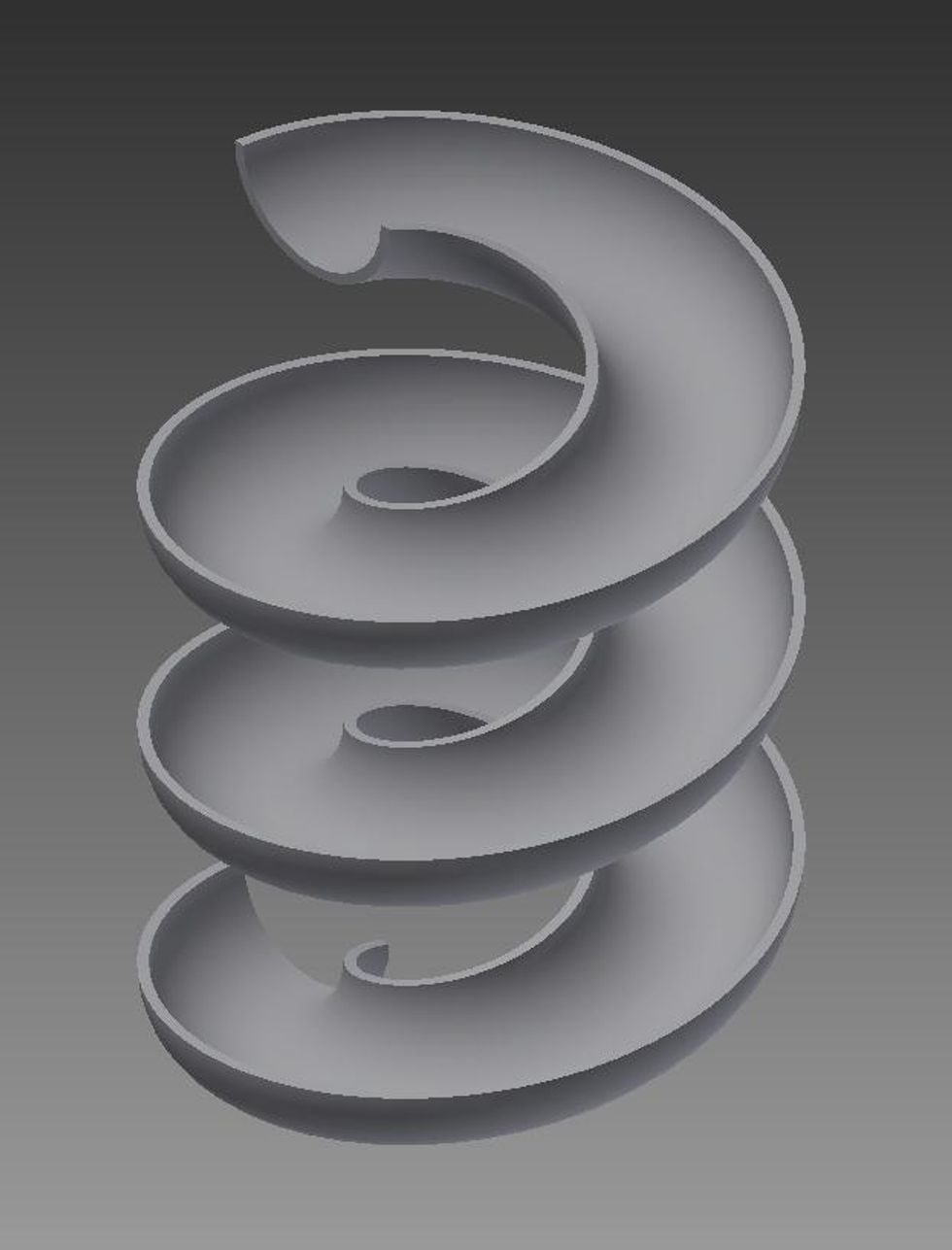

Click "OK" and zoom out

Click "OK" and zoom out

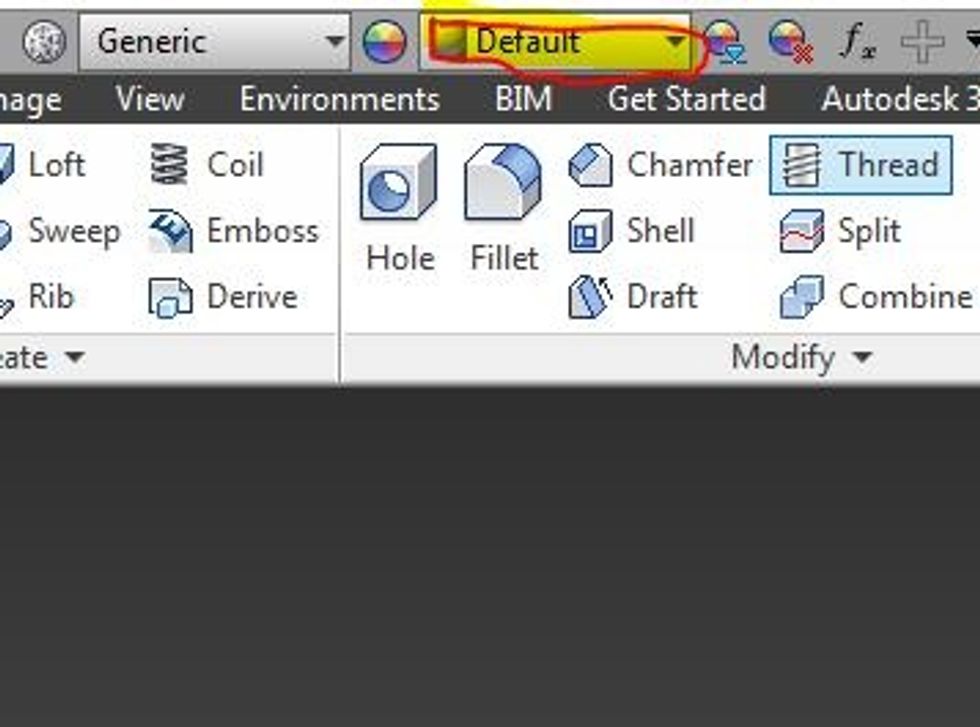

You can change the color by clicking the appearance tab. Play around with this until you find one you like!

You can change the color by clicking the appearance tab. Play around with this until you find one you like!

Thanks for reading!

Thanks for reading!

  • 1.0 Computer with Monitor
  • 1.0 Autodesk Inventor Professional 2014 Software
  • 1.0 Computer Mouse
  • 1.0 Computer Keyboard
