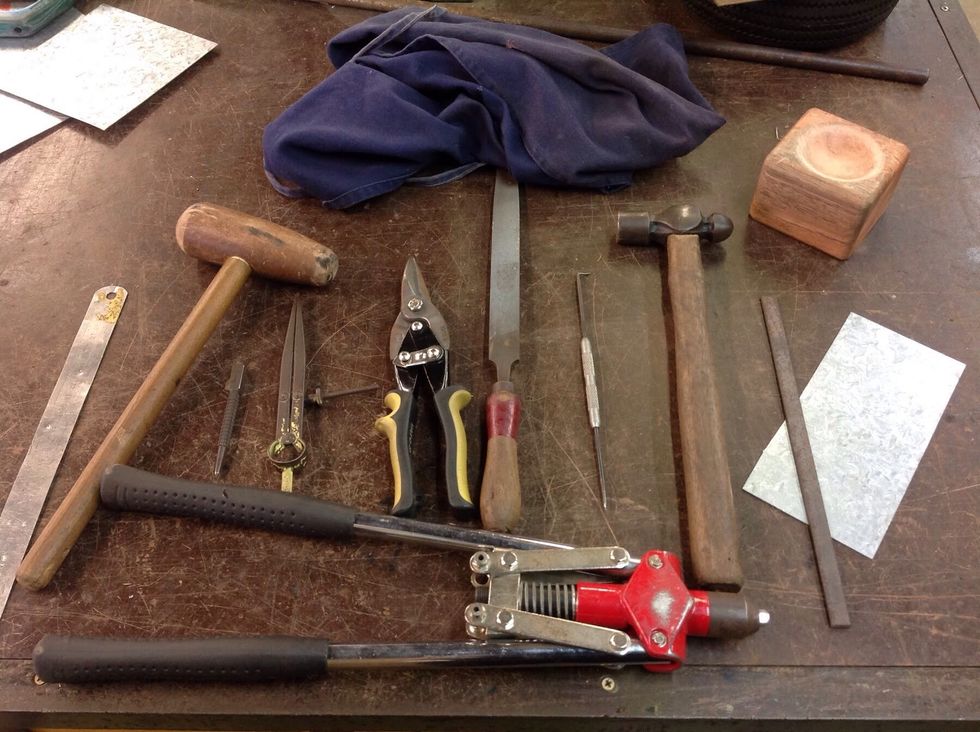

Tools

Tools

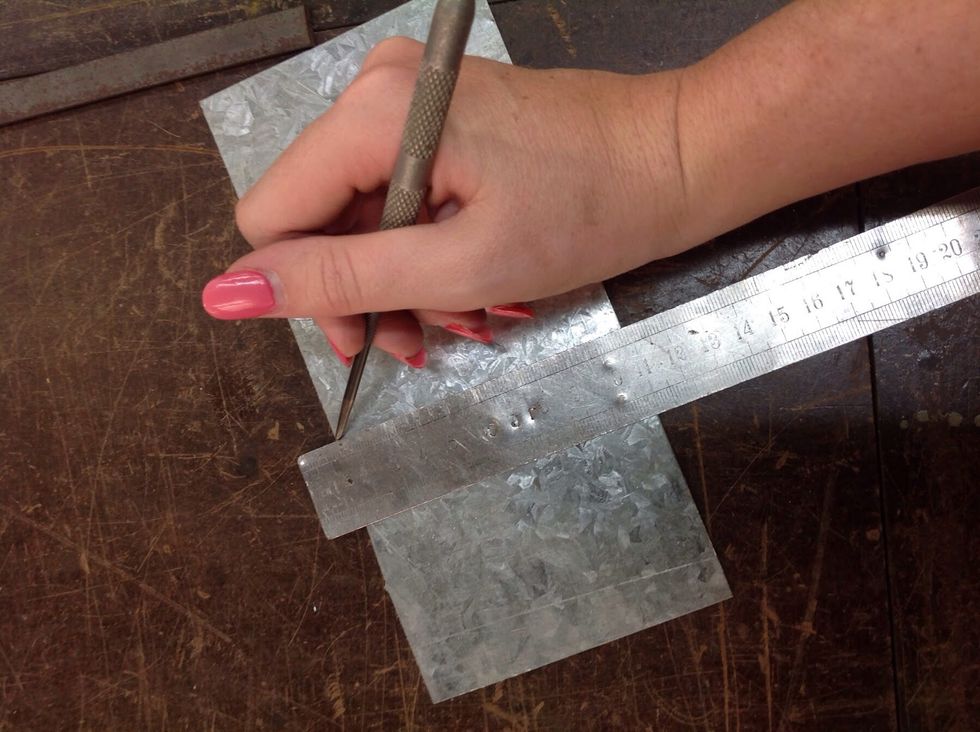

First measure 7 cm and scribe a mak

First measure 7 cm and scribe a mak

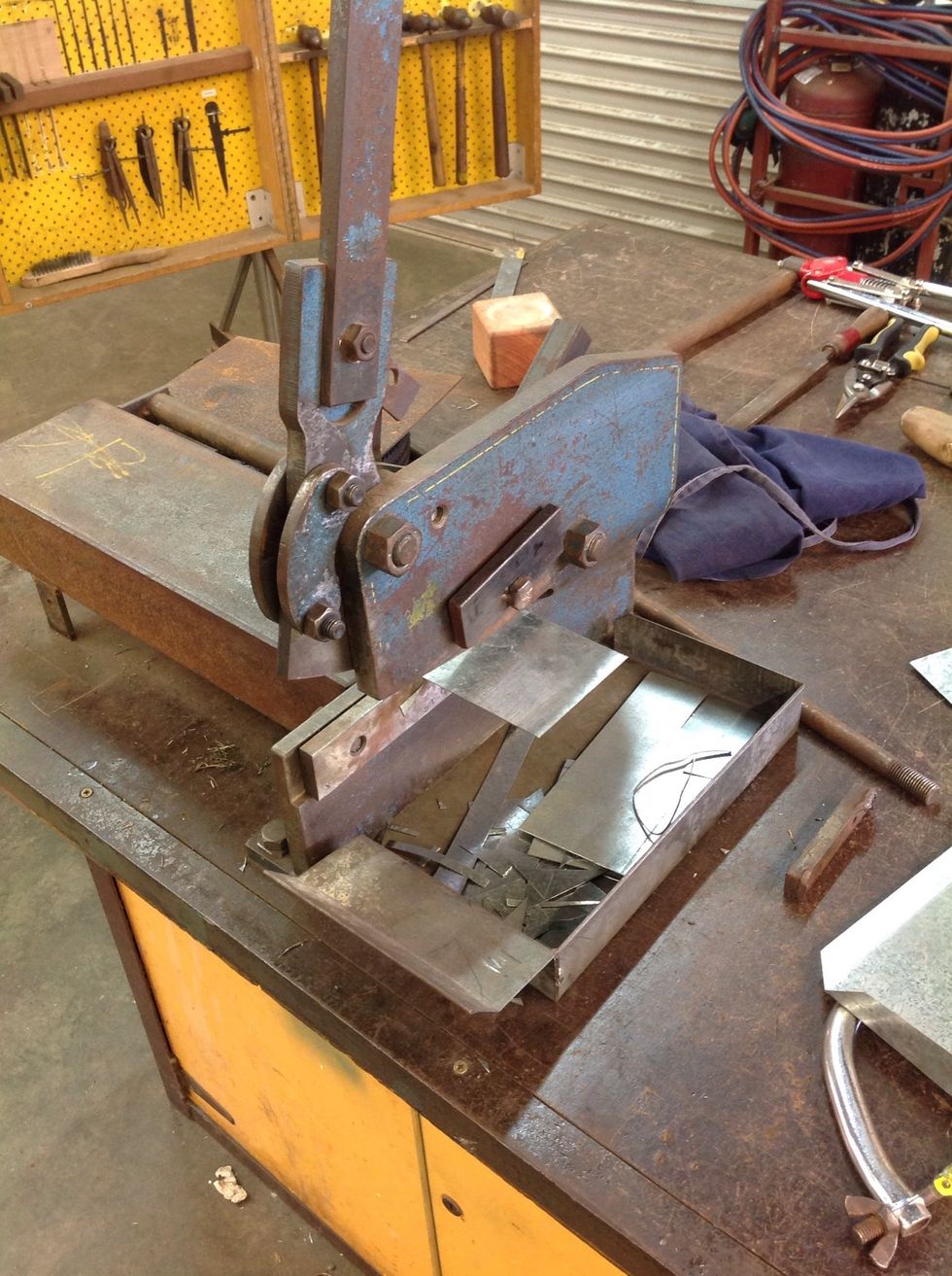

Next you will need to cut your sheet metal

Next you will need to cut your sheet metal

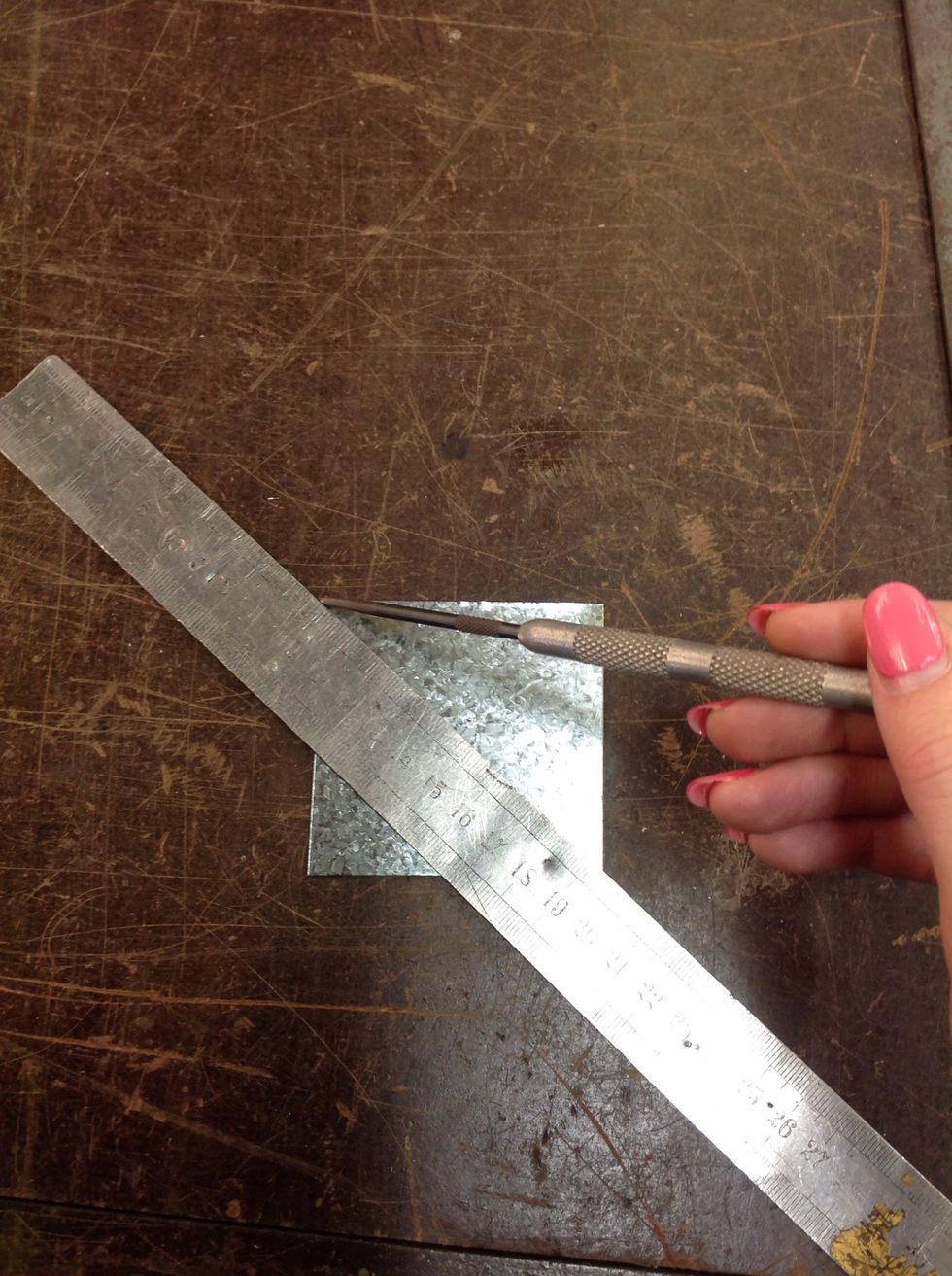

You will need to scribe corner to corner

You will need to scribe corner to corner

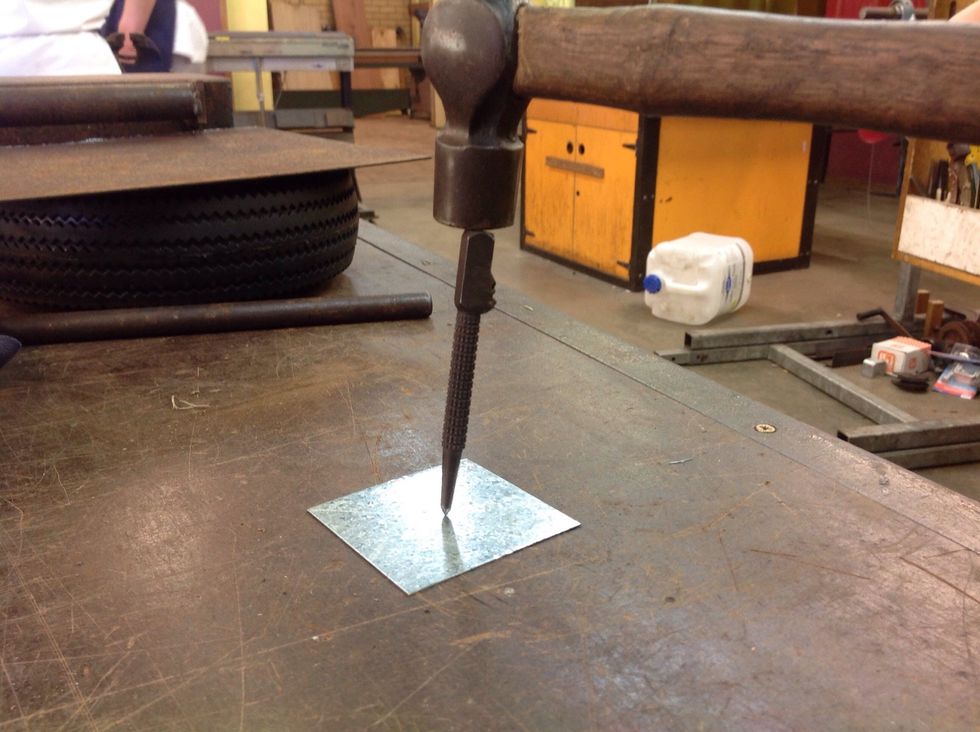

Find where your scribe lines meet and centre punch

Find where your scribe lines meet and centre punch

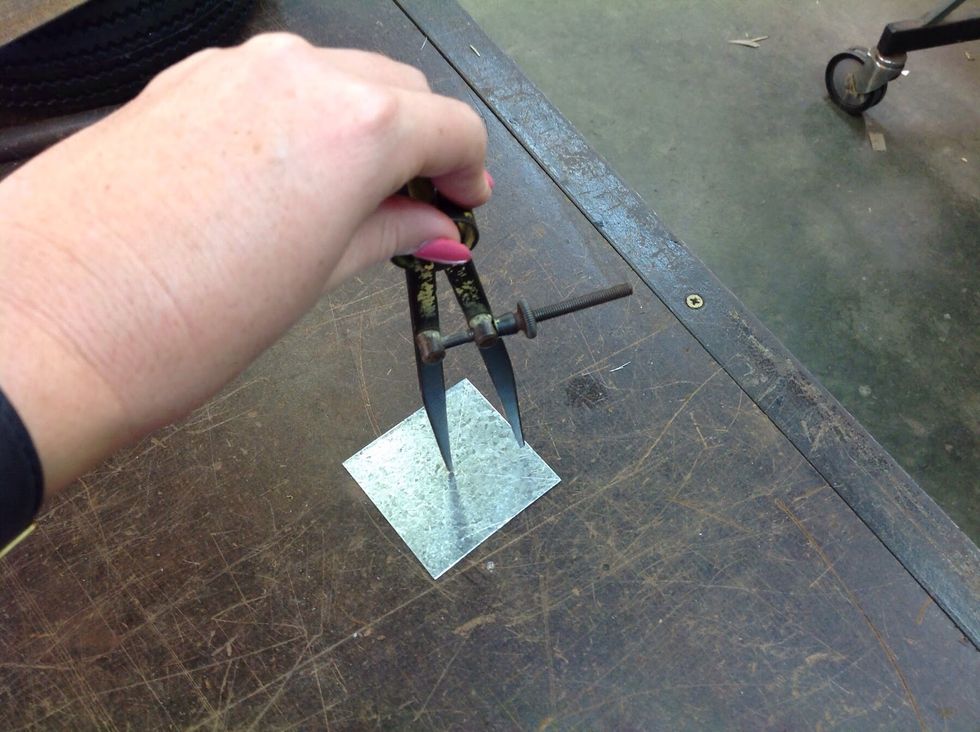

Use the divider with one end in the centre punch mark

Use the divider with one end in the centre punch mark

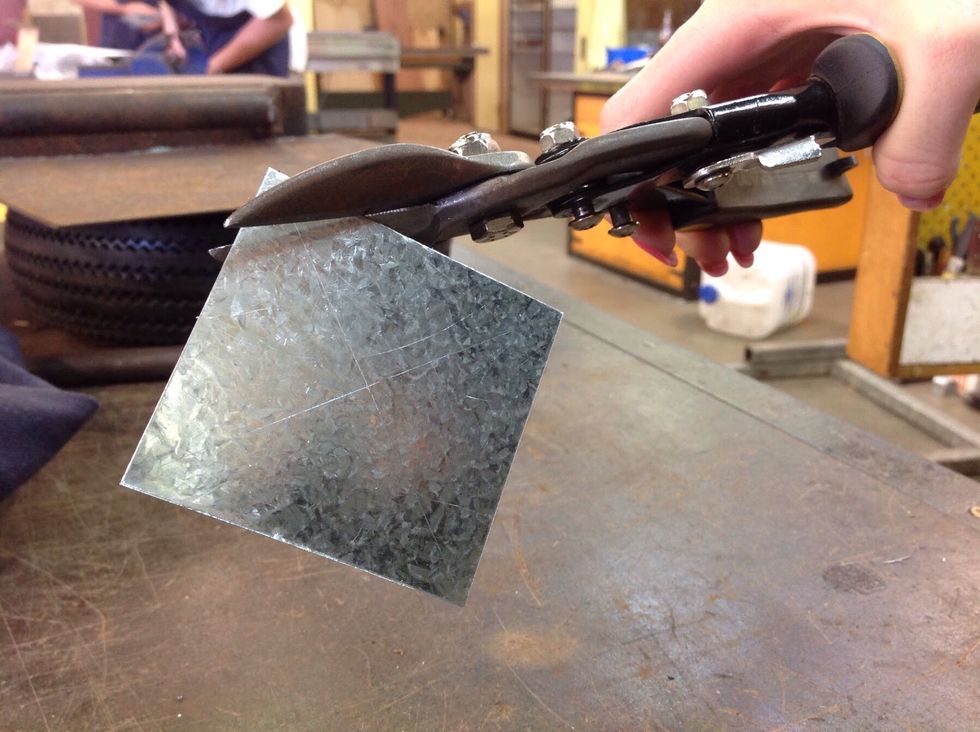

Cut out your circle witj tin snips

Cut out your circle witj tin snips

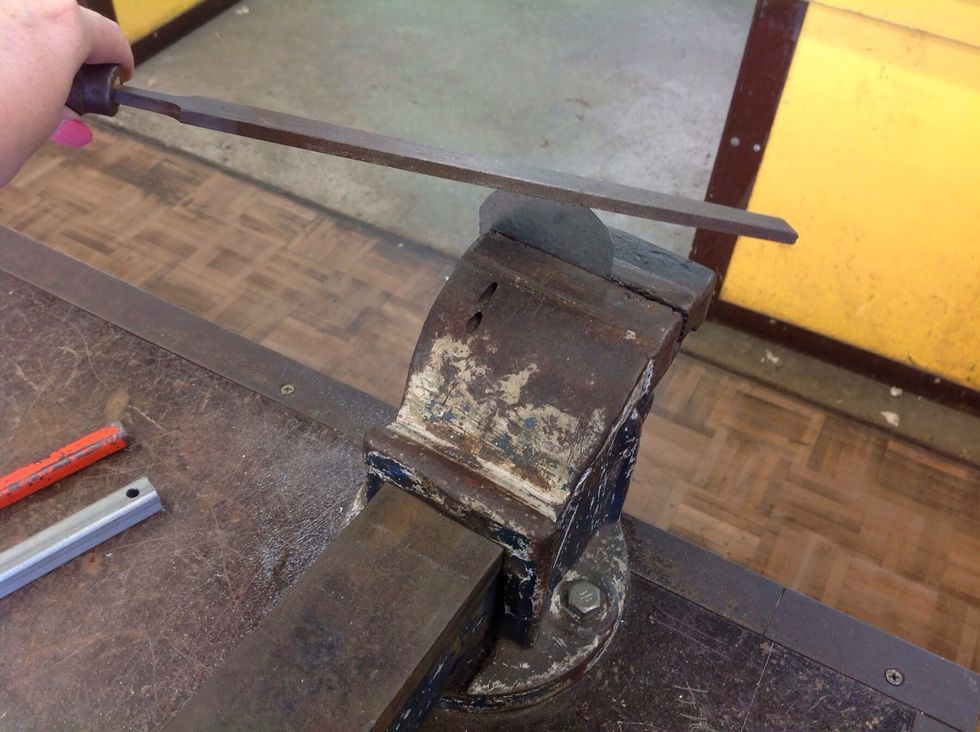

File the edges of your circle  carefule

File the edges of your circle carefule

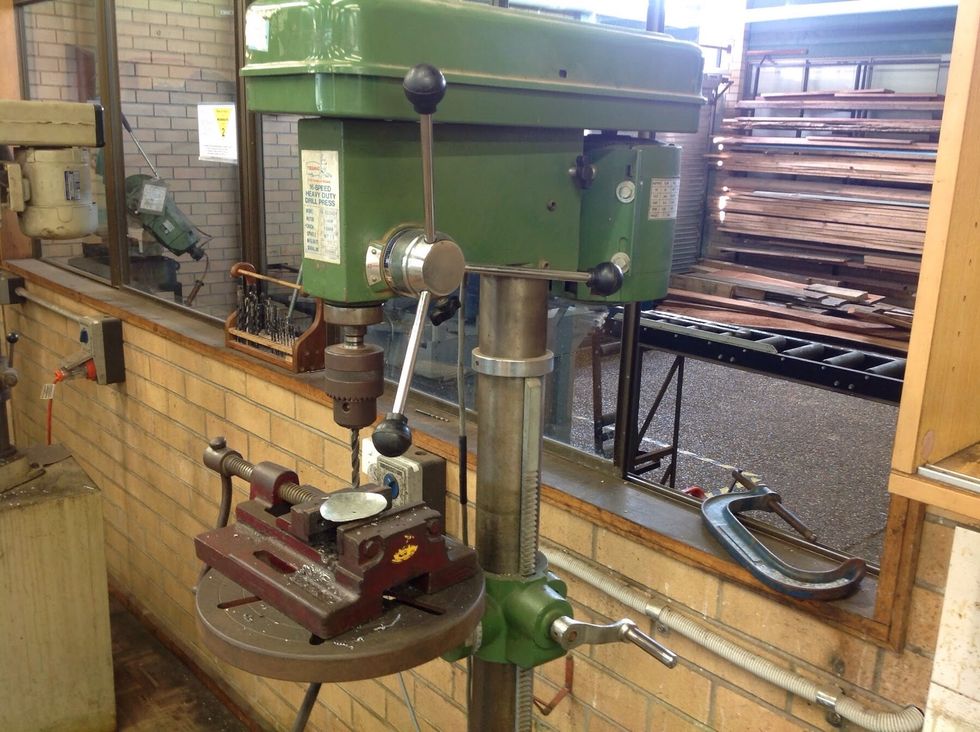

Use the drill press to drill through the centre mark

Use the drill press to drill through the centre mark

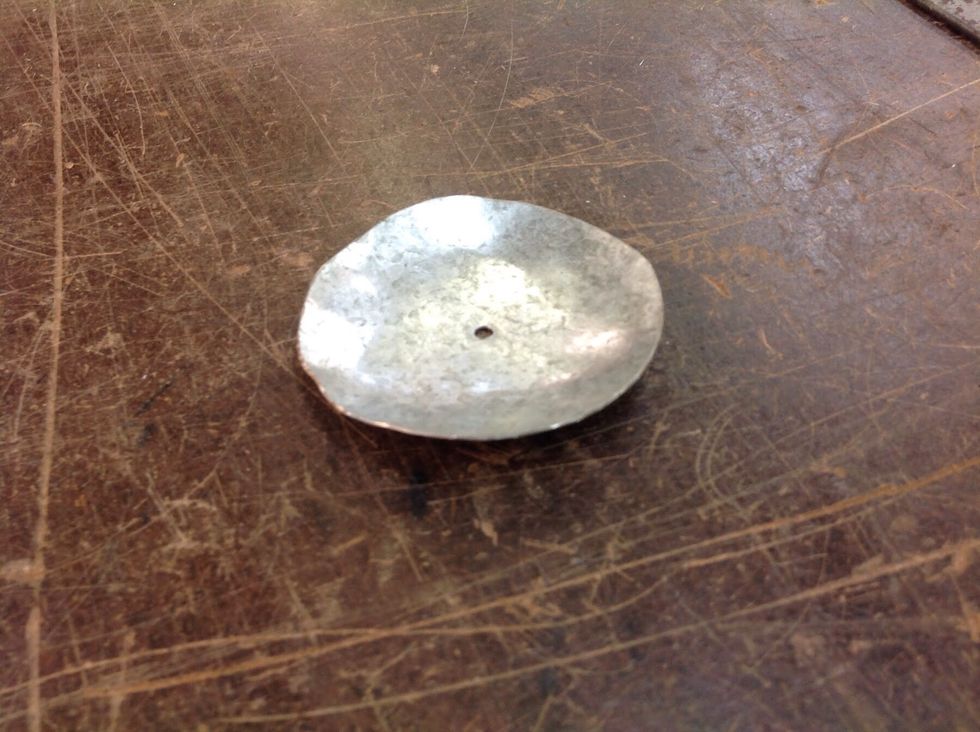

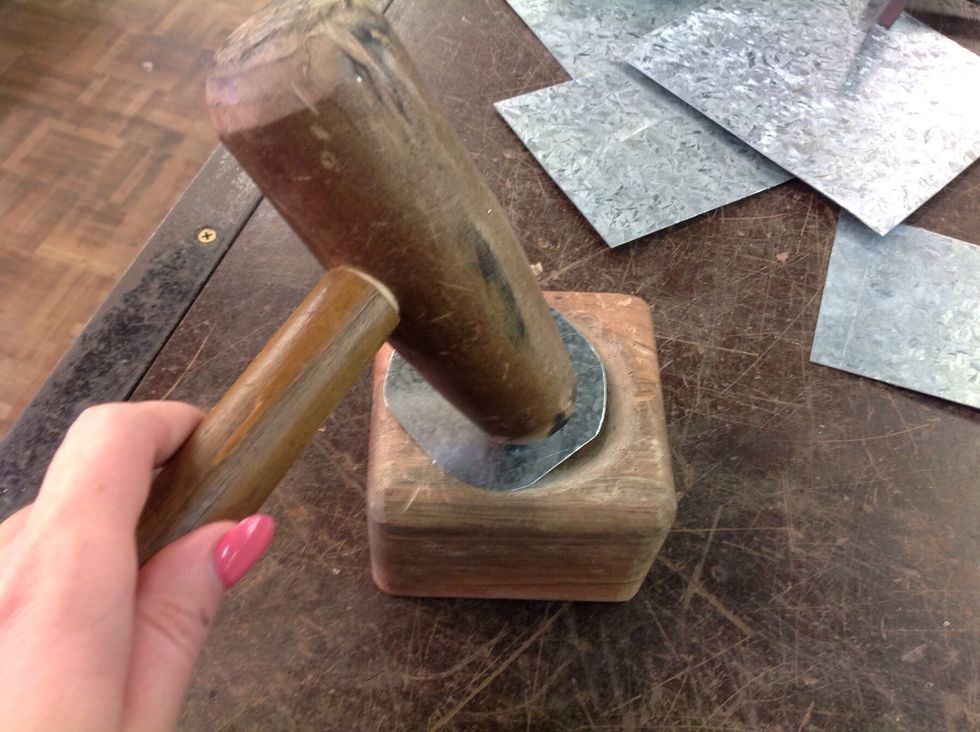

Use the. Wooden mole and the tinmans mallet to shape your dish

Use the. Wooden mole and the tinmans mallet to shape your dish

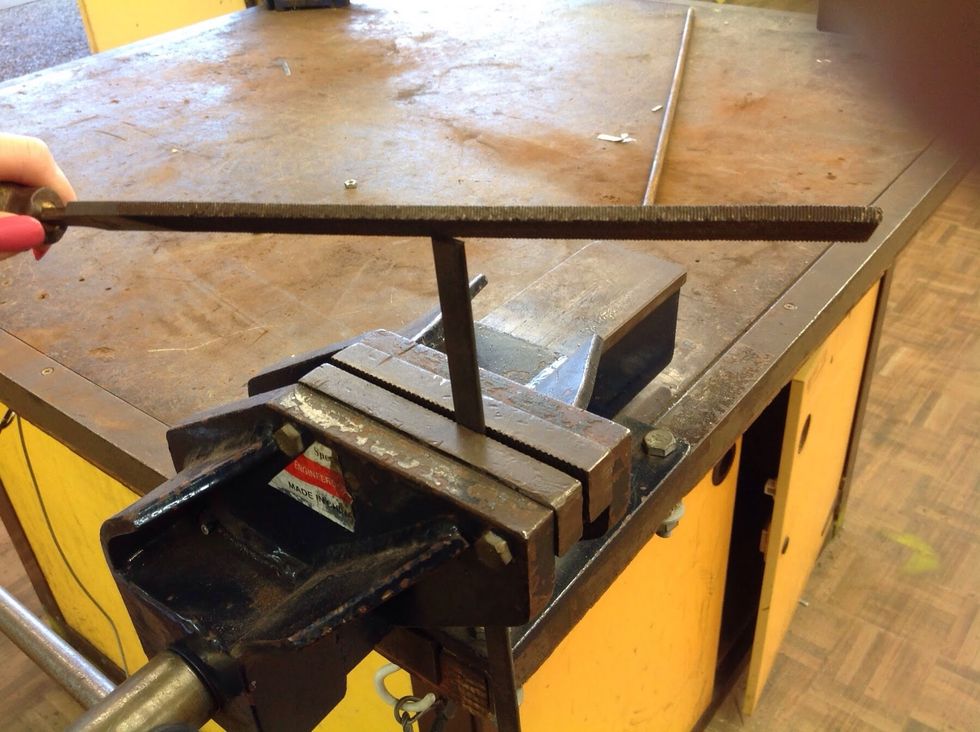

When you have done the previously steps you will need the flatbar and you Will need to file it

When you have done the previously steps you will need the flatbar and you Will need to file it

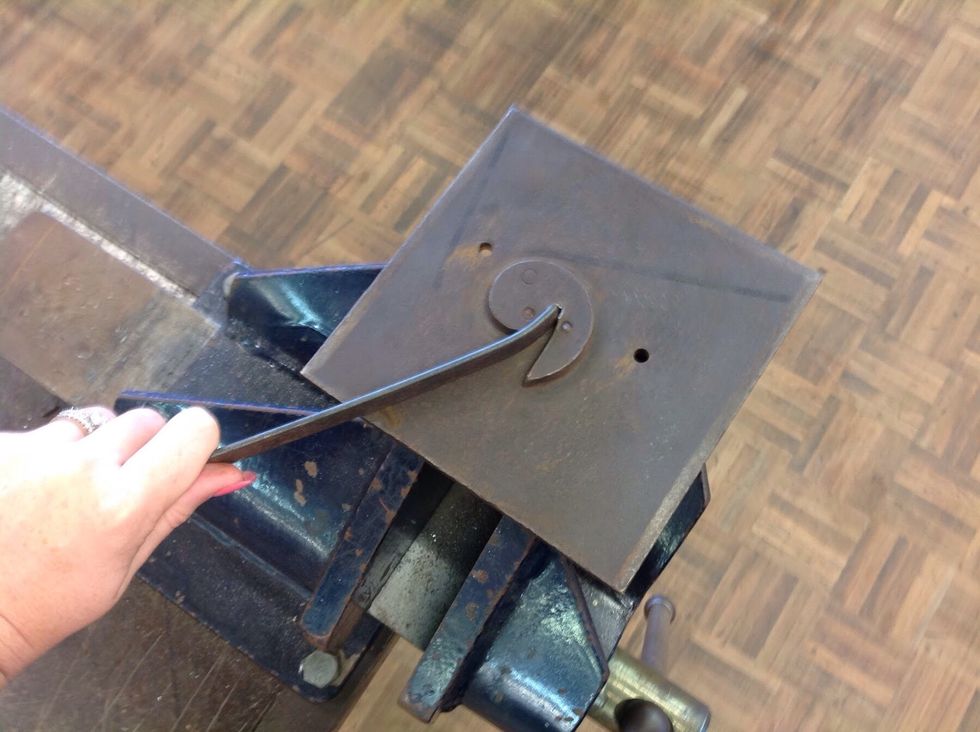

You will need to use a scroll to create a scroll spiral shape in your flatbar this will be the handle

You will need to use a scroll to create a scroll spiral shape in your flatbar this will be the handle

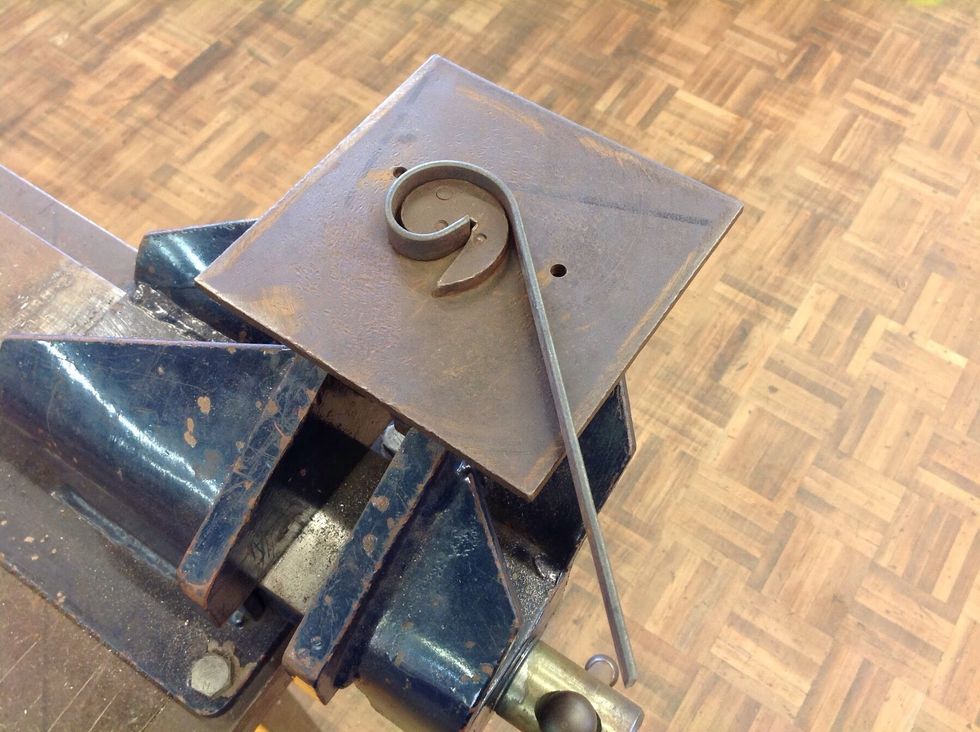

Do not hens it to fair or there Will be not room for the dish

Do not hens it to fair or there Will be not room for the dish

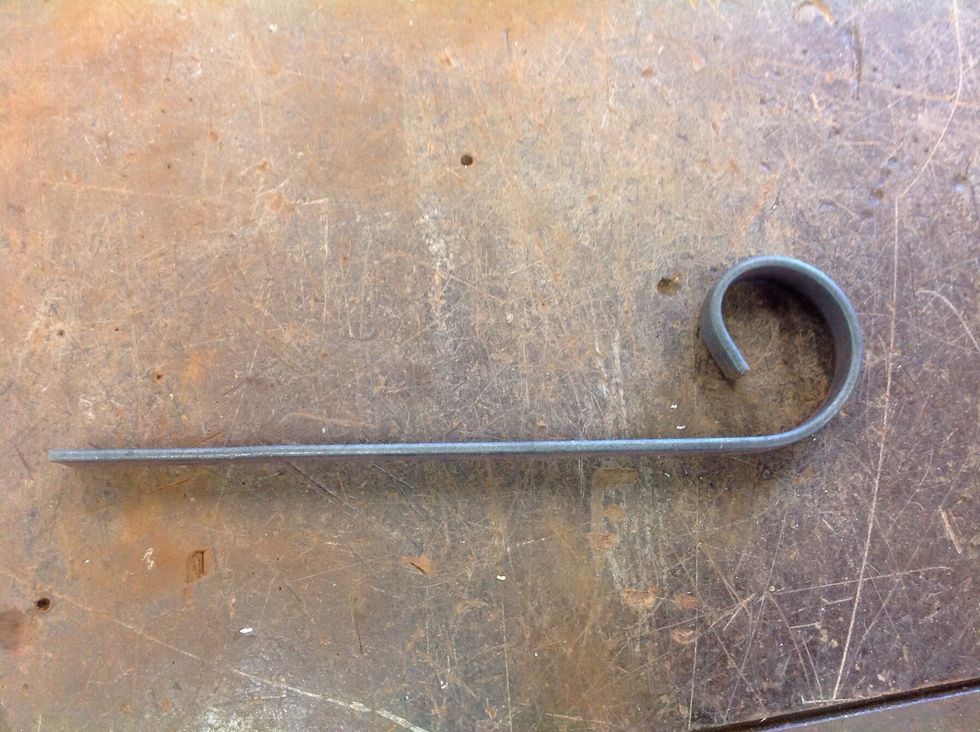

You will need to measure a drill point near the end

You will need to measure a drill point near the end

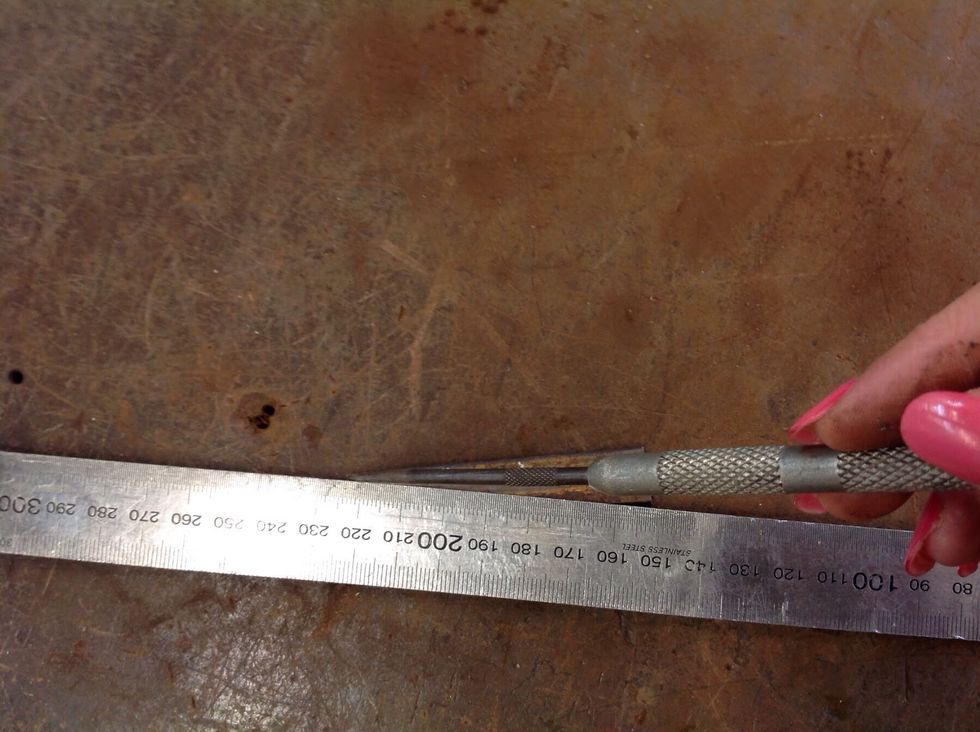

With your other small cuts of metal you Will need to scribe corner to corner to find the centre

With your other small cuts of metal you Will need to scribe corner to corner to find the centre

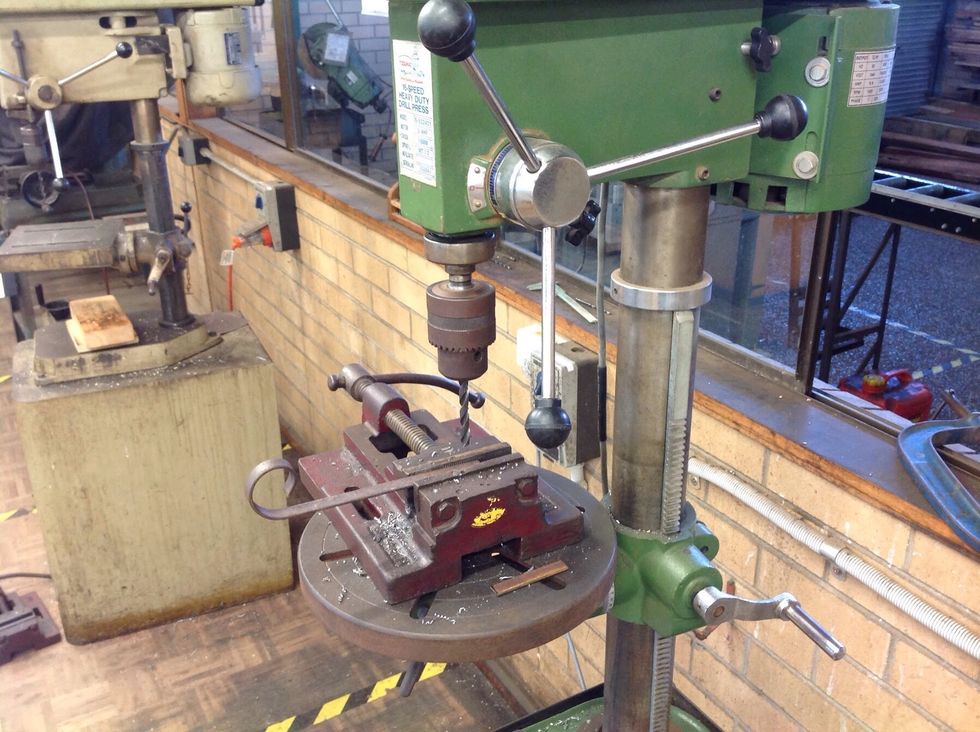

Use centre punch to make indentations before drilling

Use centre punch to make indentations before drilling

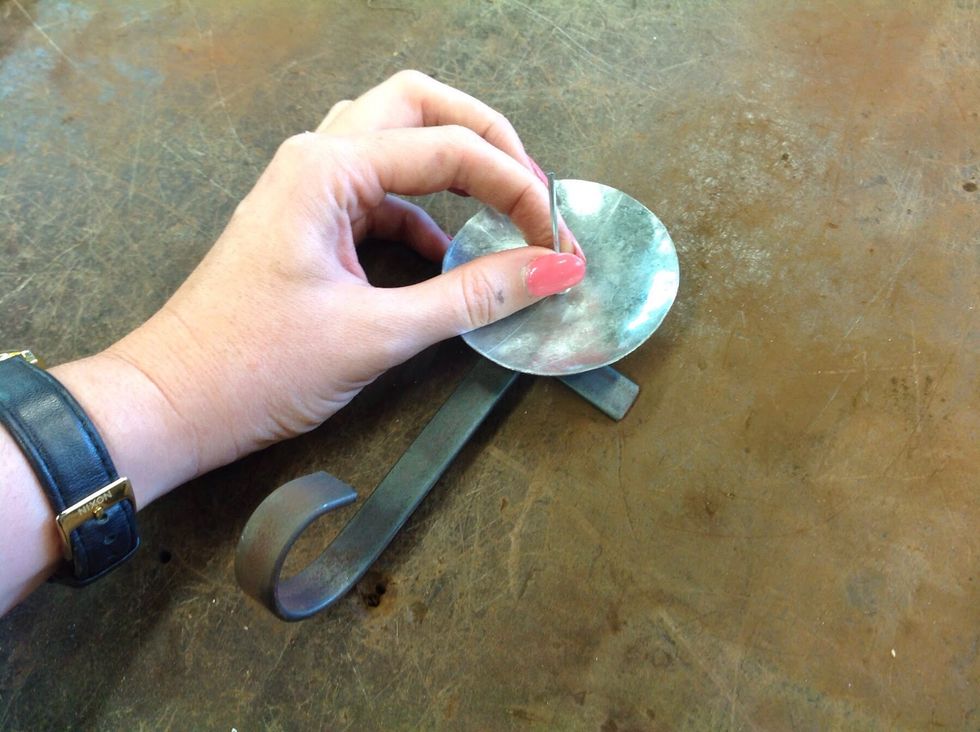

After you create bends in your leg piece and handle piece before taking a pop rivet and aligning all the parts

After you create bends in your leg piece and handle piece before taking a pop rivet and aligning all the parts

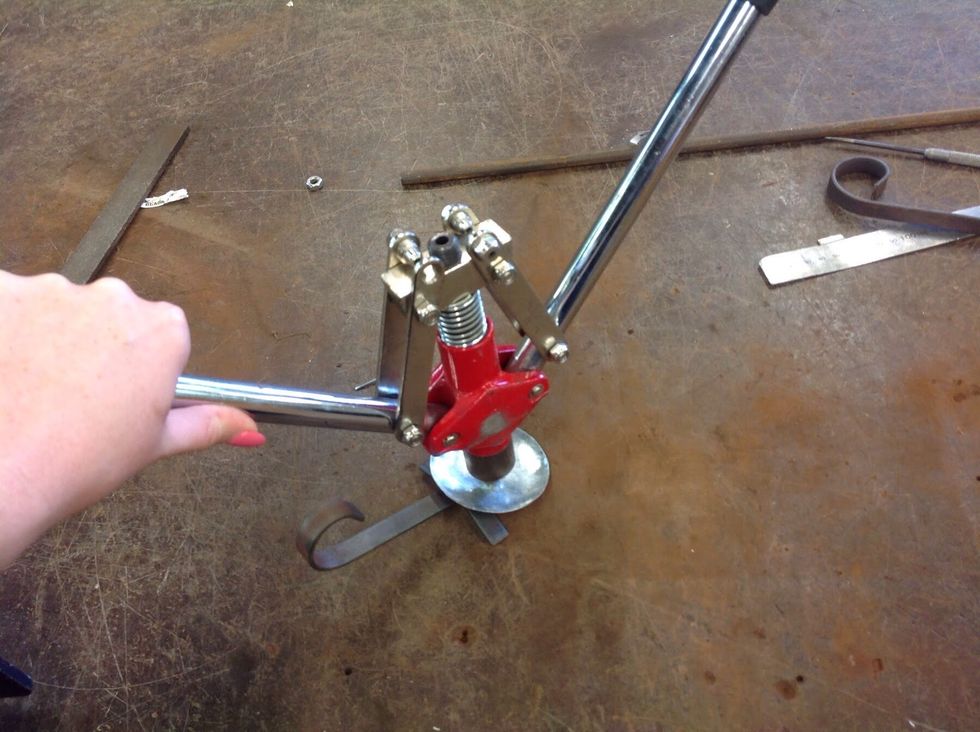

Place your pop rivet fun on the needles end of the POP rivet and begin throws pump itonce

Place your pop rivet fun on the needles end of the POP rivet and begin throws pump itonce

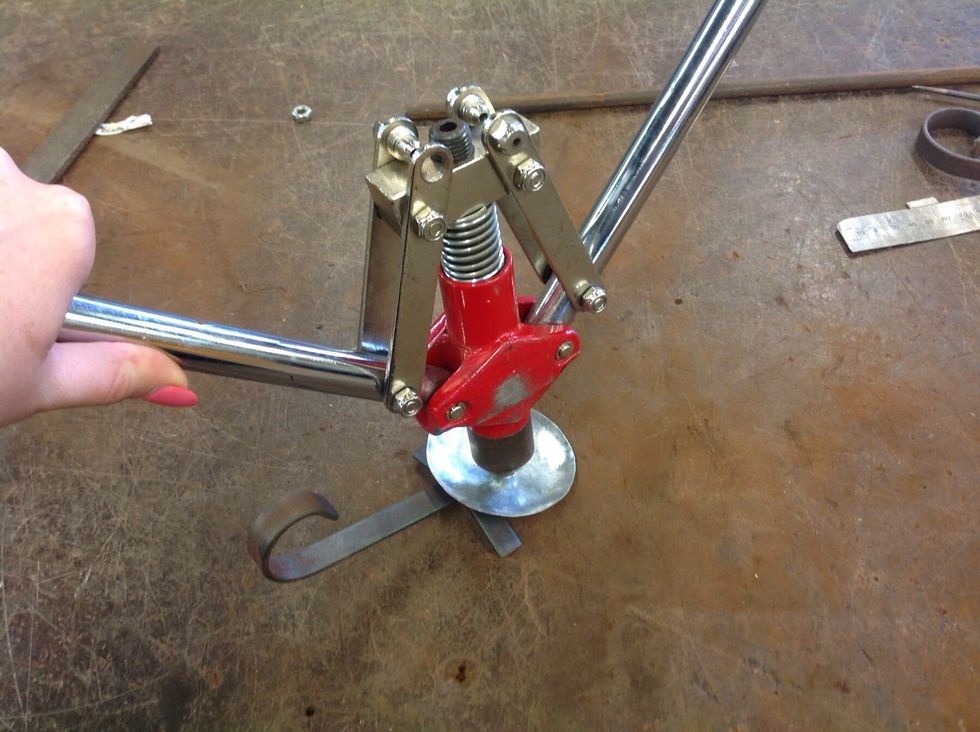

Squeeze it a second times until you feel it POP

Squeeze it a second times until you feel it POP

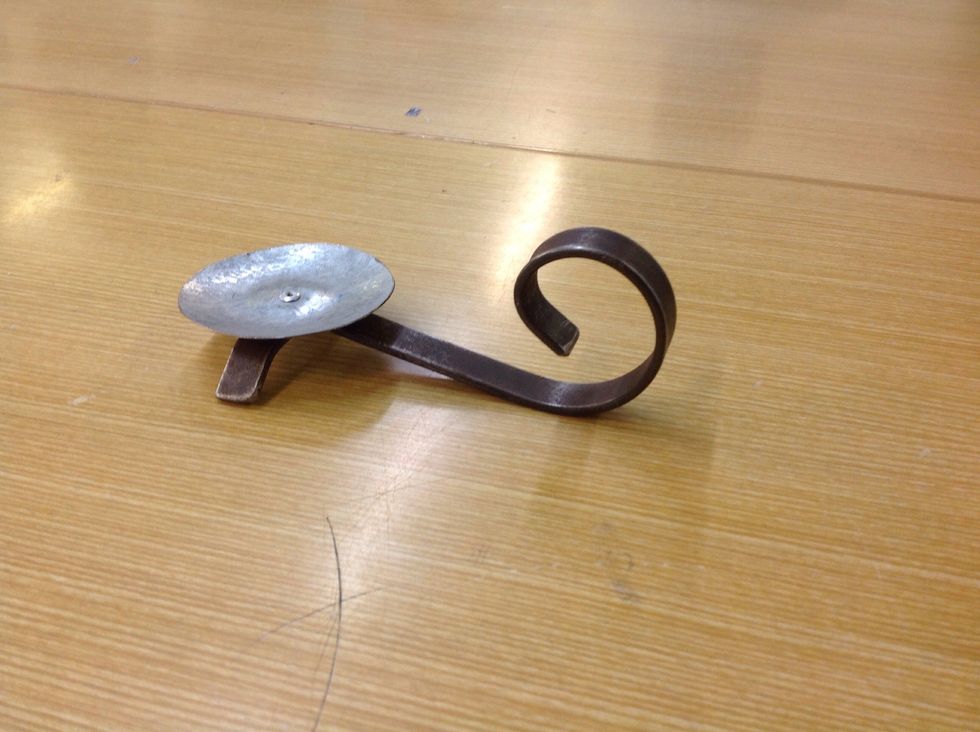

Your product is now complete

  • 1.0 Ball pien hammer
  • 1.0 Pop rivet gun
  • 1.0 Giletine
  • 1.0 Tin snips
  • 1.0 Scribe
  • 1.0 Tinmans mallet
  • 1.0 Wax holder shaping dish
  • 20.0cm Flat bar
  • 1.0 7x7 cm square sheet metal
  • 1.0 Centre punch
  • 1.0 Divider
