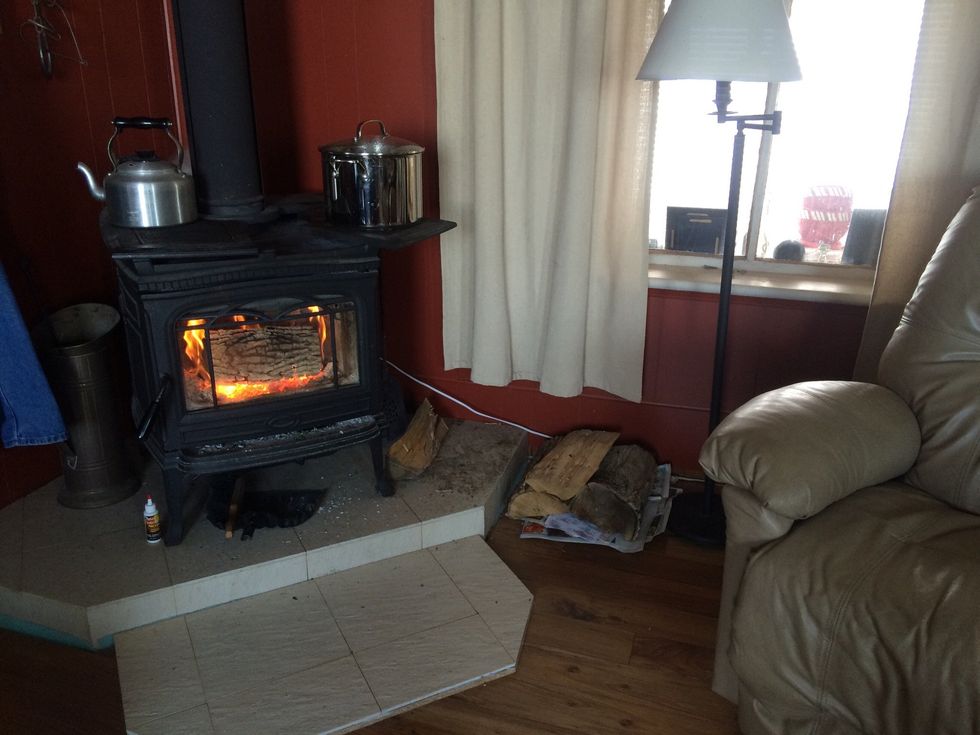

This is the space where it's going.

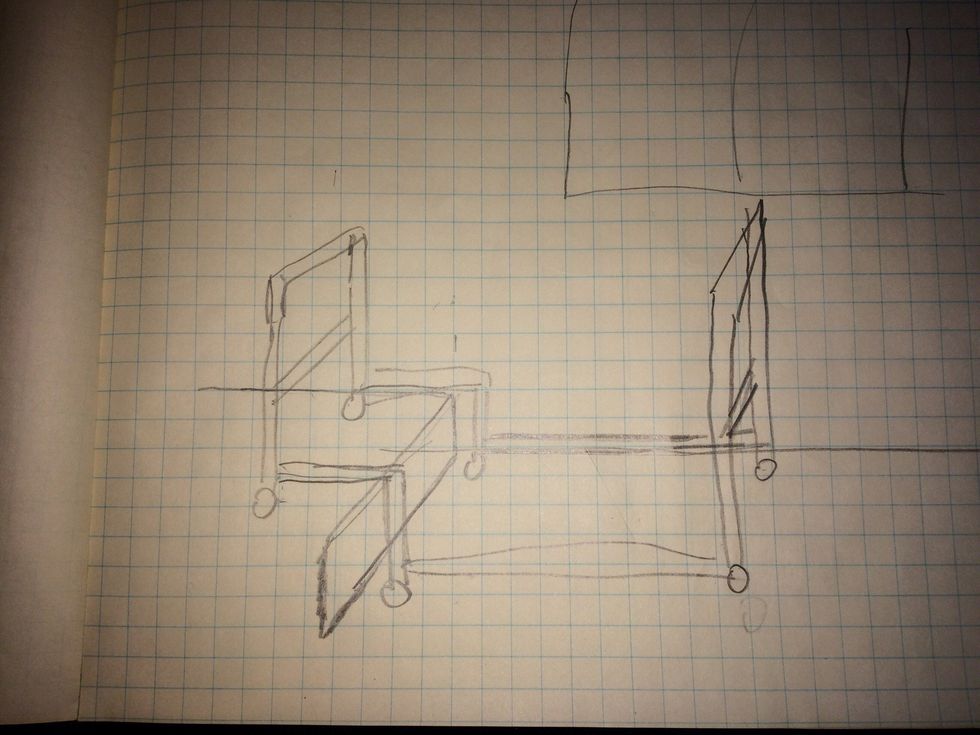

My rough drawing.

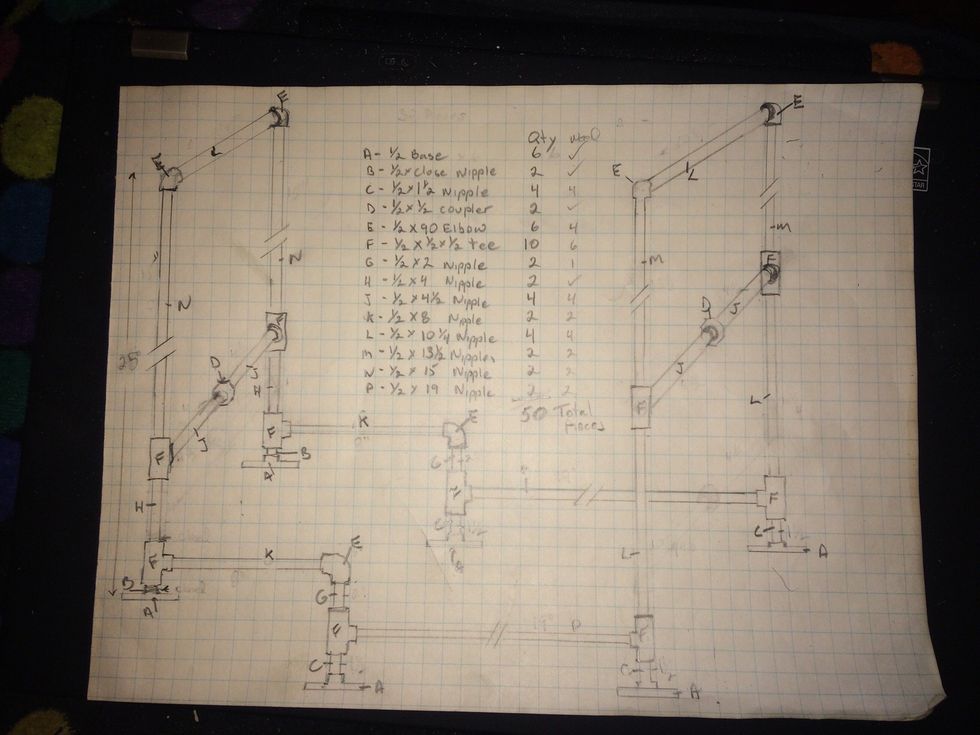

I drew a more detail drawing to make sure all details were correct.
All the parts, if you can find them!

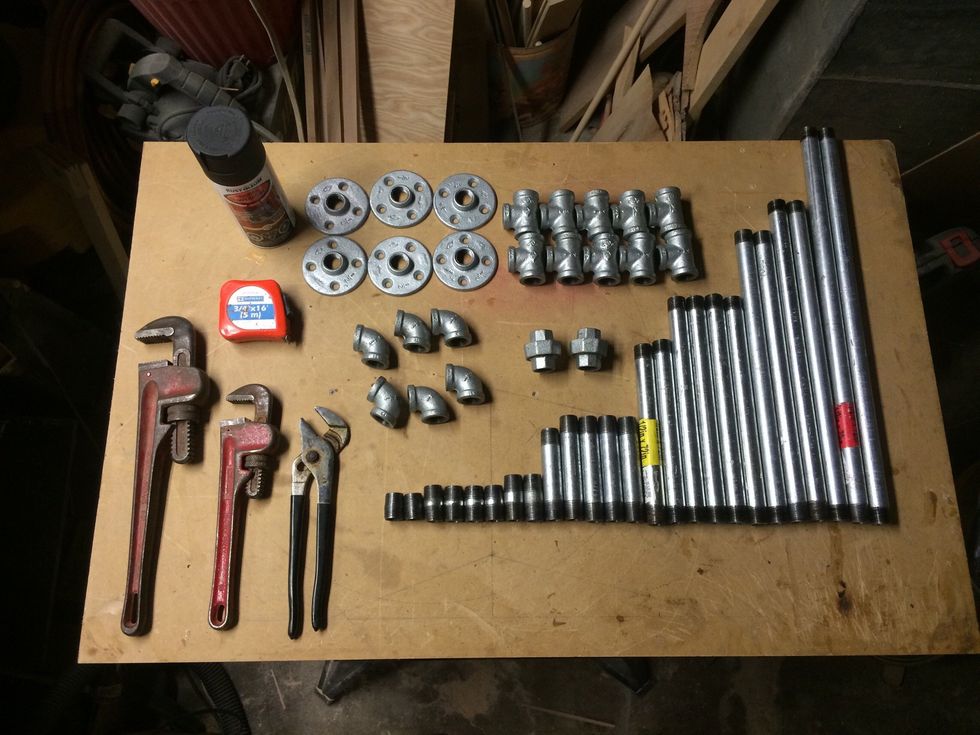

Got all my pieces, now I'm ready to assemble.

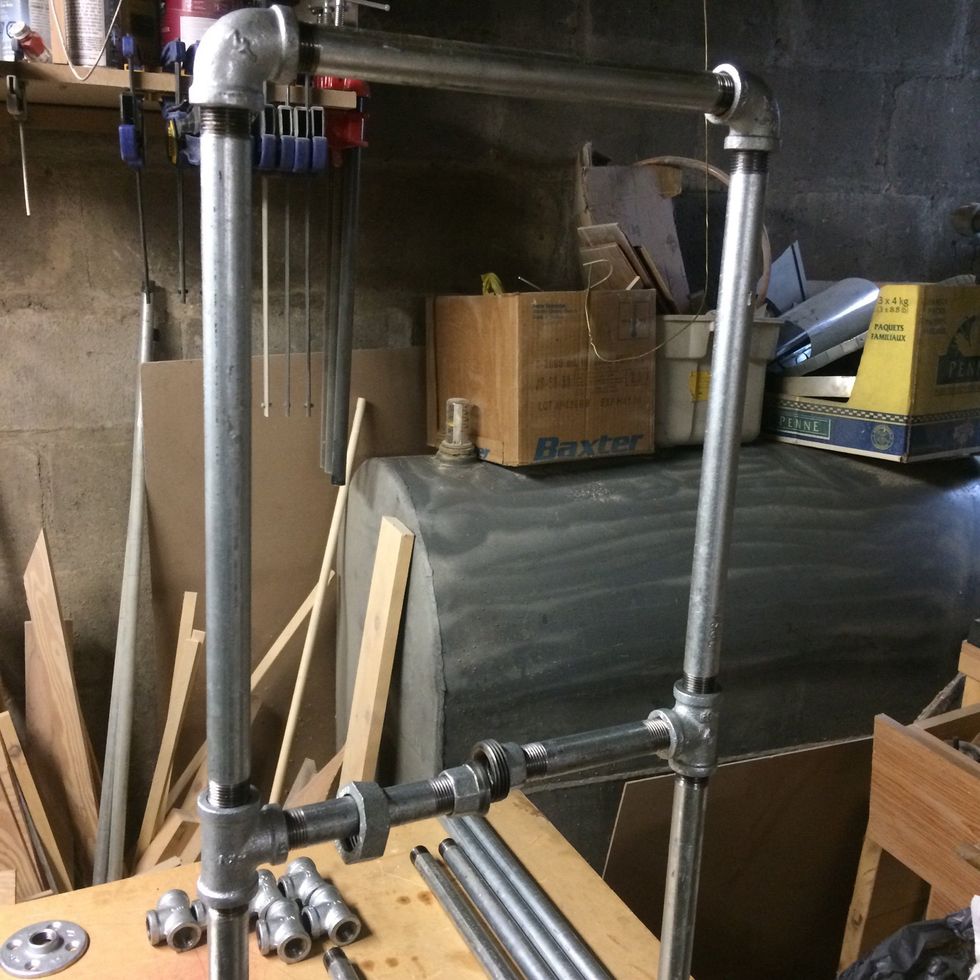

I started with a base and assemble it a piece at a time. Until I complete the end.

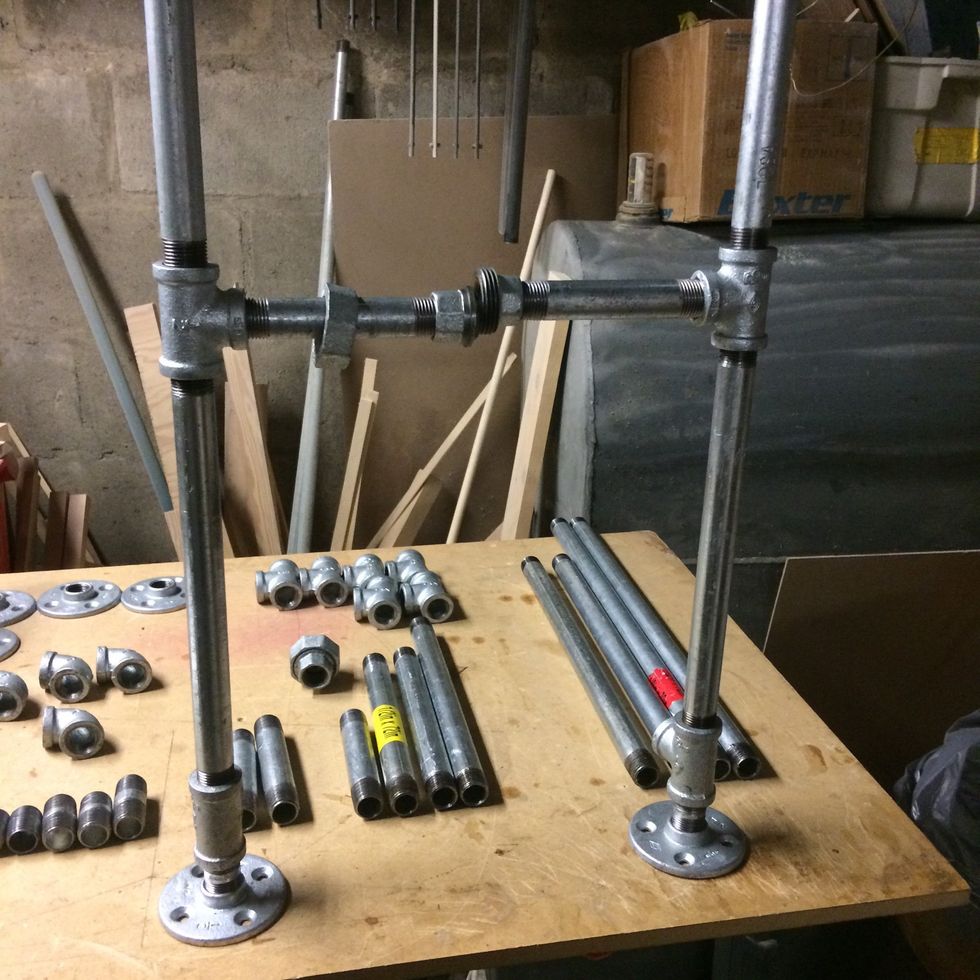

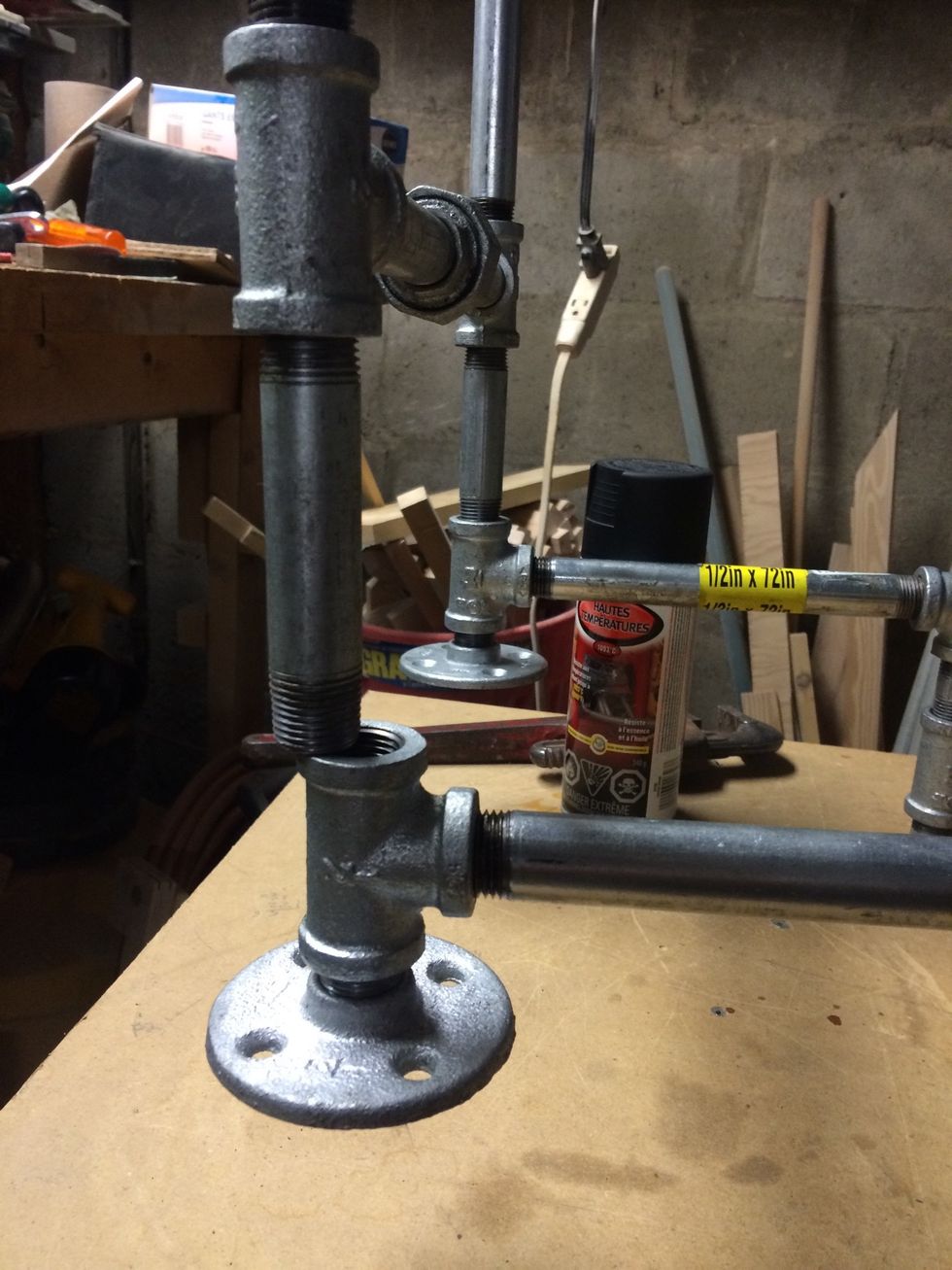

This was a dry fit so the coupler is off a little. After tightening it does line up better.

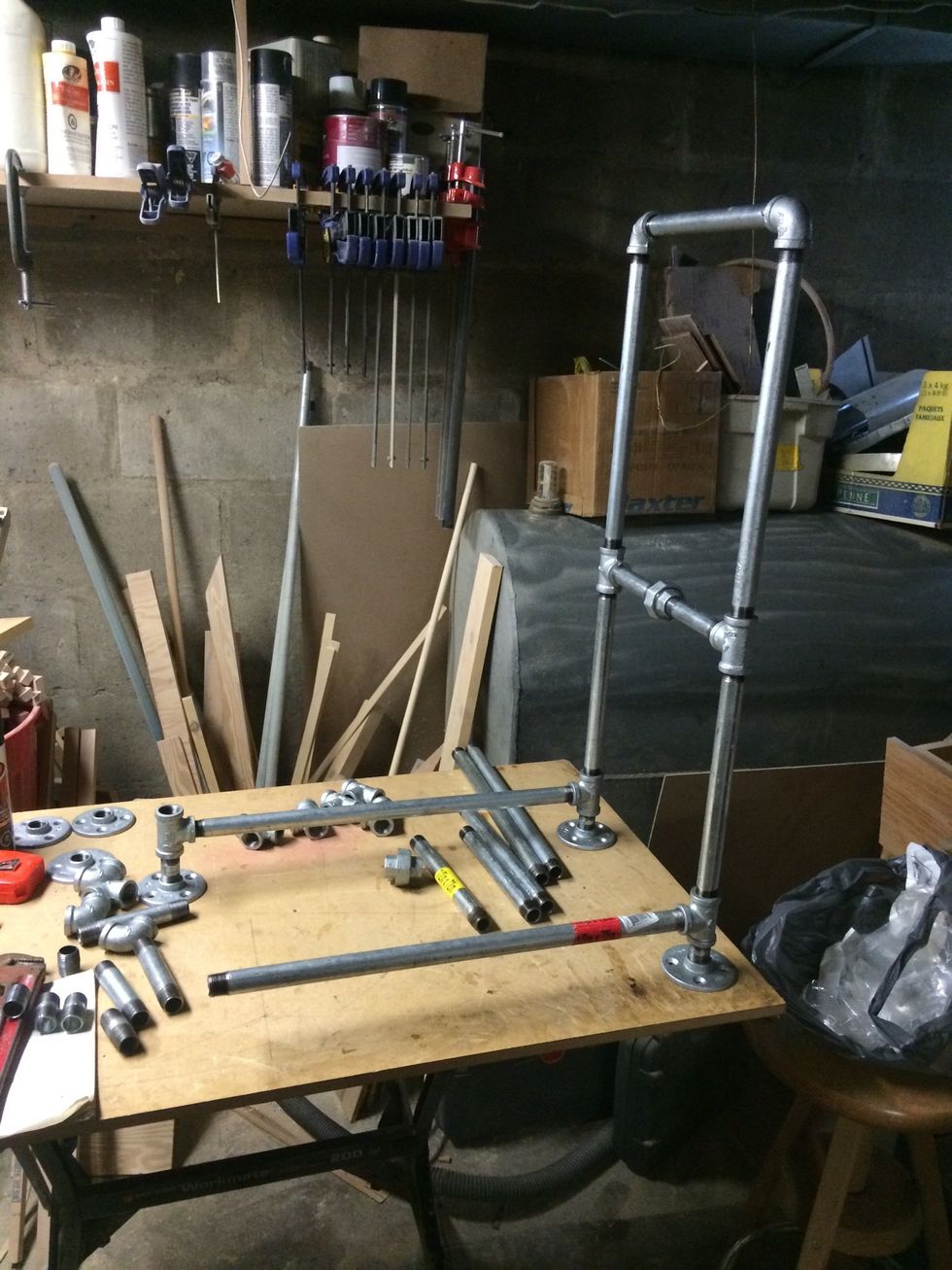

Continue building piece by piece.

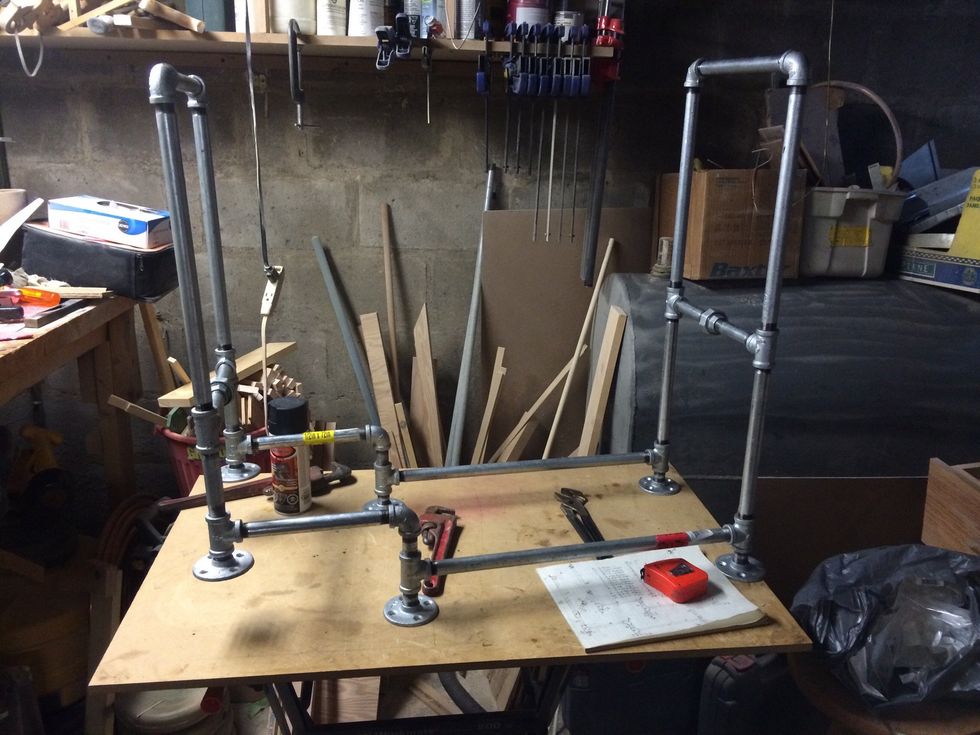

This was the dry fit before tightening everything up. Good thing I put it together first, because there was an issue.
I couldn't screw in the last tee. I had to put in another coupler to complete the stand. A coupler is needed when you have a complete connected series. I had 3 complete series instead of 2.

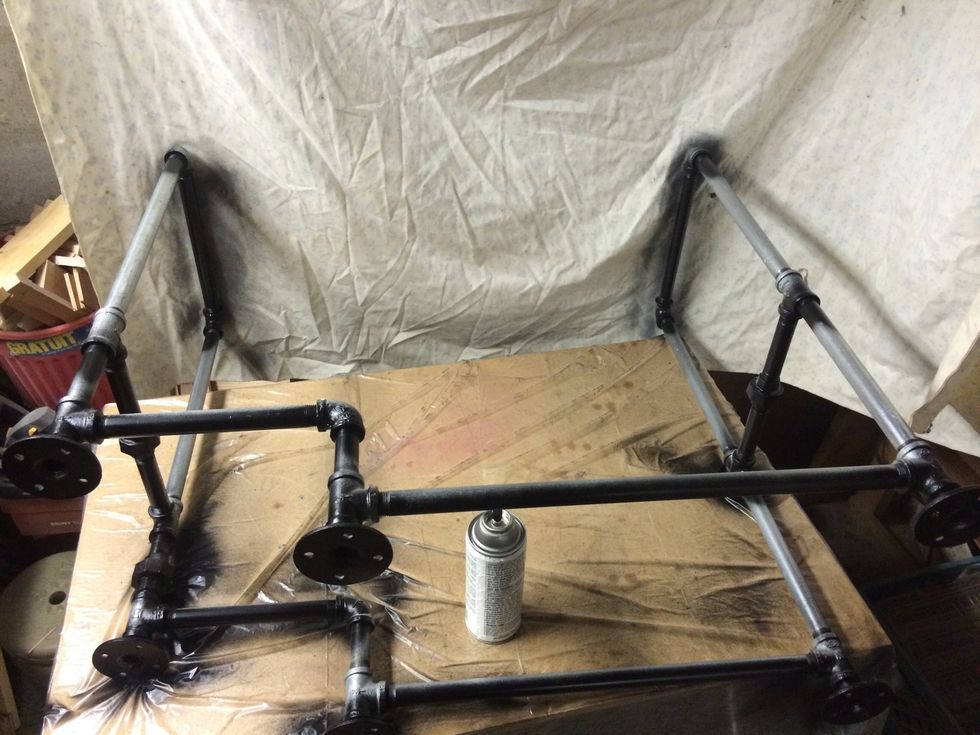

I pulled it all apart and started to tighten all the fittings. Once that is done wipe the pipes down and your ready to paint!

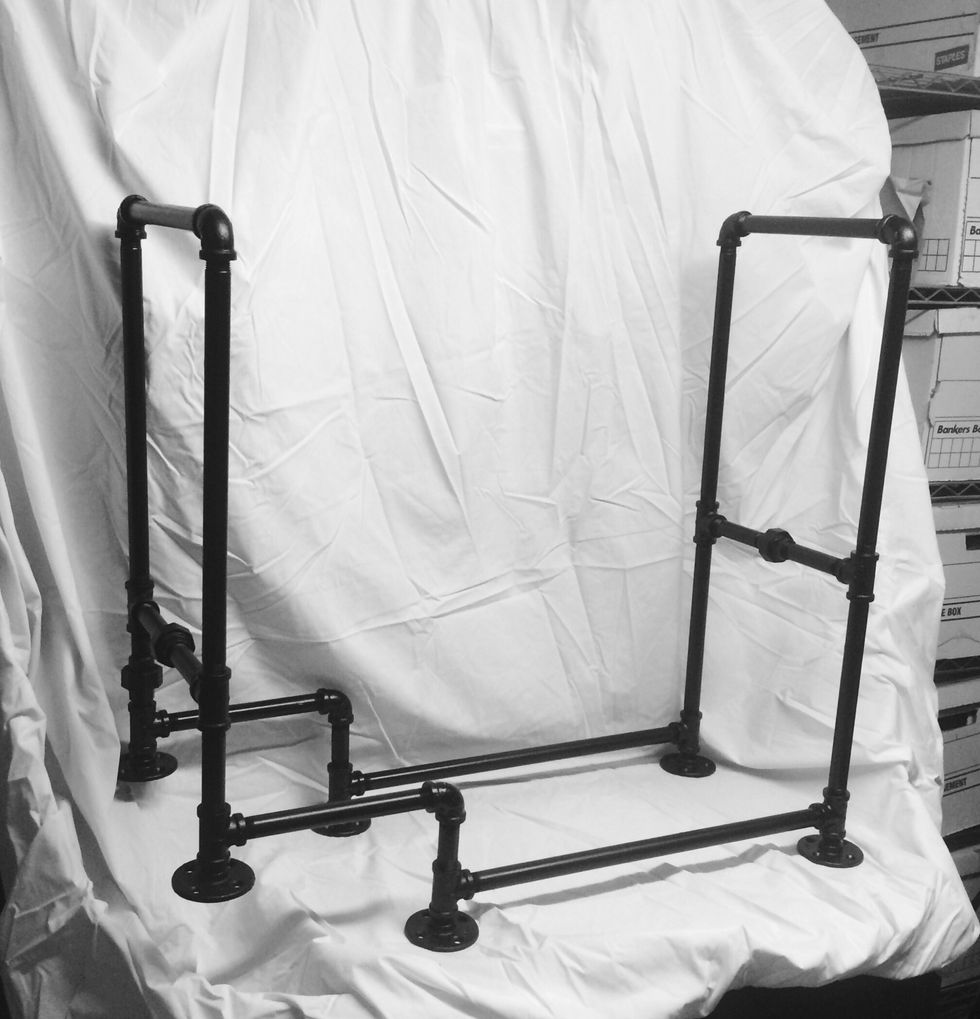

After 3-4 coats you're done! Now ready for some wood!

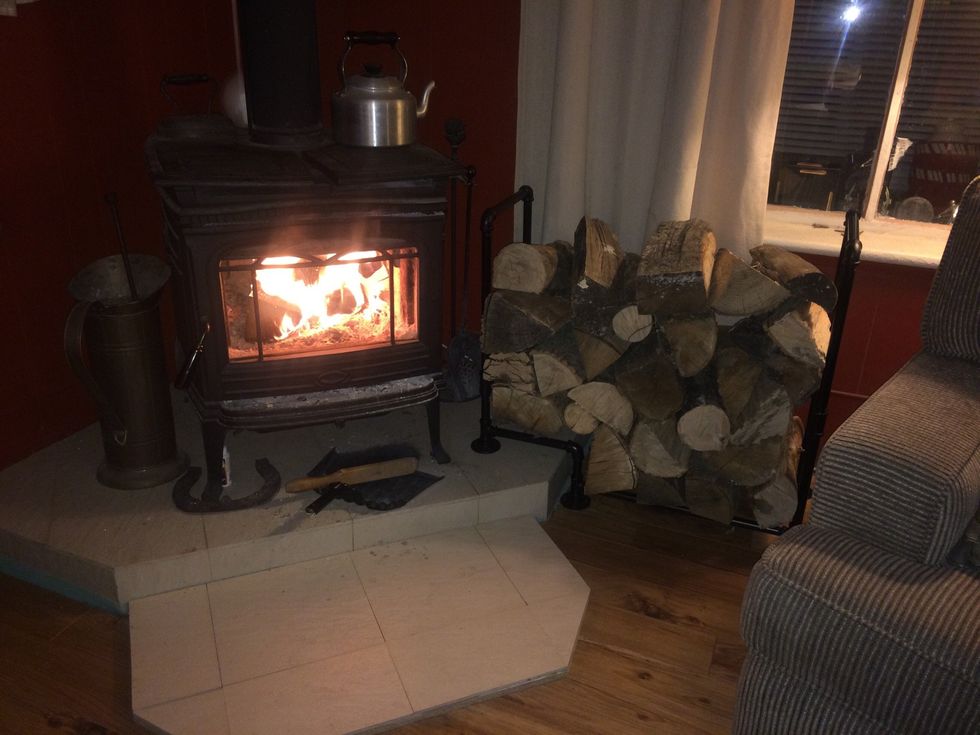

And here it is holding wood! Thanks for viewing.

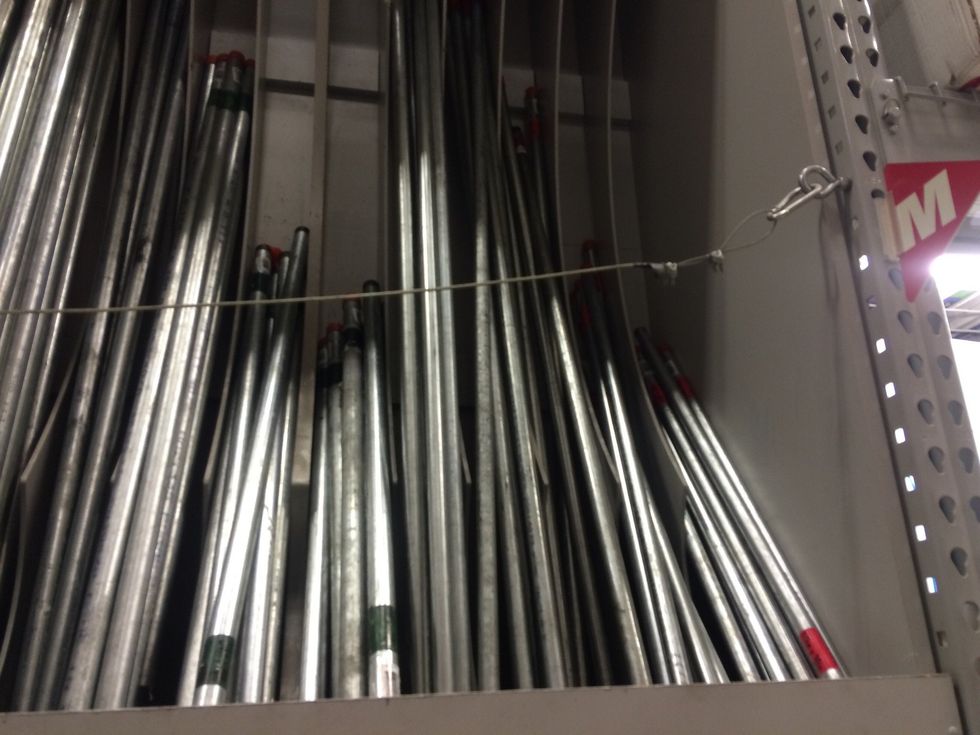

- Galvinized Piping
- Black Paint
