How to install a remote for your ceiling fan

Install a Remote for Your Ceiling Fan

11
STEPS
TOOLS

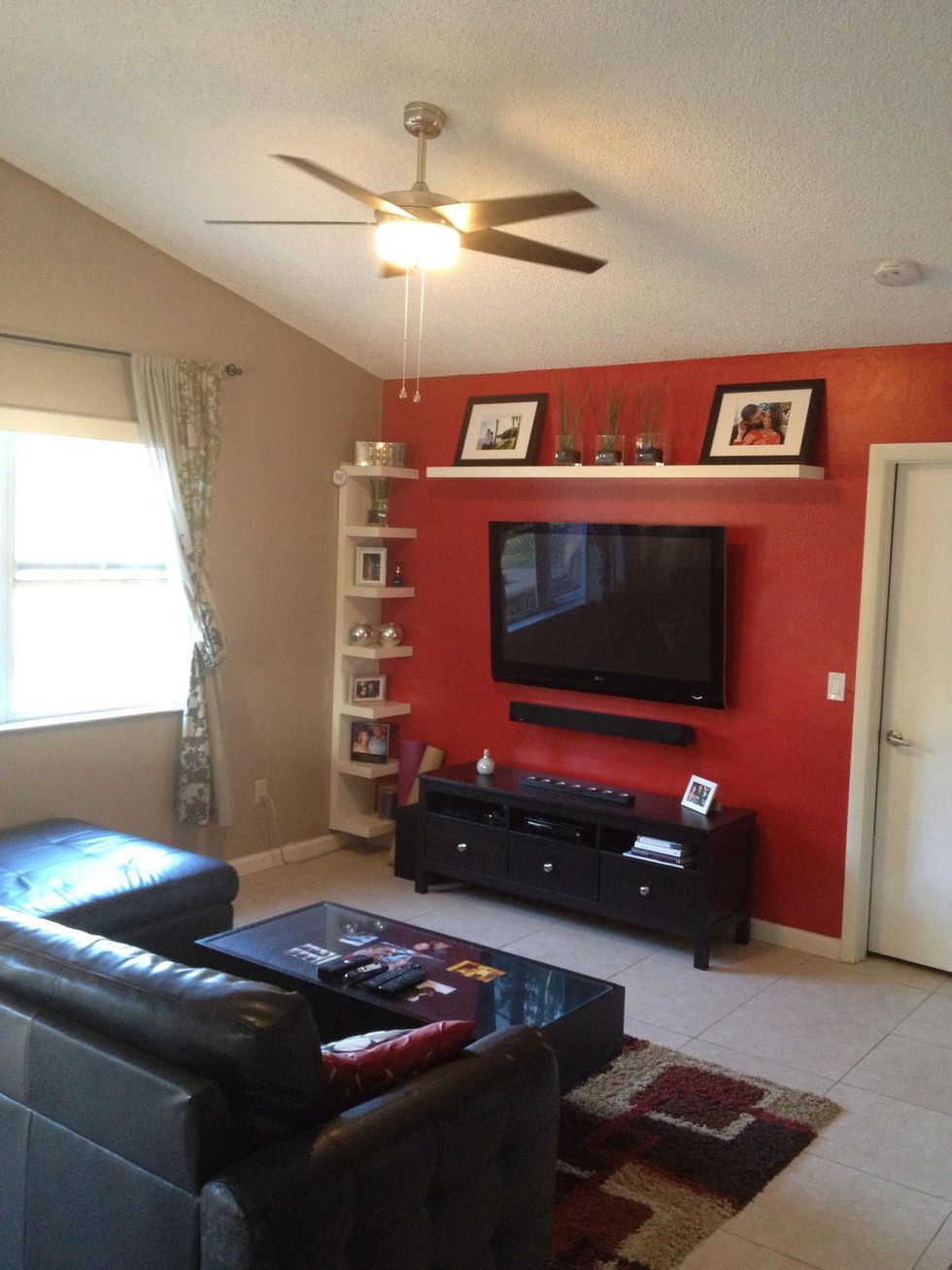

I wanted to install a remote for the fan in my family room

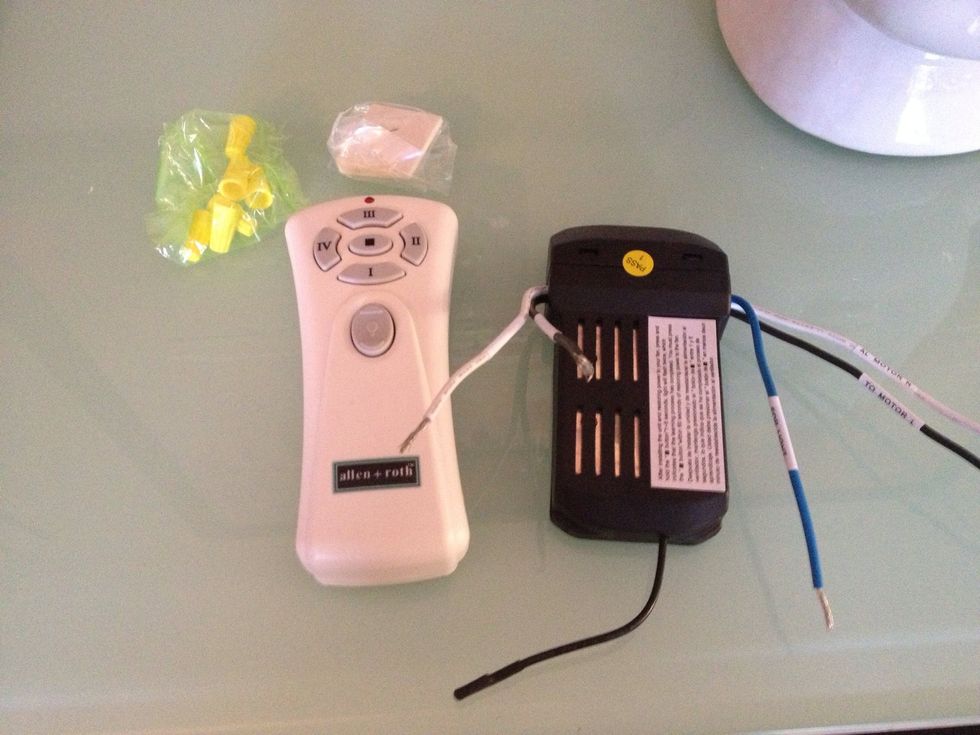

This is the kit I'm installing.

This is the kit I'm installing.

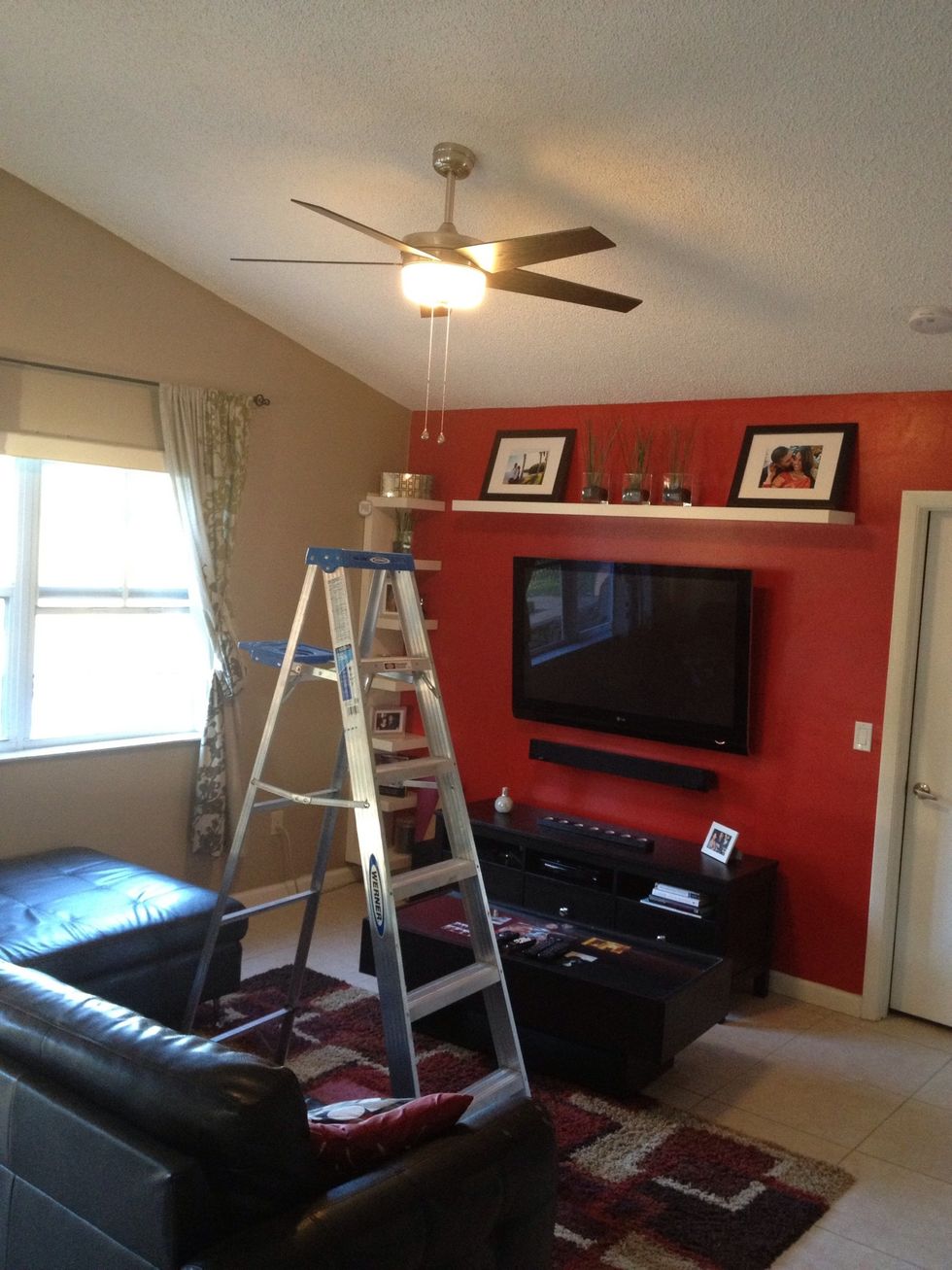

Position your ladder off center, on the left if you're right handed, on the right if you're left handed

Position your ladder off center, on the left if you're right handed, on the right if you're left handed

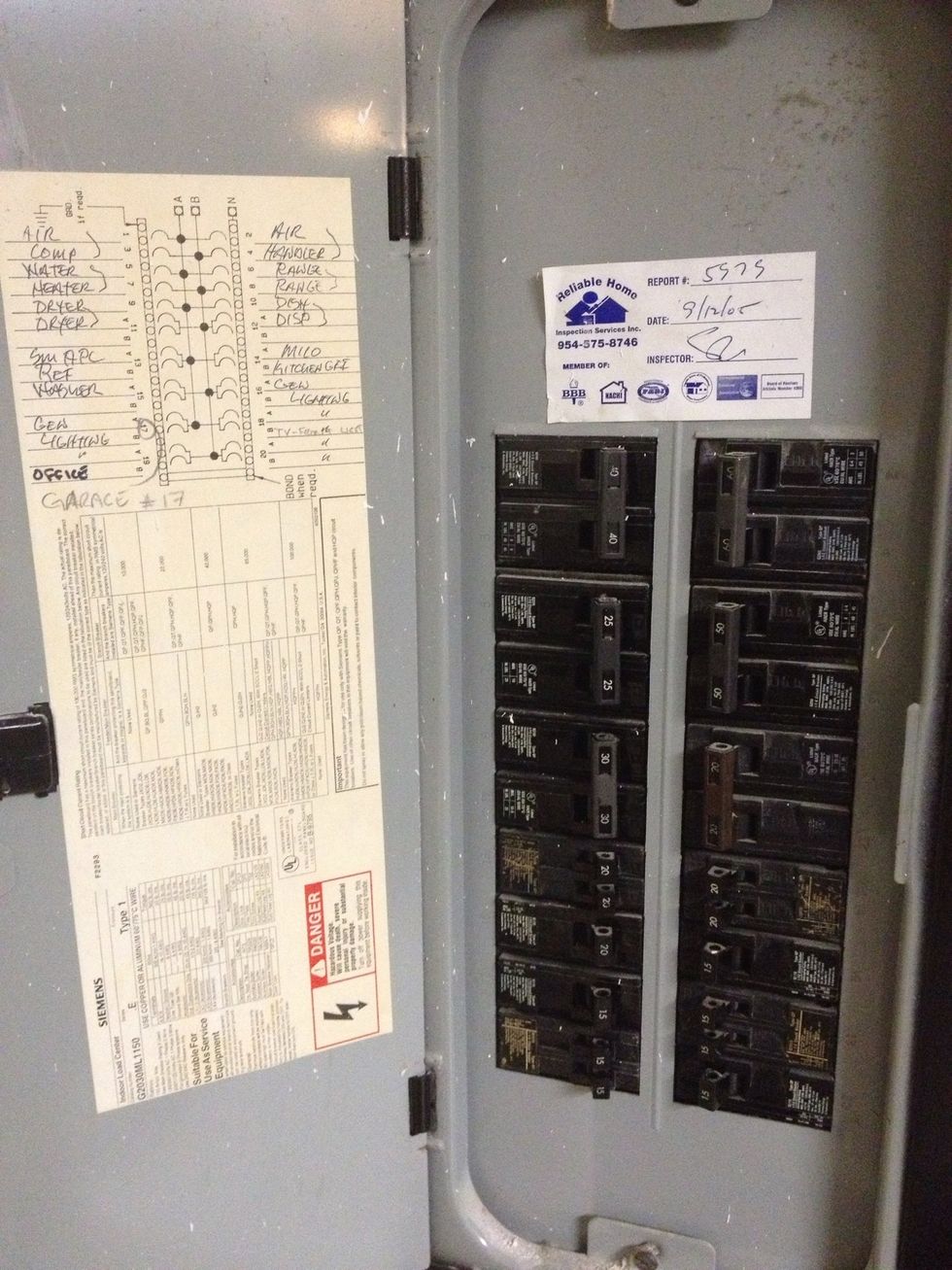

Kill the power to your fan.

Kill the power to your fan.

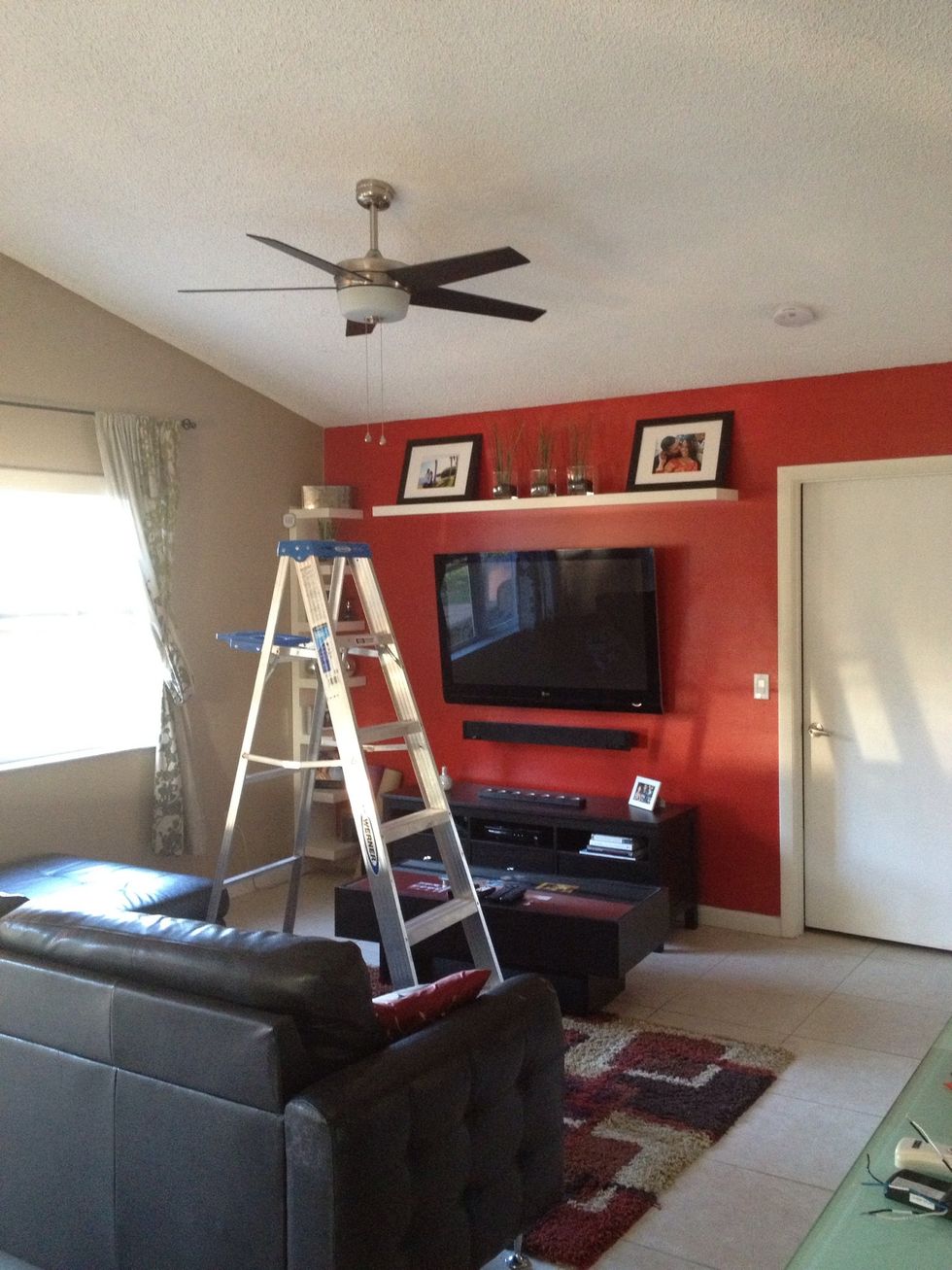

Make sure the power is off, that's why I had the light to the on position so I'm sure this circuit isn't live

Make sure the power is off, that's why I had the light to the on position so I'm sure this circuit isn't live

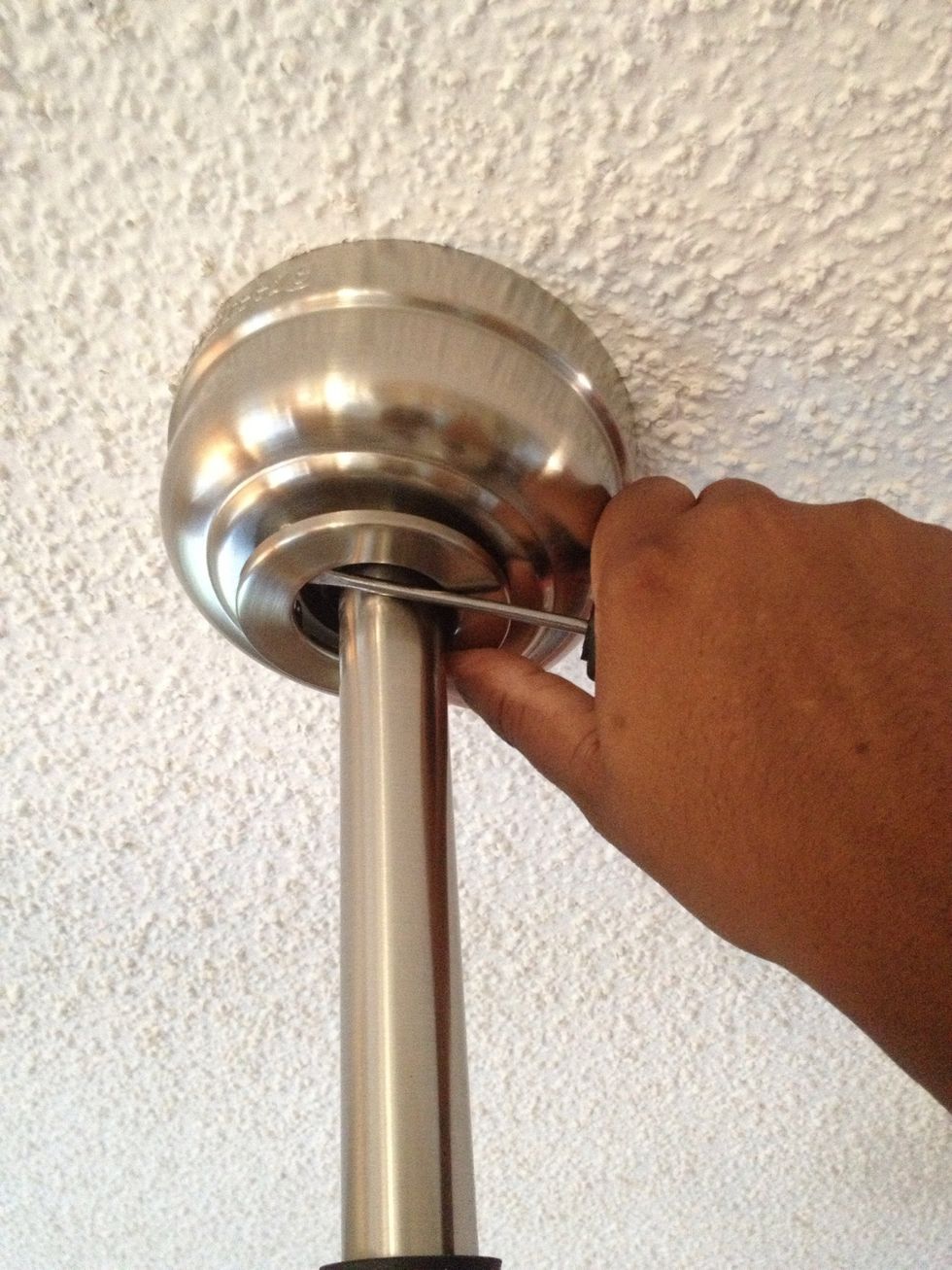

This little cover pops off, yours may screw off, just be careful so you don't damage anything

This little cover pops off, yours may screw off, just be careful so you don't damage anything

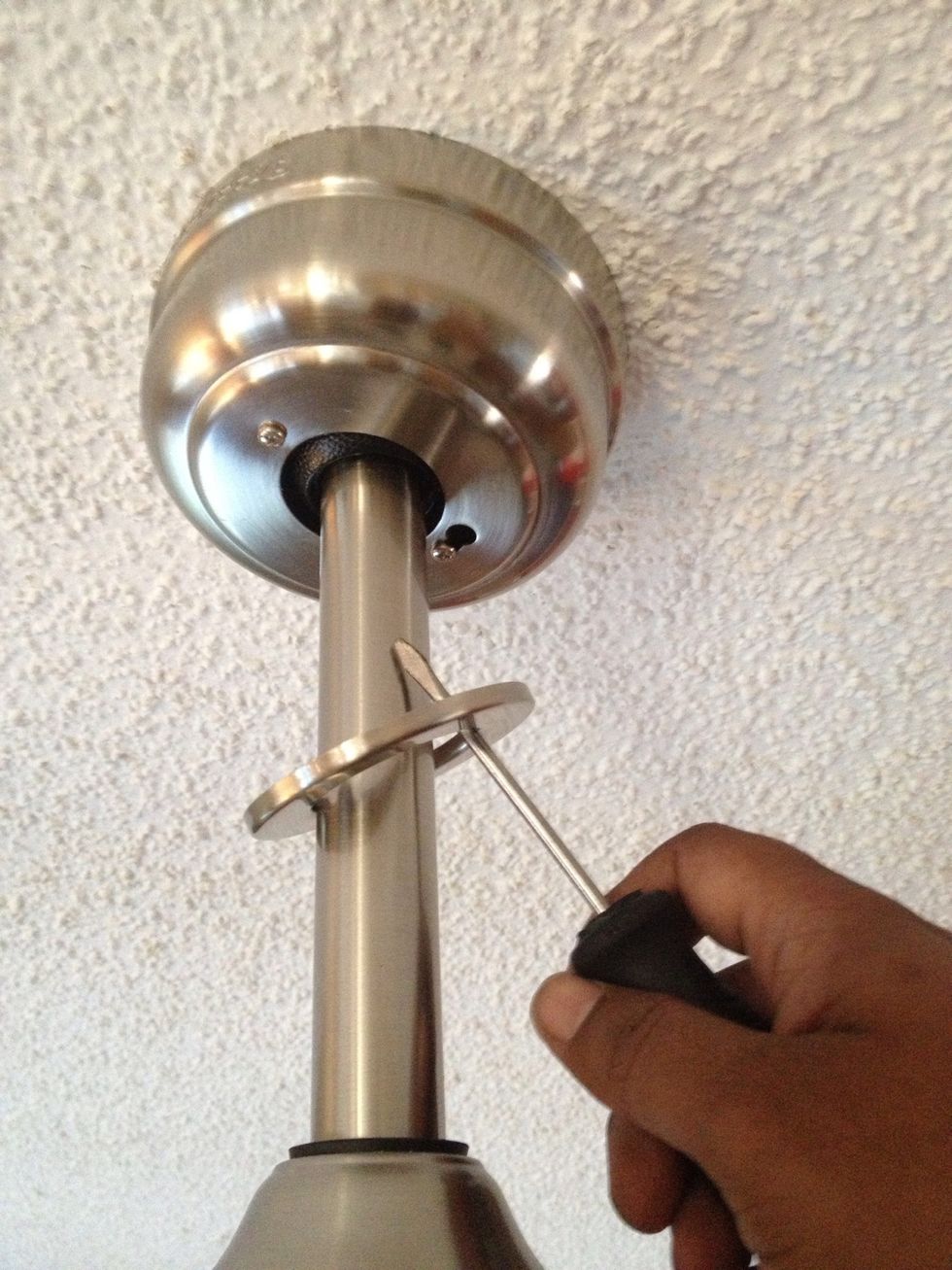

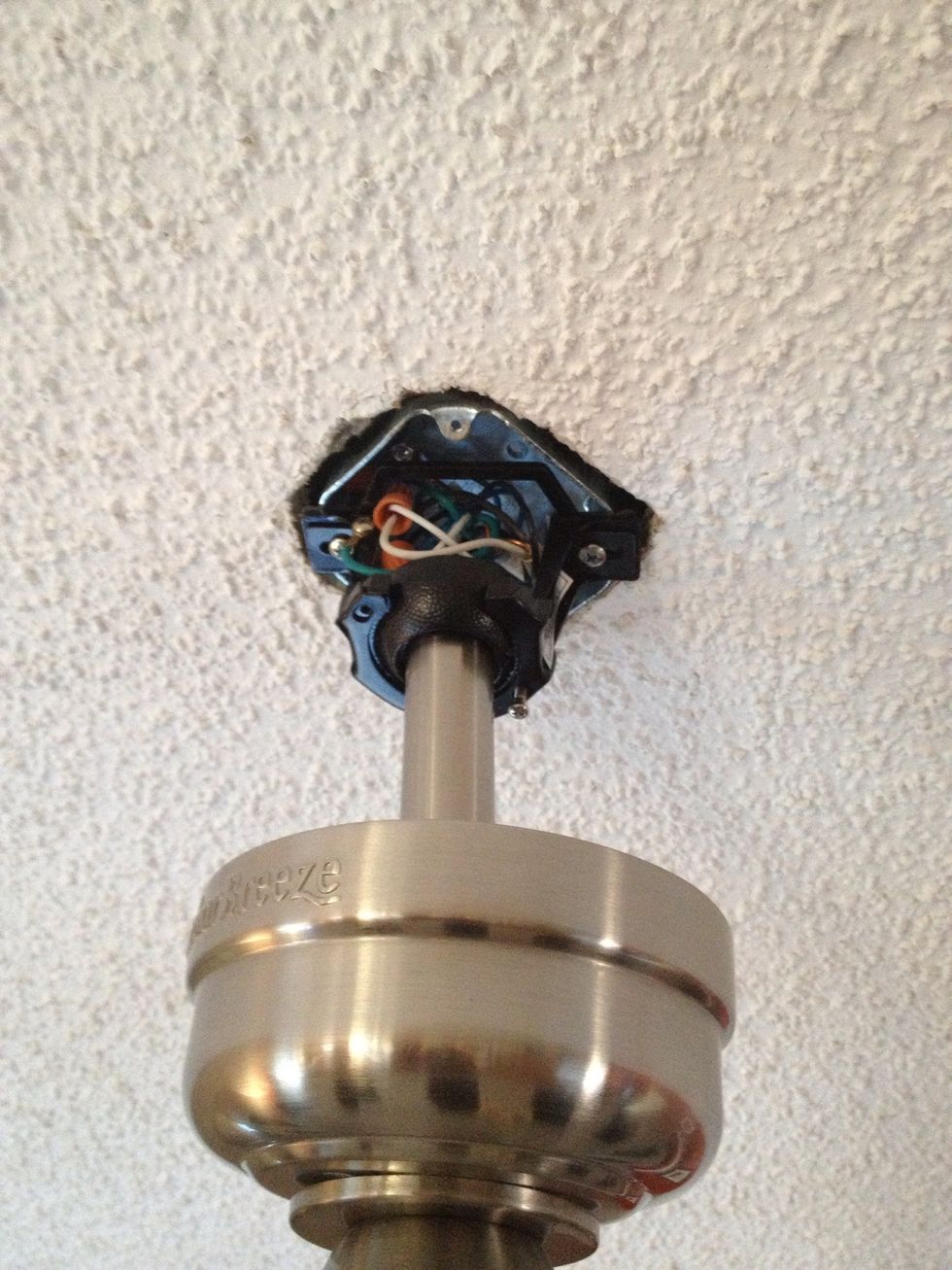

Remove the screw on the left completely, the on on the rift just needs to be loosened

Remove the screw on the left completely, the on on the rift just needs to be loosened

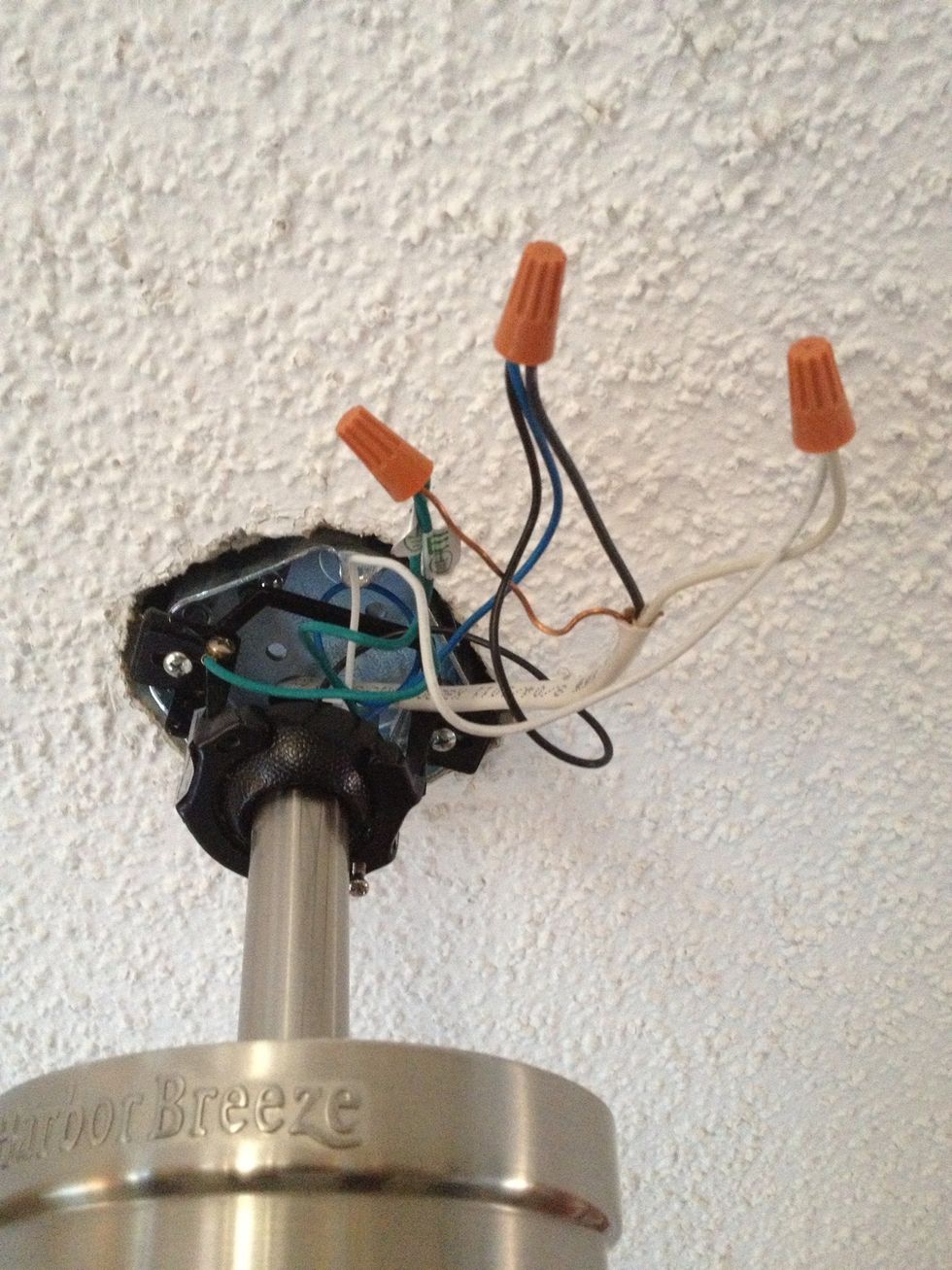

Straighten out your wires

Straighten out your wires

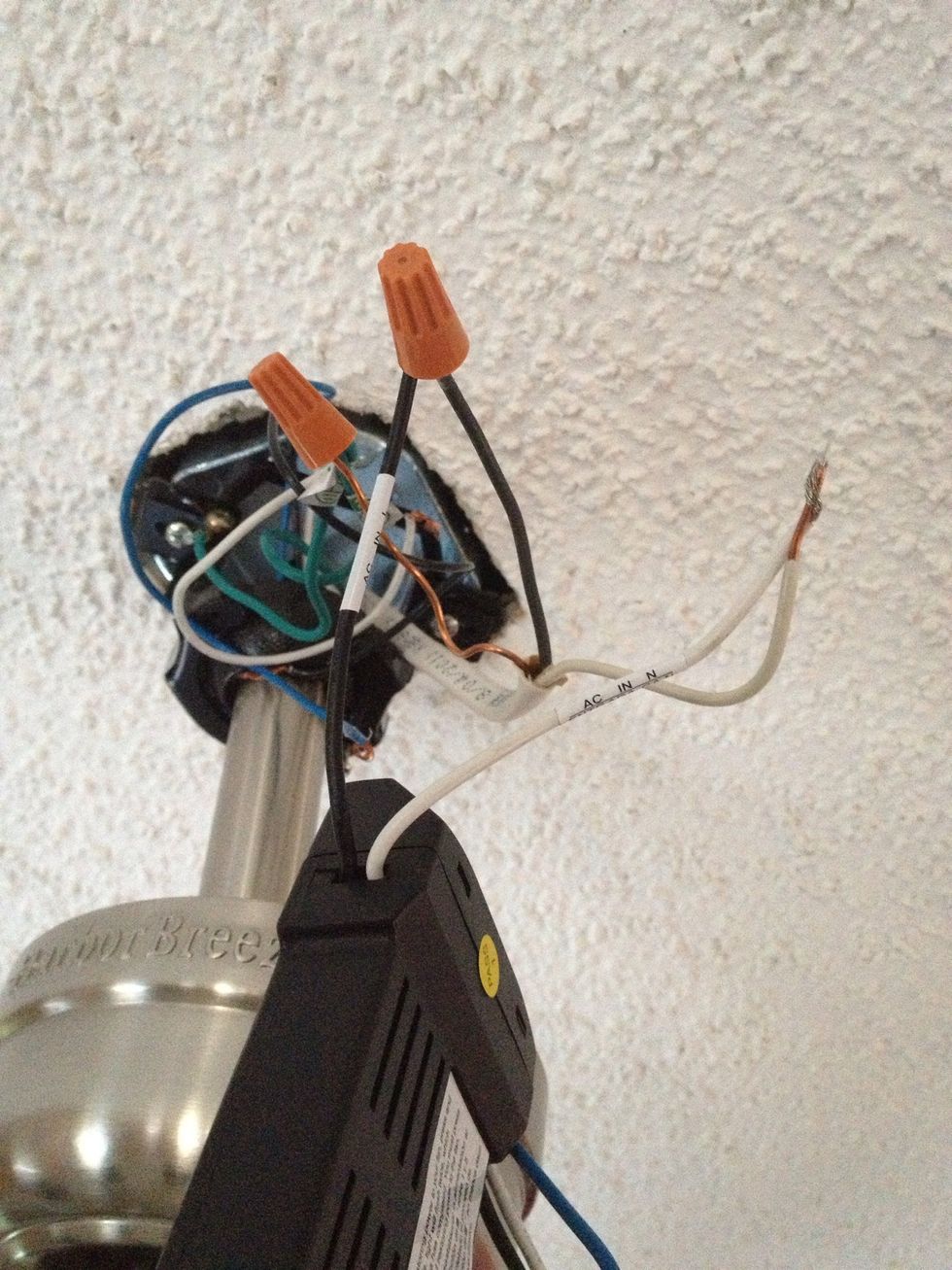

Install your box "in between" the wires. What I mean is the black wire coming from your house now connects to one side of your box, then black wire from the box connects to the fan

Install your box "in between" the wires. What I mean is the black wire coming from your house now connects to one side of your box, then black wire from the box connects to the fan

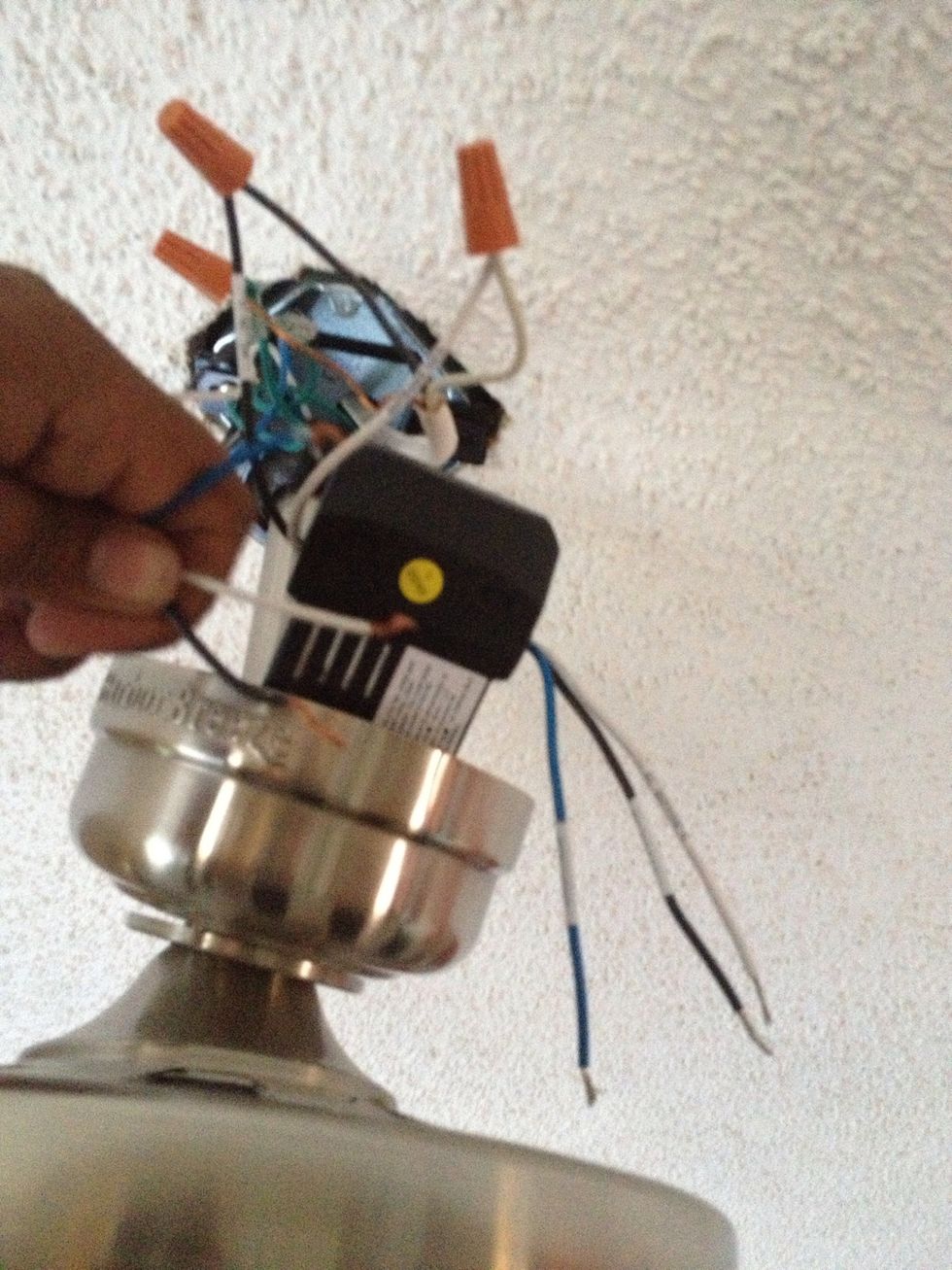

Blue wire is for the light

Blue wire is for the light

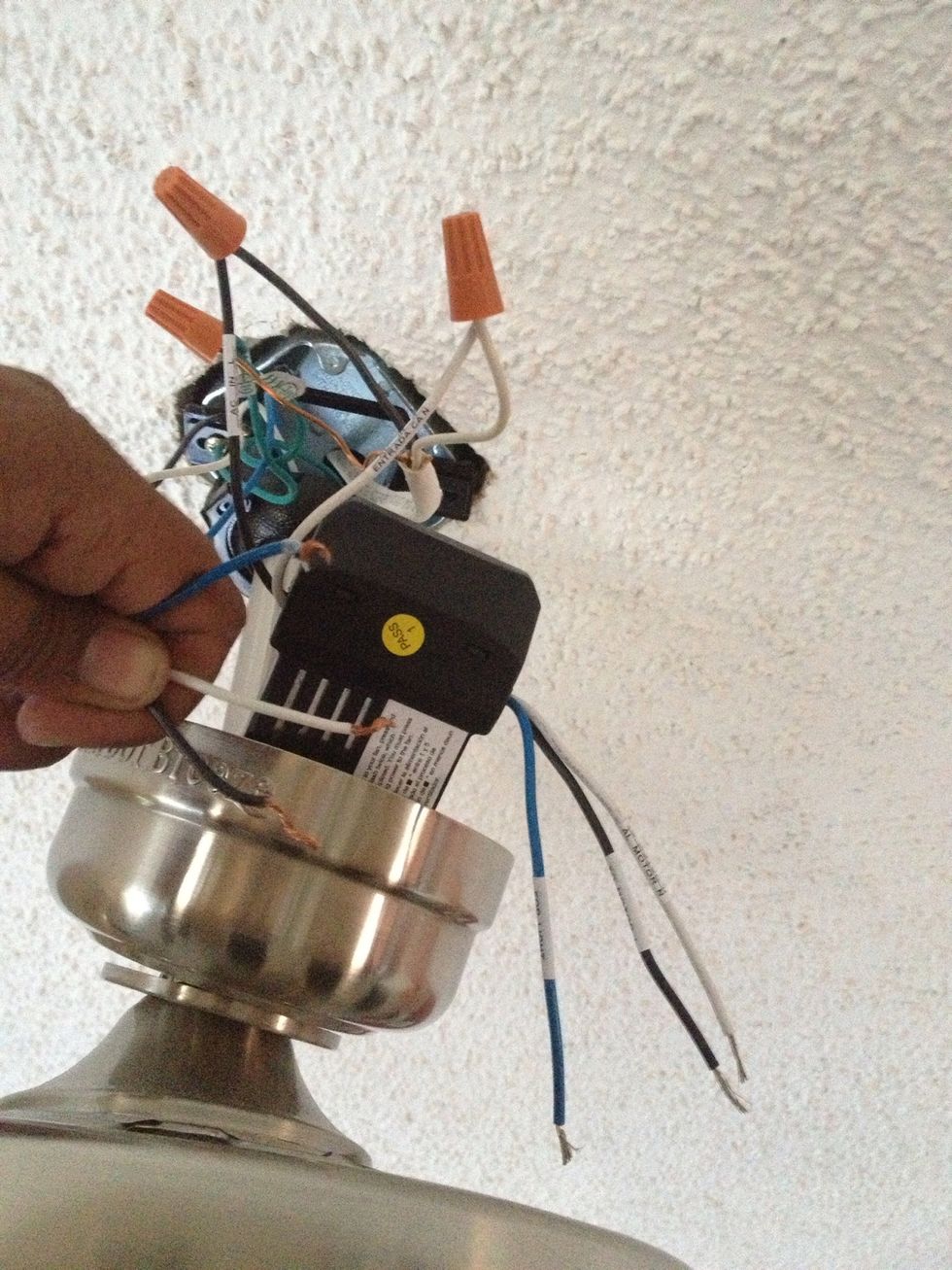

The side with 2 wires connects to the house, the side with 3 wires connects to the fan

The side with 2 wires connects to the house, the side with 3 wires connects to the fan

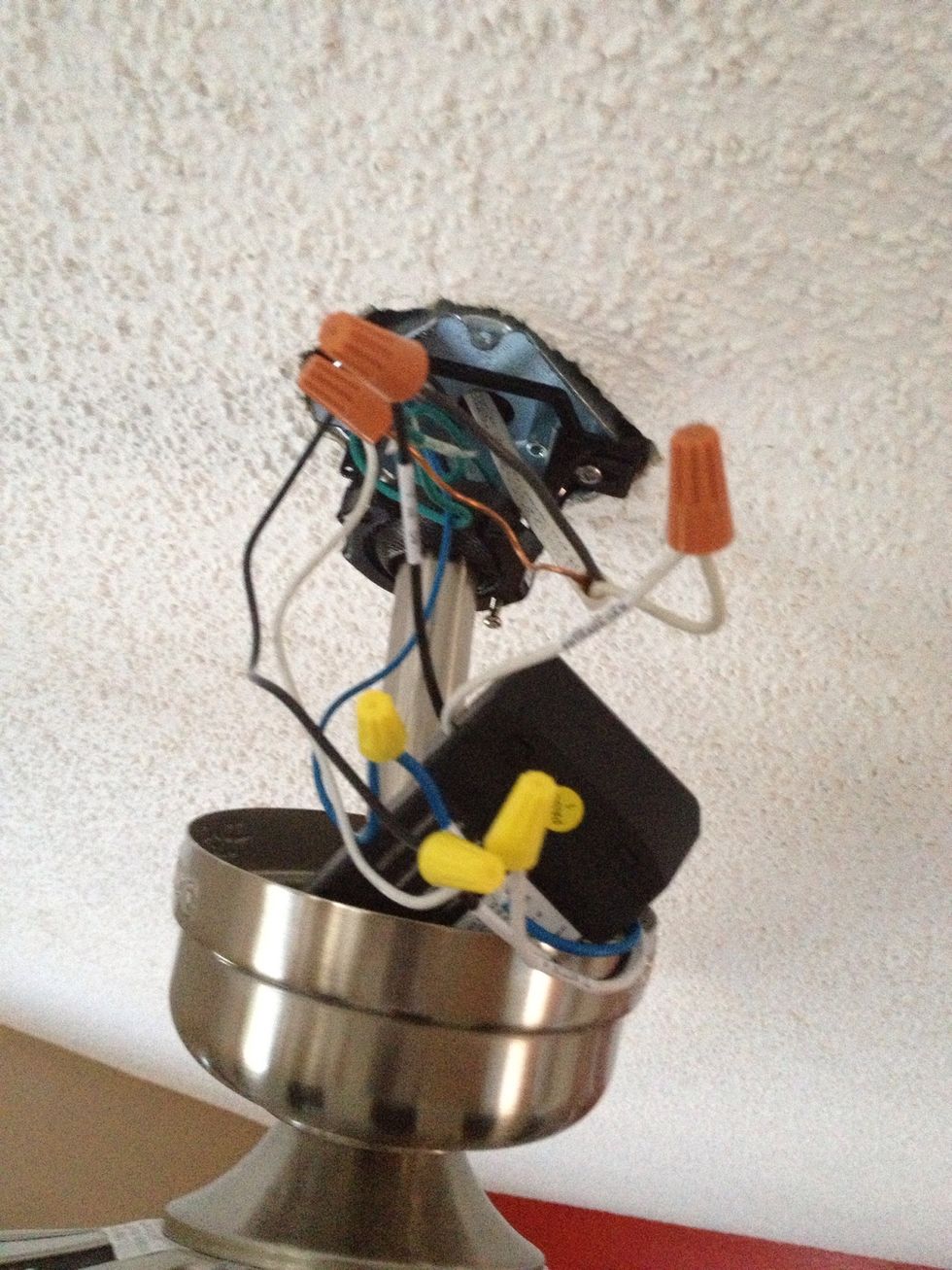

Once everything is connected, position the box in the bracket

Once everything is connected, position the box in the bracket

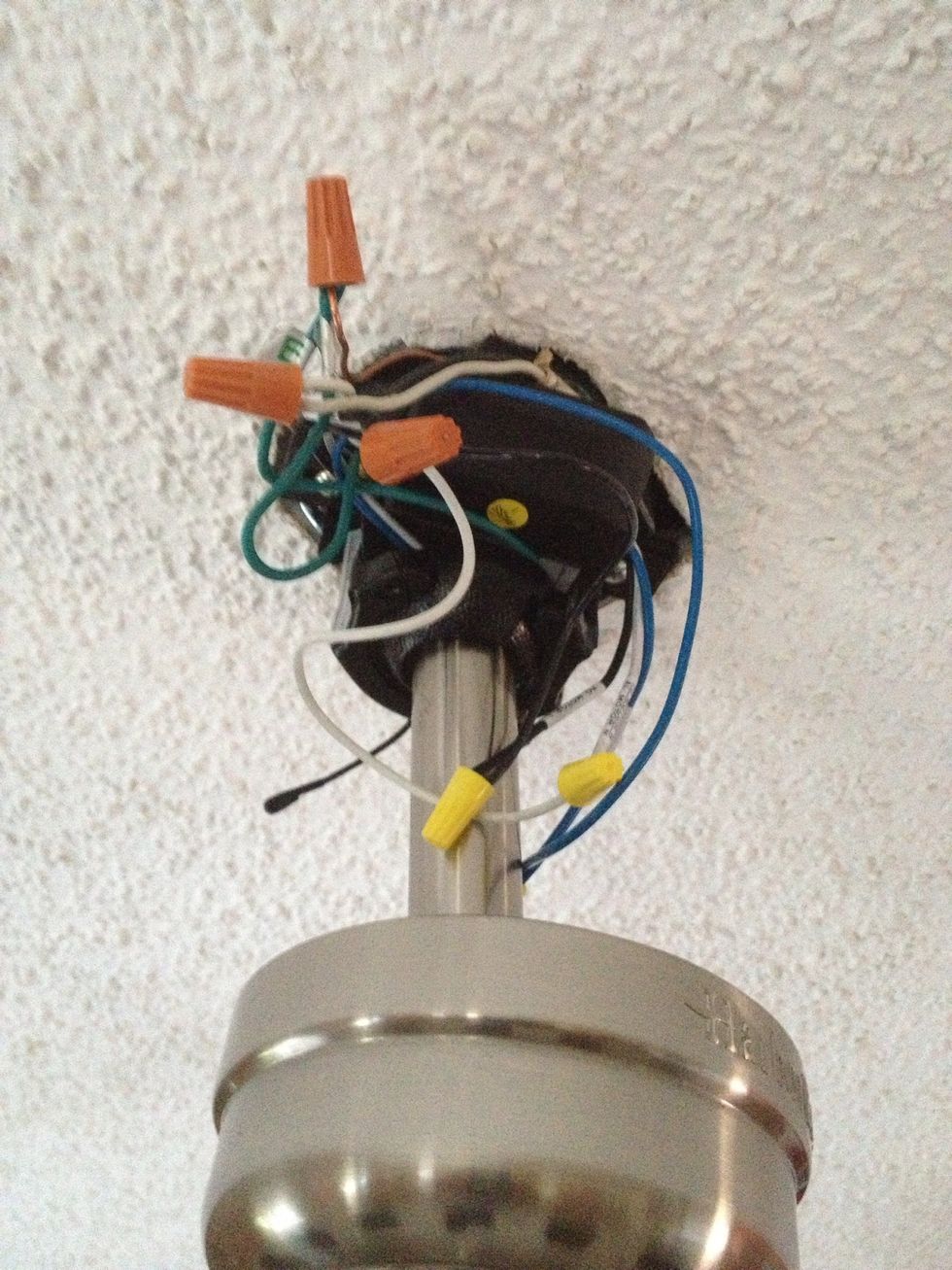

Once the box is in, place all of the wires in so they fit under the cover

Once the box is in, place all of the wires in so they fit under the cover

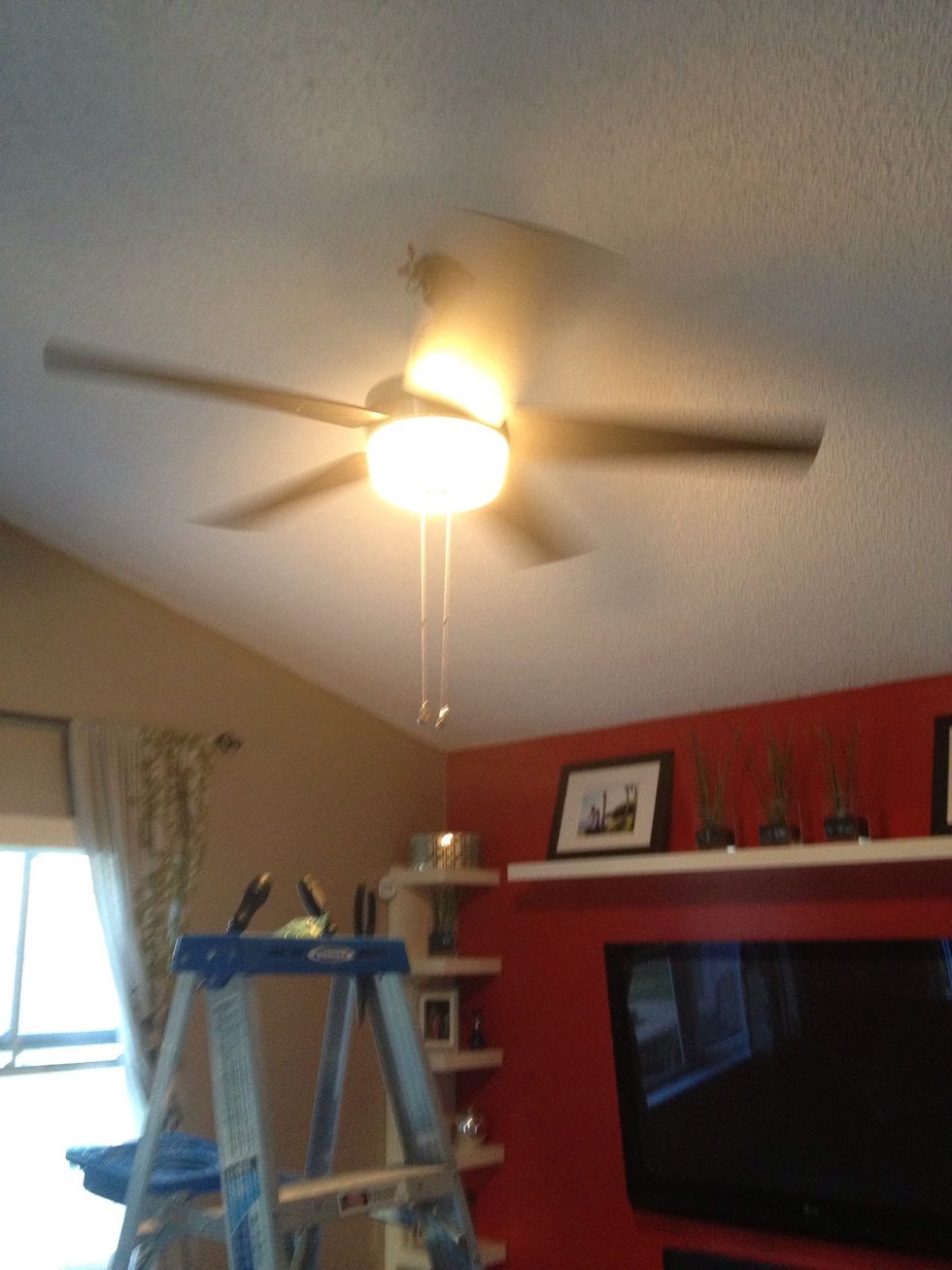

Before closing everything up, flip the circuit breaker back on to test it. Once you've verified, make sure to turn the breaker back off

Before closing everything up, flip the circuit breaker back on to test it. Once you've verified, make sure to turn the breaker back off

My remote needed to be programmed, if yours does, just follow the instructions

My remote needed to be programmed, if yours does, just follow the instructions

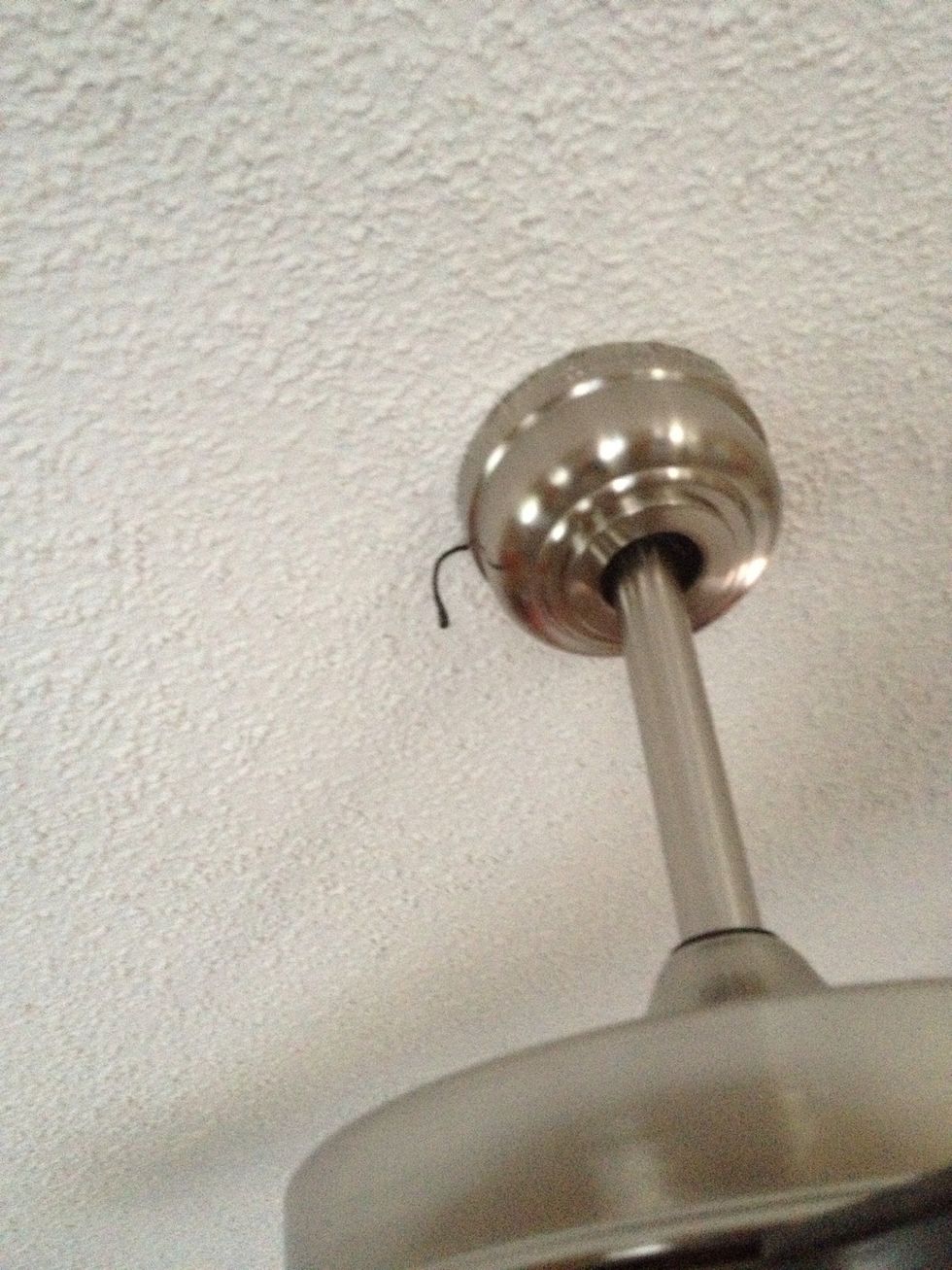

When you're closing everything, make sure the antenna from the box sticks out. Then tighten everything back up

When you're closing everything, make sure the antenna from the box sticks out. Then tighten everything back up

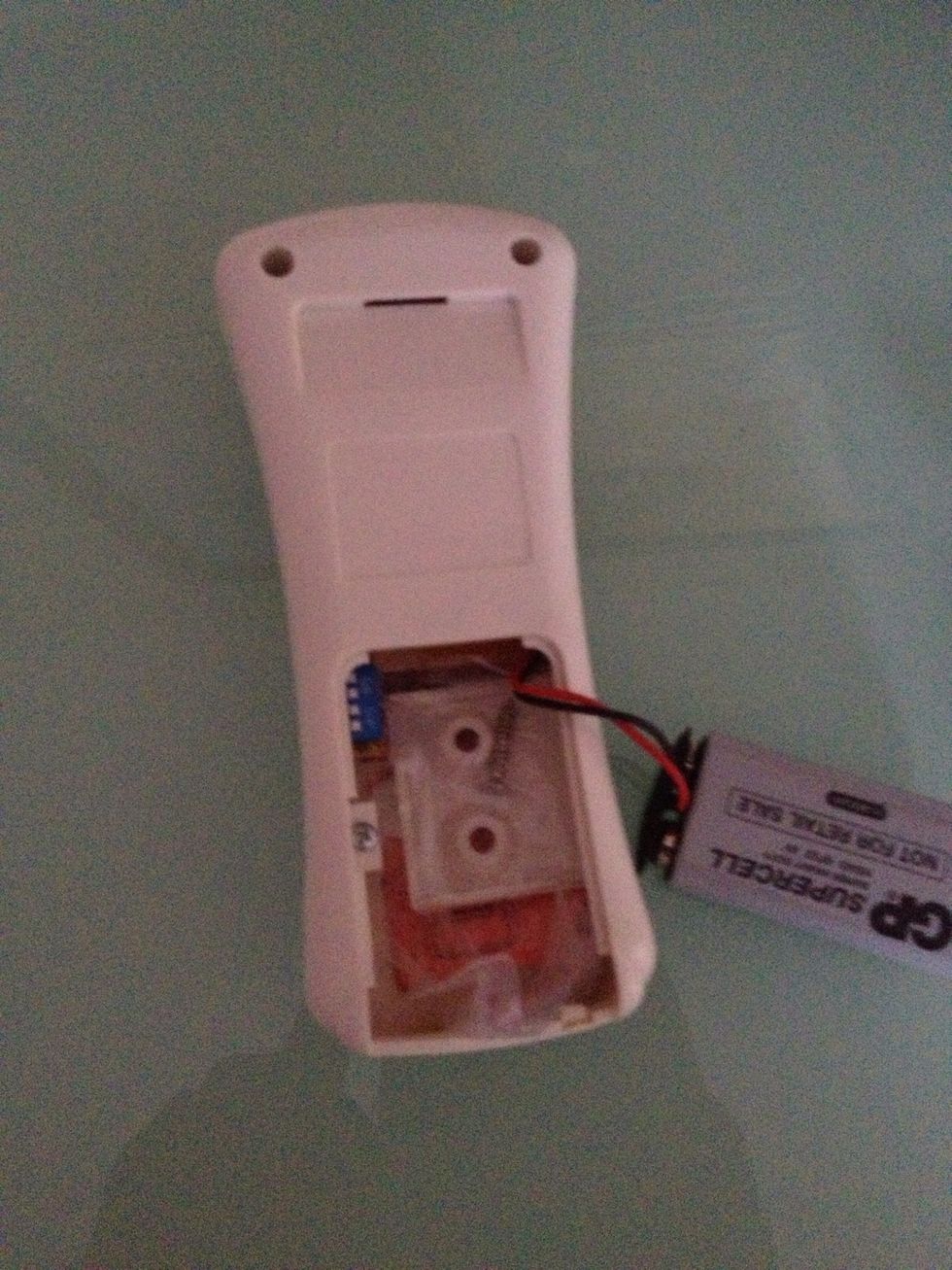

I was able to place the directions and the wall mount in the remote so I won't loose them in the event I need to reprogram or mount the remote  Hope this helps someone.

I was able to place the directions and the wall mount in the remote so I won't loose them in the event I need to reprogram or mount the remote Hope this helps someone.

  • Remote kit
  • Ladder
  • Screwdrivers
