How to install a deans connector

Install a Deans Connector

725
STEPS
TOOLS
You can get these tools at your local Home Depot or hardware store for around $30 - $40. Batteries and Deans connectors are available at Fox Airsoft.

You can get these tools at your local Home Depot or hardware store for around $30 - $40. Batteries and Deans connectors are available at Fox Airsoft.

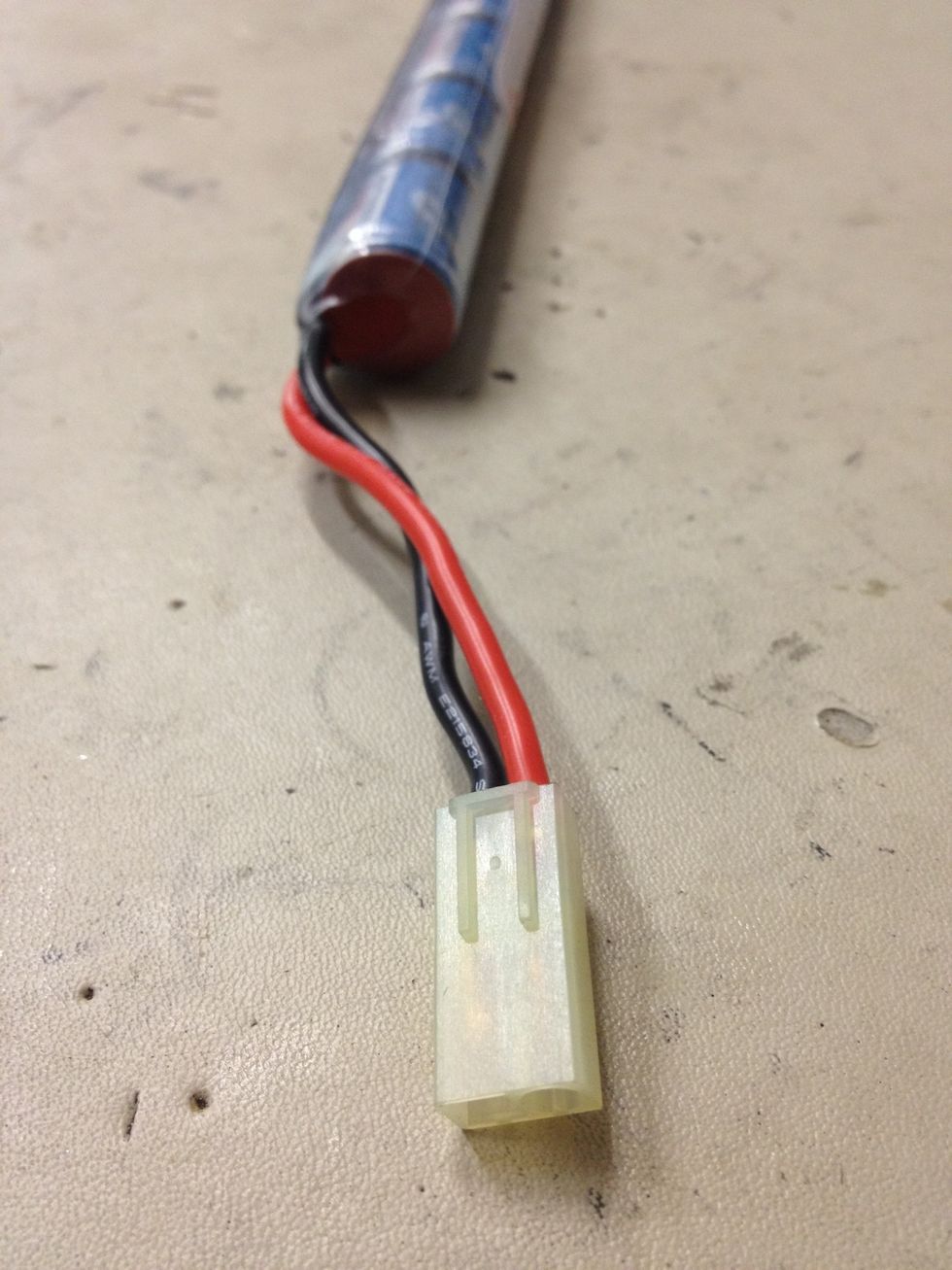

Start off with your basic Tamiya connector on your stock battery. You might have a different connector but a Tamiya is pretty standard across the Airsoft industry.

Start off with your basic Tamiya connector on your stock battery. You might have a different connector but a Tamiya is pretty standard across the Airsoft industry.

Use the wire cutters to cut the wires to to your desired length

Use the wire cutters to cut the wires to to your desired length

Use the wire stripper to strip about a quarter inch off the end of each wire.

Use the wire stripper to strip about a quarter inch off the end of each wire.

It should look something like this when you've cut ands stripped the wires

It should look something like this when you've cut ands stripped the wires

IMPORTANT: Slide your heat-shrink over the wire BEFORE you solder the connection.

IMPORTANT: Slide your heat-shrink over the wire BEFORE you solder the connection.

It should look like this before you solder the wires to the connector.

It should look like this before you solder the wires to the connector.

IMPORTANT: Notice the positive and negative markings on the connector. Red is Positive.

IMPORTANT: Notice the positive and negative markings on the connector. Red is Positive.

Slide the Heat-Shrink over the connections.

Slide the Heat-Shrink over the connections.

Bam! You're done. You now have a deans connector on your battery! Don't be a n00b, deans your gun and batteries for less resistance and increased trigger response.

  • 1.0 Battery of your choice
  • 1.0 Set of Deans connectors
  • 1.0 Wire Cutters
  • 1.0 Wire Strippers
  • 1.0 Small Clamp
  • 1.0 Solder
  • 1.0 Soldering Iron
  • 1.0 Butane Lighter
