How to fix a cordless chainsaw's derailed chain

Fix a Cordless Chainsaw's Derailed Chain

40
STEPS
TOOLS
A derailed  chain looks worse than it really is

A derailed chain looks worse than it really is

Remove the battery before working on the saw

Remove the battery before working on the saw

Use the onboard Allen key to loosen the two bolts in the housing

Use the onboard Allen key to loosen the two bolts in the housing

After removing the housing, the bar and chain will fall off

After removing the housing, the bar and chain will fall off

Lift the bar off

Lift the bar off

Rearrange the chain around the bar

Rearrange the chain around the bar

Seat the chain on the gear

Seat the chain on the gear

Drop the bar into position over the small steel pin that seats it, maintaining tension on the chain so it doesn't fall off.

Drop the bar into position over the small steel pin that seats it, maintaining tension on the chain so it doesn't fall off.

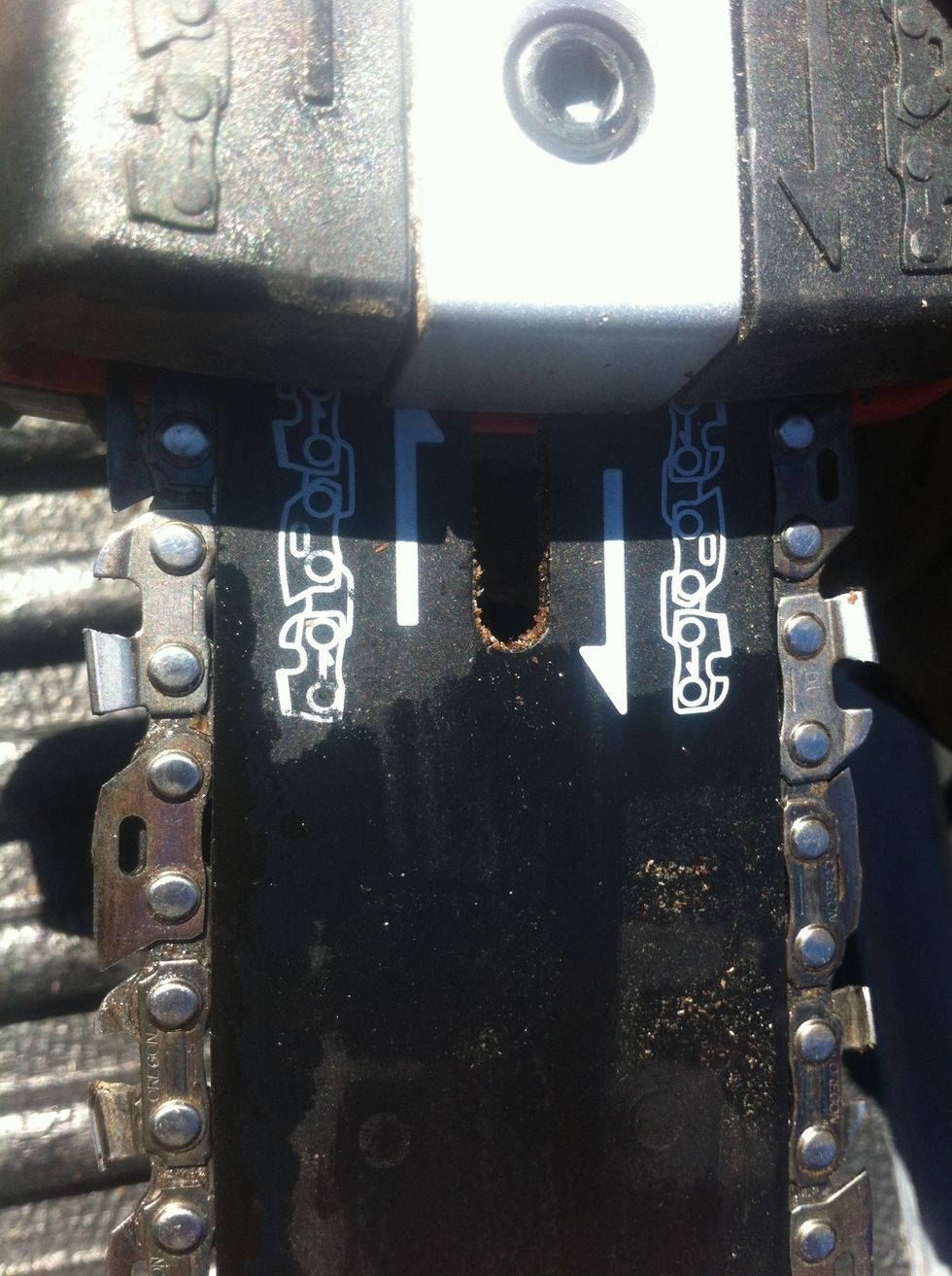

Pay special attention to the diagram (in white ink) to make sure you haven't got the chain on backwards - it's easy to do! (the chain position is now correct)

Pay special attention to the diagram (in white ink) to make sure you haven't got the chain on backwards - it's easy to do! (the chain position is now correct)

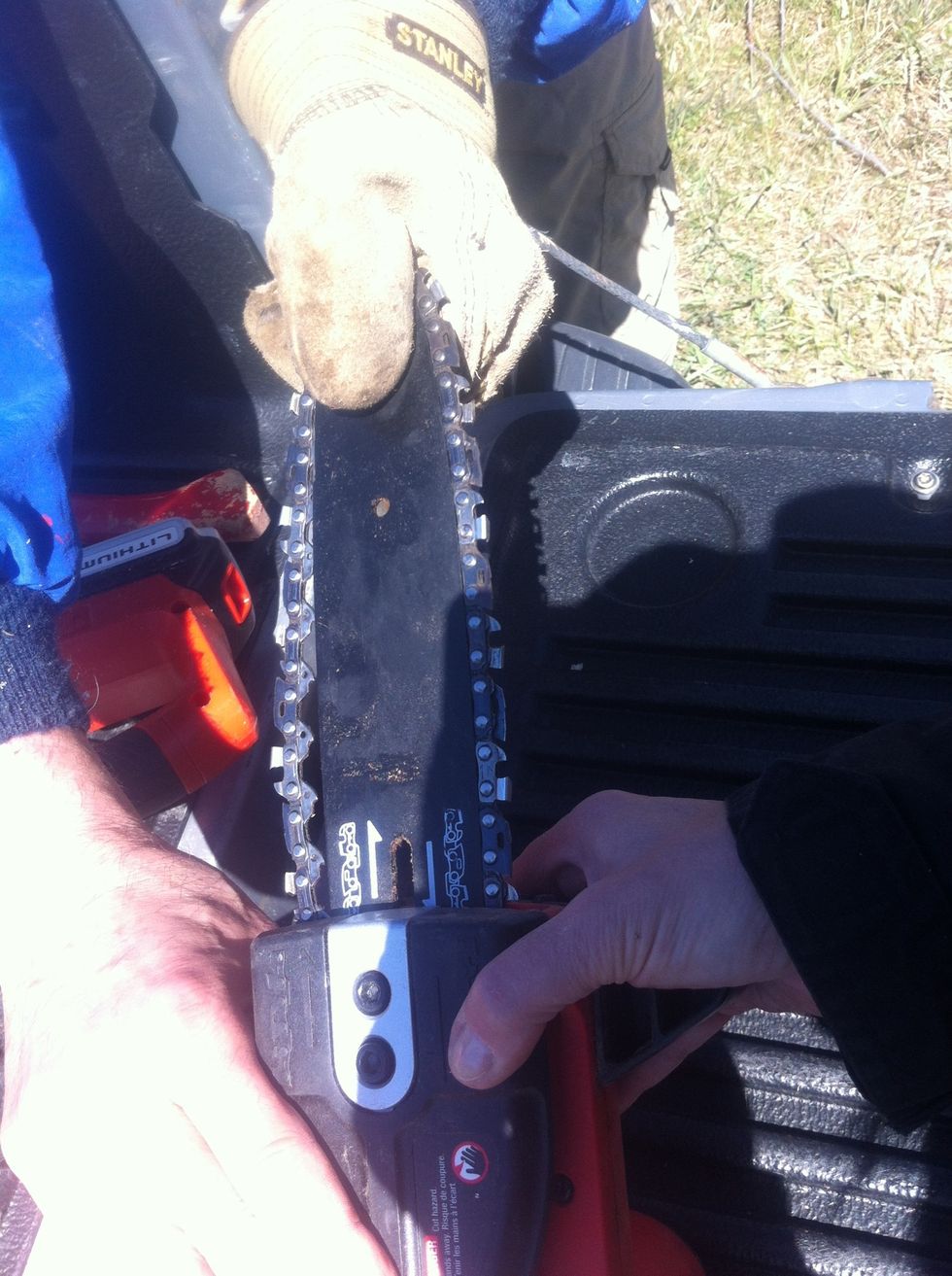

As you reinstall the housing, have a helper pull on the bar to keep tension on the chain. If you don't keep tension on the chain it will end up too loose and fall off again when you start cutting.

As you reinstall the housing, have a helper pull on the bar to keep tension on the chain. If you don't keep tension on the chain it will end up too loose and fall off again when you start cutting.

The reinstalled chain should be nice and snug to the bar, not droopy.

Reinstall the battery

Reinstall the battery

  • Allen key
  • A second person to help put tension on the bar
