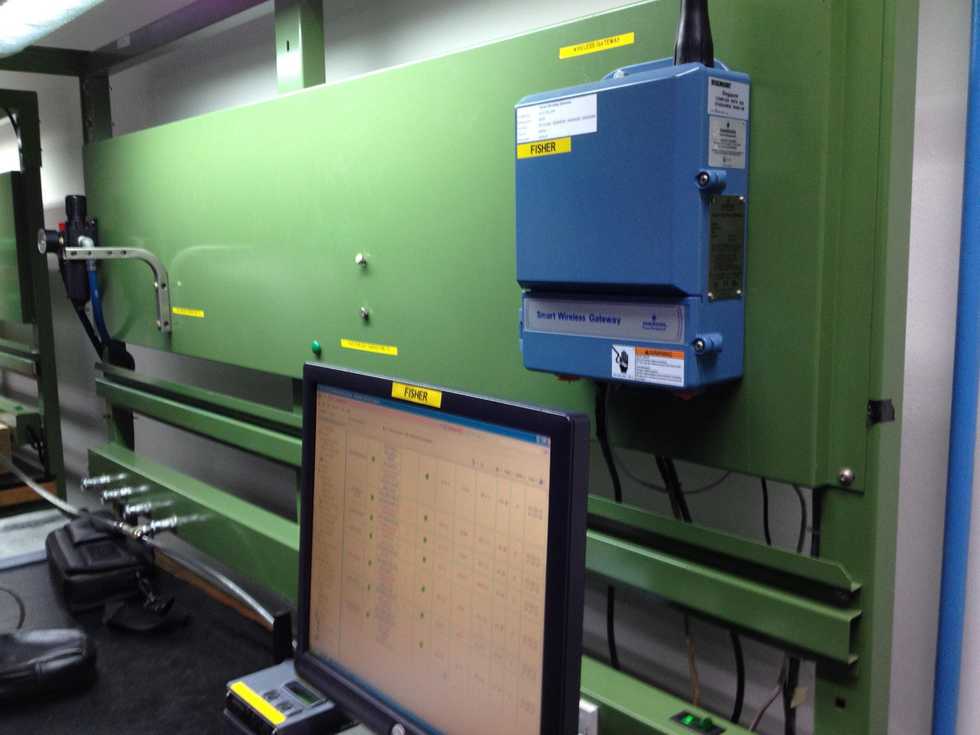

How to commission wirelesshart transmitter with gateway

This guide is intended to give an idea on how to use 375/475 Field Communicator to configure Rosemount wireless device to be connected to wireless gateway

8
STEPS
TOOLS

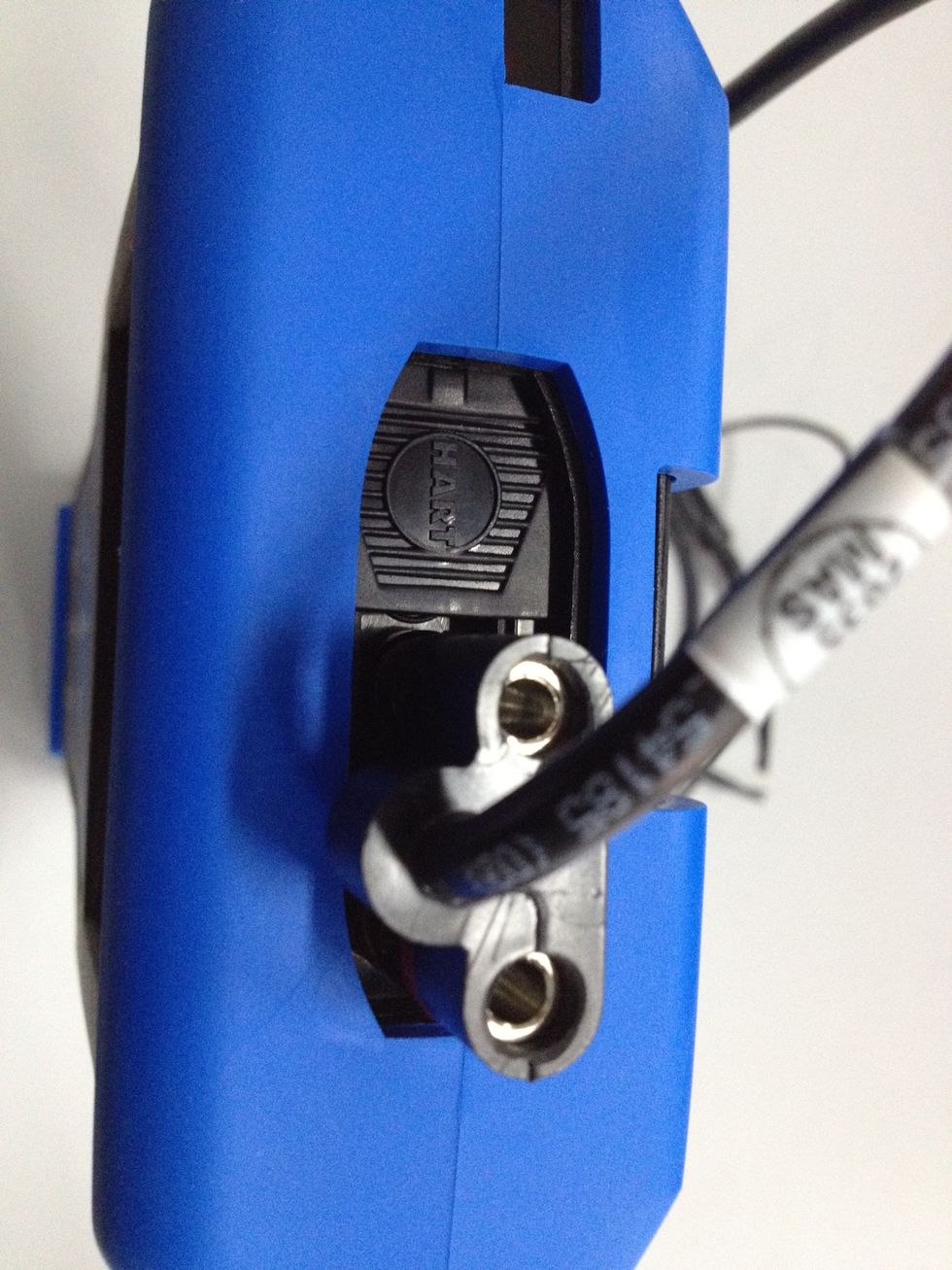

Plug the Connector set into HART terminal at 375/475

Plug the Connector set into HART terminal at 375/475

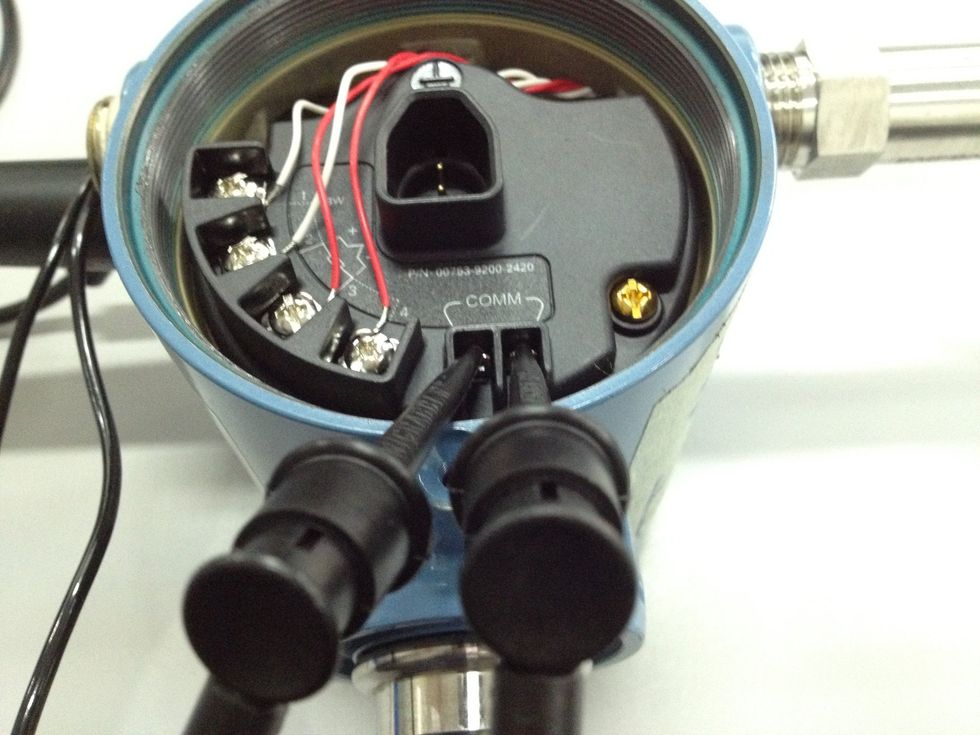

Clip the other end of Connector to the COMM terminal.

Clip the other end of Connector to the COMM terminal.

Insert the Battery module into the dedicated slot

Insert the Battery module into the dedicated slot

Powerup the 375/475. Select the "HART" icon and press "Enter" keypad to communicate with the Transmitter

Powerup the 375/475. Select the "HART" icon and press "Enter" keypad to communicate with the Transmitter

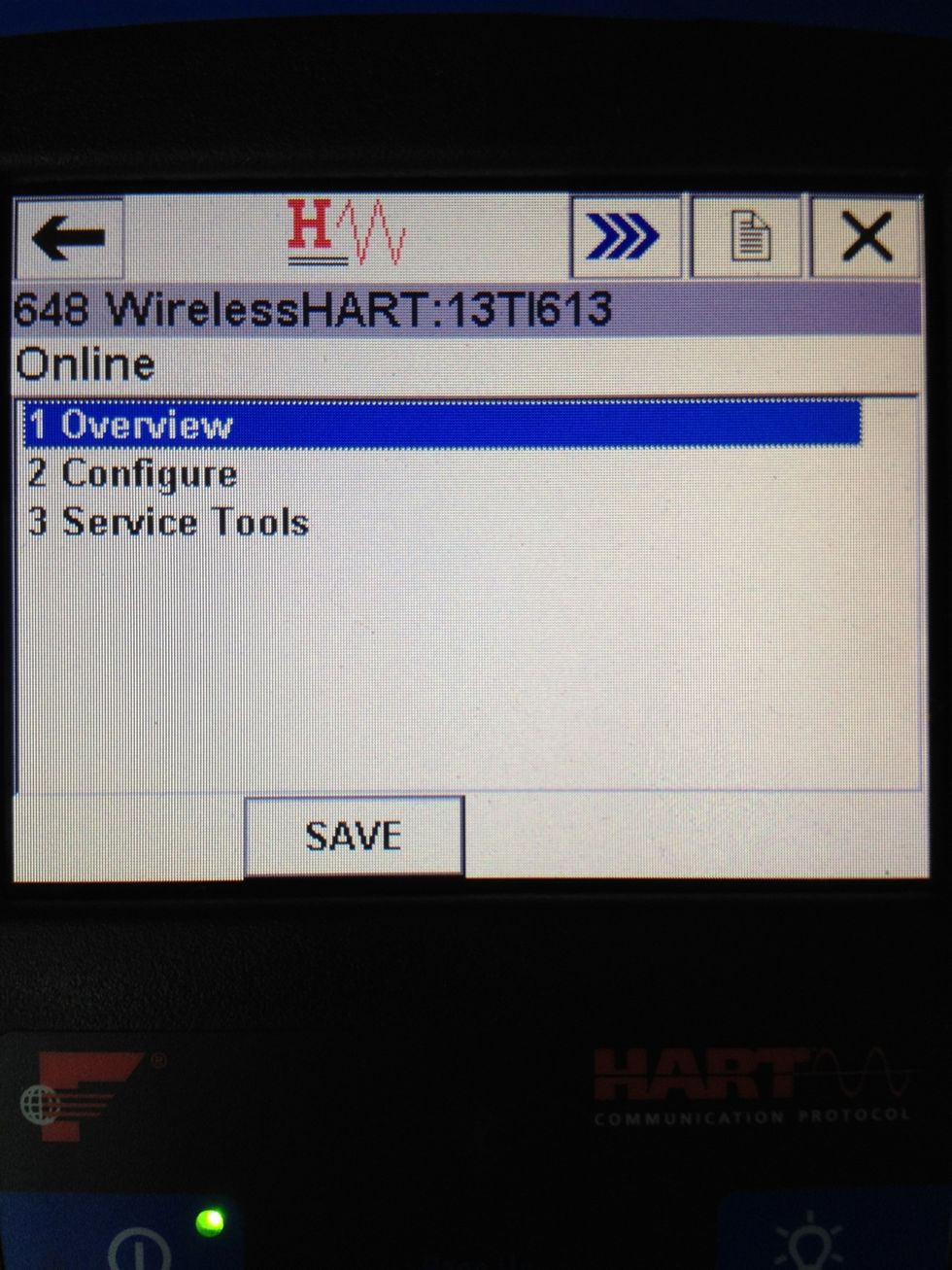

Please wait until 475 fully load the device DD. Then go to "Configure"

Please wait until 475 fully load the device DD. Then go to "Configure"

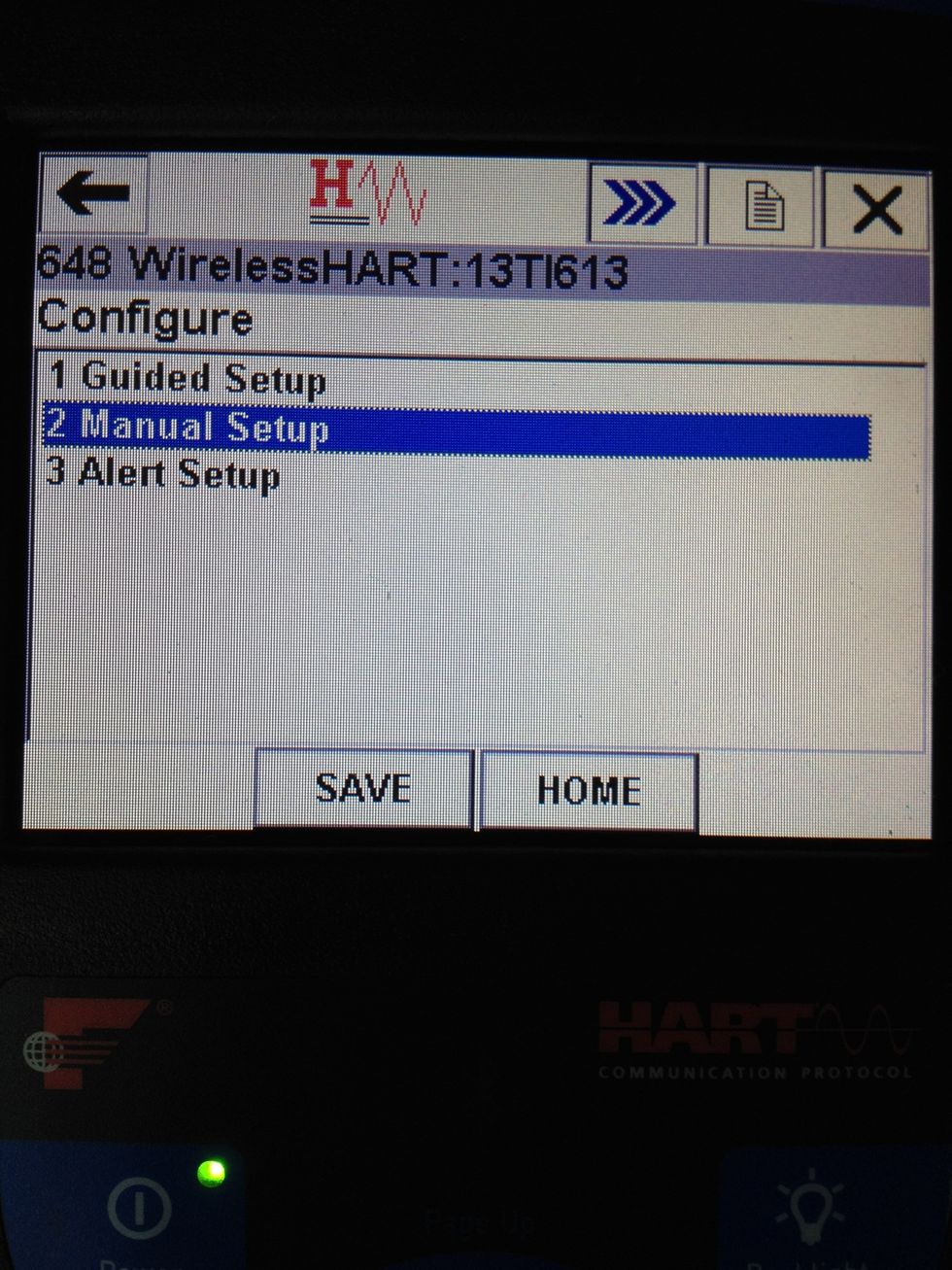

Go to "Manual Setup"

Go to "Manual Setup"

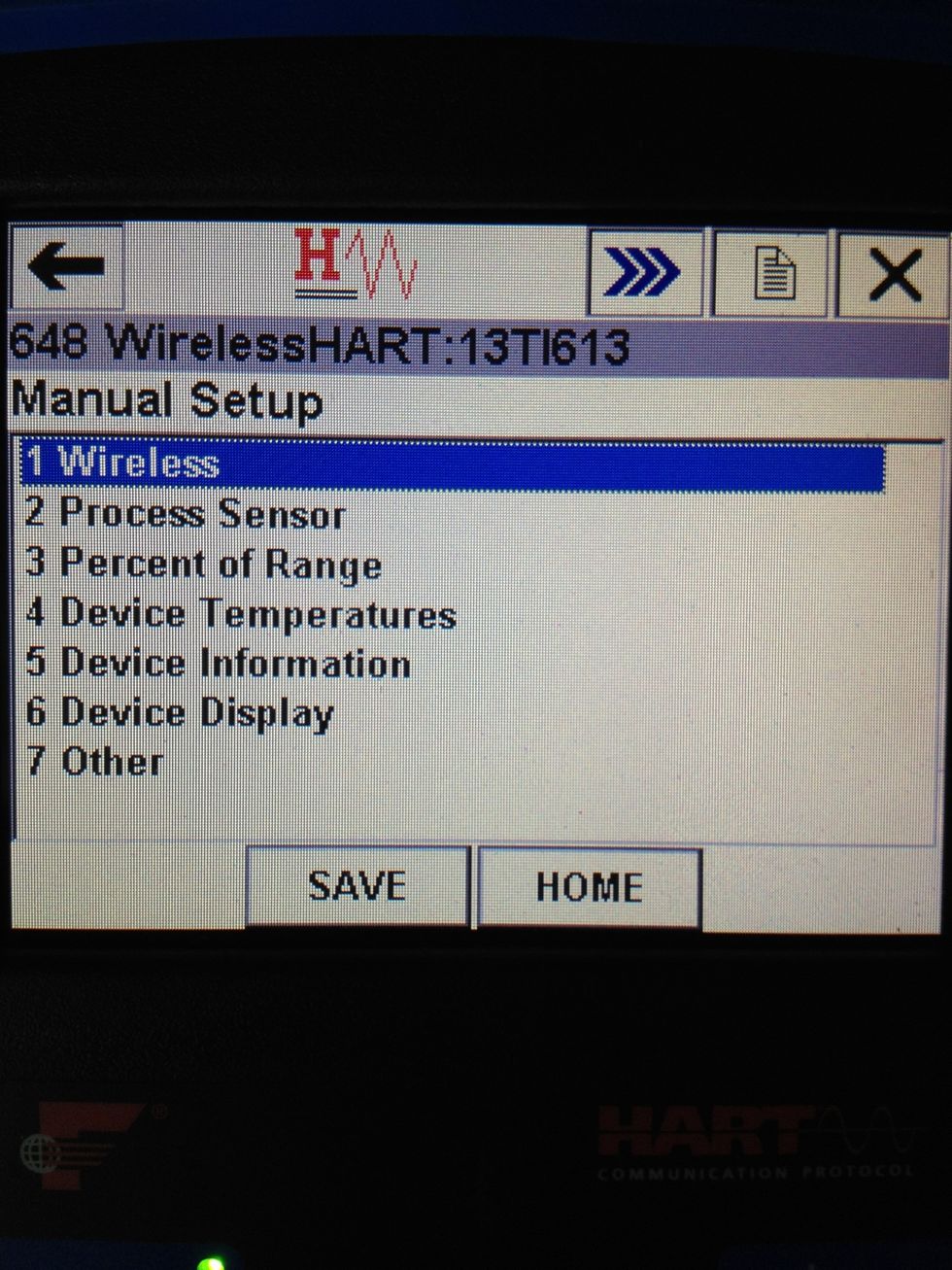

Go To "Wireless"

Go To "Wireless"

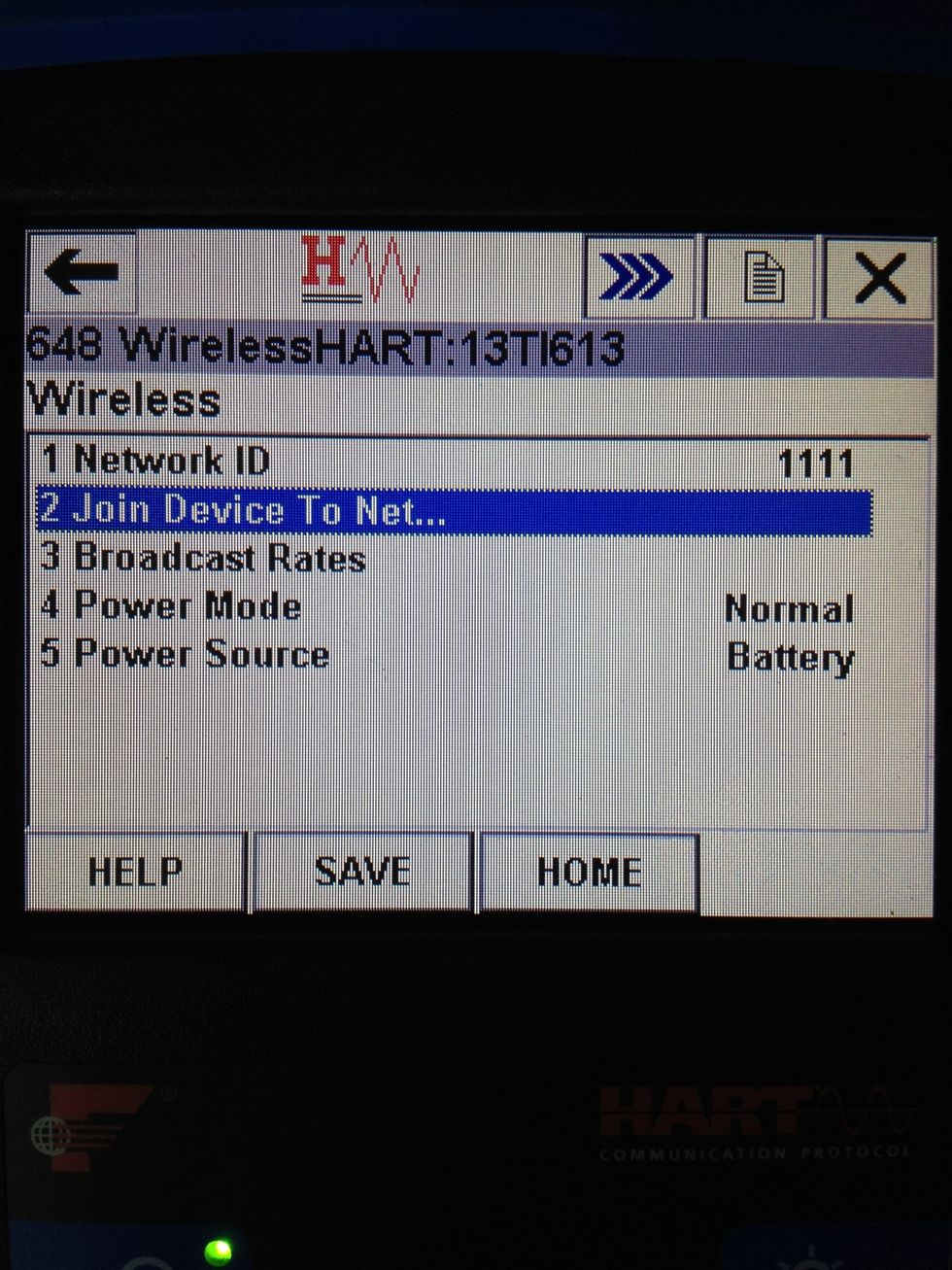

Go to "Join Device To Network"

Go to "Join Device To Network"

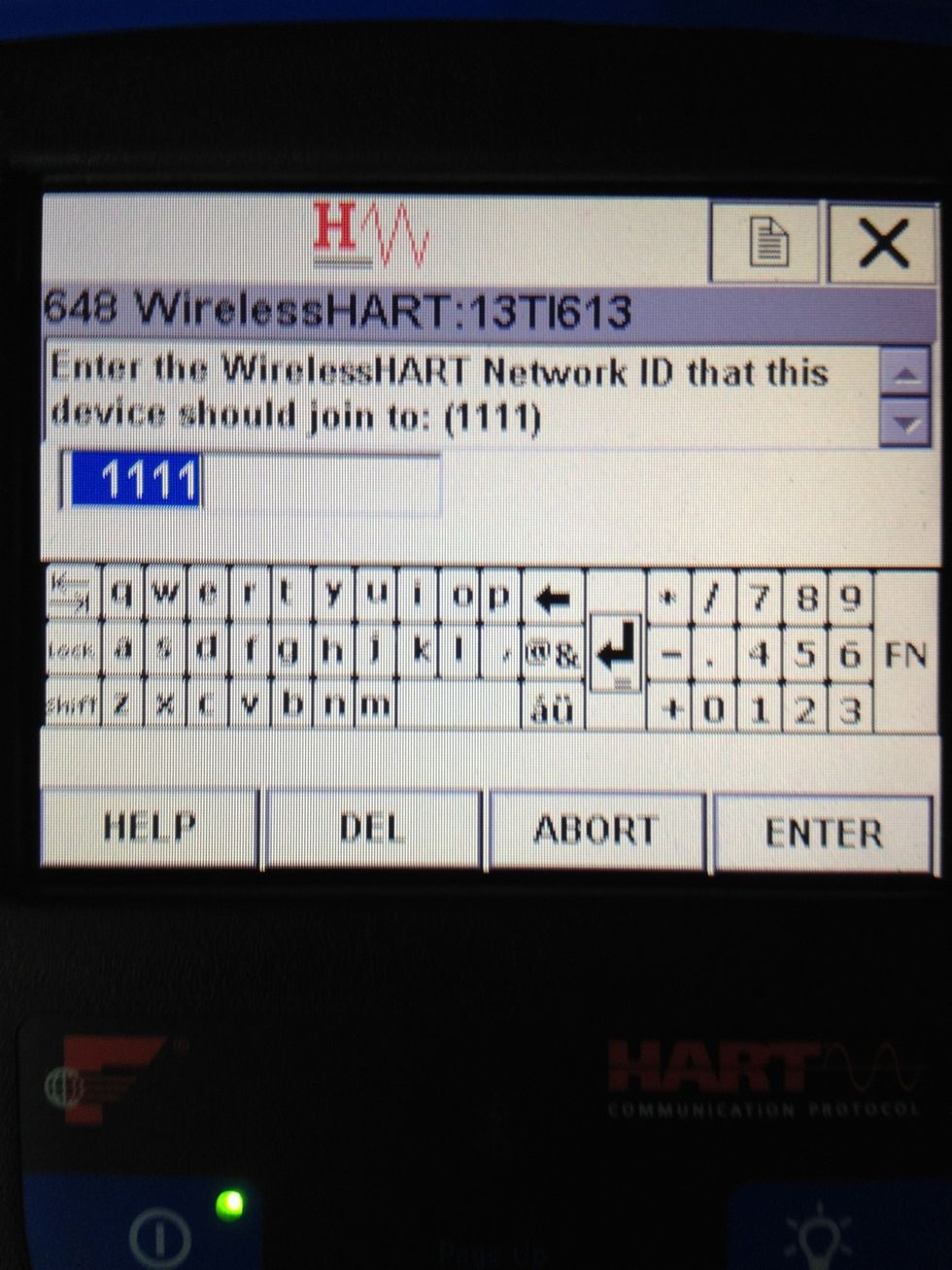

Key in the Network ID. Then press "Enter". The ID should be the same as configured in Wireless Gateway.

Key in the Network ID. Then press "Enter". The ID should be the same as configured in Wireless Gateway.

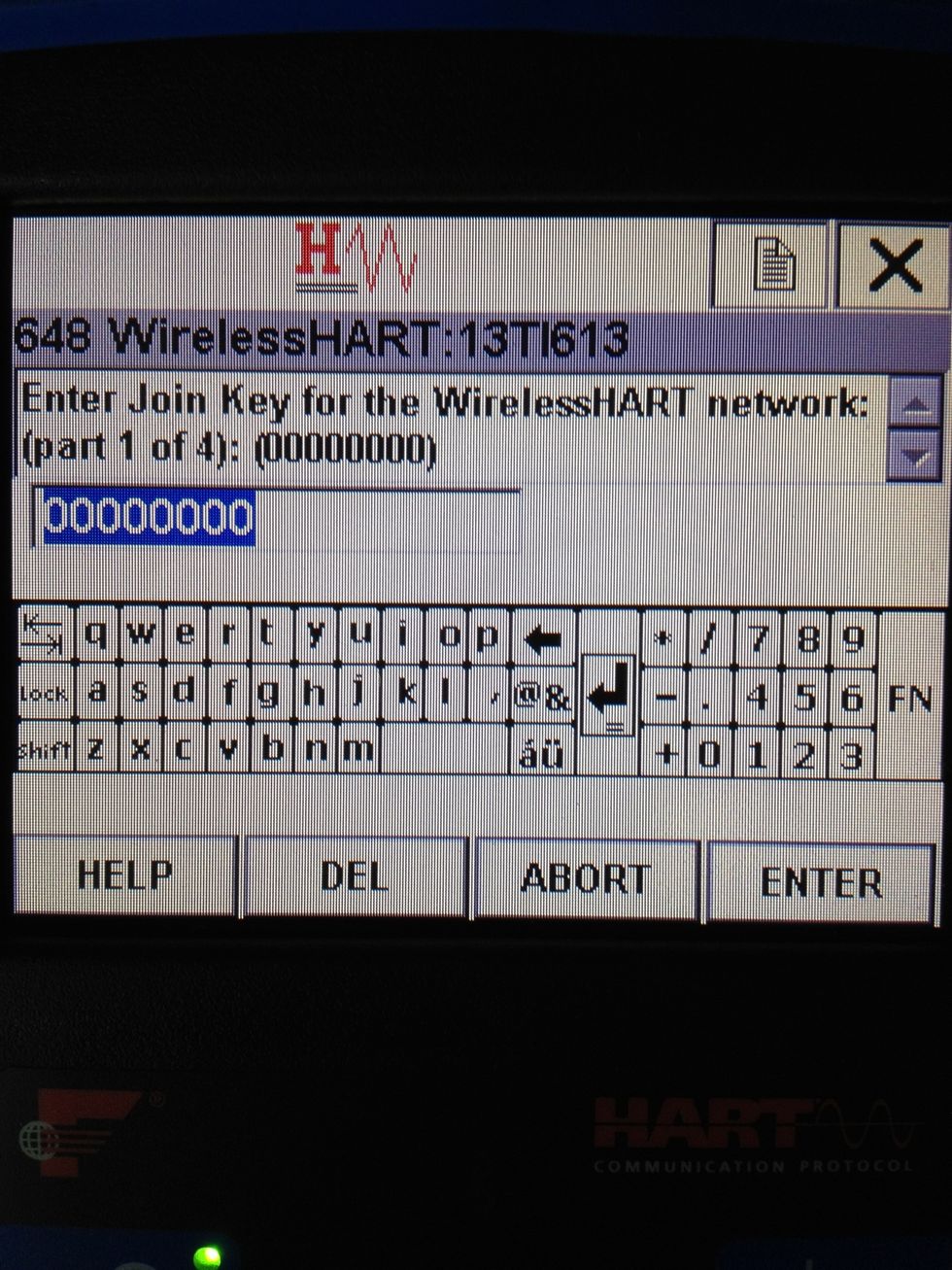

Key in the 4 parts of the Join Key. Press "Enter" to proceed. The Join Key should be the same as configured in Wireless Gateway.

Key in the 4 parts of the Join Key. Press "Enter" to proceed. The Join Key should be the same as configured in Wireless Gateway.

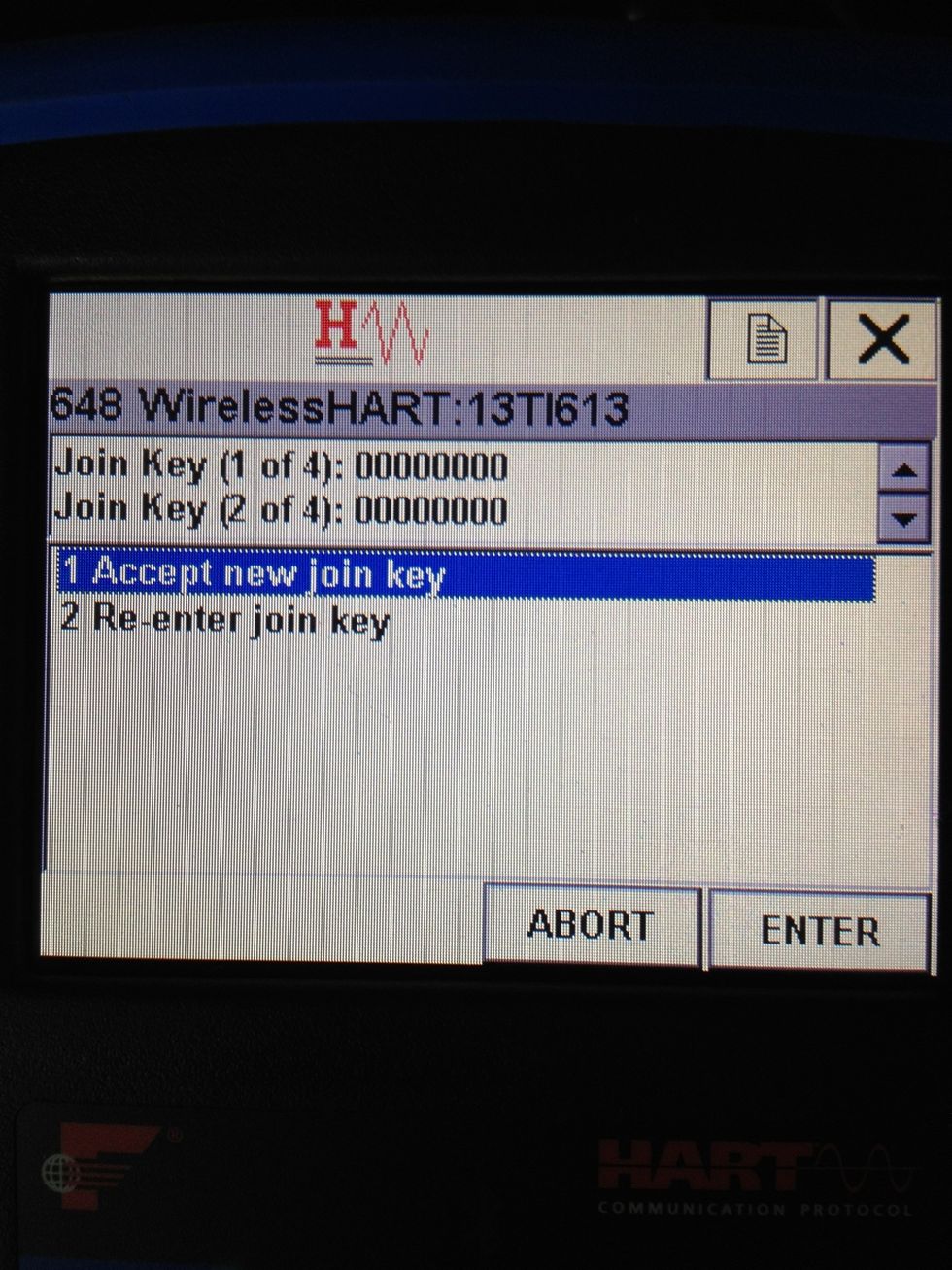

Press "Enter" to Accept new join key. The device will attempt to connect with the Wireless Gateway. This may take few minutes.

Press "Enter" to Accept new join key. The device will attempt to connect with the Wireless Gateway. This may take few minutes.

Note: Depend on the device, the steps may vary. Set to the device lowest burst rate and enable gateway for "Active advertising" to speed up the connection process. The guide is for Rosemount devices.

  • 1.0 375/475 Field Communicator
  • 1.0 375/475 Connector set
  • 1.0 Wireless Transmitter
  • 1.0 Transmitter battery module
  • 1.0 Wireless Gateway
