STEPS
TOOLS
Power Supply set to 18v

Power Supply set to 18v

Unit to be tested

Unit to be tested

Notice key location

Notice key location

Remove remove this item

Remove remove this item

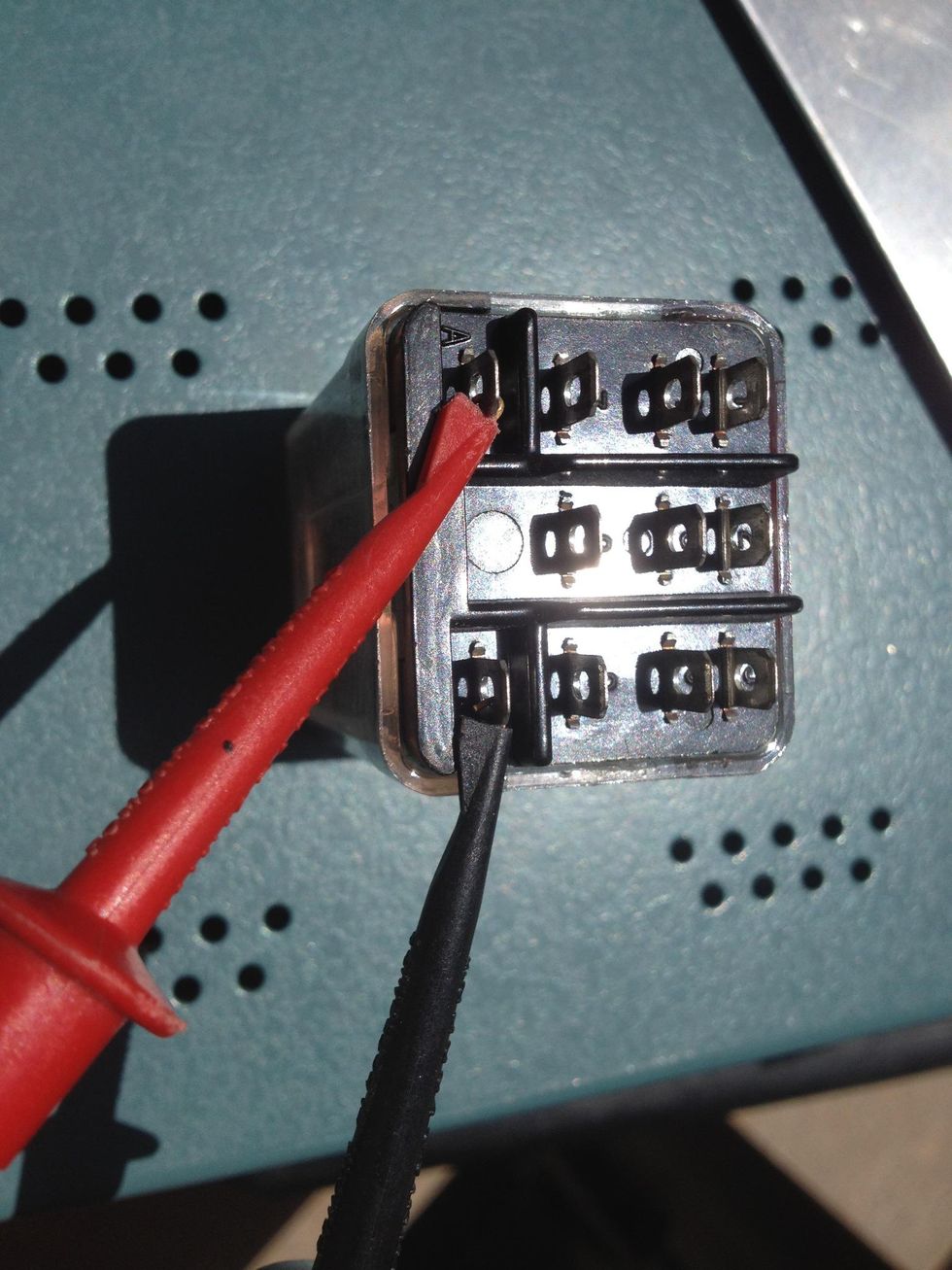

Connect power supply across coil of relay turn power supply on listen for contacts open turn off power supply listen for context close

  • Power Supply
  • Set to 18 volts DC
  • Leads with clips
  • Power cord
