How to change the rear gear on your 2011 legend matrix

Change the Rear Gear on Your 2011 Legend Matrix

1
STEPS
TOOLS

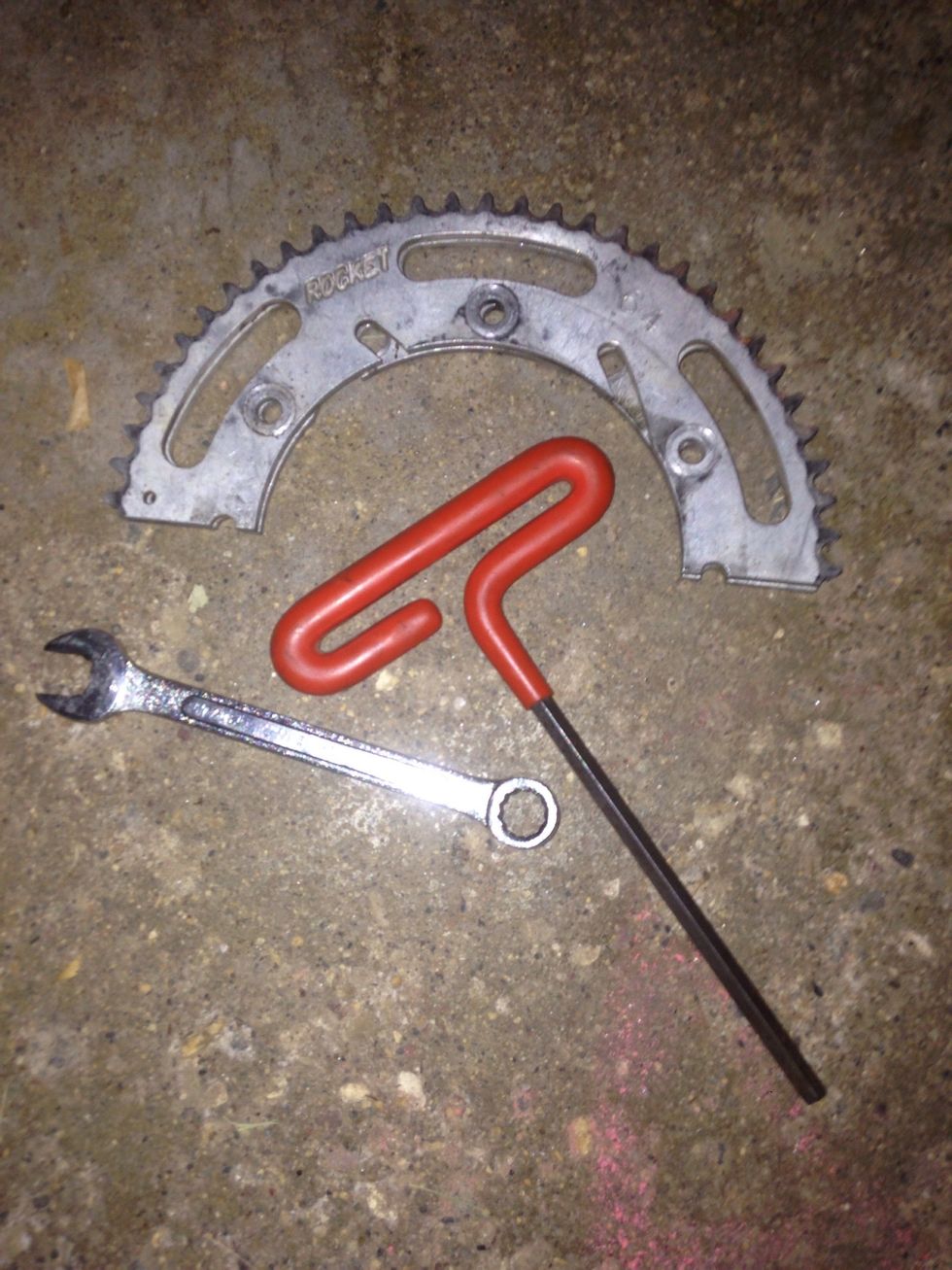

Supplies

Supplies

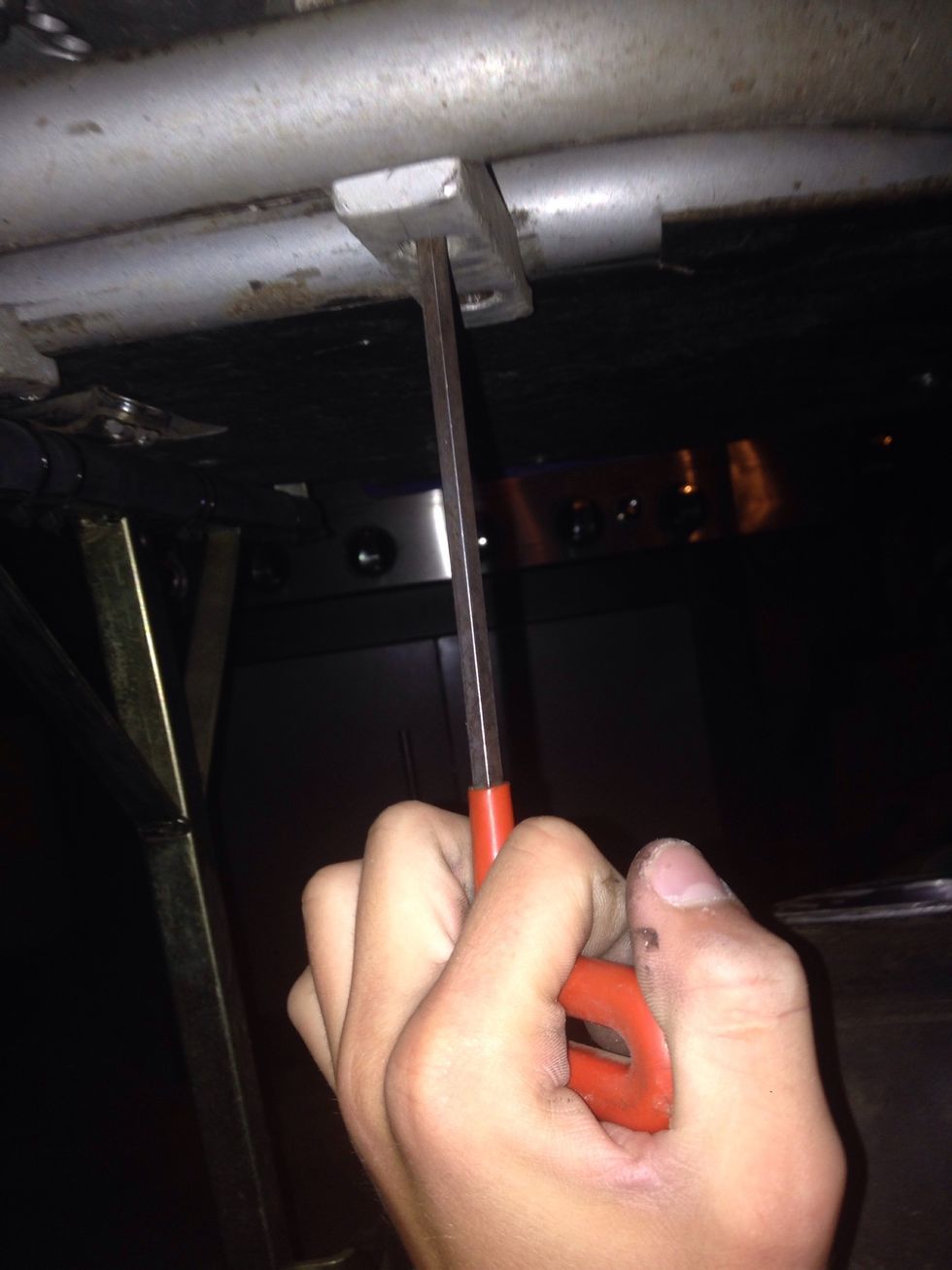

First, loosen the engine bolts.

First, loosen the engine bolts.

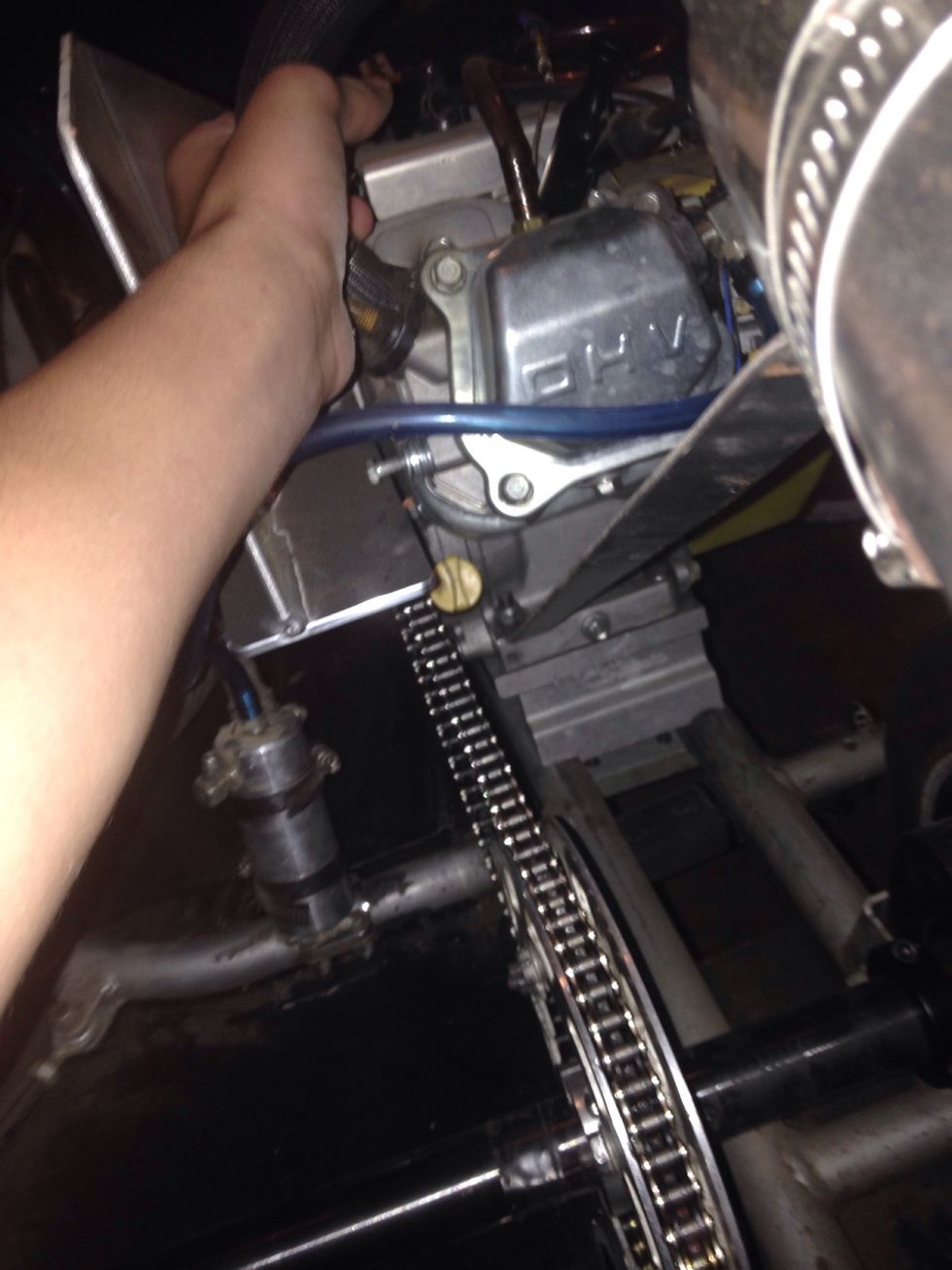

Then, pull the engine back.

Then, pull the engine back.

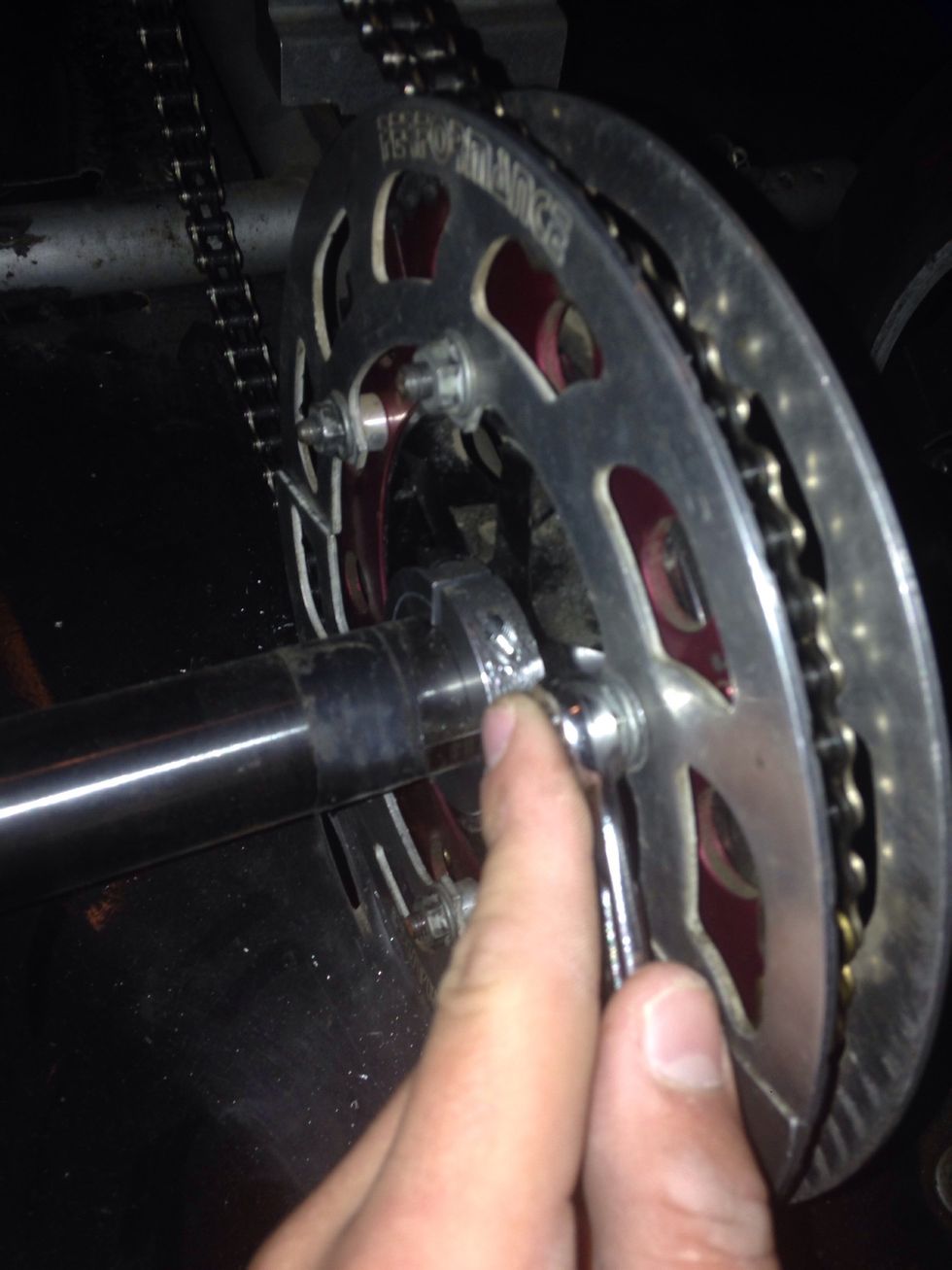

Next, take the nuts off the gear rotor.

Next, take the nuts off the gear rotor.

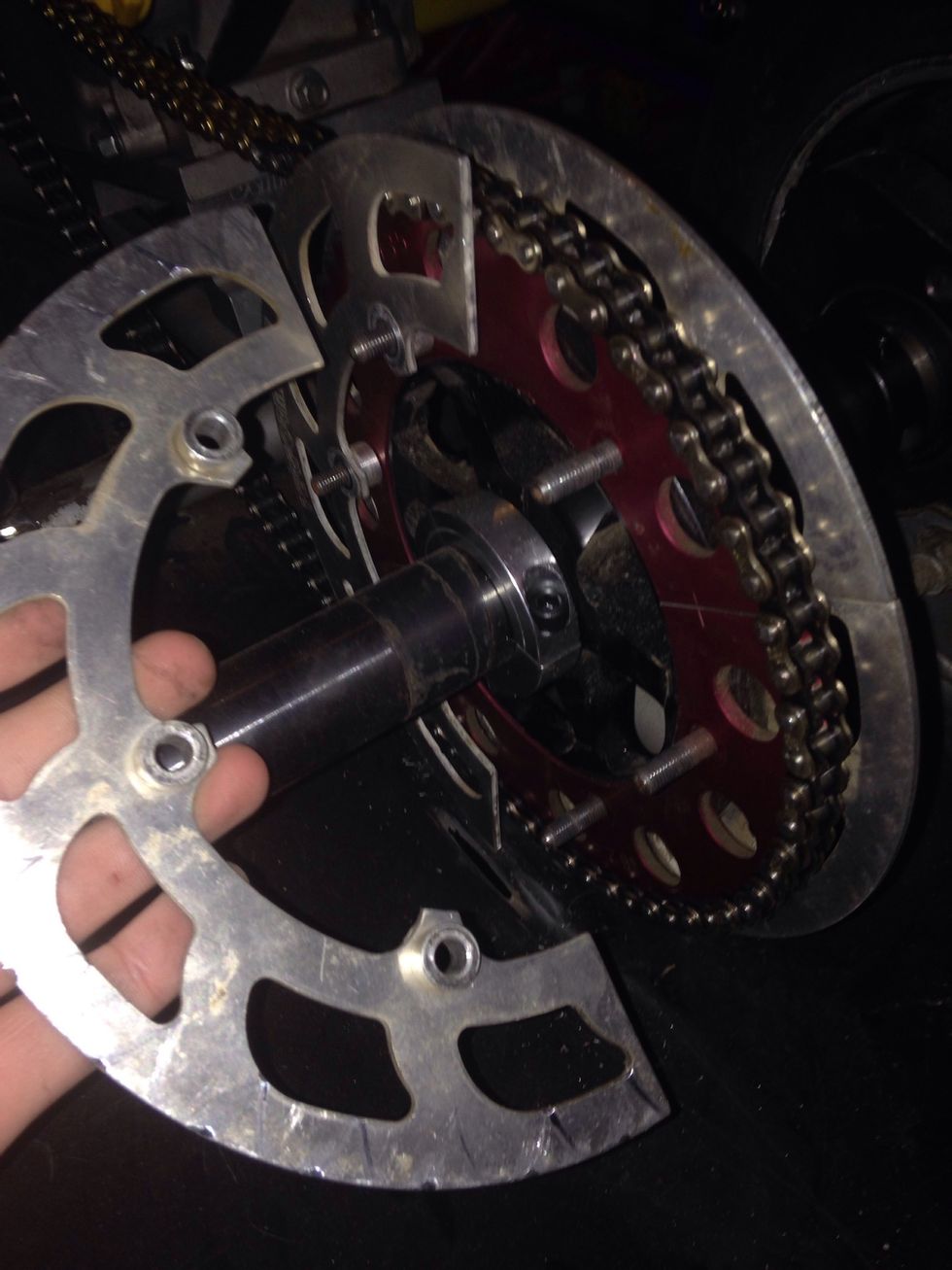

Then, take the chain guard off.

Then, take the chain guard off.

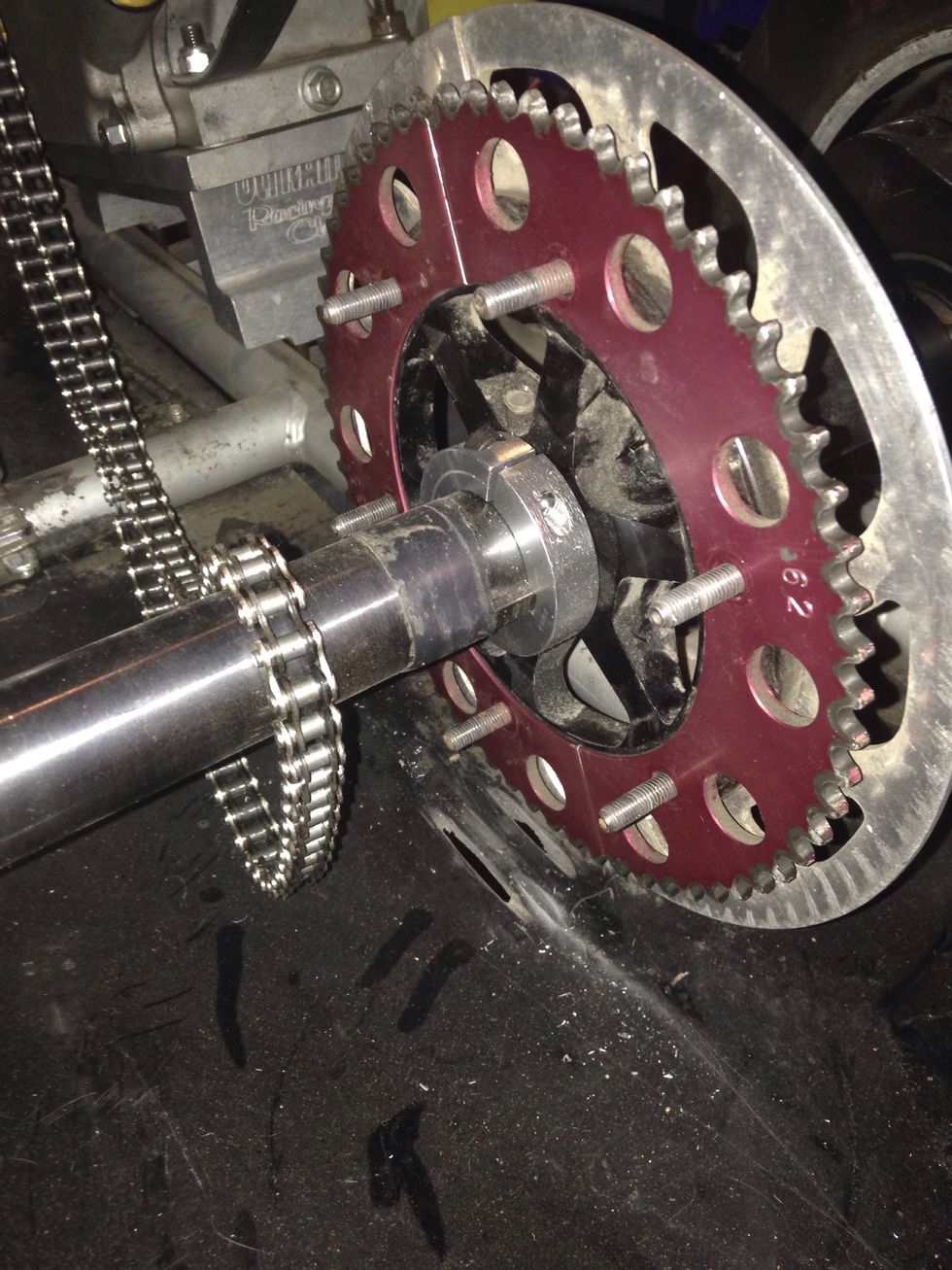

Next, take the chain off the gear.

Next, take the chain off the gear.

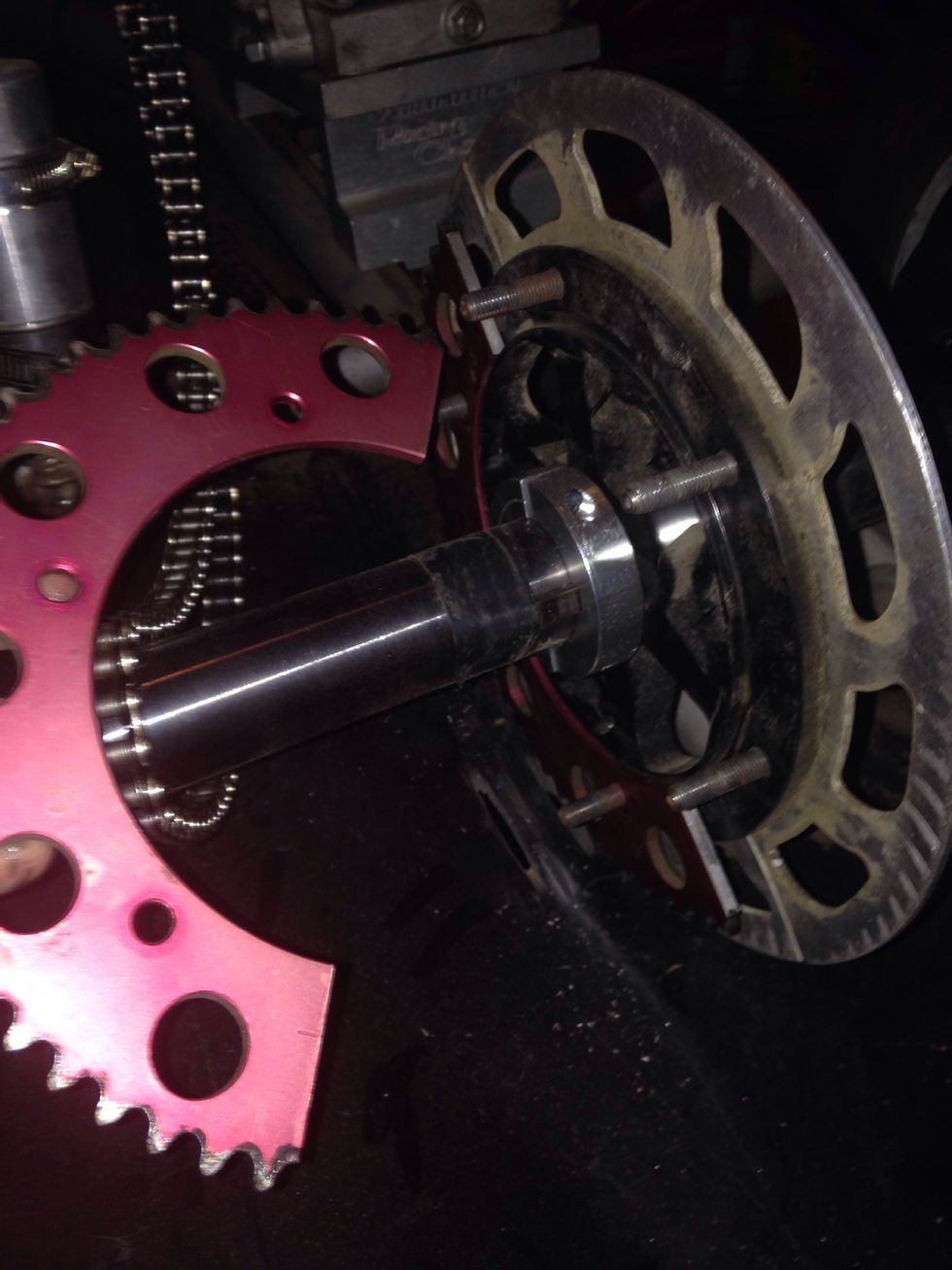

Then, take the gear off.

Then, take the gear off.

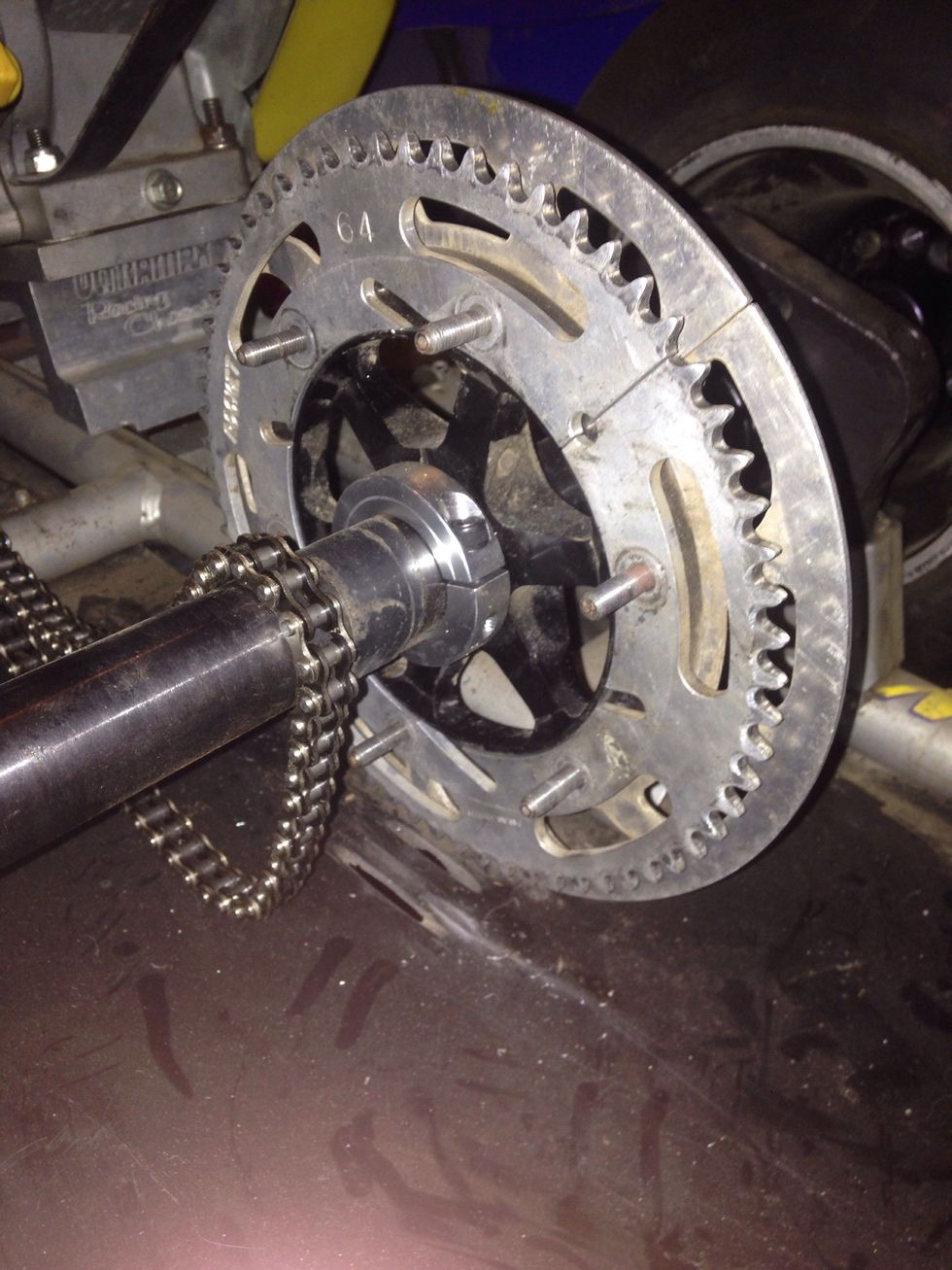

Next, put the other gear on.

Next, put the other gear on.

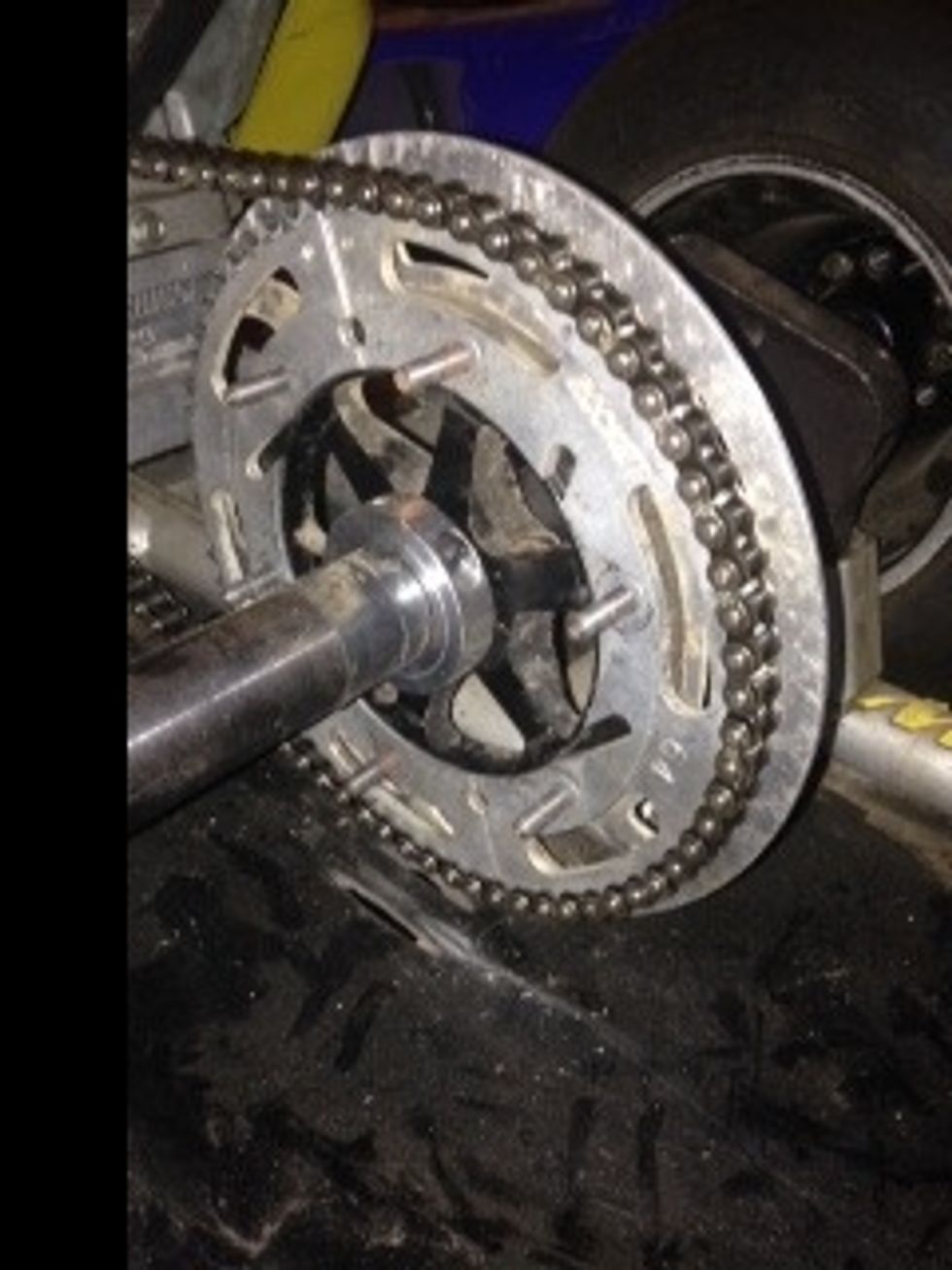

Then, put the chain back on.

Then, put the chain back on.

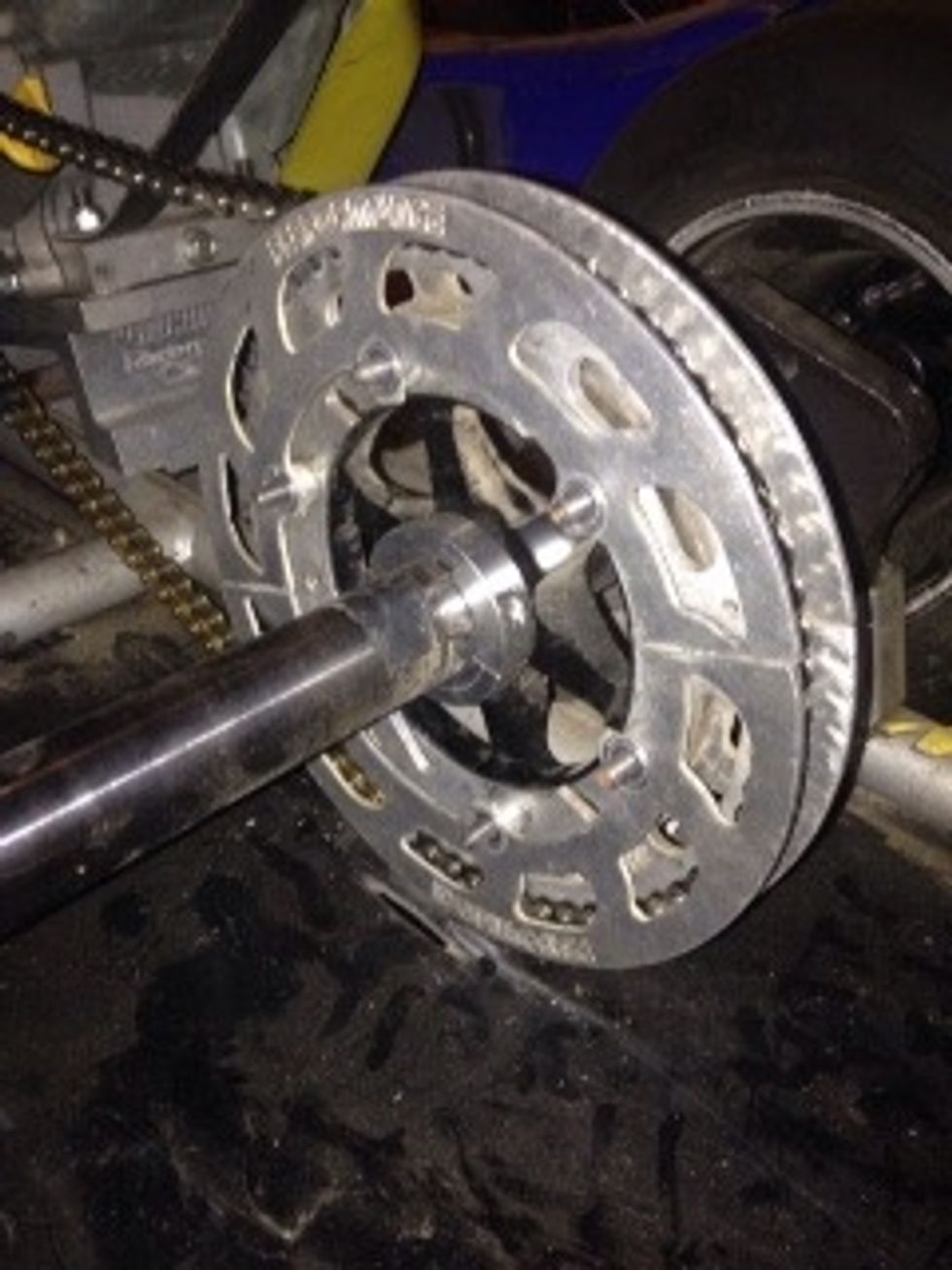

Next, put the chain guard back on.

Next, put the chain guard back on.

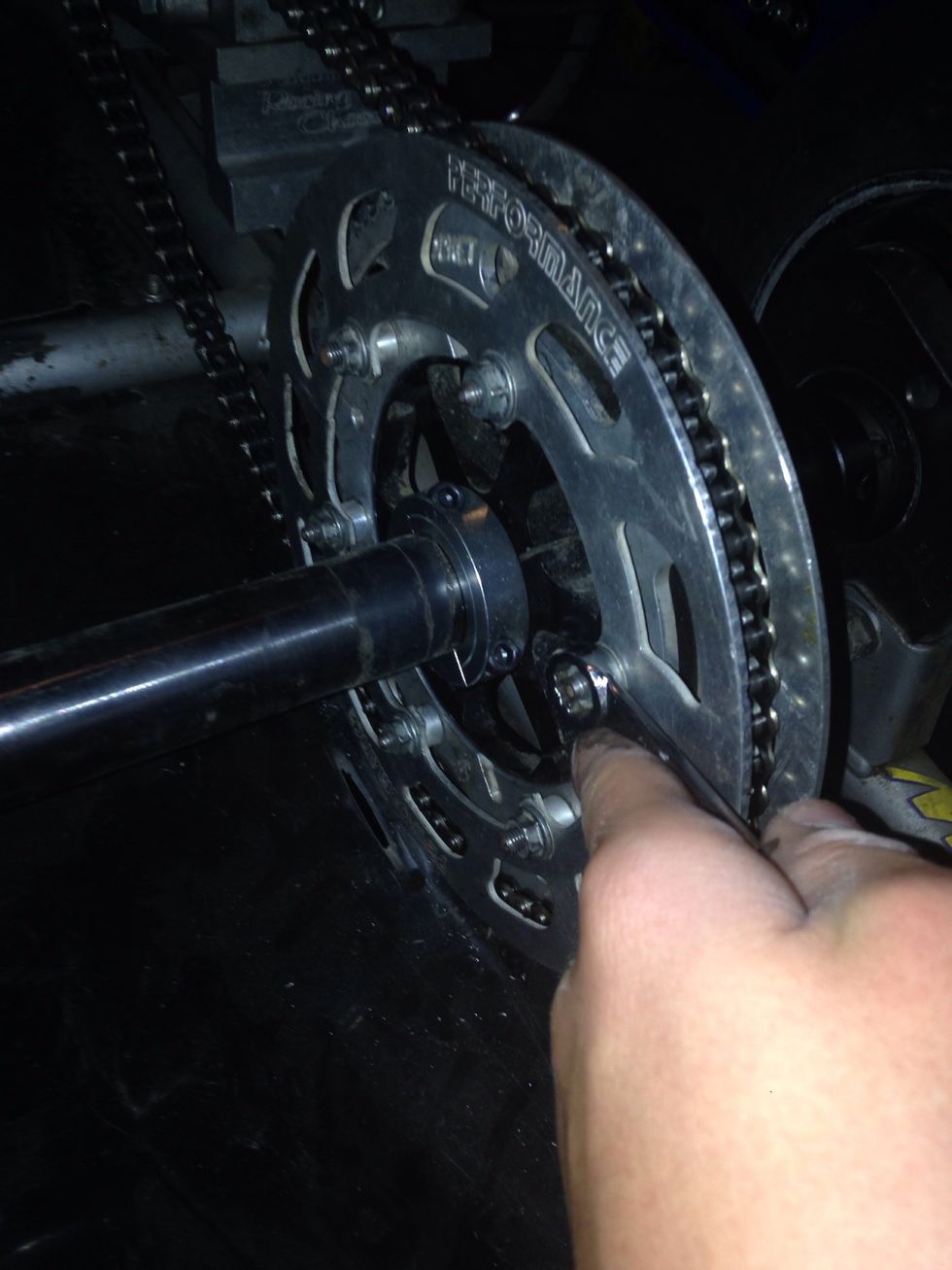

Then, put the nuts back on and tighten them.

Then, put the nuts back on and tighten them.

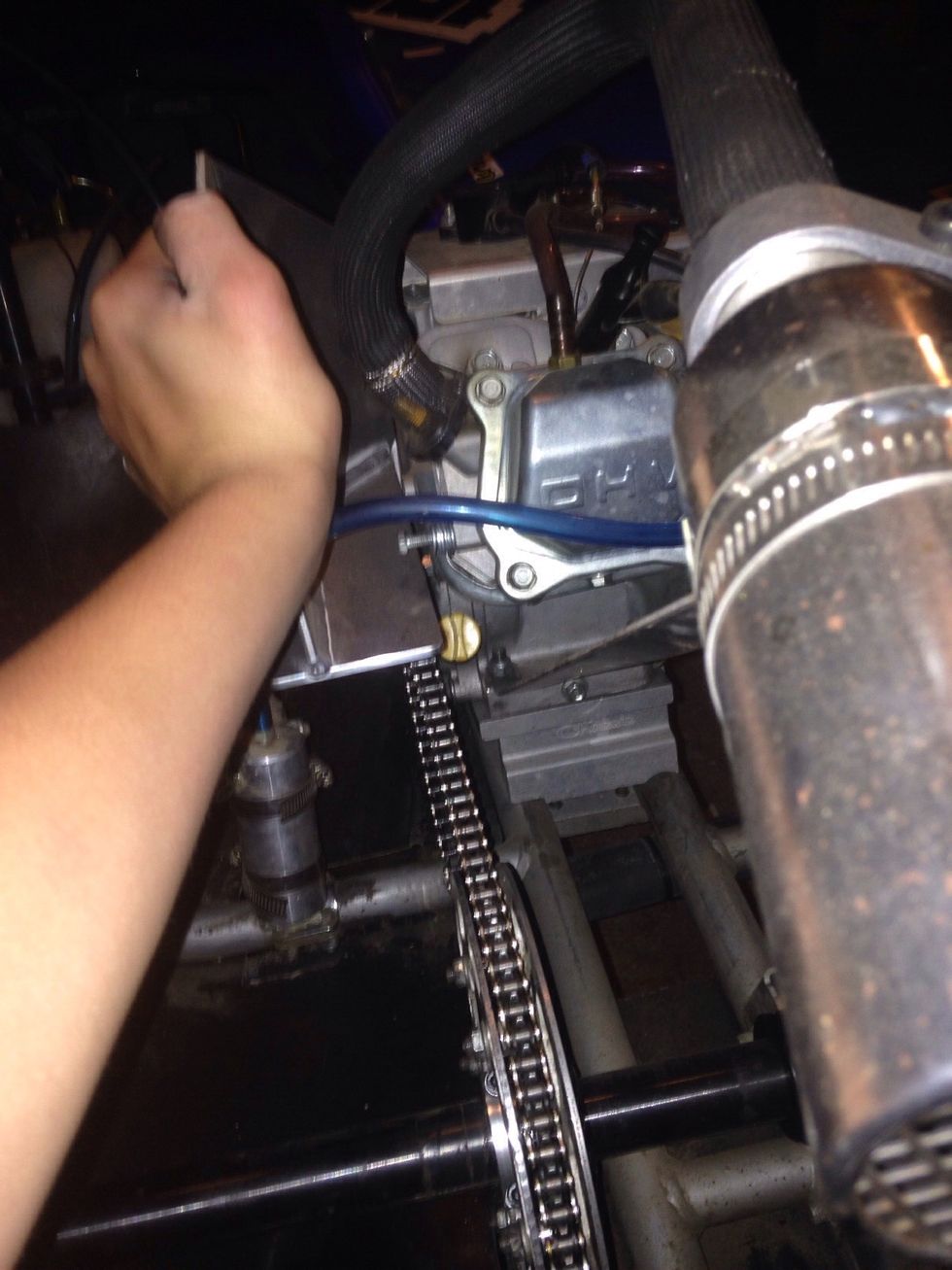

Next, push the engine forward.

Next, push the engine forward.

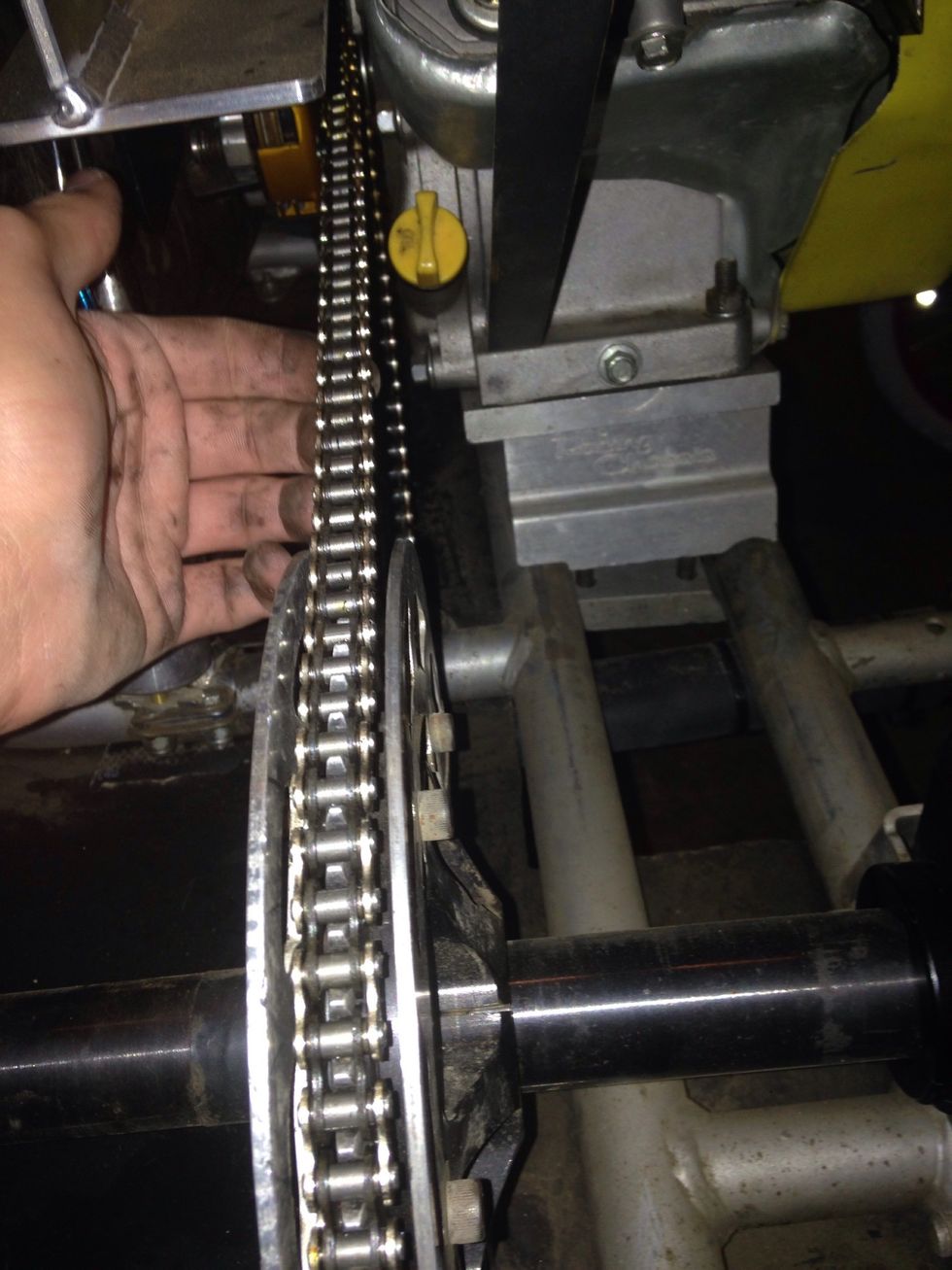

Make sure the chain is not to tight or to loose.

Make sure the chain is not to tight or to loose.

Then, tighten the engine bolts.

Then, tighten the engine bolts.

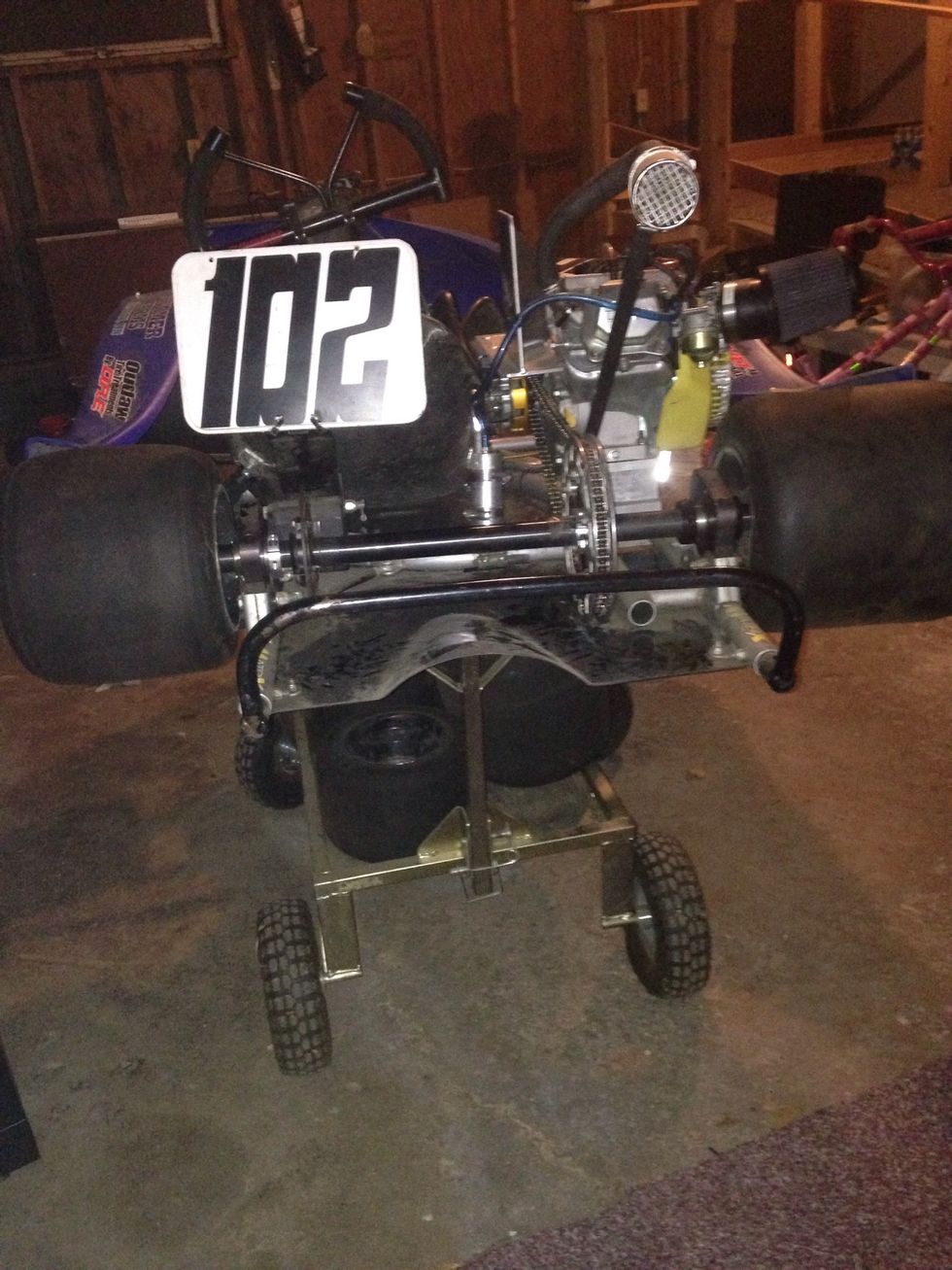

Then, you're done.

Then, you're done.

This is what your hands should look like when your done.

This is what your hands should look like when your done.

  • Extra gear
  • 7/16 wrench
  • 11/16 T alen wrench
