How to change the brake pads on a 2006 scion tc

Change the Brake Pads on a 2006 Scion Tc

4
STEPS
TOOLS

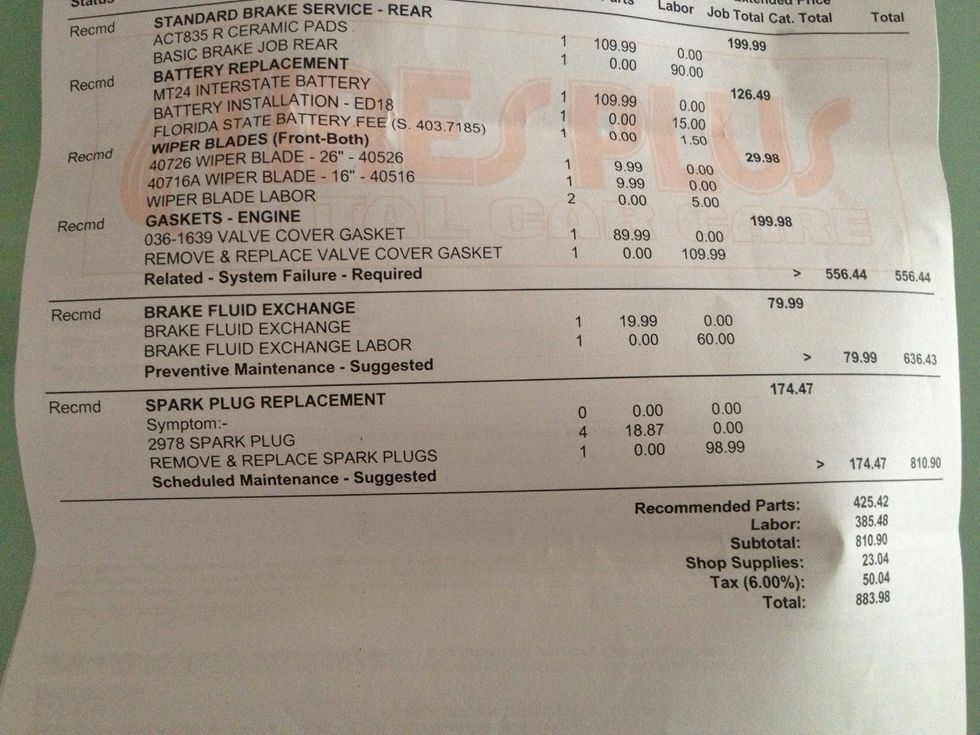

The shop wanted to charge her $199 for parts and labor. (They did quote ceramic pads which are a little more expensive)

The shop wanted to charge her $199 for parts and labor. (They did quote ceramic pads which are a little more expensive)

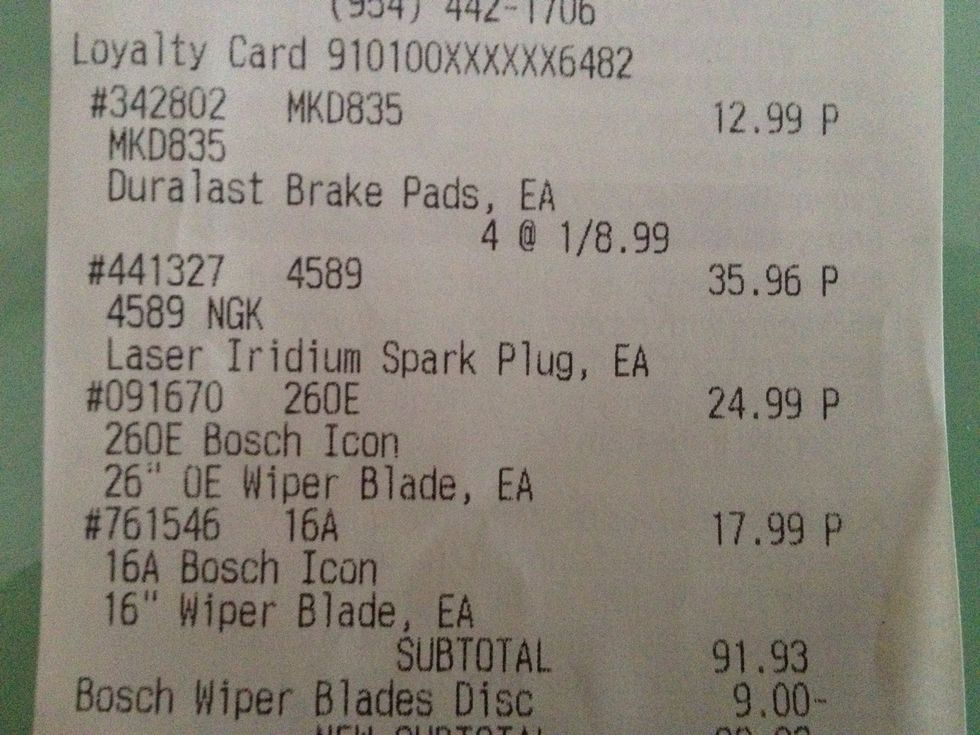

Paid $12.99 for brake pads from a parts store with a lifetime warranty

Paid $12.99 for brake pads from a parts store with a lifetime warranty

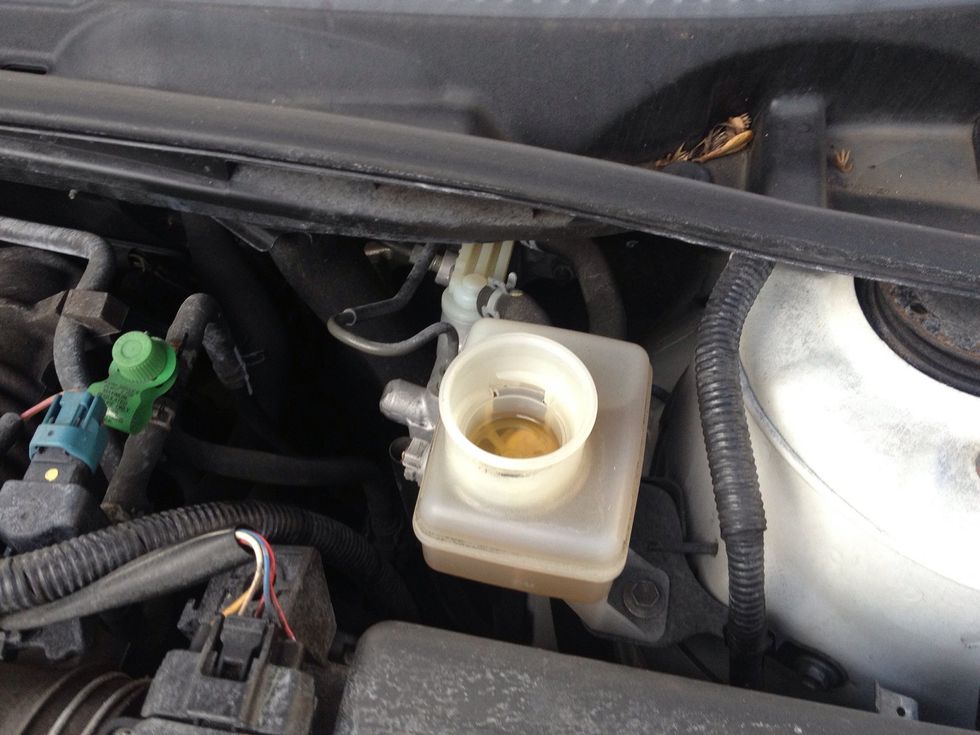

Pop the hood and remove the cap for your brake fluid. Don't forget to put back on when done

Pop the hood and remove the cap for your brake fluid. Don't forget to put back on when done

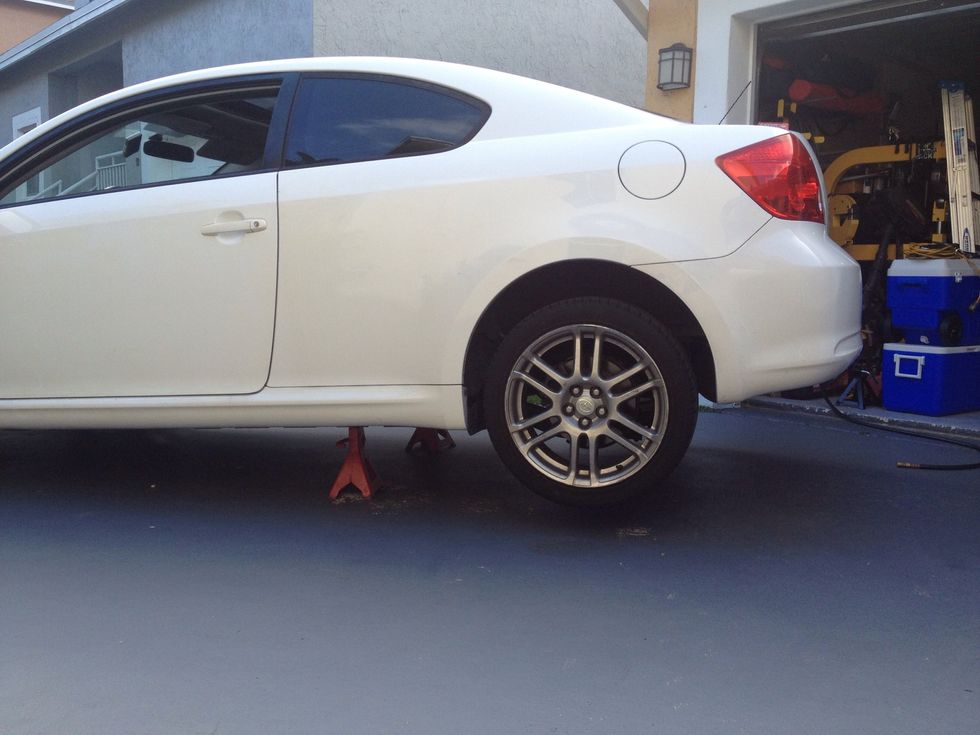

Jack up your car and support with jack stands

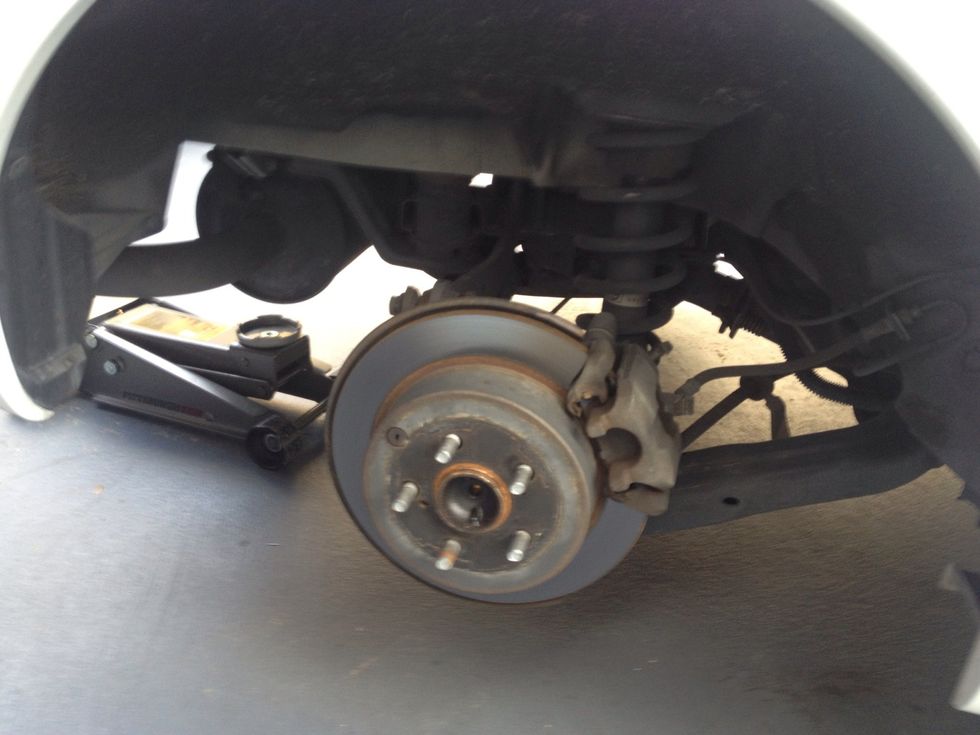

Remove the wheel

Remove the wheel

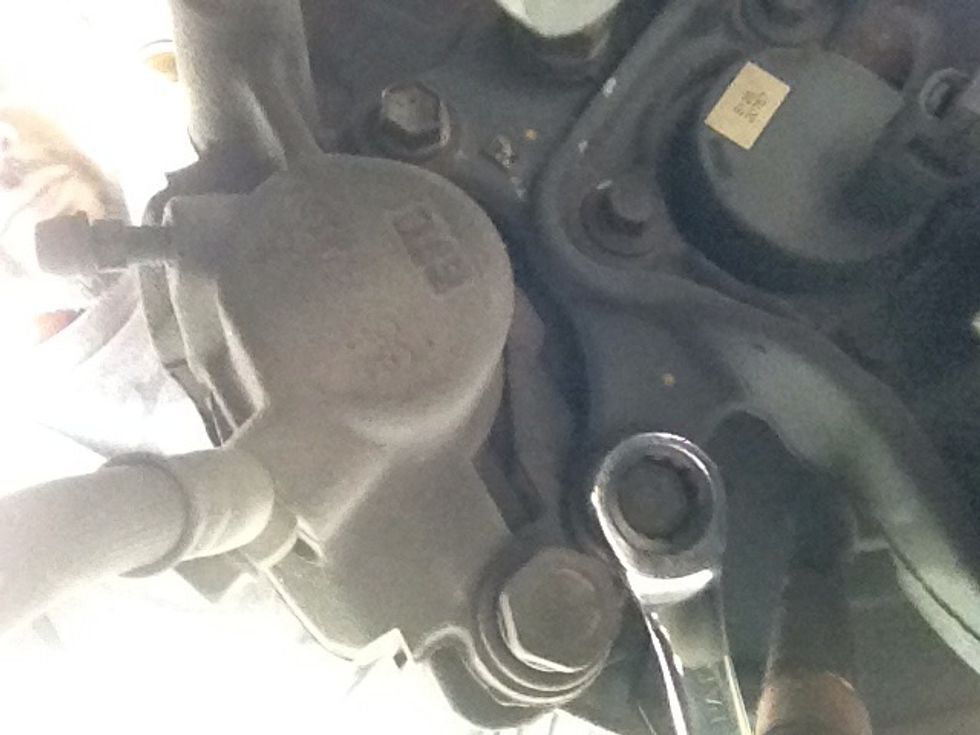

On the back of the caliper, there are 2 14mm bolts, loosen them to remove the caliper

On the back of the caliper, there are 2 14mm bolts, loosen them to remove the caliper

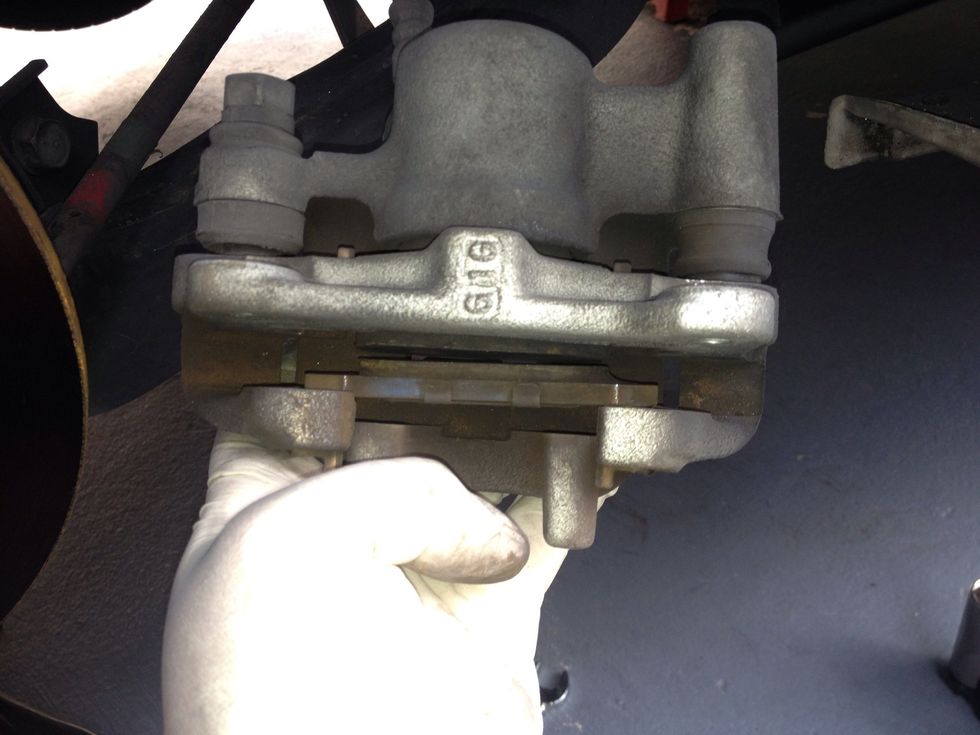

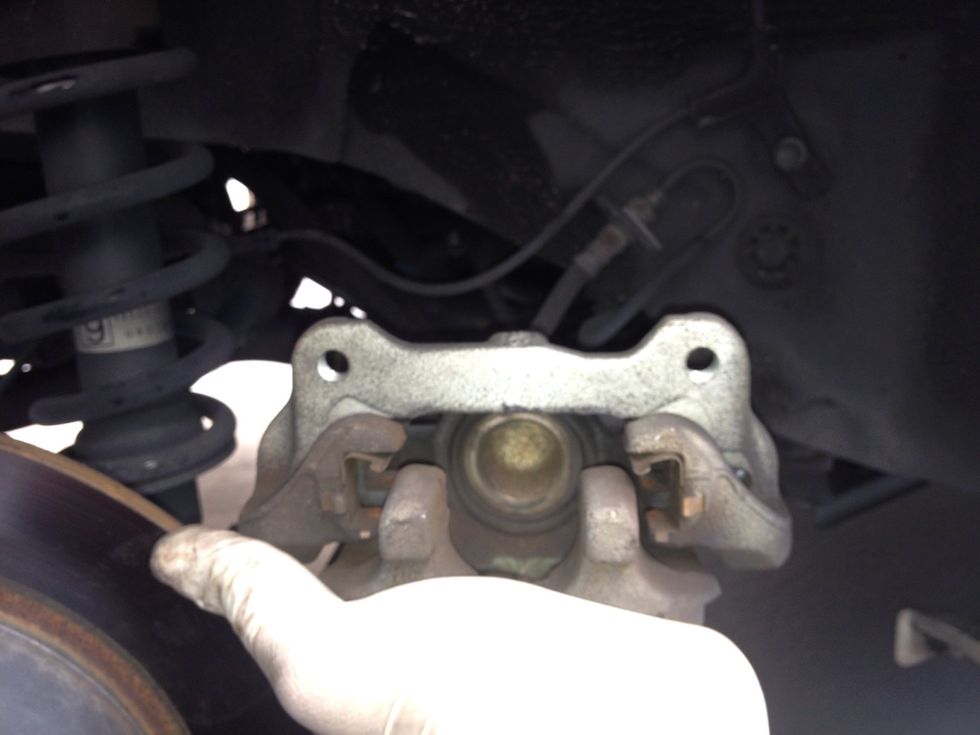

Then pop out the old pads

Then pop out the old pads

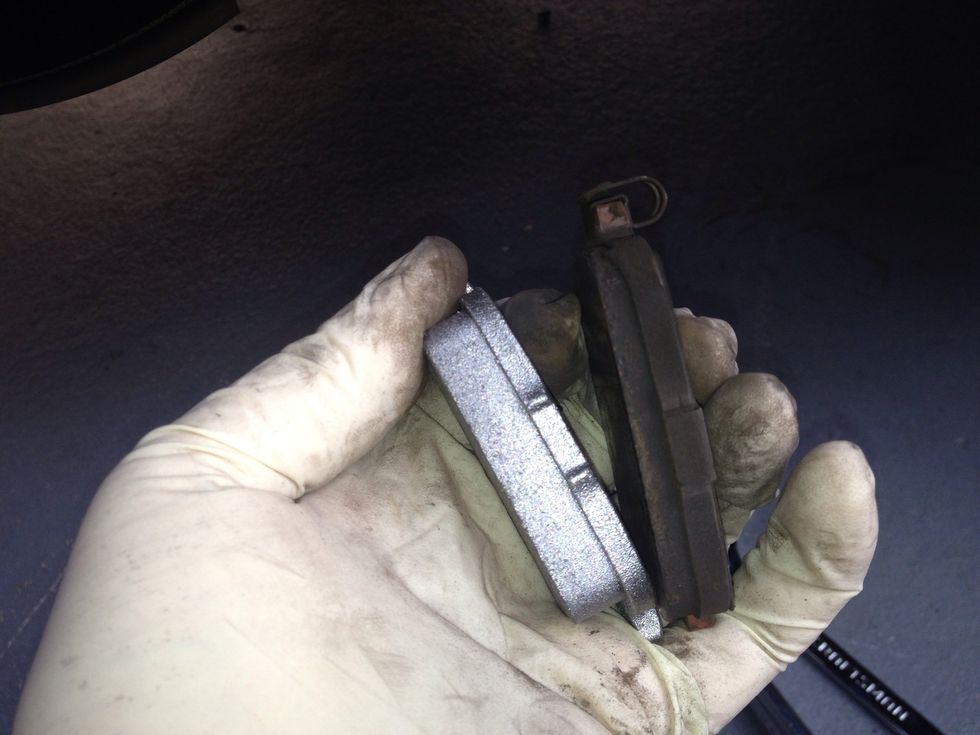

The difference between the old and new

The difference between the old and new

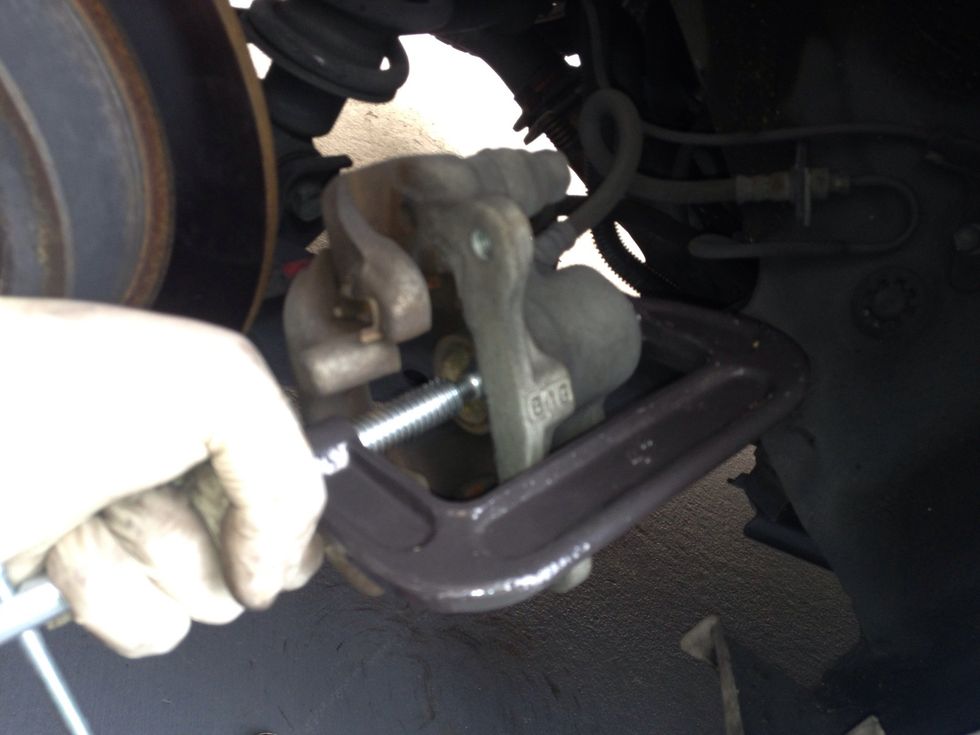

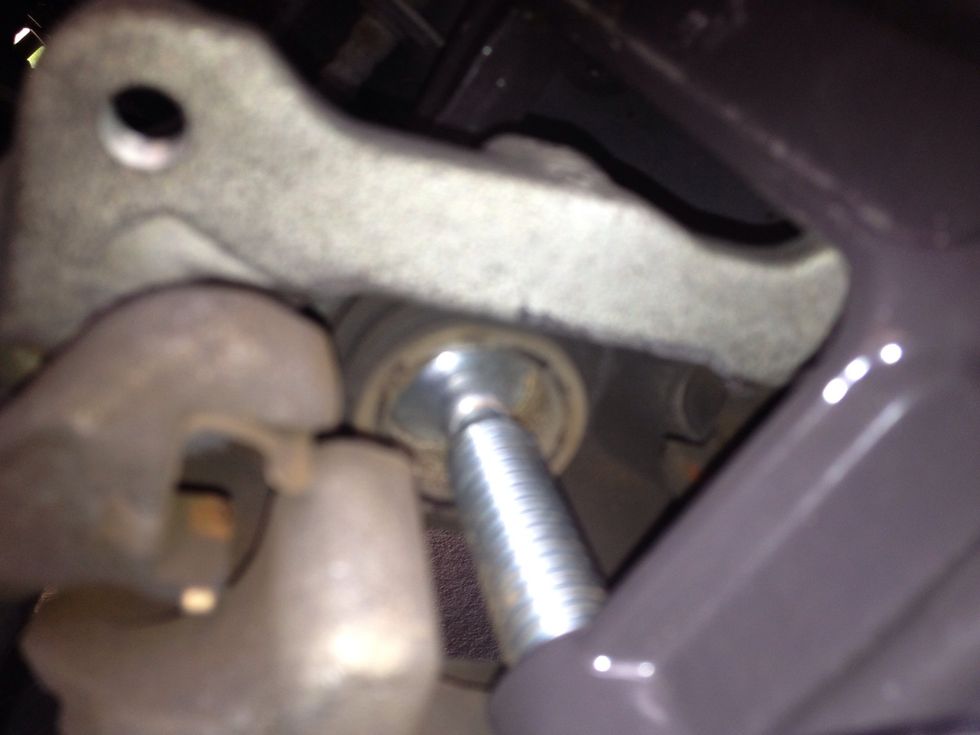

Use a C clamp to slowly wind the piston back. Doing it this way enables you to not have to bleed the brake lines

Use a C clamp to slowly wind the piston back. Doing it this way enables you to not have to bleed the brake lines

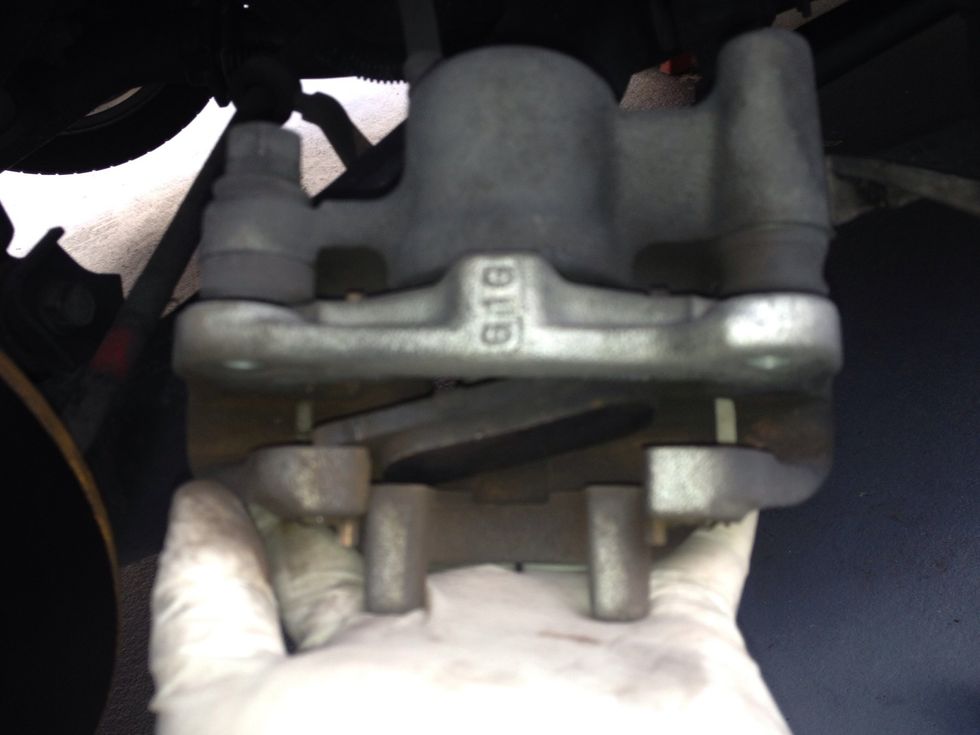

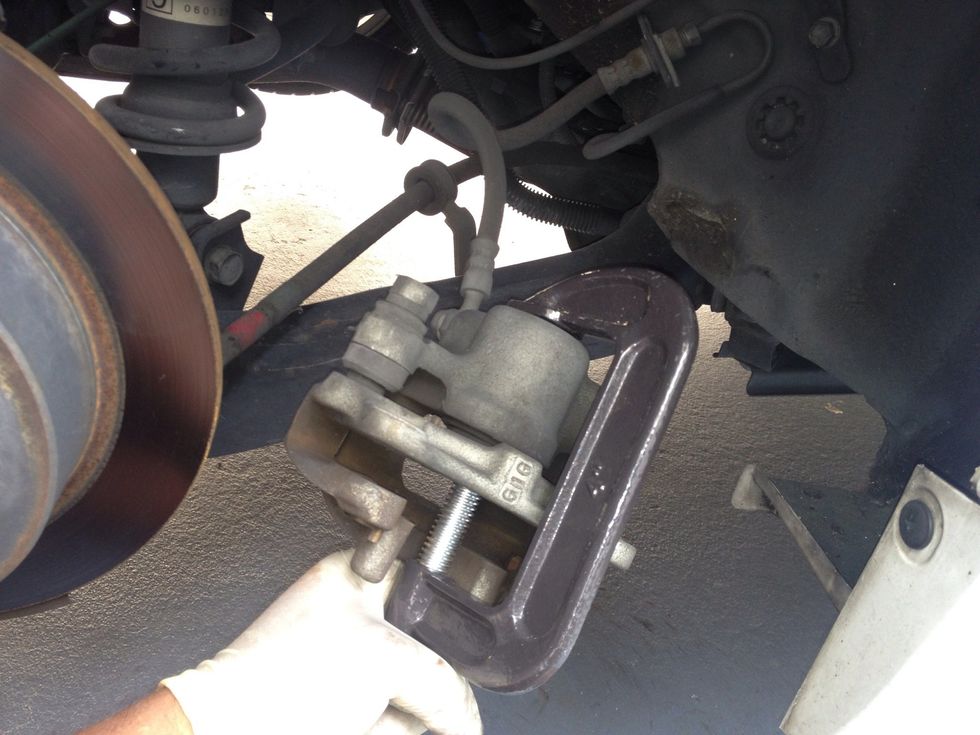

All the way back

All the way back

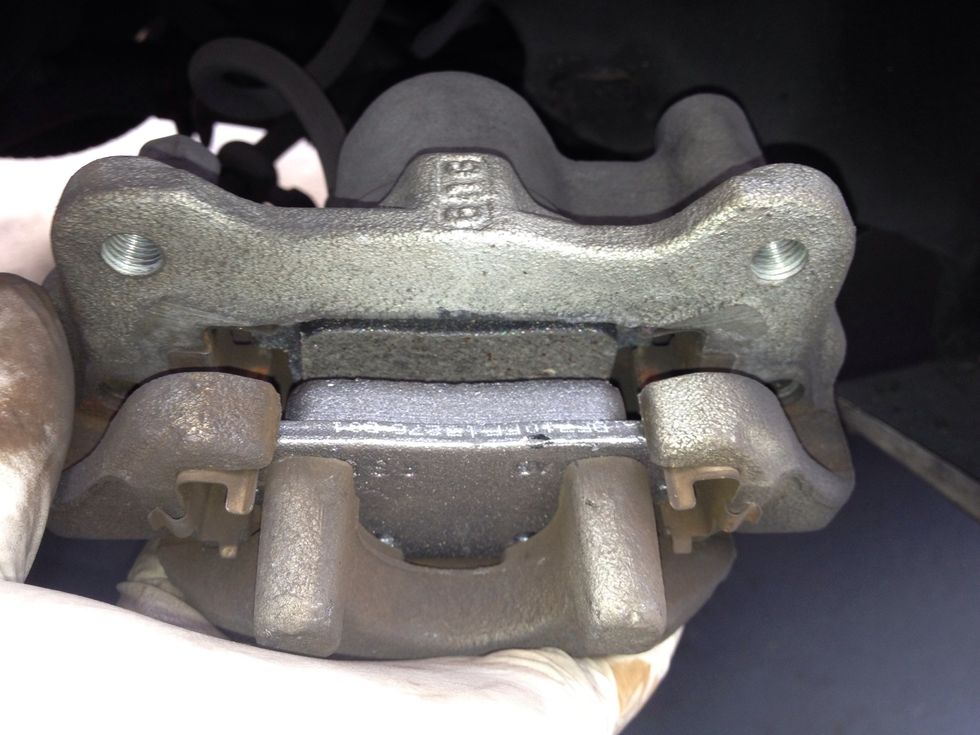

Install the new pads, starting with the inside first

Install the new pads, starting with the inside first

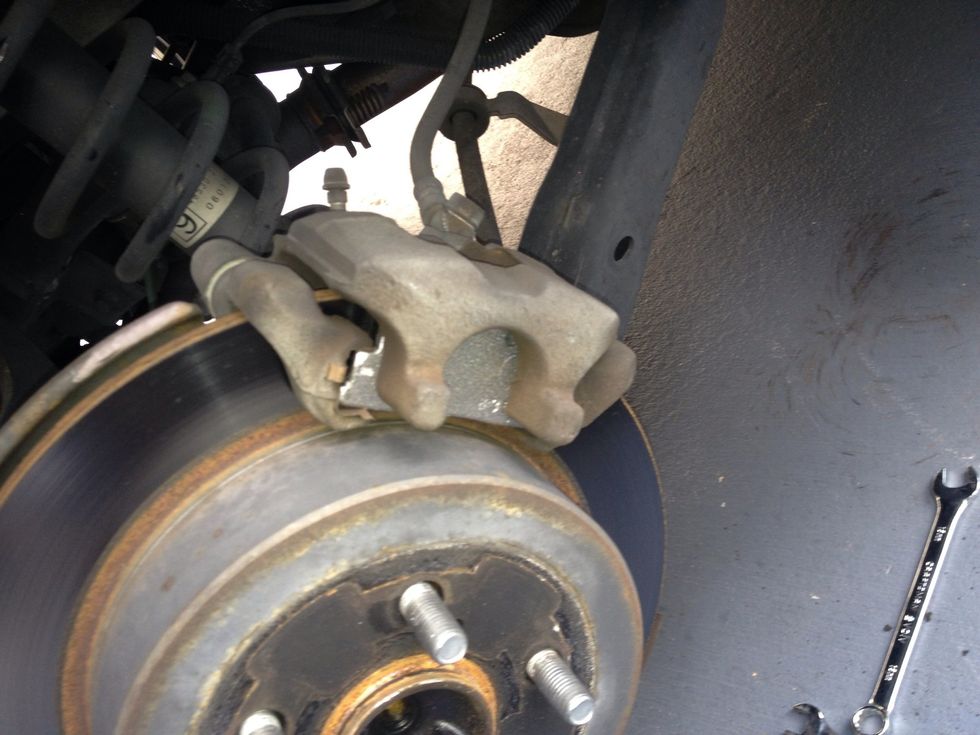

Once both pads are in, reinstall the caliper

Once both pads are in, reinstall the caliper

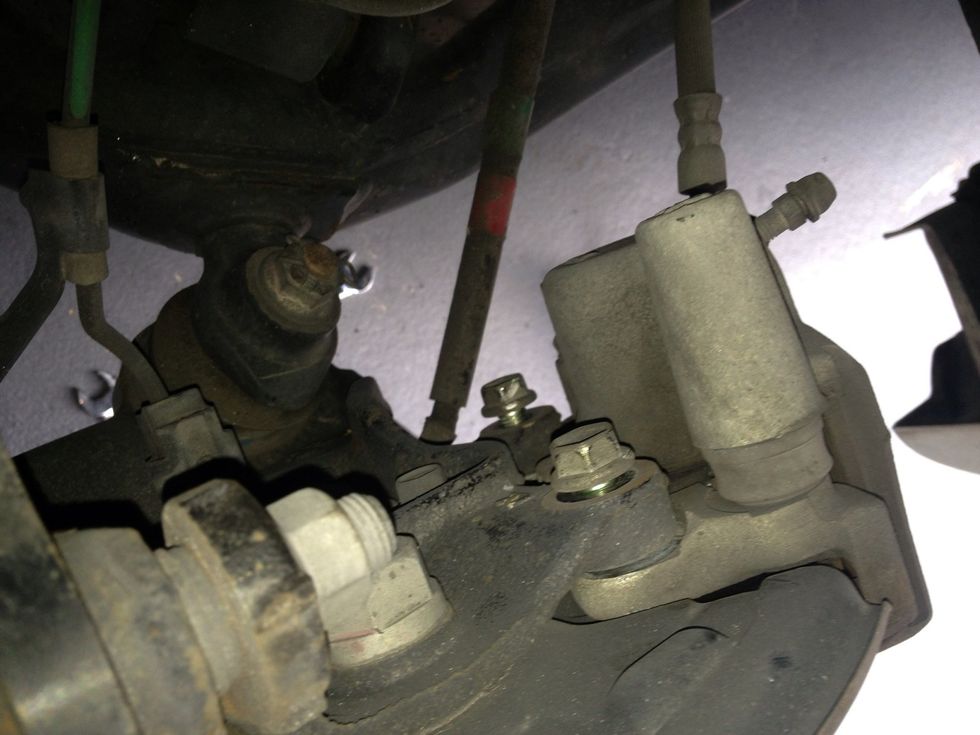

Hand tighten the top bolt first, then alight the bottom, then tighten both and put the wheel back on. Repeat the same steps for the other side. Total time took 30 min

Hand tighten the top bolt first, then alight the bottom, then tighten both and put the wheel back on. Repeat the same steps for the other side. Total time took 30 min

  • Brake pads
  • Jack
  • Jack stands
  • Sockets and wrenches
