How to attach a gold backend mounting

Attach a Gold Backend Mounting

1
STEPS
TOOLS

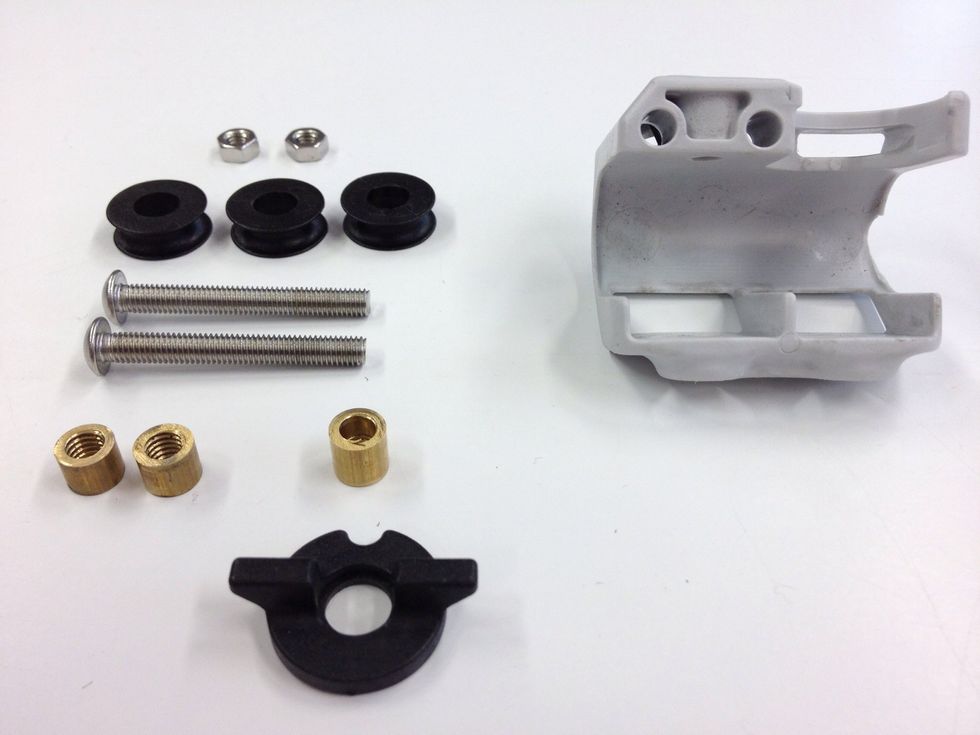

All parts necessary: 2 x nut / 3 x roller / 2 x screw / 1 x main body / 2 x tube short / 1 x tube long / 1 propeller

All parts necessary: 2 x nut / 3 x roller / 2 x screw / 1 x main body / 2 x tube short / 1 x tube long / 1 propeller

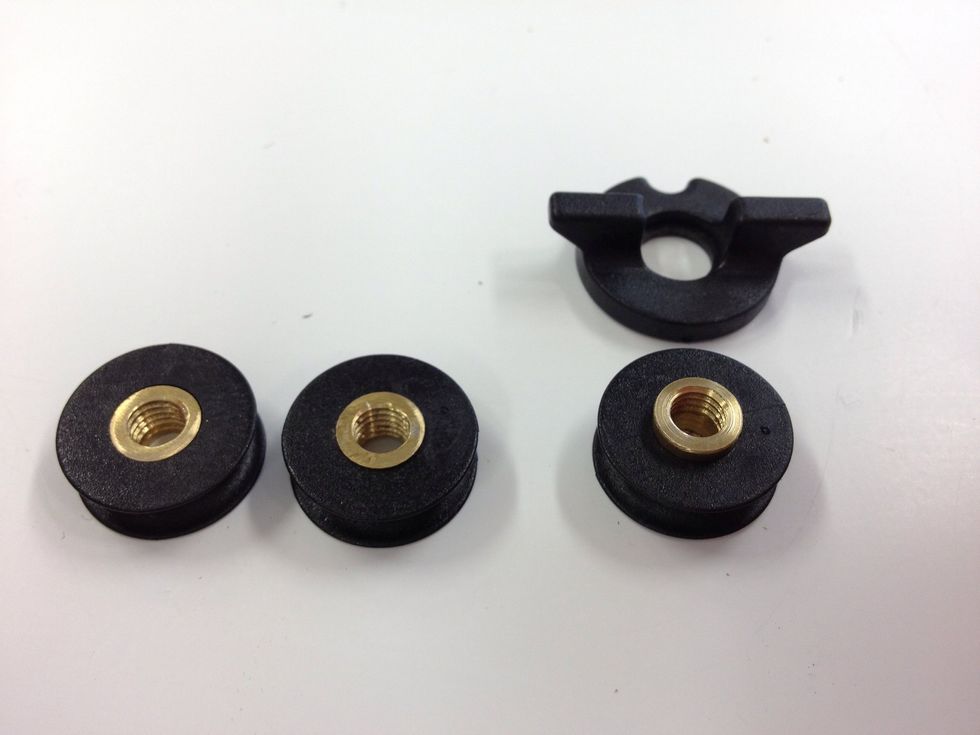

Important: Long tube MUST be used for roller which goes under the propeller

Important: Long tube MUST be used for roller which goes under the propeller

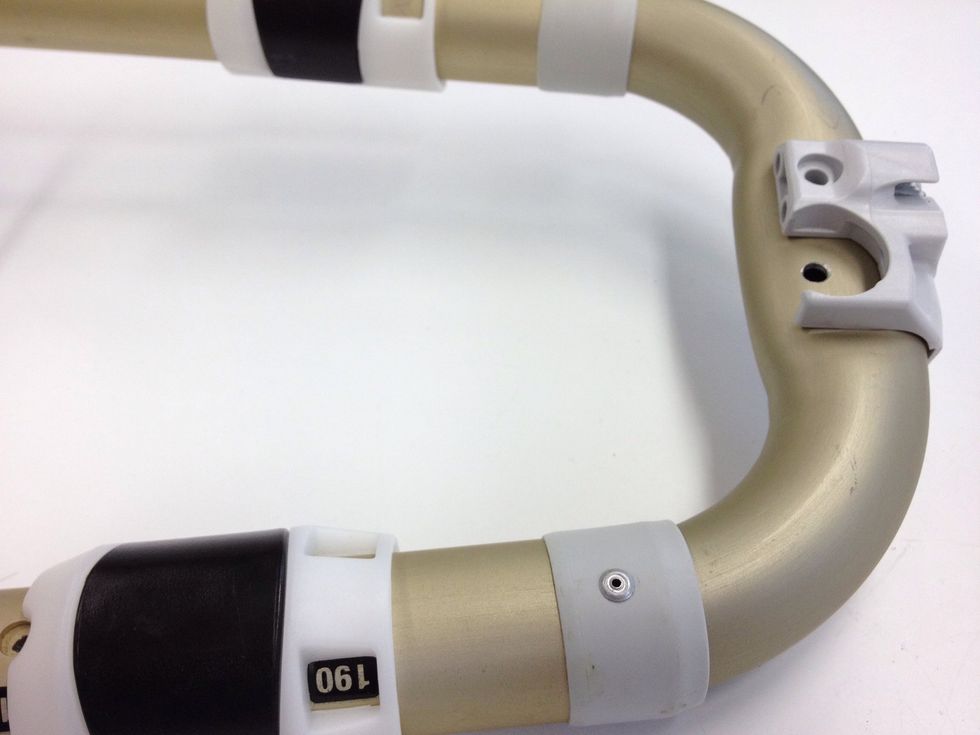

Important: after mounting the propeller must face DOWNwards (= same side as extension holes)

Important: after mounting the propeller must face DOWNwards (= same side as extension holes)

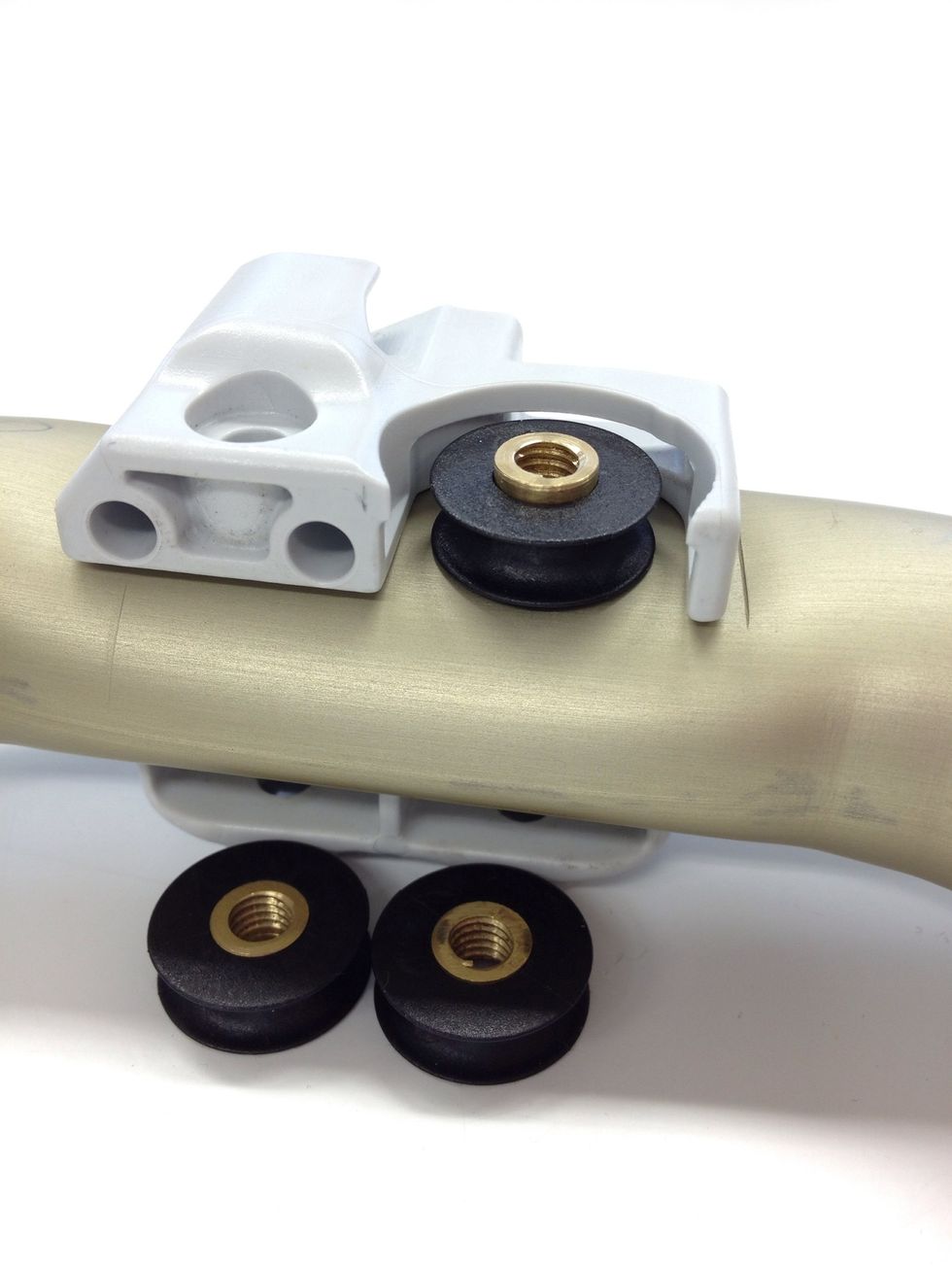

Short tubes for regular rollers / Long tube for roller which goes underneath the propeller

Short tubes for regular rollers / Long tube for roller which goes underneath the propeller

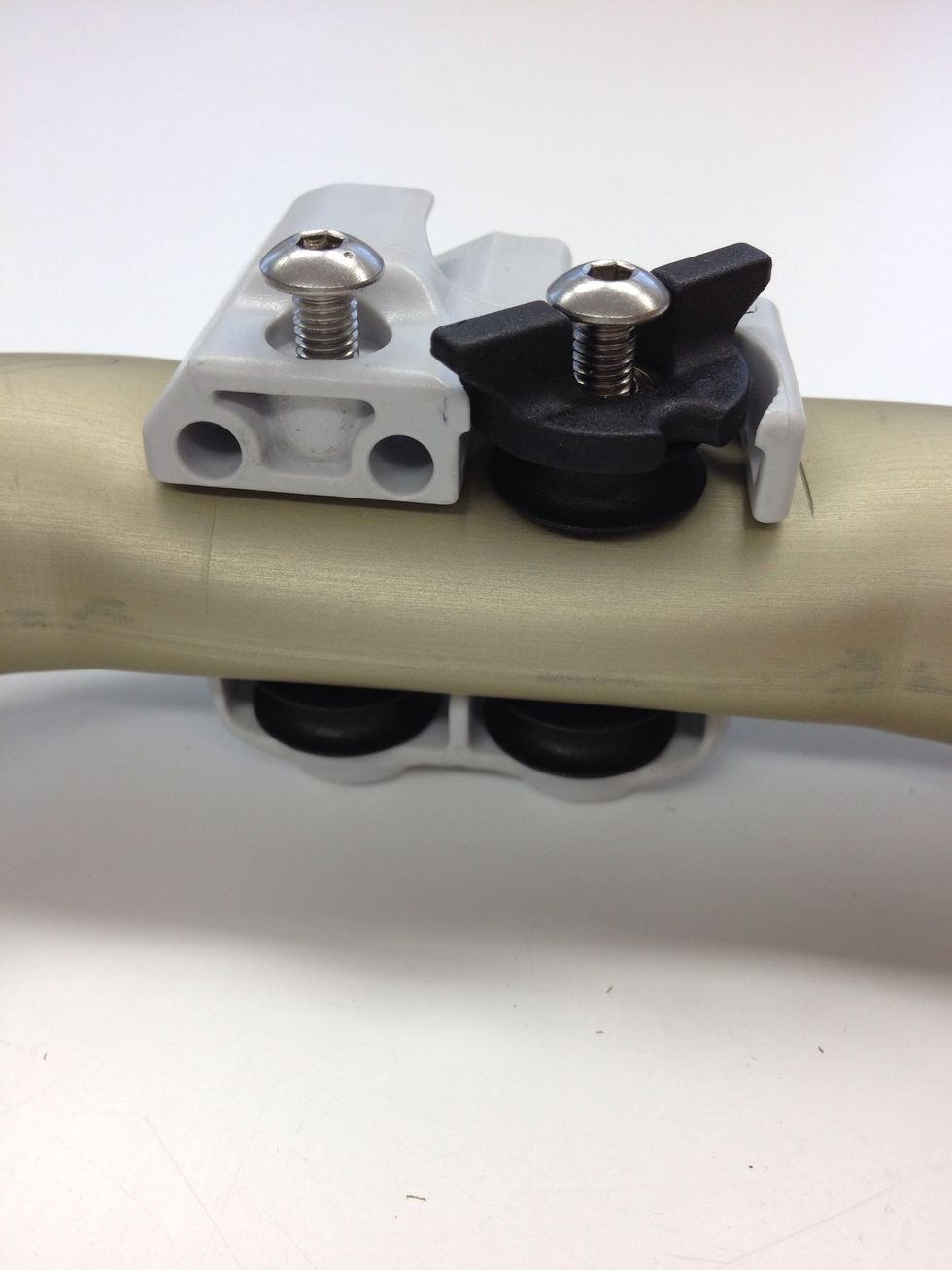

Now slide in screws

Now slide in screws

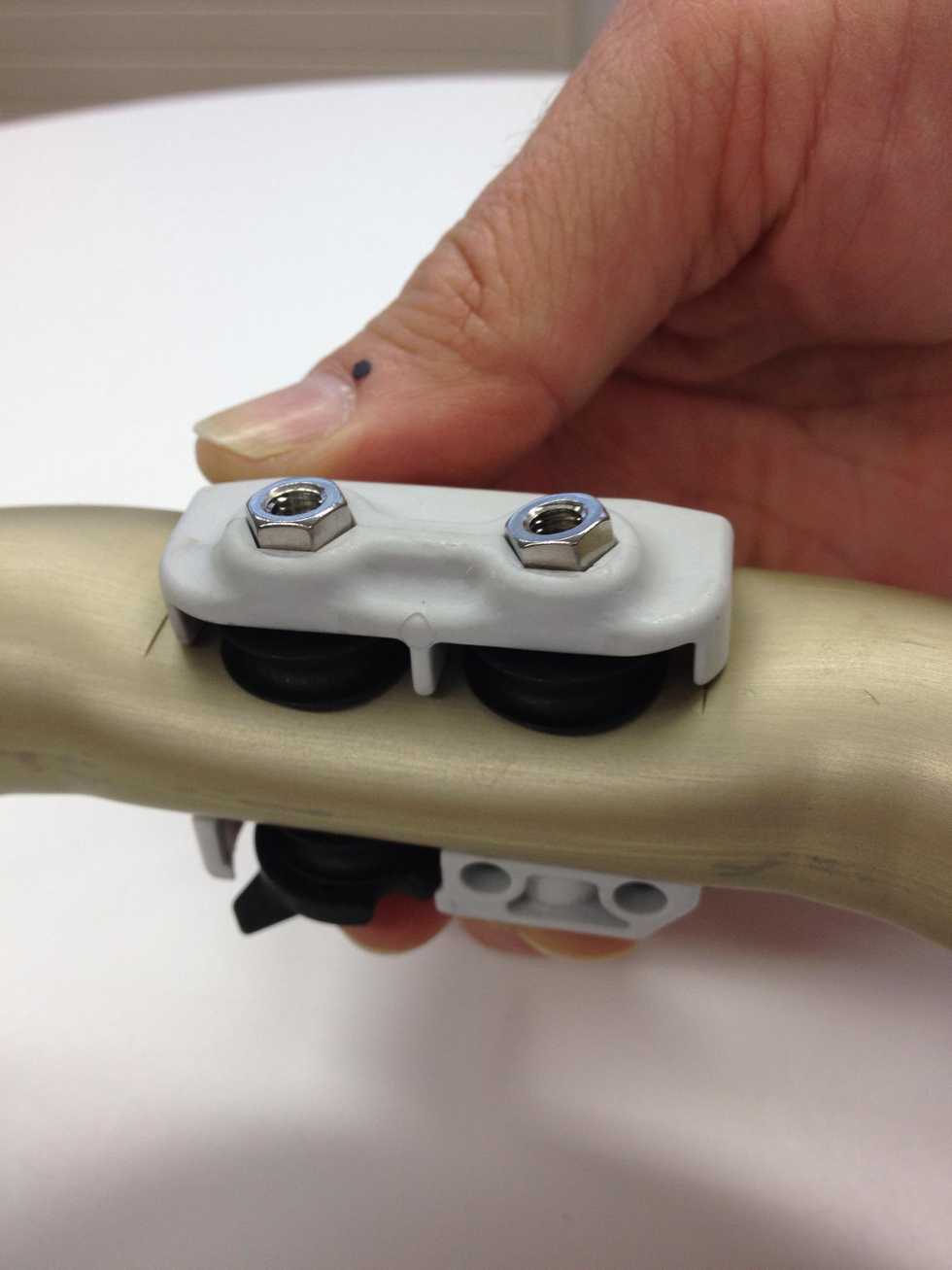

Turn around tail-end and put nuts in place - finally tighten screws FINISHED
