How to assemble a vault i7p enclosure w/magtek idynamo5

VAULT Enclosures © 2013-2014 All rights reserved (version 2.3)

30
STEPS
TOOLS

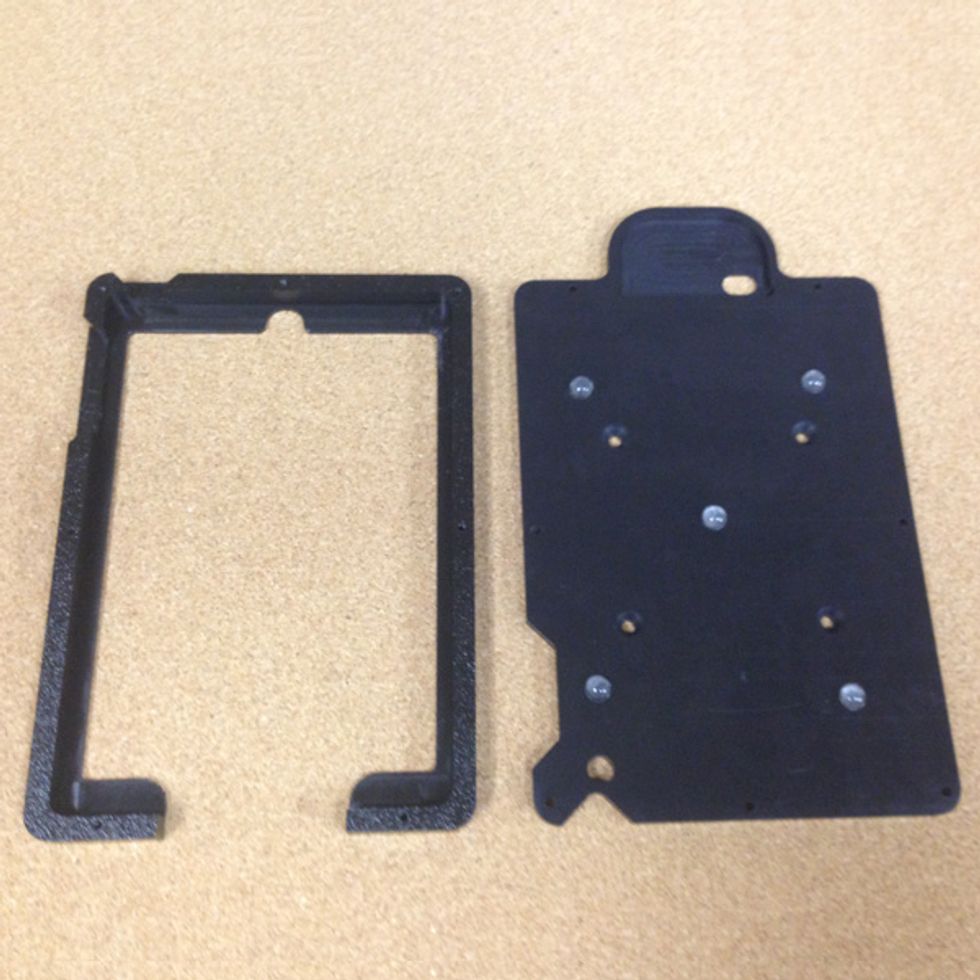

Place your face plate and back plate on a smooth protective surface.  Unit ships with 2 screws installed for protection.  These should be removed and saved for later use.

Place your face plate and back plate on a smooth protective surface. Unit ships with 2 screws installed for protection. These should be removed and saved for later use.

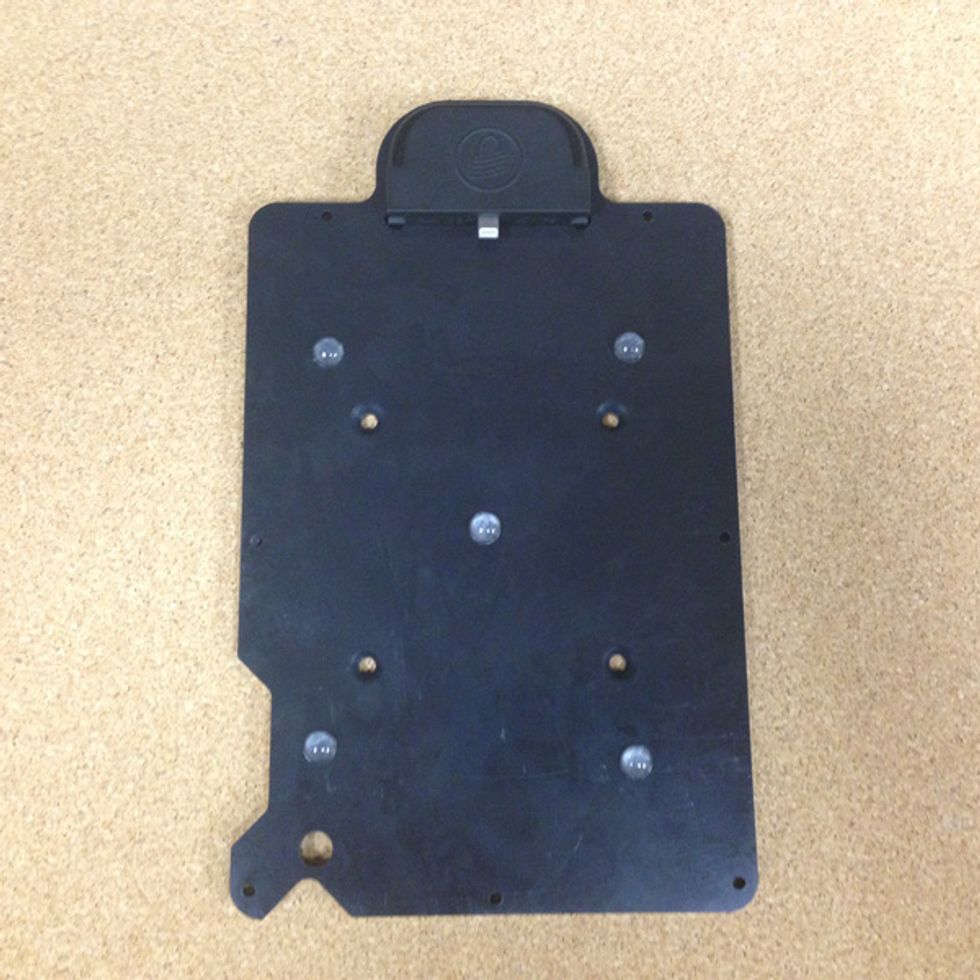

Insert the MAGTEK iDynamo5 in to the back plate pocket.  It will be a snap fit.

Insert the MAGTEK iDynamo5 in to the back plate pocket. It will be a snap fit.

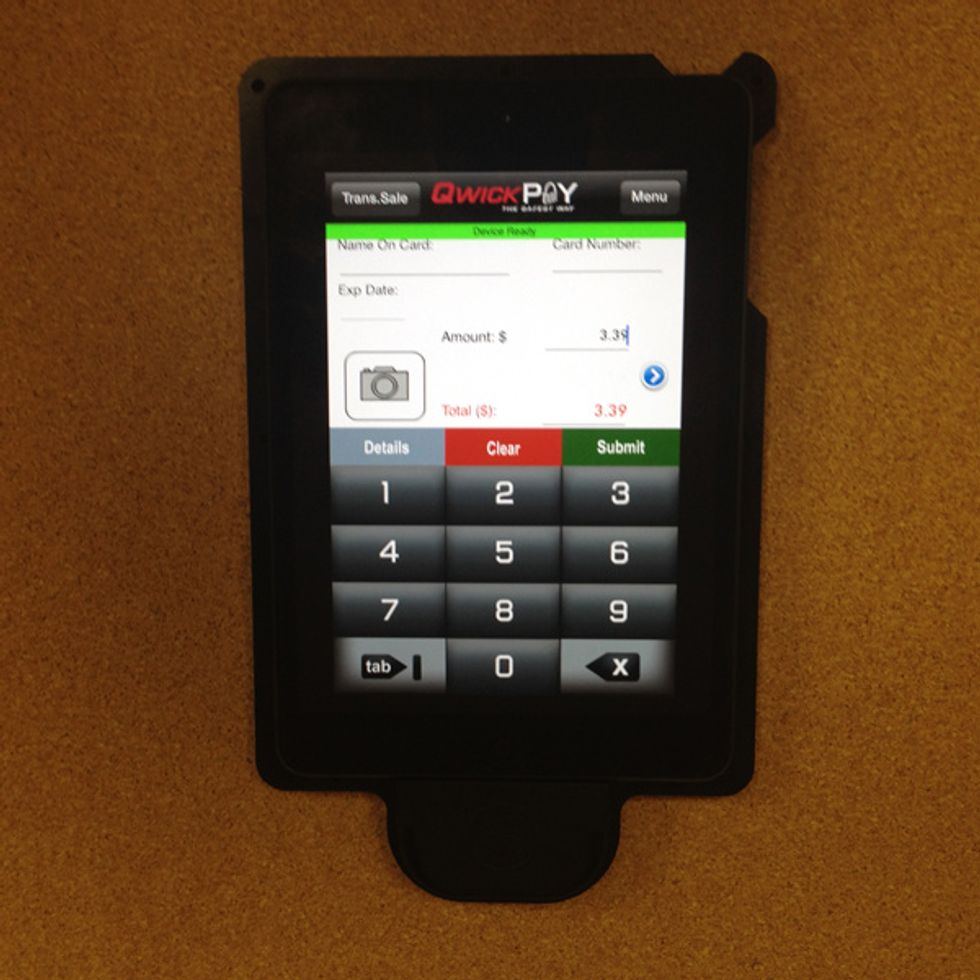

With MAGTEK iDynamo5 installed, slide Apple iPad MINI onto the MAGTEK iDynamo5 lightning connector.  Use QwickPAY (see STEP7 for instructions) to test as shown.

With MAGTEK iDynamo5 installed, slide Apple iPad MINI onto the MAGTEK iDynamo5 lightning connector. Use QwickPAY (see STEP7 for instructions) to test as shown.

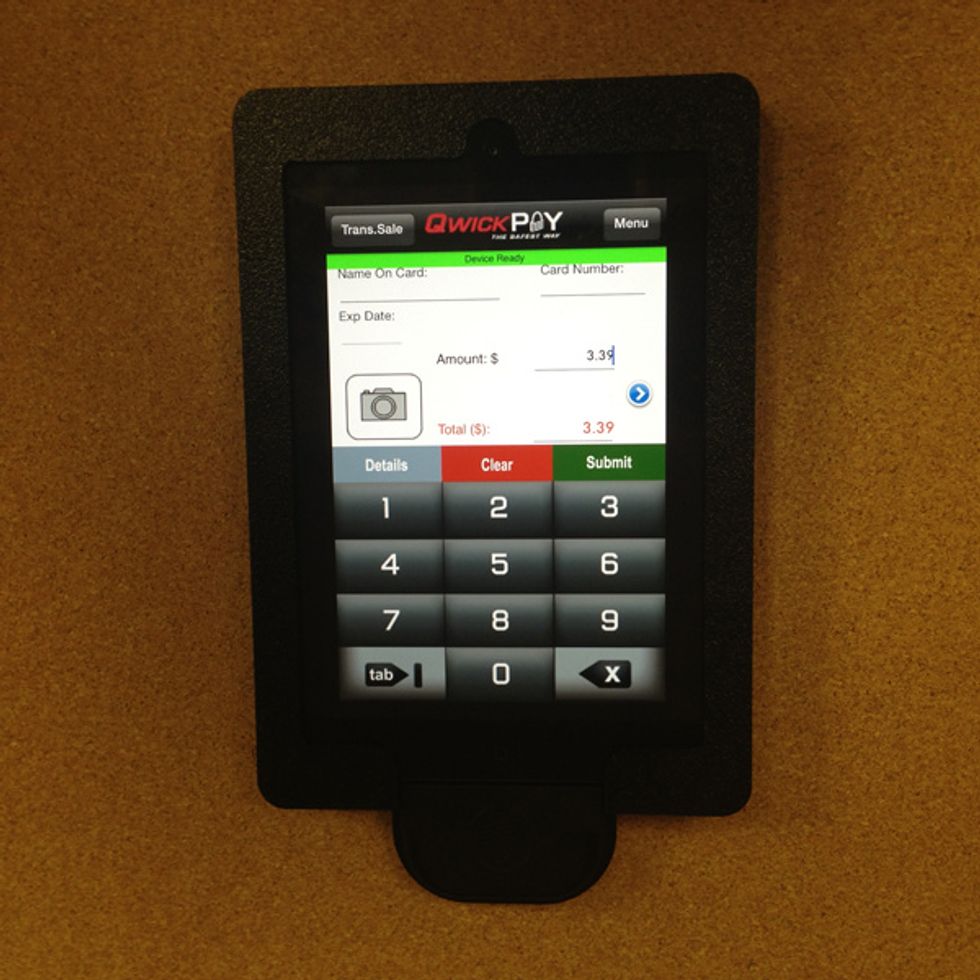

Place face plate onto the Apple iPad MINI.

Place face plate onto the Apple iPad MINI.

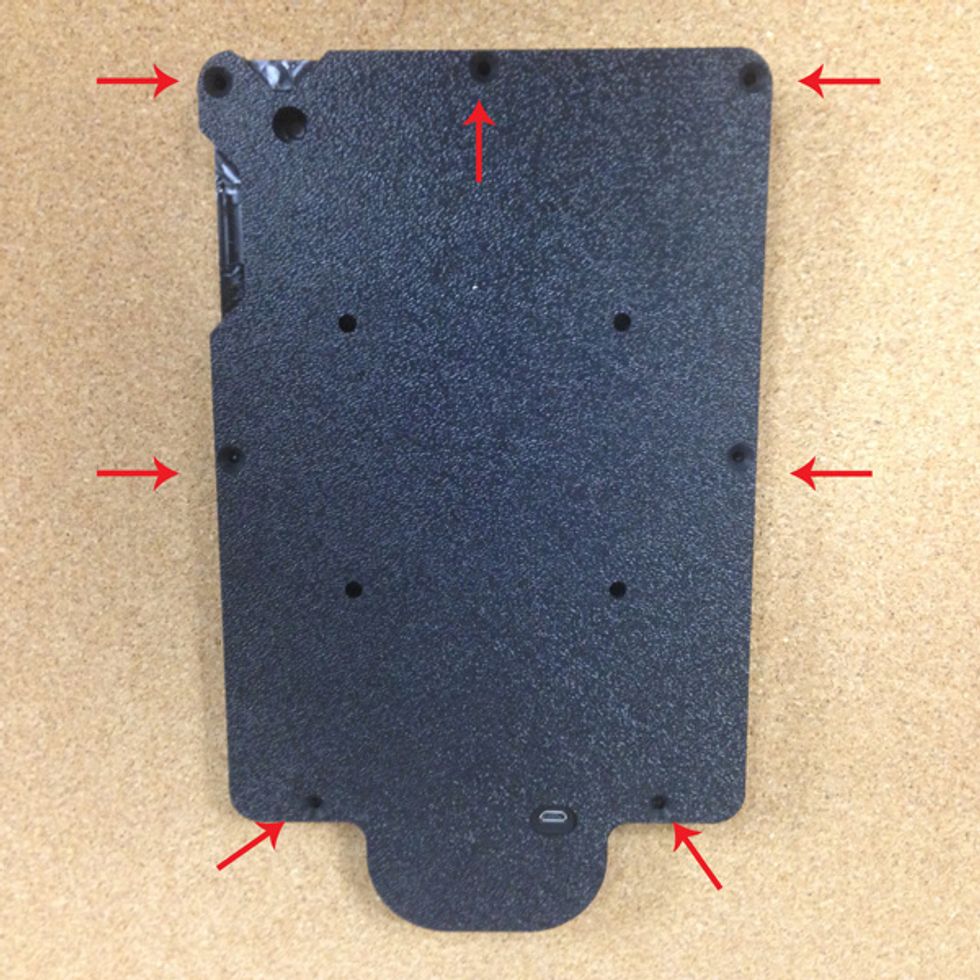

Turn over the entire assembly and install the 7 screws. DO NOT OVER TIGHTEN.  The screws only need to be snug.  You can damage the unit by doing so.

Turn over the entire assembly and install the 7 screws. DO NOT OVER TIGHTEN. The screws only need to be snug. You can damage the unit by doing so.

Test with your POS Application or use the MAGTEK QwickPAY Application (see STEP7 for instructions) to ensure that the MAGTEK iDynamo5 credit card reader and the Apple iPad MINI are connected properly.

It is helpful to have an application to test the connectivity of your MAGTEK iDynamo5 outside of your POS application.  Please follow these instructions to install and test your device.

It is helpful to have an application to test the connectivity of your MAGTEK iDynamo5 outside of your POS application. Please follow these instructions to install and test your device.

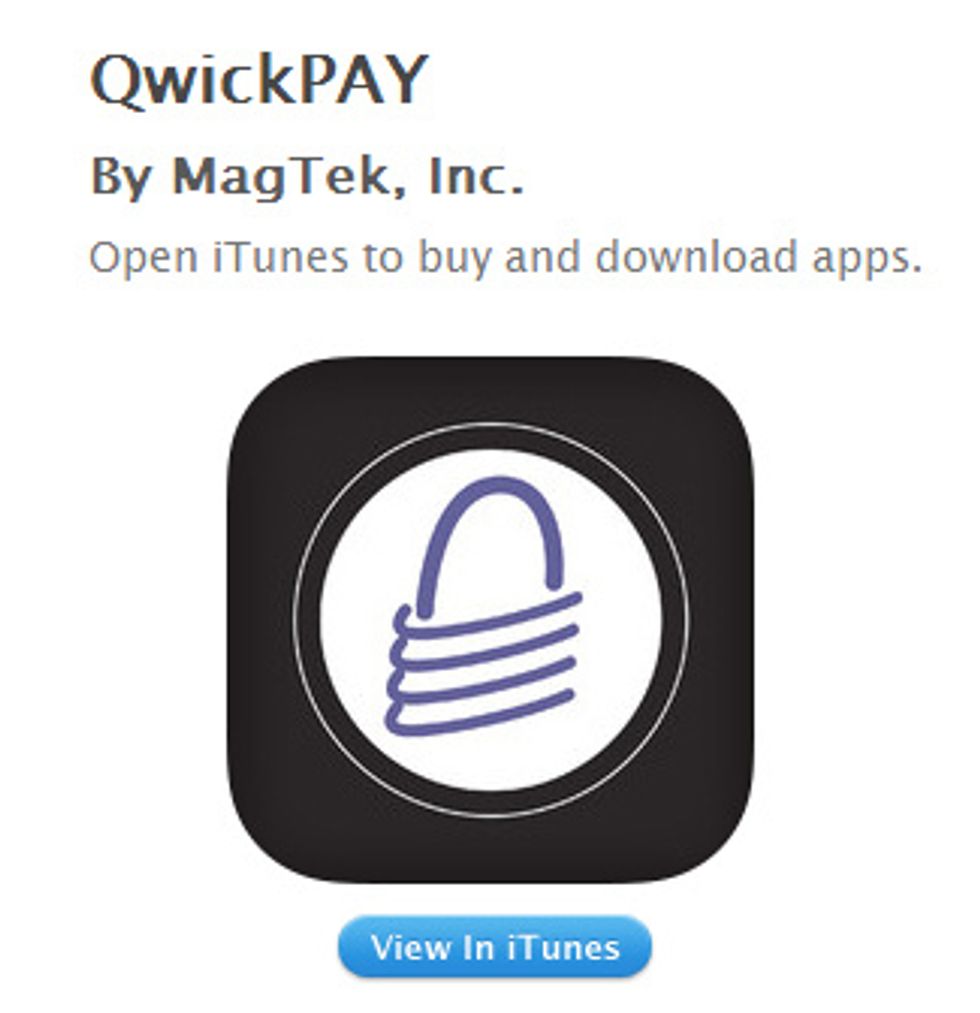

Please download the MAGTEK QwickPAY app on your Apple iPad MINI from https://itunes.apple.com/us/app/qwickpay/id371172197?mt=8

Please download the MAGTEK QwickPAY app on your Apple iPad MINI from https://itunes.apple.com/us/app/qwickpay/id371172197?mt=8

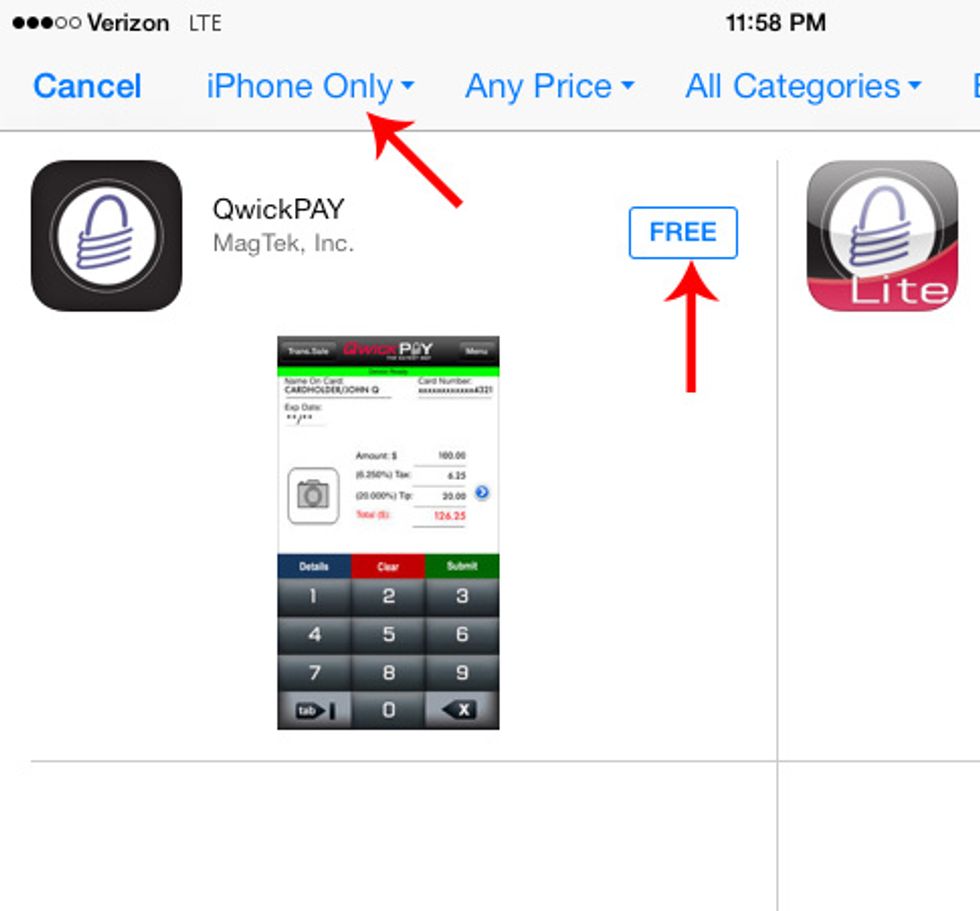

Search for QwickPAY. \u00a0It will not find any results but, changing the "iPad only" option at the top to "iPhone only" will produce two results. \u00a0Install the full version, not the lite.

Search for QwickPAY.  It will not find any results but, changing the "iPad only" option at the top to "iPhone only" will produce two results.  Install the full version, not the lite.

Launch the MAGTEK QwickPAY Application

Launch the MAGTEK QwickPAY Application

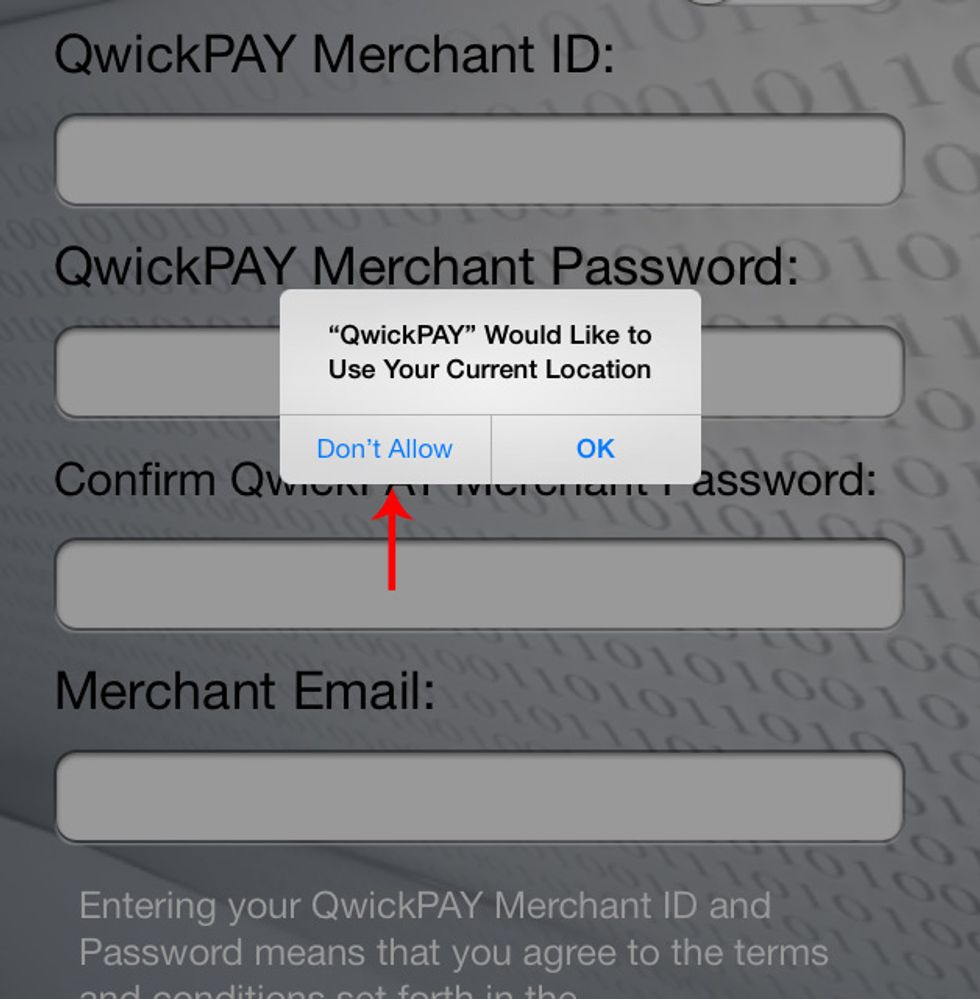

Do not allow it to use your current location (it is not needed for this test).

Do not allow it to use your current location (it is not needed for this test).

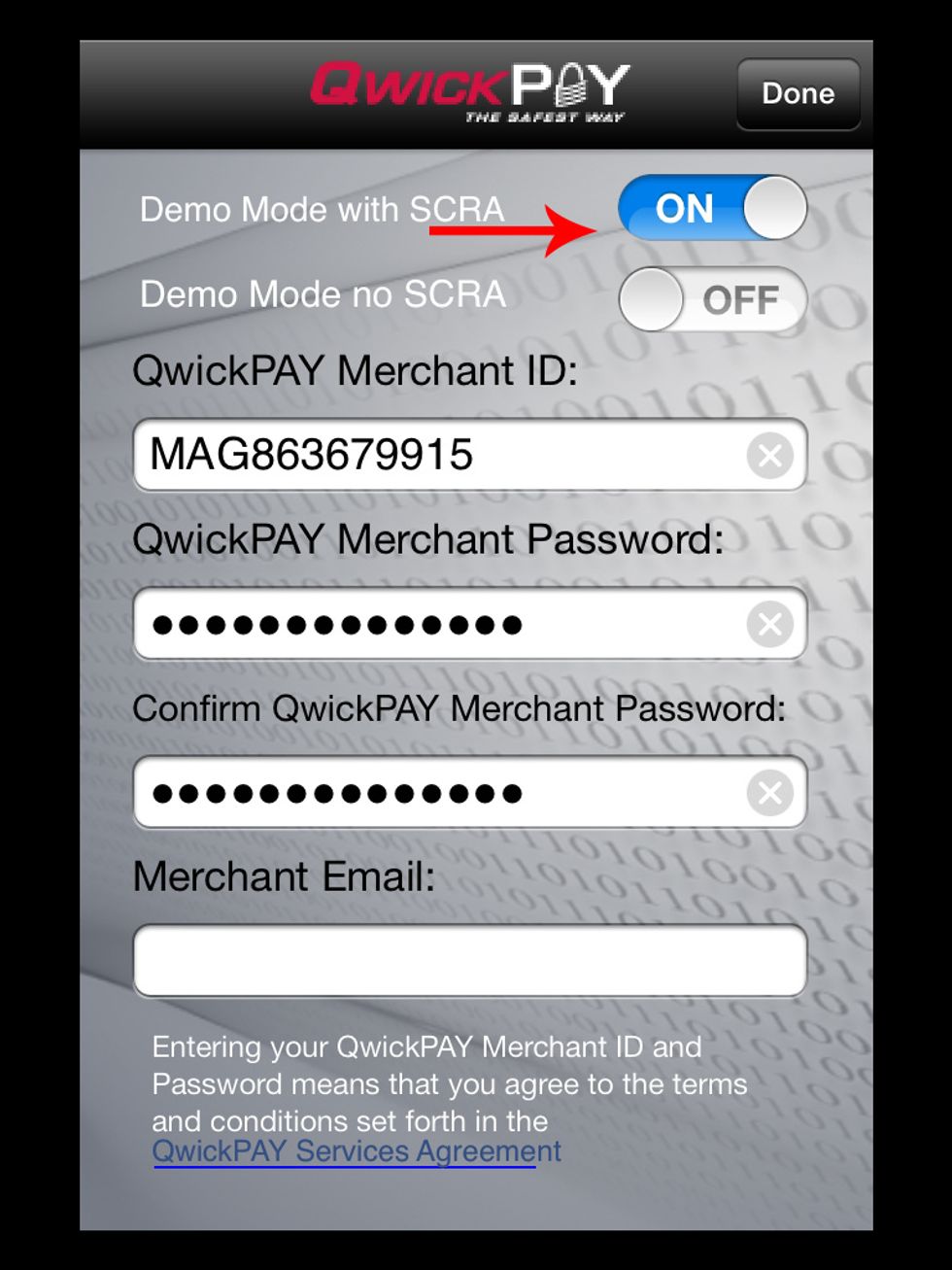

Turn slider for "Demo Mode with SCRA" ON

Turn slider for "Demo Mode with SCRA" ON

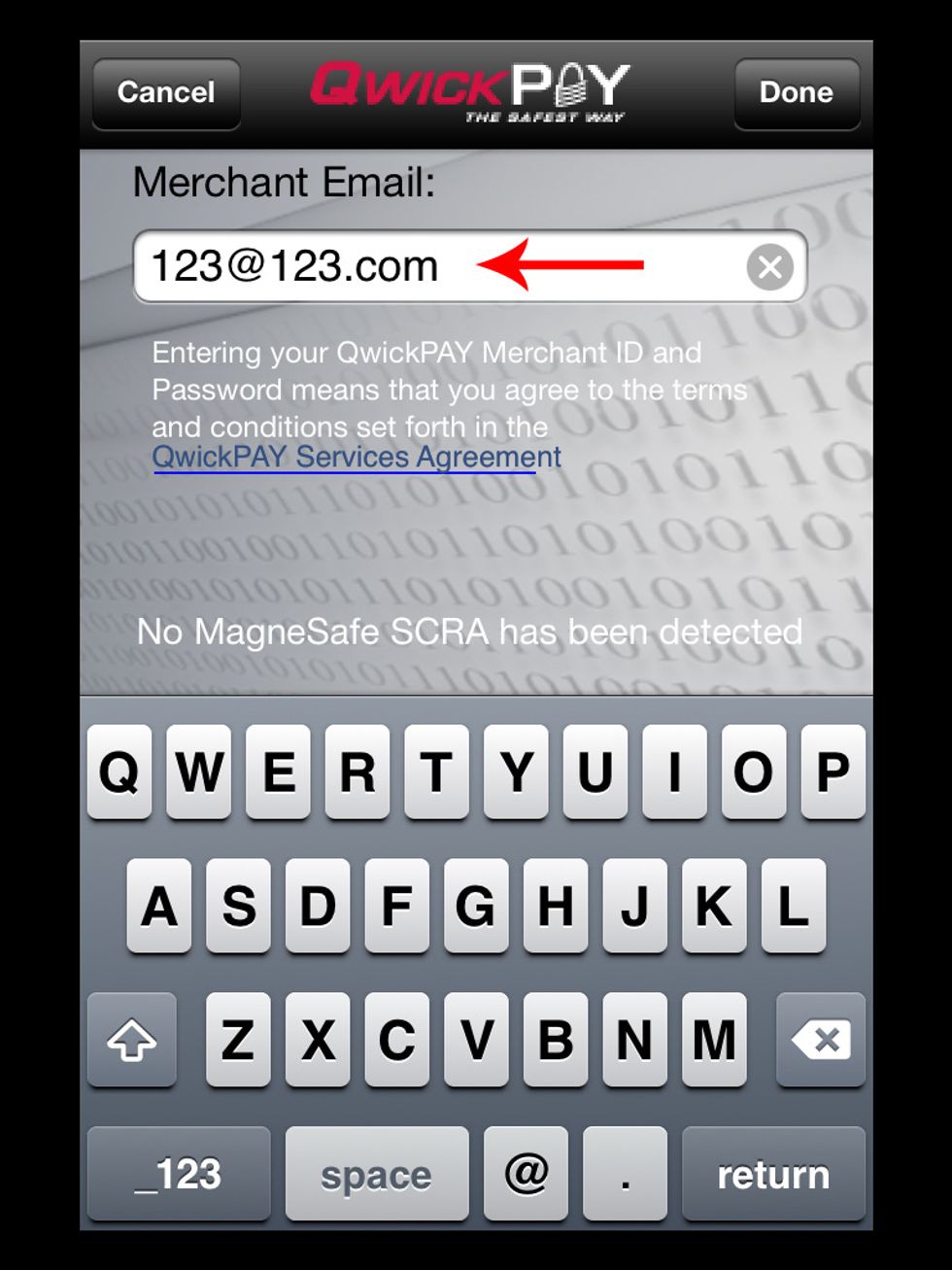

Enter any email for testing.  No emails will be sent.  We recommend 123@123.com

Enter any email for testing. No emails will be sent. We recommend 123@123.com

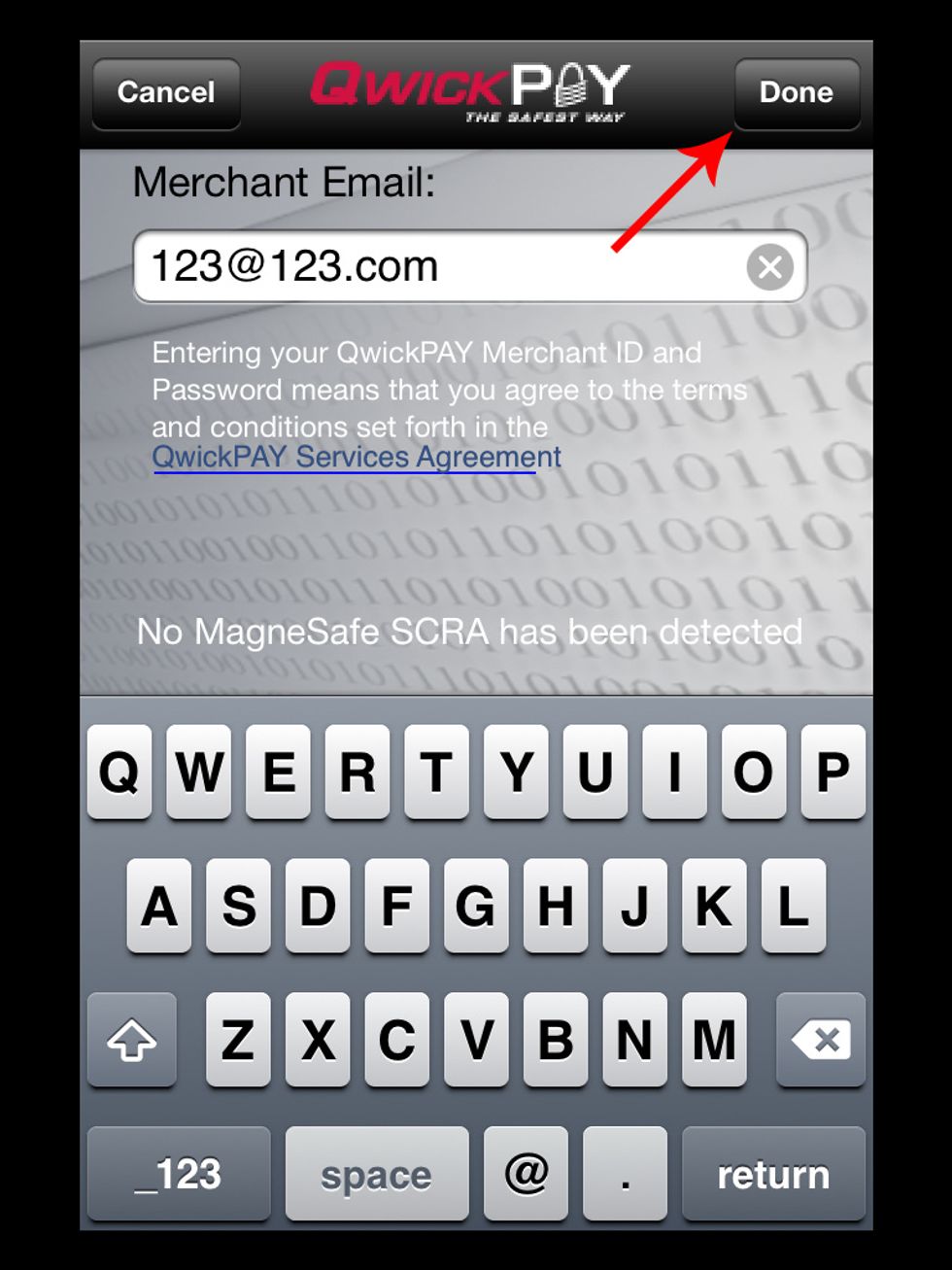

Choose DONE at the top right.

Choose DONE at the top right.

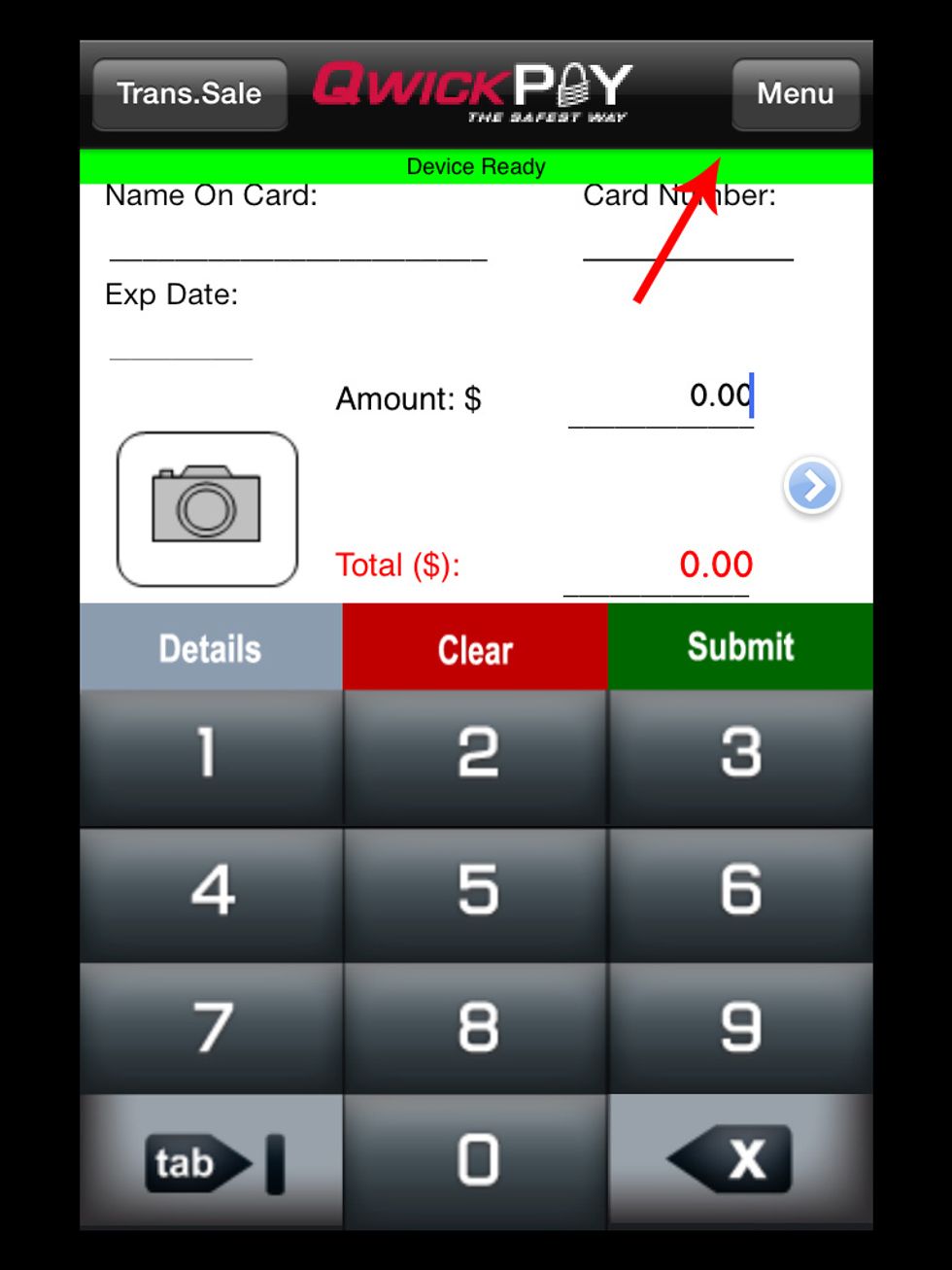

Choose MENU at the top right.

Choose MENU at the top right.

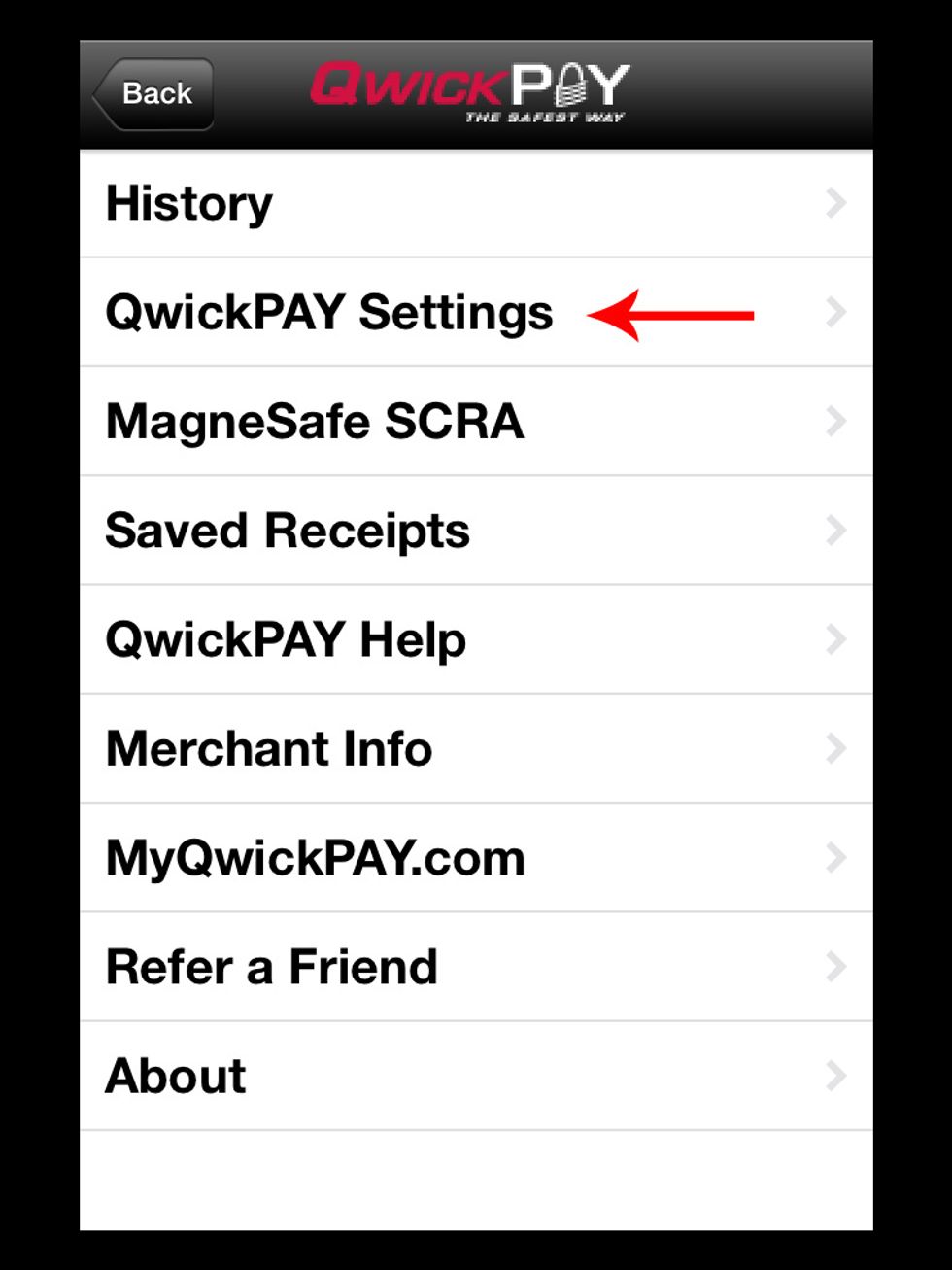

Choose QwickPAY Settings.

Choose QwickPAY Settings.

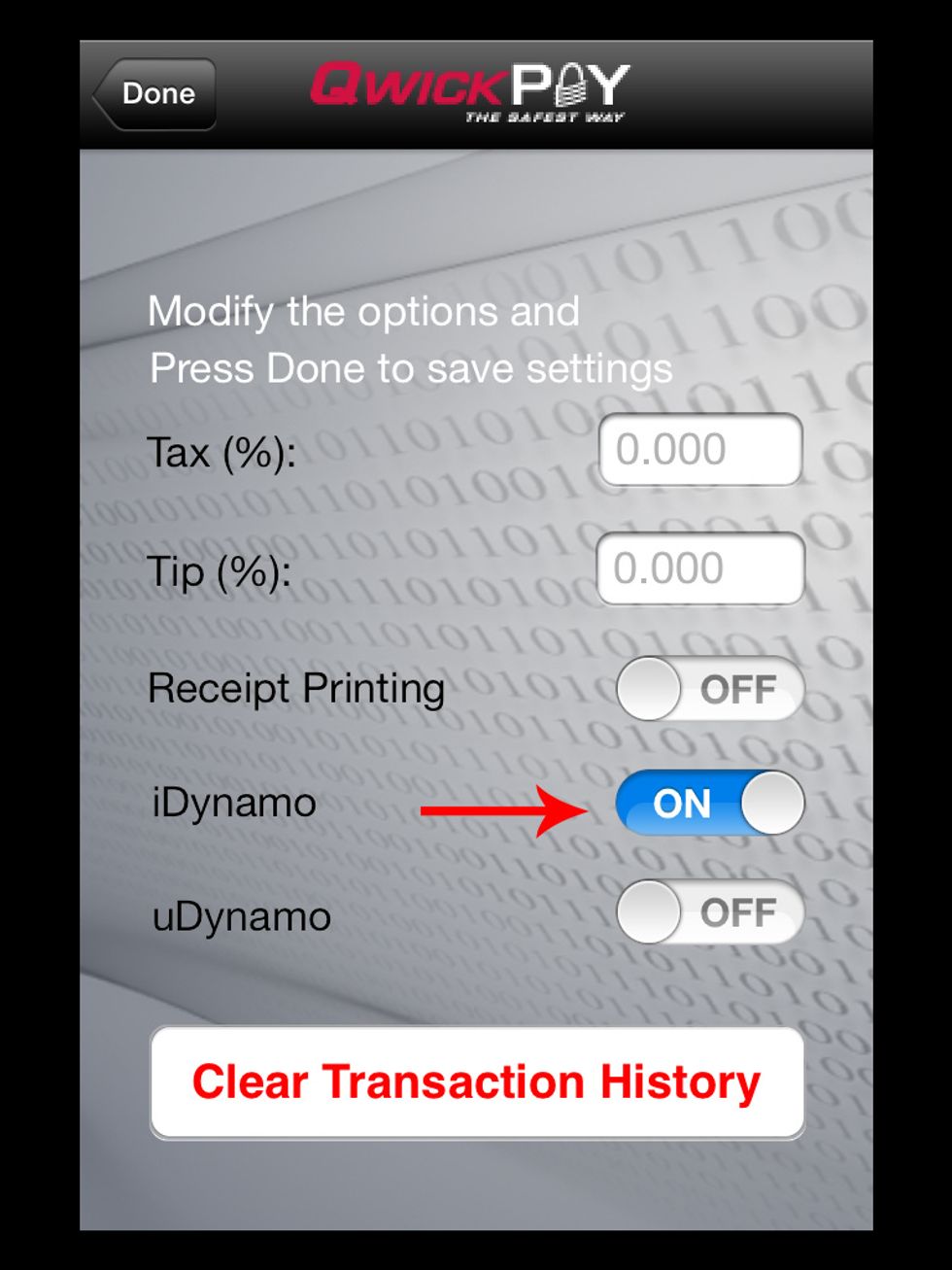

Turn iDynamo ON if necessary. Choose DONE.

Turn iDynamo ON if necessary. Choose DONE.

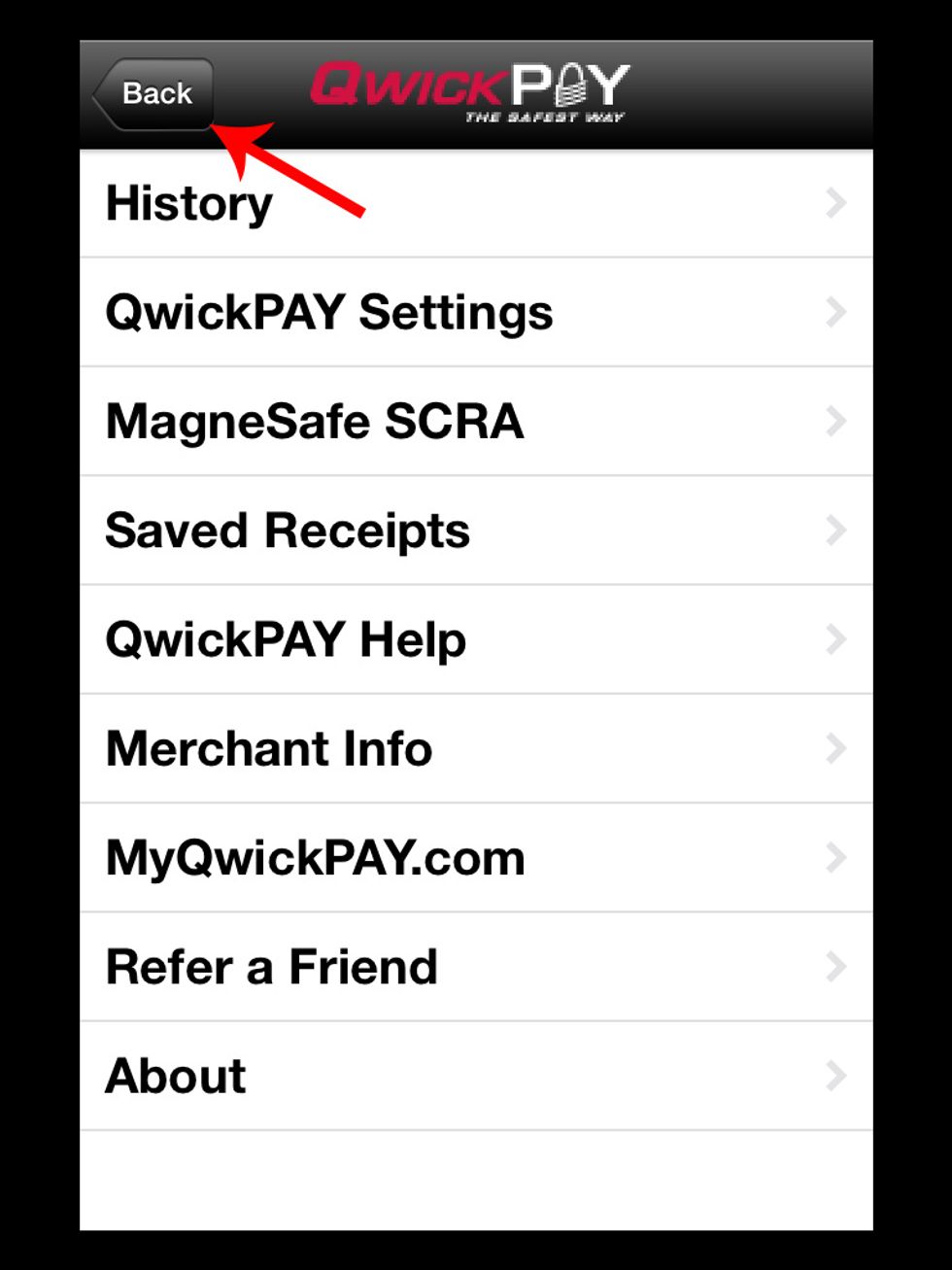

Choose BACK.

Choose BACK.

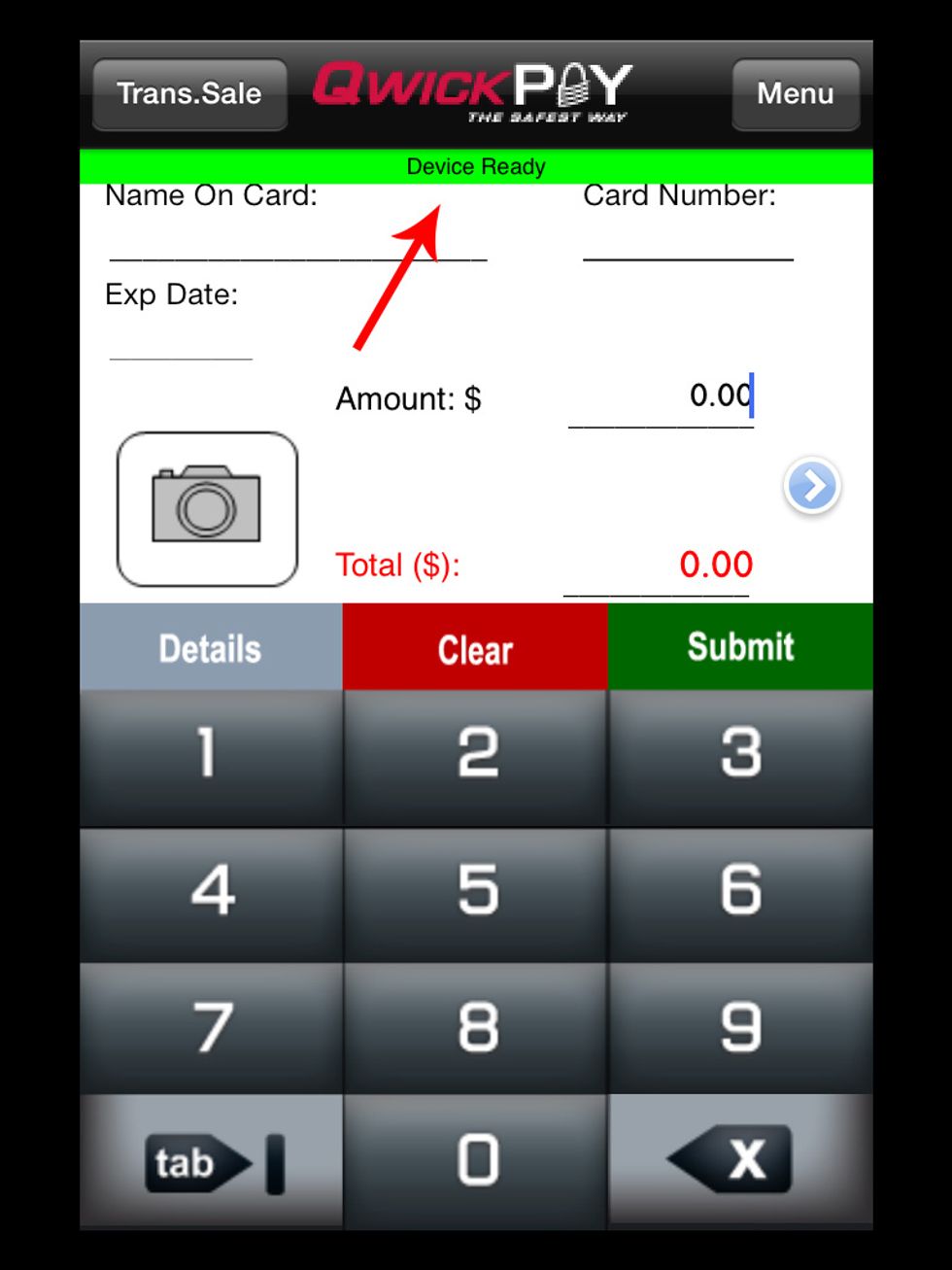

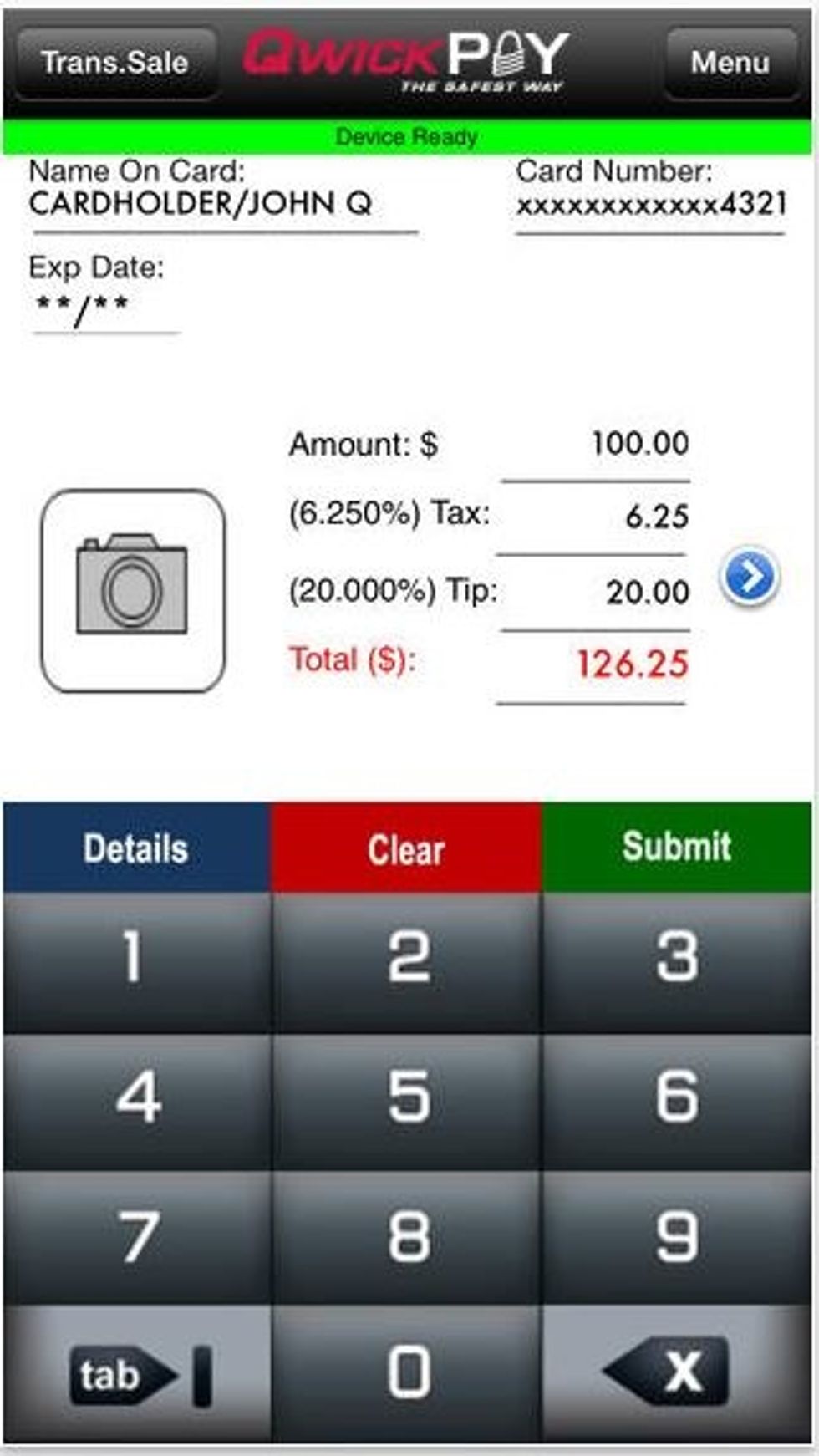

You should see the green bar stating DEVICE READY.  If this does not happen, remove the enclosure and test again.  If it fails, you have a faulty iDynamo5 and should contact MAGTEK.

You should see the green bar stating DEVICE READY. If this does not happen, remove the enclosure and test again. If it fails, you have a faulty iDynamo5 and should contact MAGTEK.

Please contact our support group at support@vaultenclosures.com for assistance.

Please contact our support group at support@vaultenclosures.com for assistance.

©2013-2014 VAULT, LLC. All rights reserved. i7p, i10, s10, m10, g10, including variations, the VAULT Logo, and all associated logos and designs are trademarks or registered trademarks VAULT, LLC.

All other registered trademarks or trademarks used in this document are the property of their respective owners.

Visit www.vaultenclosures.com to see all of our tablet protection solutions.

Visit www.vaultenclosures.com to see all of our tablet protection solutions.

  • 1.0 VAULT Enclosure
  • 1.0 Apple iPad MINI (not included)
  • 1.0 MAGTEK iDynamo5 (not included)
  • 1.0 MAGTEK QwikPay App (Download from App Store)
