Assemble a Henry U.S. Survival .22 Long Rifle

1
STEPS
TOOLS
Never touch a firearm without a parent's permission and without reading the owner's manual.

Never touch a firearm without a parent's permission and without reading the owner's manual.

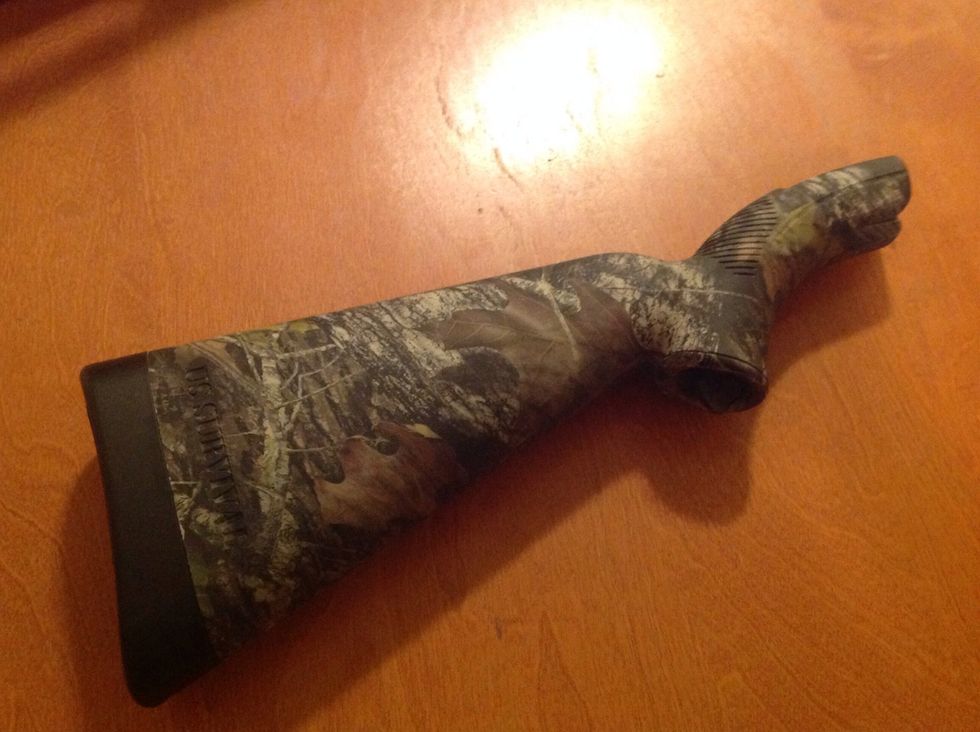

This is your new Henry U.S. Survival .22!

This is your new Henry U.S. Survival .22!

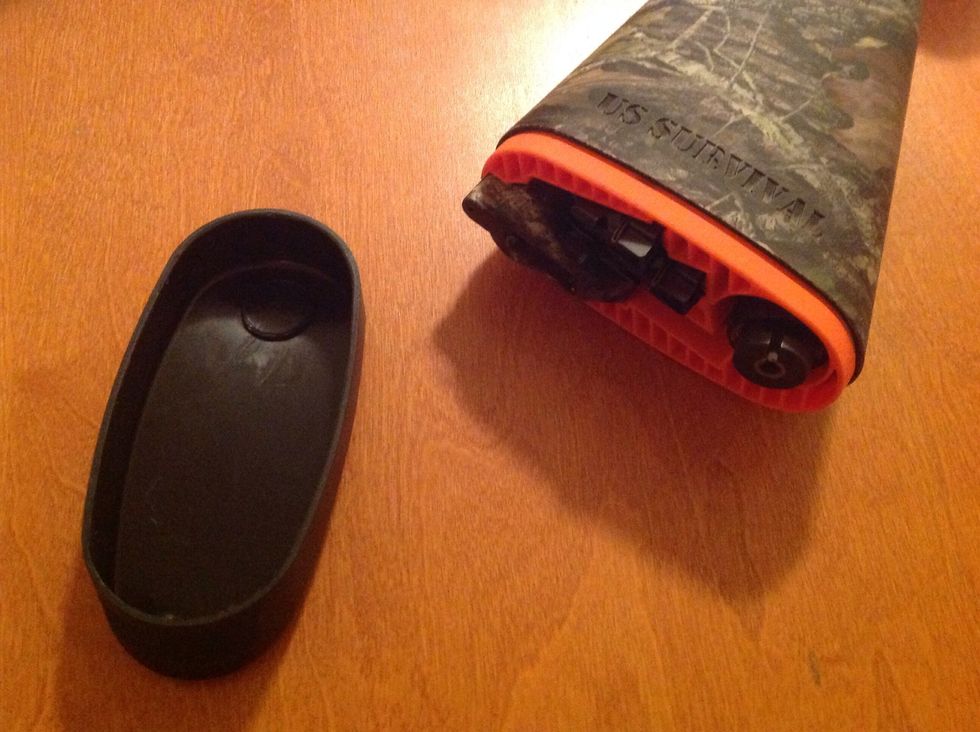

Remove the plastic cap on the rear of the stock (the butt end of the gun). Careful! It might come off hard if it is new!

Remove the plastic cap on the rear of the stock (the butt end of the gun). Careful! It might come off hard if it is new!

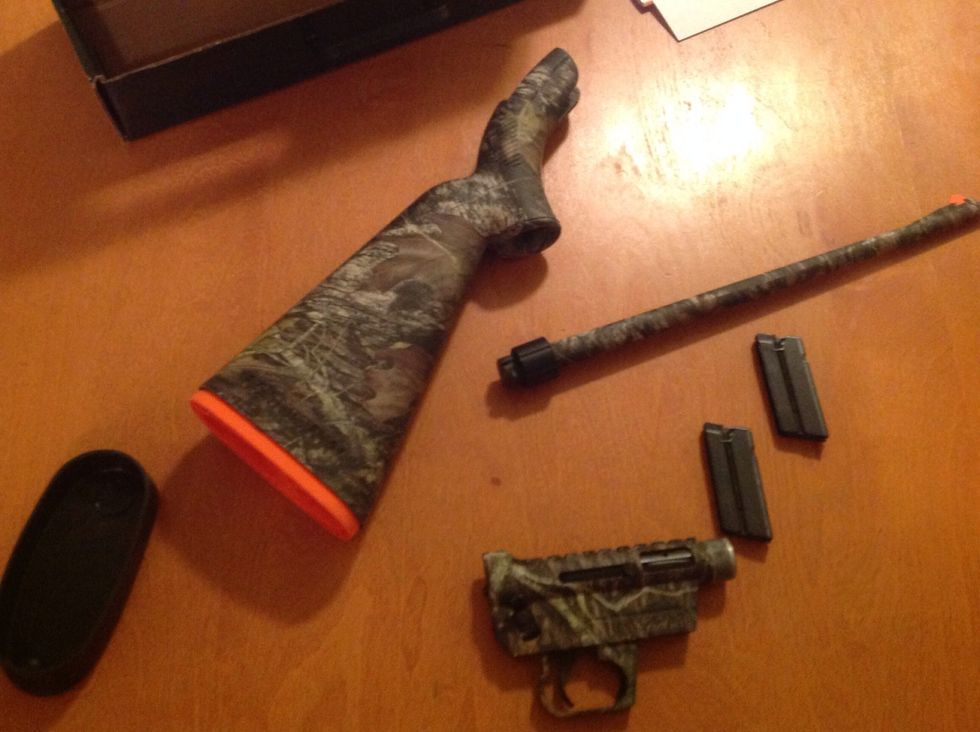

Inside the stock of the rifle you will find four parts. The receiver, the barrel, and two magazines. Remove them from the stock and set them off to the side.

Inside the stock of the rifle you will find four parts. The receiver, the barrel, and two magazines. Remove them from the stock and set them off to the side.

Put the plastic cap back on the end of the stock.

Put the plastic cap back on the end of the stock.

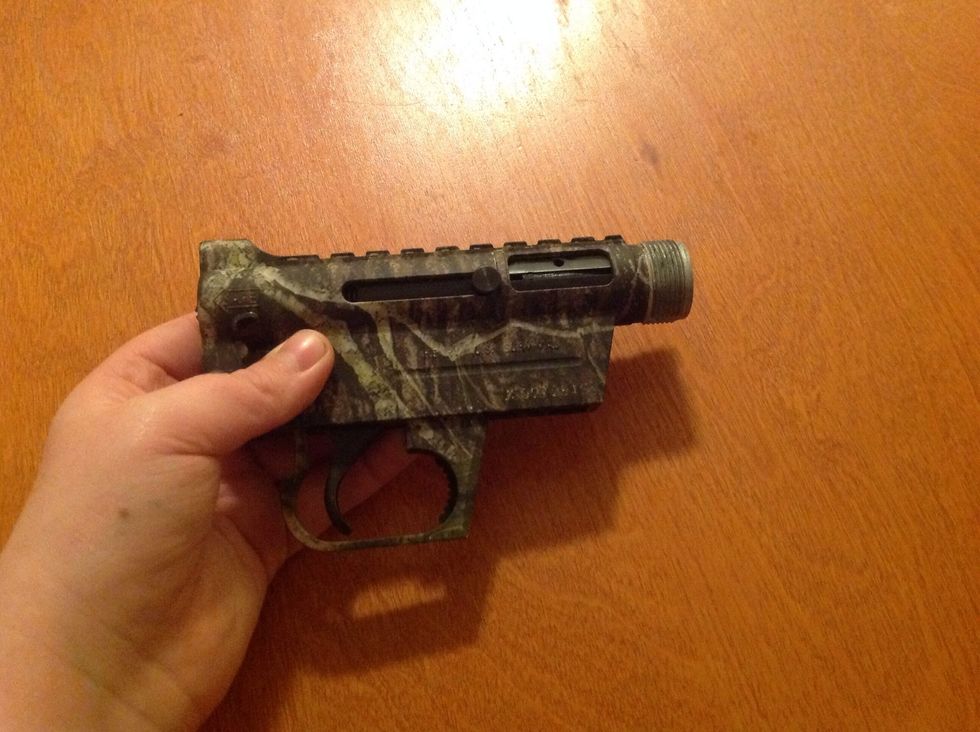

Now pick up the receiver, which is the squarish thing with the trigger on it.

Now pick up the receiver, which is the squarish thing with the trigger on it.

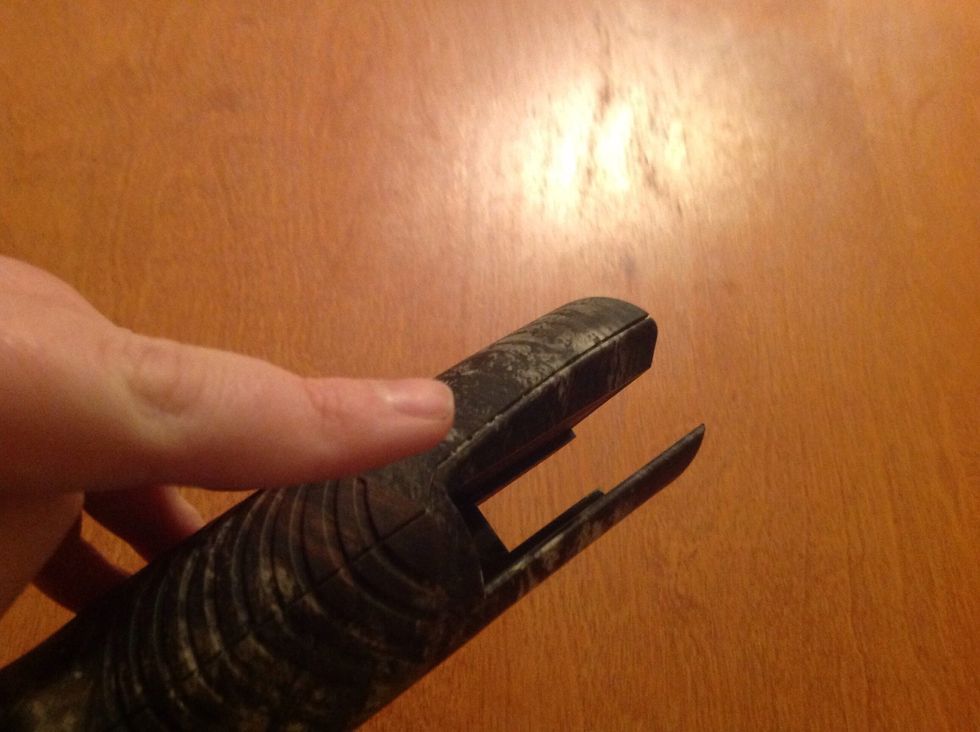

At the same time locate the slit for the receiver on the front end of the stock.

At the same time locate the slit for the receiver on the front end of the stock.

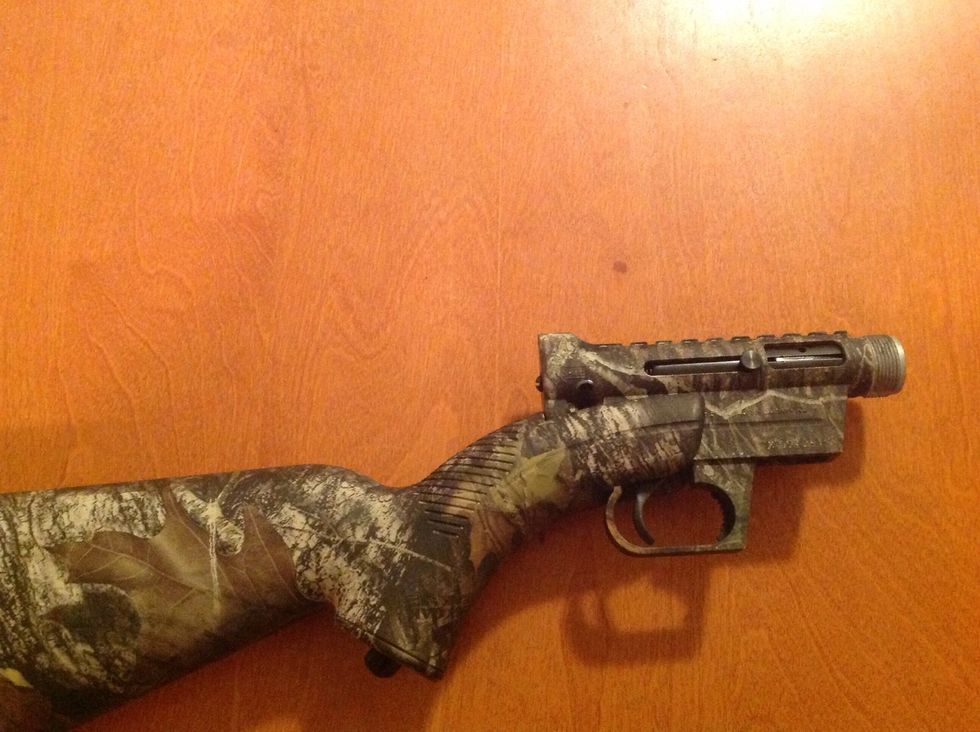

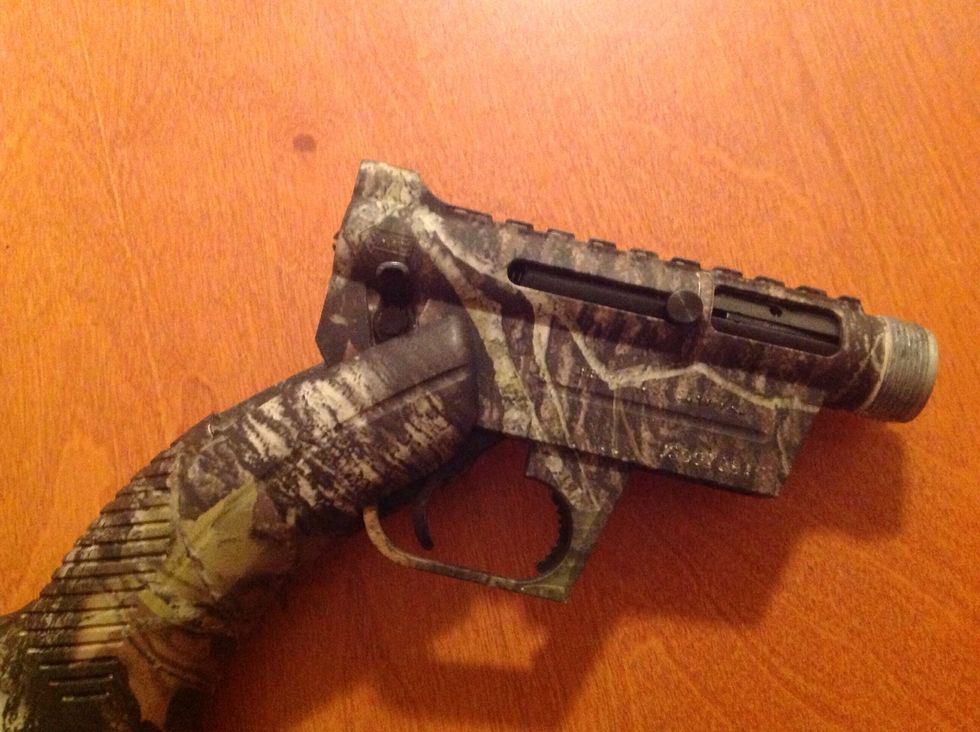

Place the receiver in the slit like so. It should fit in nice and snug.

Place the receiver in the slit like so. It should fit in nice and snug.

Now locate the turn tab on the bottom of the stock.

Now locate the turn tab on the bottom of the stock.

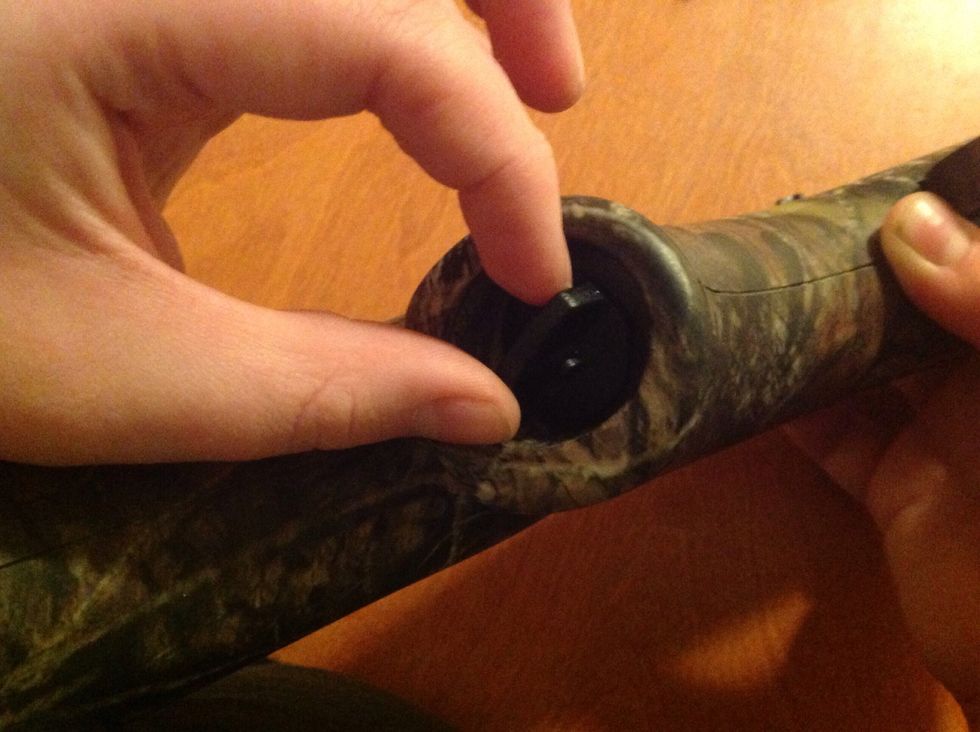

While holding the receiver in place, turn the tap clockwise so it tightens the receiver in place.

While holding the receiver in place, turn the tap clockwise so it tightens the receiver in place.

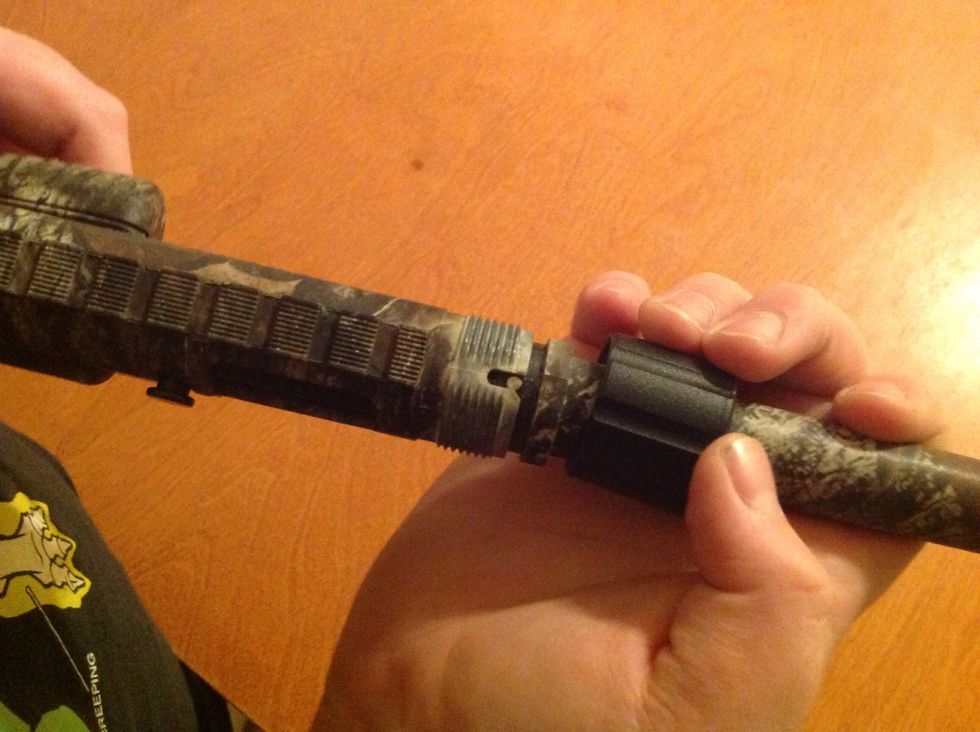

Next grab the barrel (long tube that the bullet comes out of when fired) and position it with the top of the gun like so.

Next grab the barrel (long tube that the bullet comes out of when fired) and position it with the top of the gun like so.

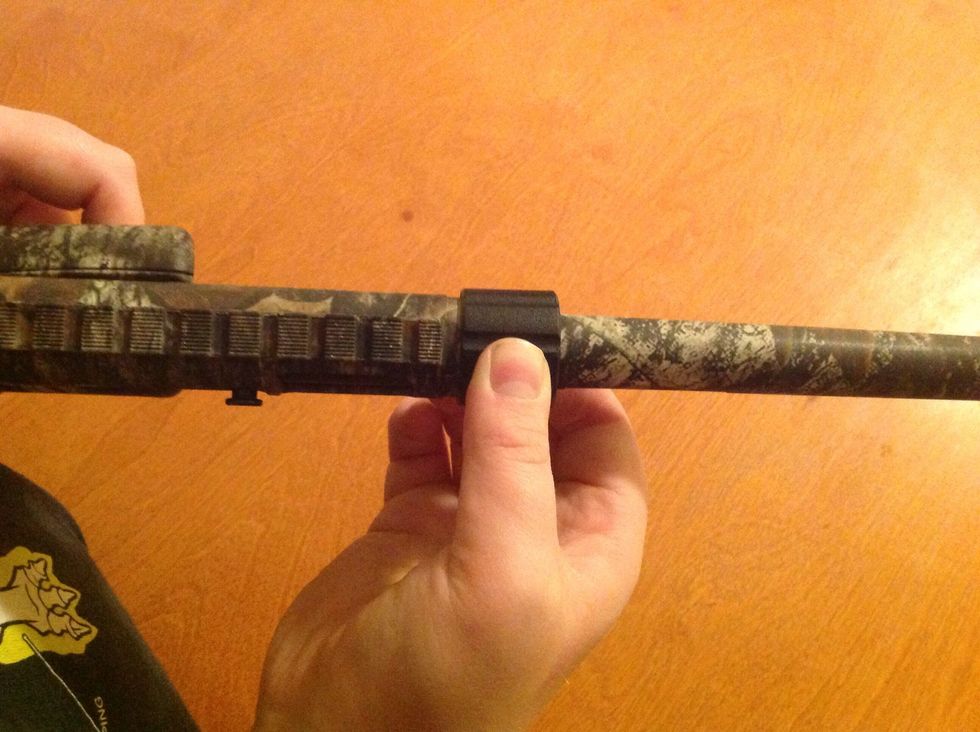

Now while pushing the barrel against the receiver take the plastic ring on the barrel and slide it down on the threaded part of the receiver and screw it together.

Now while pushing the barrel against the receiver take the plastic ring on the barrel and slide it down on the threaded part of the receiver and screw it together.

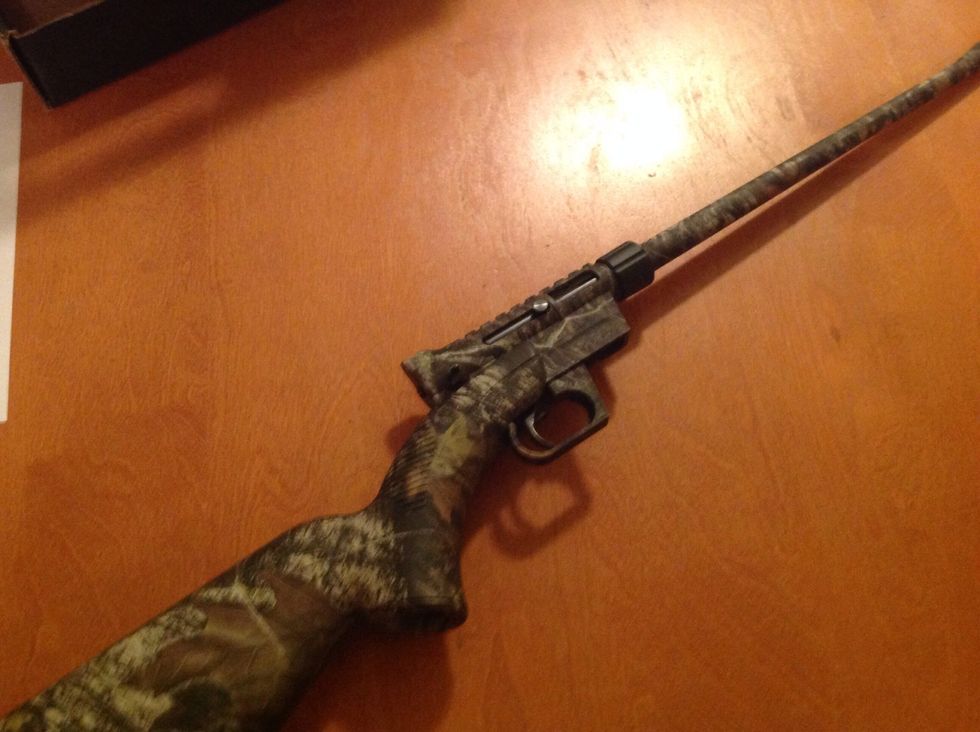

It should look like this!

It should look like this!

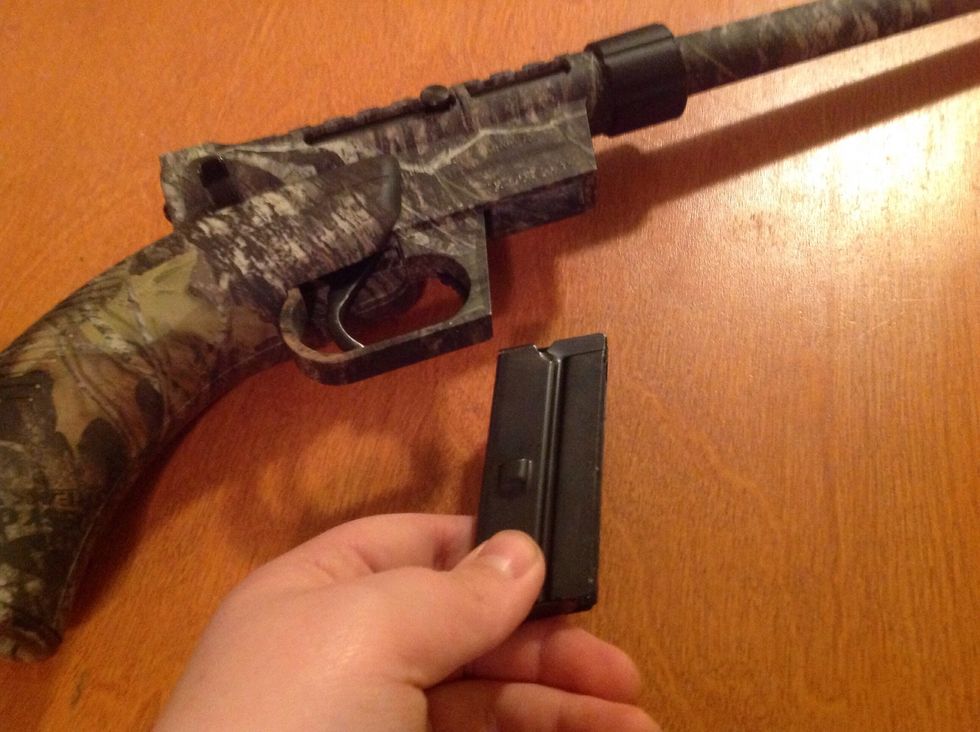

Now grab one of the magazines and insert it into the slit in front of the trigger.

Now grab one of the magazines and insert it into the slit in front of the trigger.

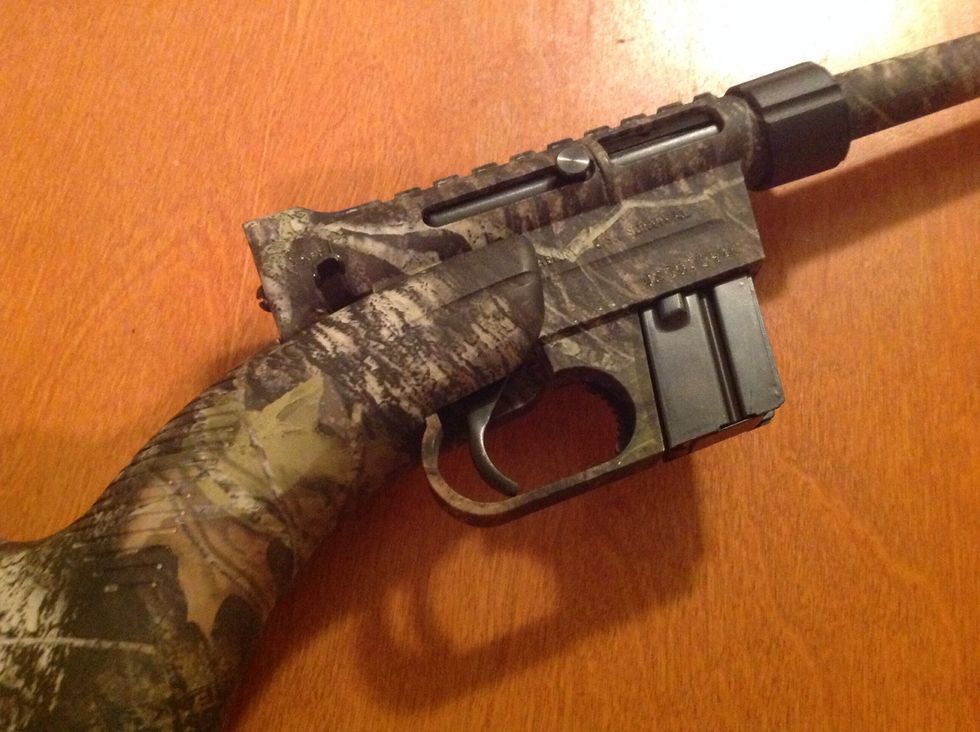

It should look like this when it is in!

It should look like this when it is in!

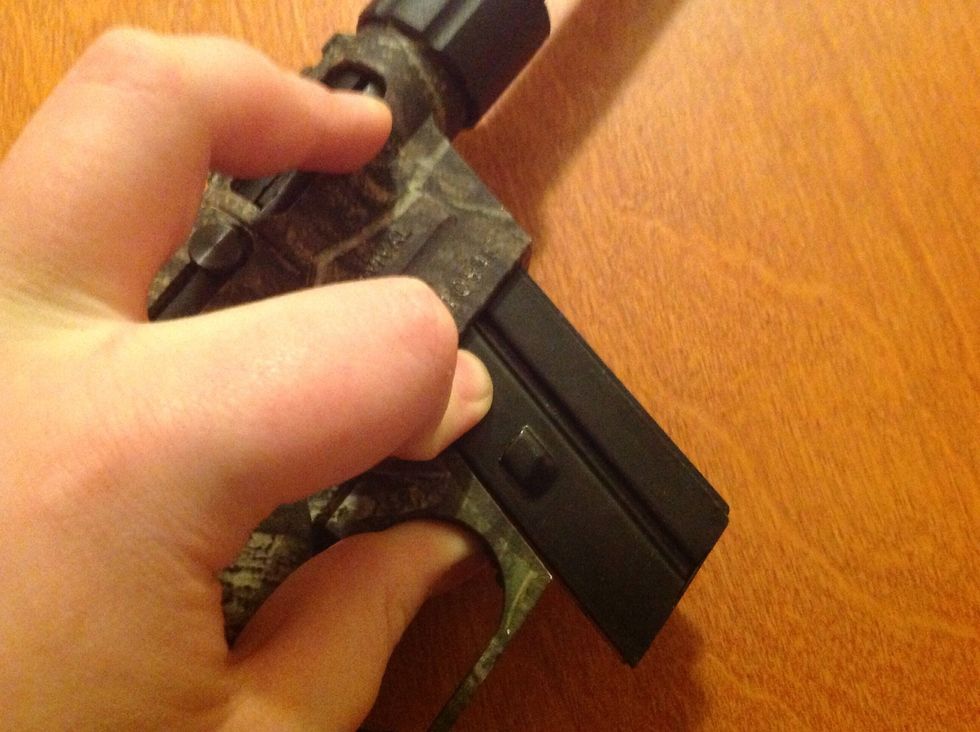

Push the button in front of the trigger to release the clip.

Push the button in front of the trigger to release the clip.

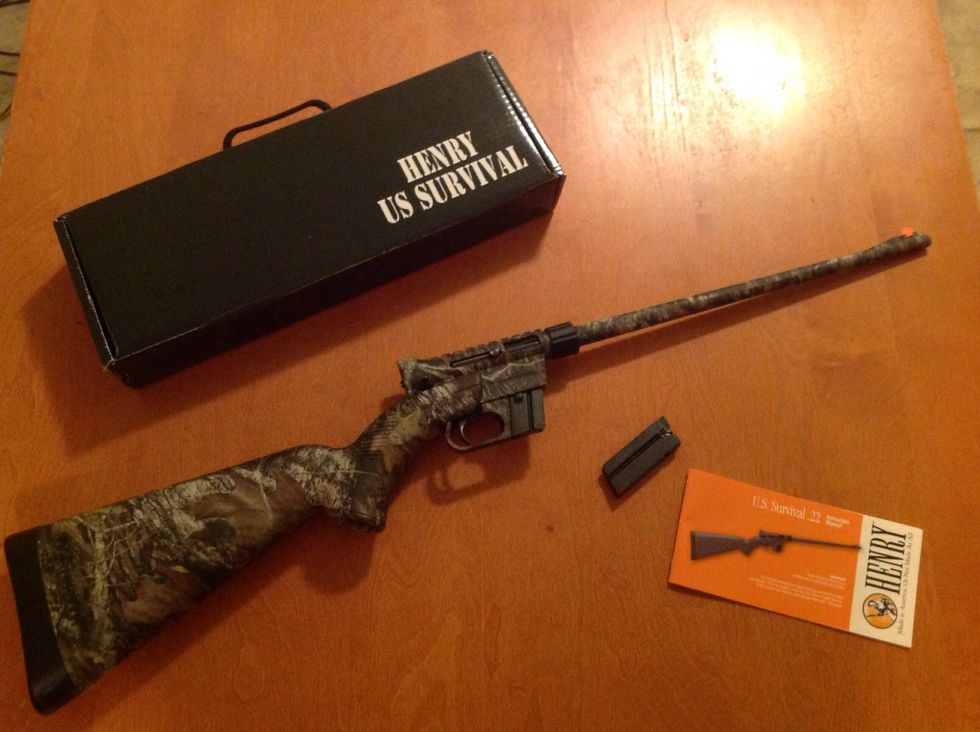

Congratulations! You have now set up the Henry U.S. Survival .22 Long Rifle! Make sure you are safe and enjoy!

Congratulations! You have now set up the Henry U.S. Survival .22 Long Rifle! Make sure you are safe and enjoy!
